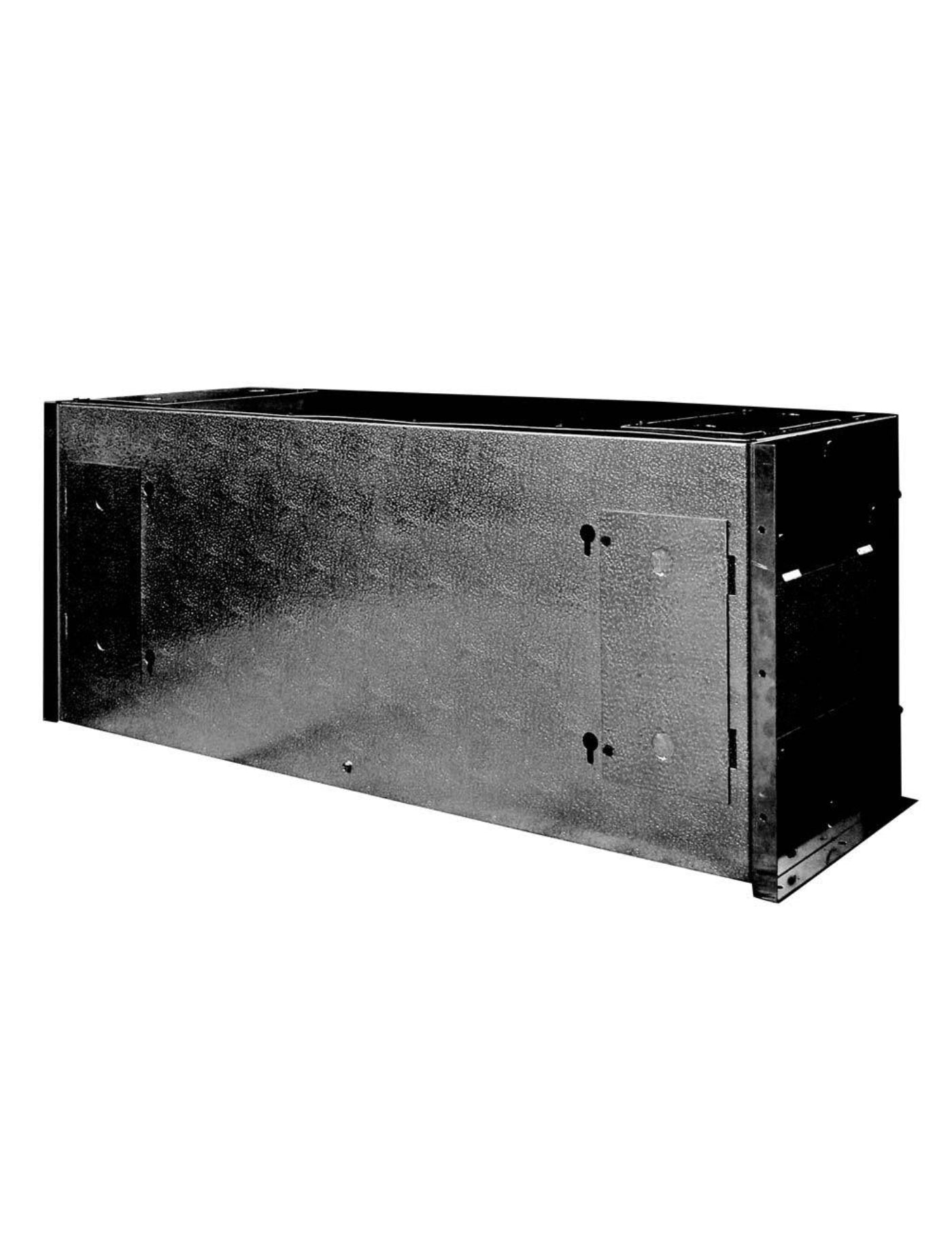

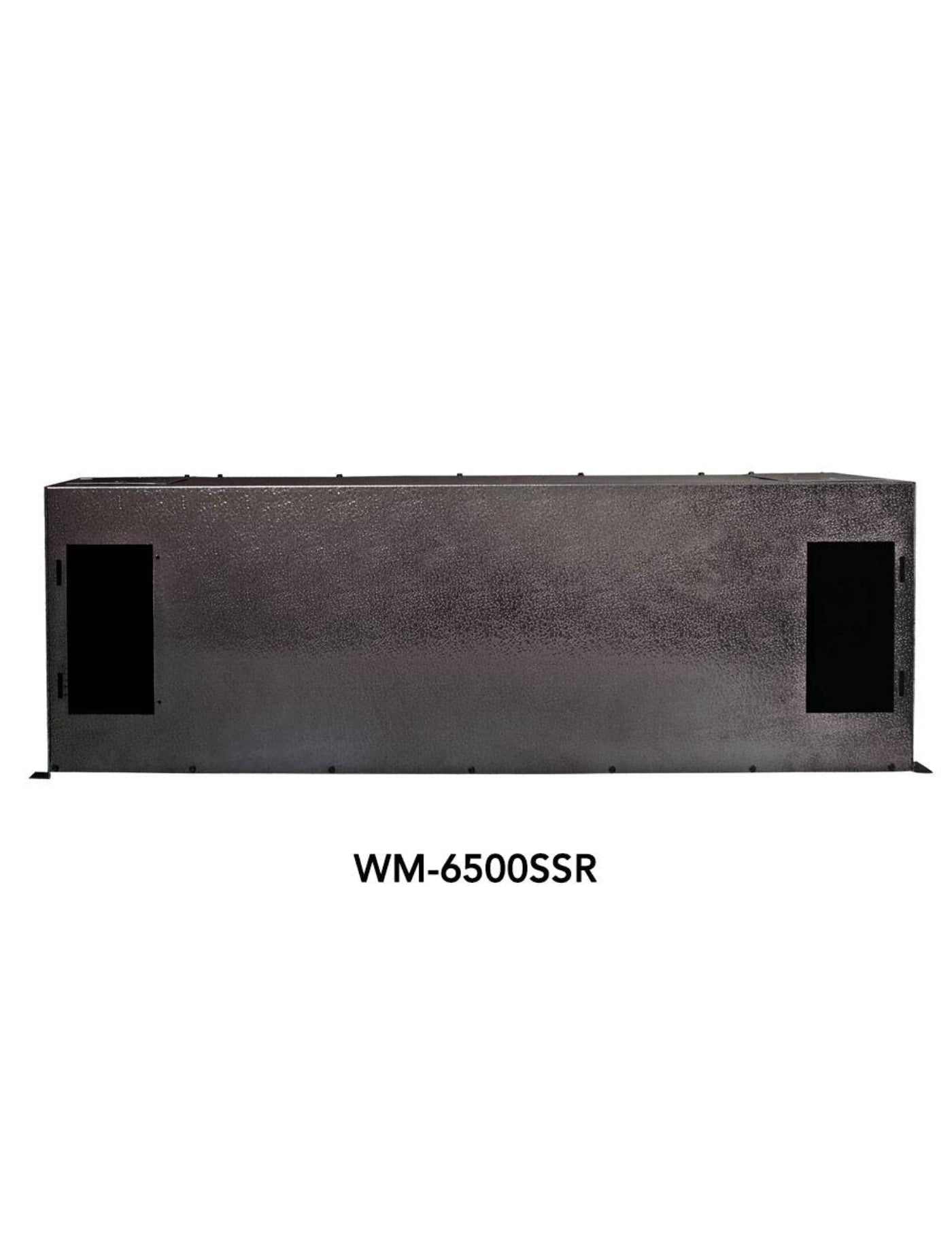

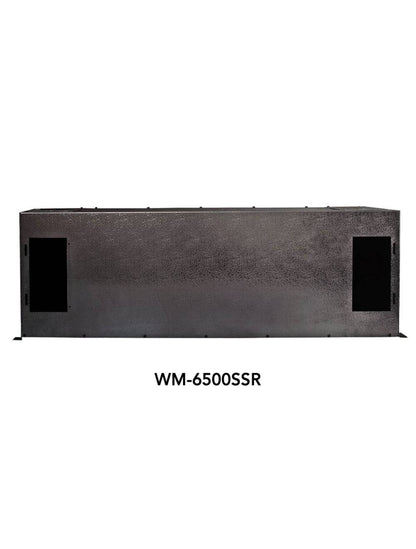

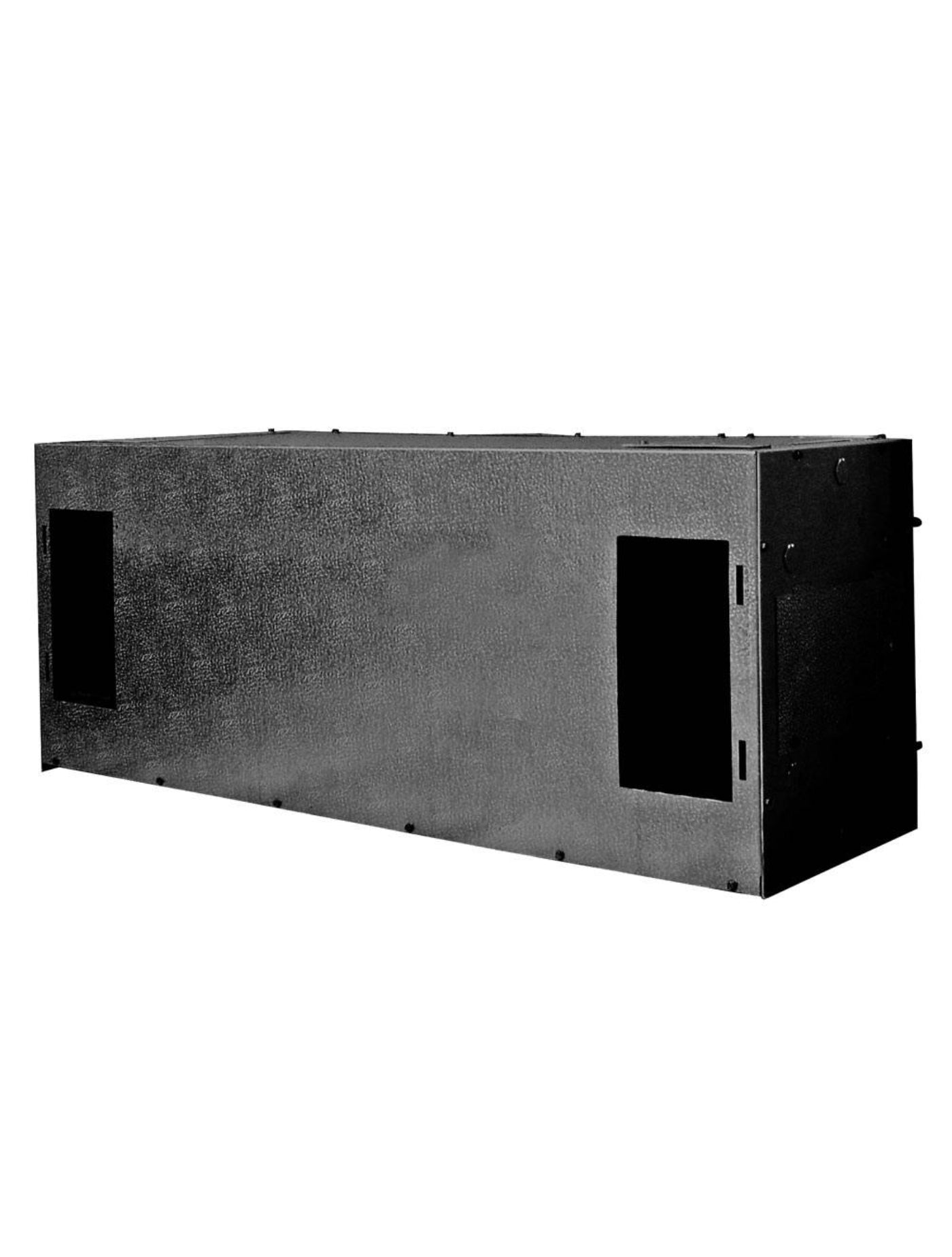

Wine-Mate Split Rack-Mounted Wine Cooling System - WM-6500SSR

Wine-Mate Split Rack-Mounted Wine Cooling System - WM-6500SSR

Features

• SPLIT SYSTEM COOLING UNIT – rack mounted system
• SSR cooling systems consist of a remote condensing unit and an evaporator unit and they are connected by a liquid line and an insulated suction line.
• SSR evaporator/fan units have a special coil coating.
• SSR evaporator/fan units are designed for horizontal installation and can be installed inside a wine rack or between two ceiling joists, making them an ideal choice for small to medium wine cellars. There are also multiple air inlet and outlet doors for different installations.
• SSR condensing units can be located away from the wine cellar up to 75 ft so that noise and compressor vibrations are isolated.
• SSR condensing units shall not be exposed to temperatures higher than 110°F or lower than 50°F.
• If the exhaust ambient temperature exceeds 110 °F, one size larger unit must be used.
• Low ambient kit for below 50°F cold weather operation
• TEMPERATURE: The WM-6500SSR cooling unit is designed and used to provide a stable temperature between 50~65°F for a properly insulated and sized space.
• AMBIENT TEMPERATURE RANGE: The ambient temperature range for WM-6500SSR should not exceed the temperature of the cellar by more than 25°F. Cellar walls should not receive direct sun or strong wind. Lighting should be low wattage and installed on a timer to ensure that lights are not left on when the cellar is unoccupied.
• HUMIDITY CONTROL: The refrigerated space will maintain humidity within the range of 50~75% RH. We use an innovative method to provide additional humidity.
• DISPLAY: Digital display with easy push-button controls
• NOTIFICATIONS: Display notifications provide alerts help to protect your wine cellar and alert you when maintenance is required.
• CONTROL PANEL: Control panel includes digital display, manual defrost button, up and down arrows to adjust temperature as well as browse parameters, power button, and SET button.
• Outdoor enclosure is included with condensing unit
• This unit can be configured for use with 220V outlets. Please call us at 1-800-777-8466 for more details.


What our Experts Think

• High-capacity rack-mounted solution — the Wine-Mate WM-6500SSR is designed for split installation in commercial or large residential wine storage, supporting hundreds of bottles with precise climate control.
• Split-system design — separates the condenser/compressor from the cooling unit, minimizing vibration and heat in the storage area to protect delicate wines.
• Rack-mount flexibility — ideal for integration into custom wine racking systems, allowing efficient airflow and uniform temperature distribution.
• Digital control and monitoring — precise temperature and humidity management ensures optimal conditions for both red and white wines.
• Quiet, energy-efficient operation — engineered for low-noise performance and reduced energy consumption, suitable for residential or commercial environments.
• Expert verdict: perfect for serious collectors, wine bars, or restaurants seeking reliable, professional-grade climate control for large collections.
• Best suited for: high-volume wine storage projects where consistent temperature, humidity, and minimal vibration are critical for wine preservation.

Q&A

Maintenance Tips

• Clean air filters: Wash or vacuum filters every 3–6 months to maintain airflow and efficiency.
• Inspect condenser and coils: Remove dust and debris to prevent overheating and ensure optimal cooling.
• Check refrigerant levels: Have a licensed technician inspect annually for proper system performance.
• Maintain ductwork: Keep ducts clear to deliver consistent temperatures to all wine storage areas.
• Monitor temperature & humidity: Ensure the system maintains the ideal 50–60°F and 50–70% humidity range.
• Check electrical connections: Periodically inspect wiring for wear or corrosion.
• Schedule professional servicing: Annual service by a certified HVAC or wine-cooling technician keeps the system reliable.
