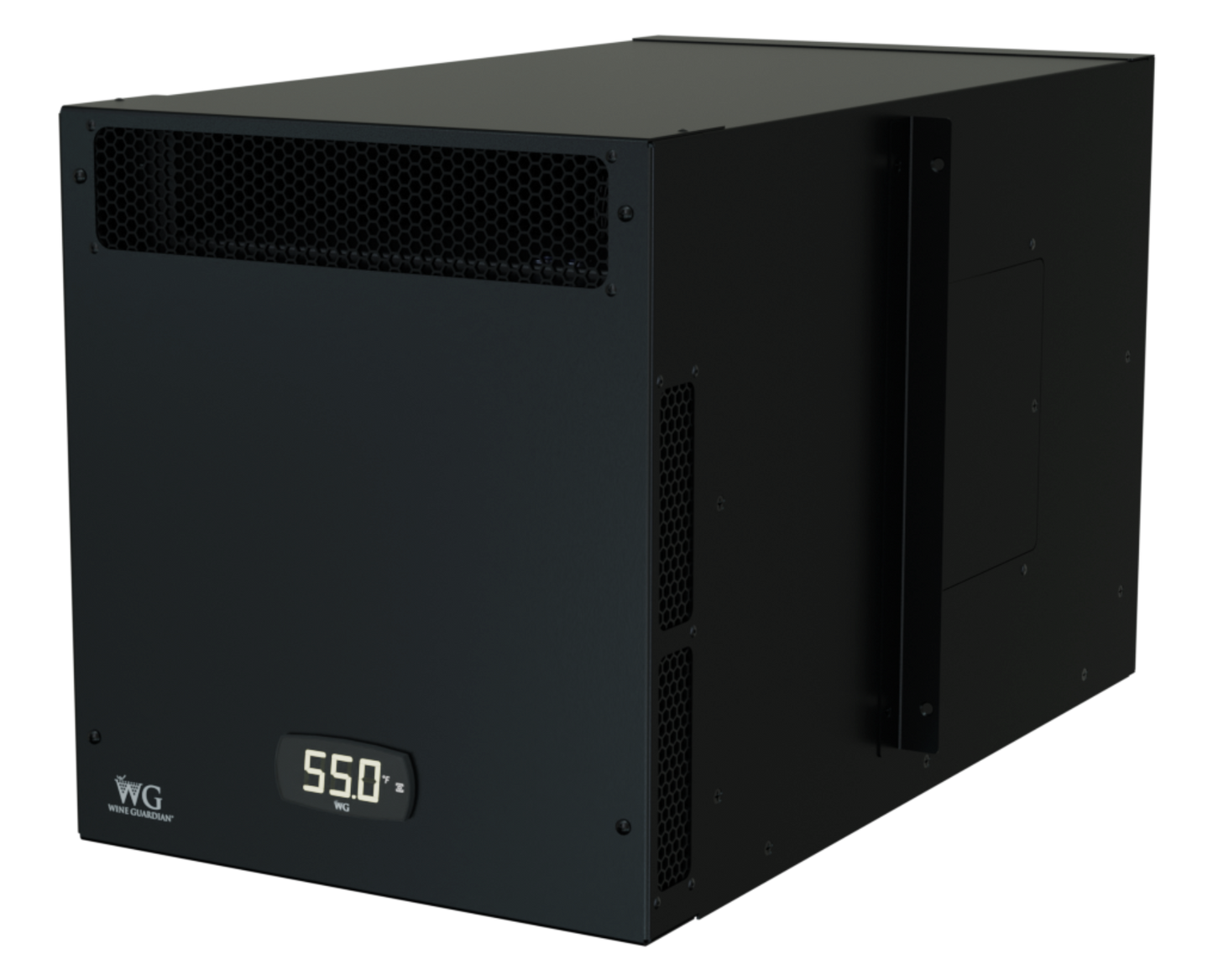

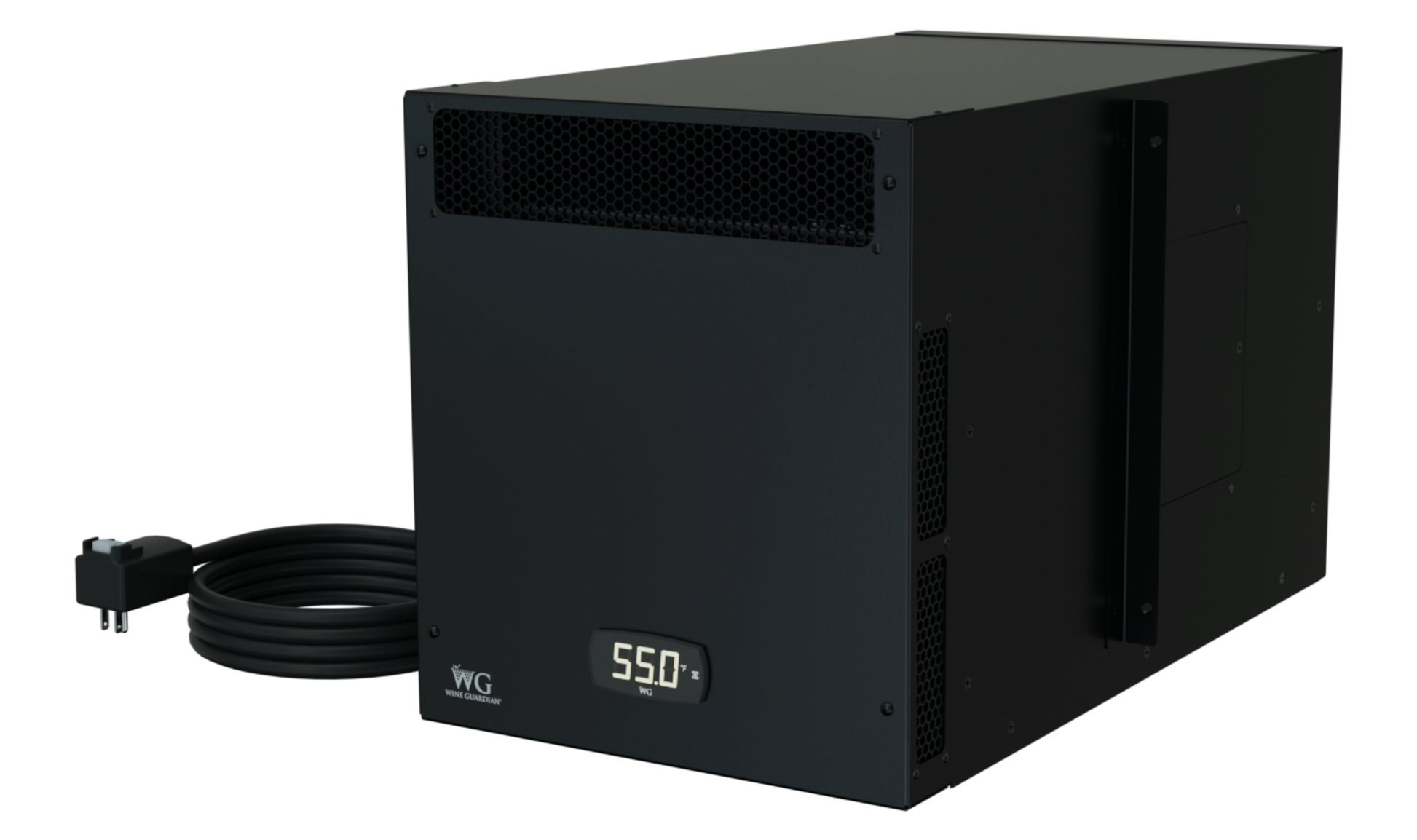

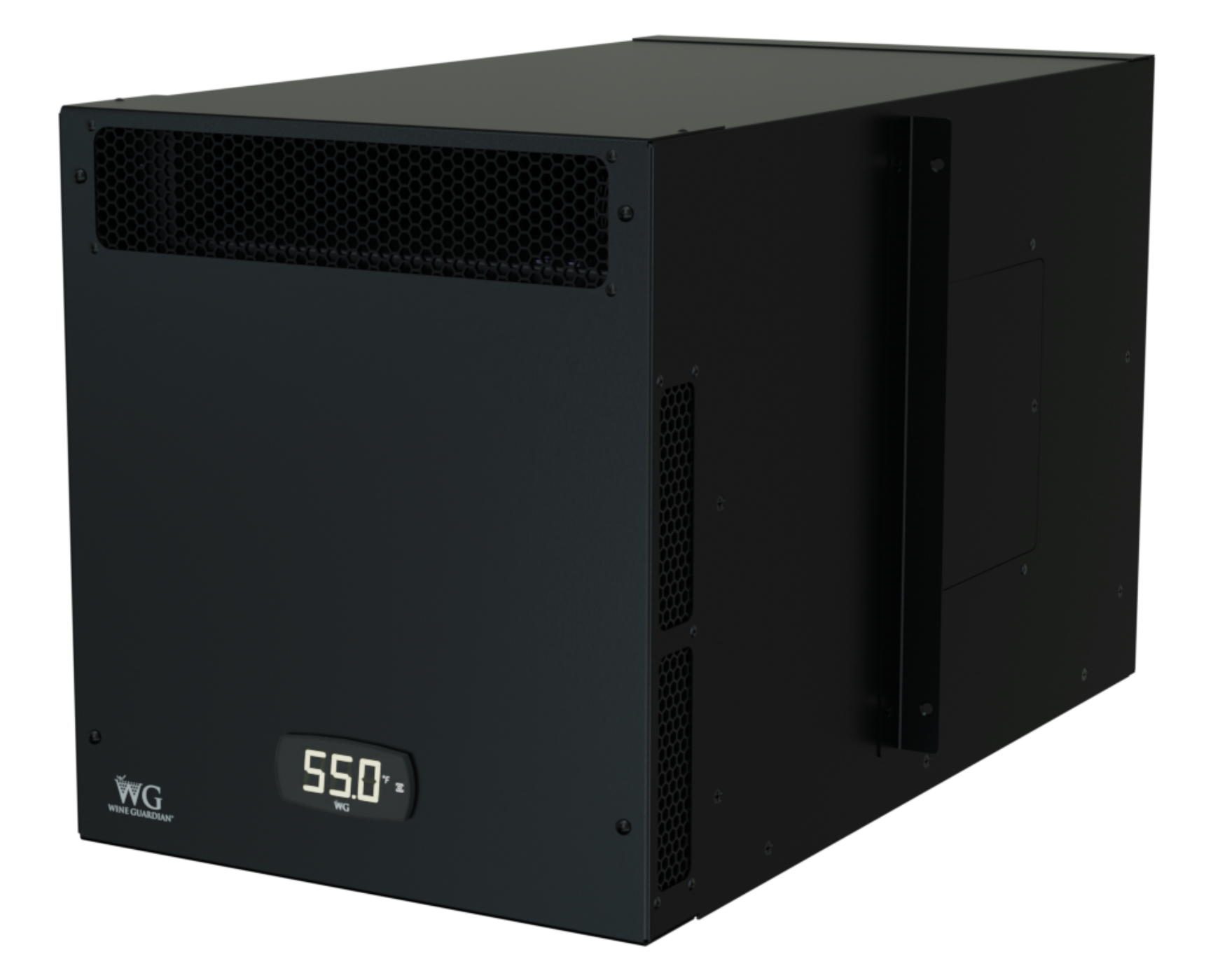

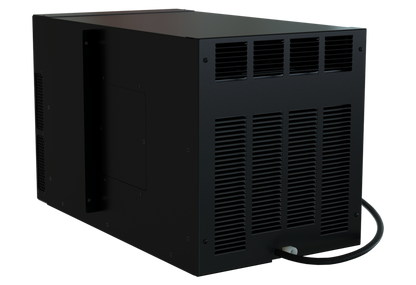

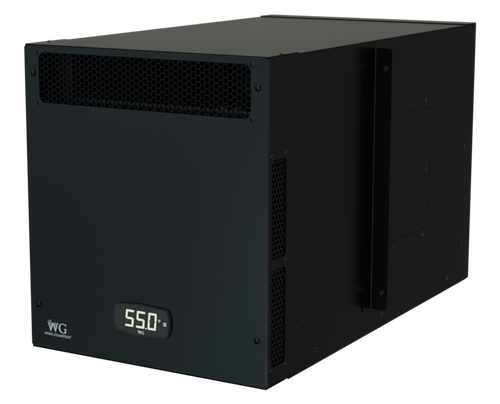

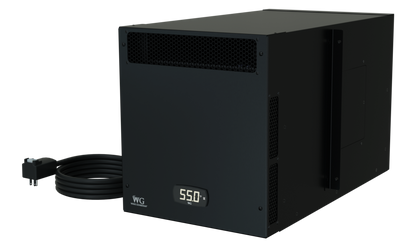

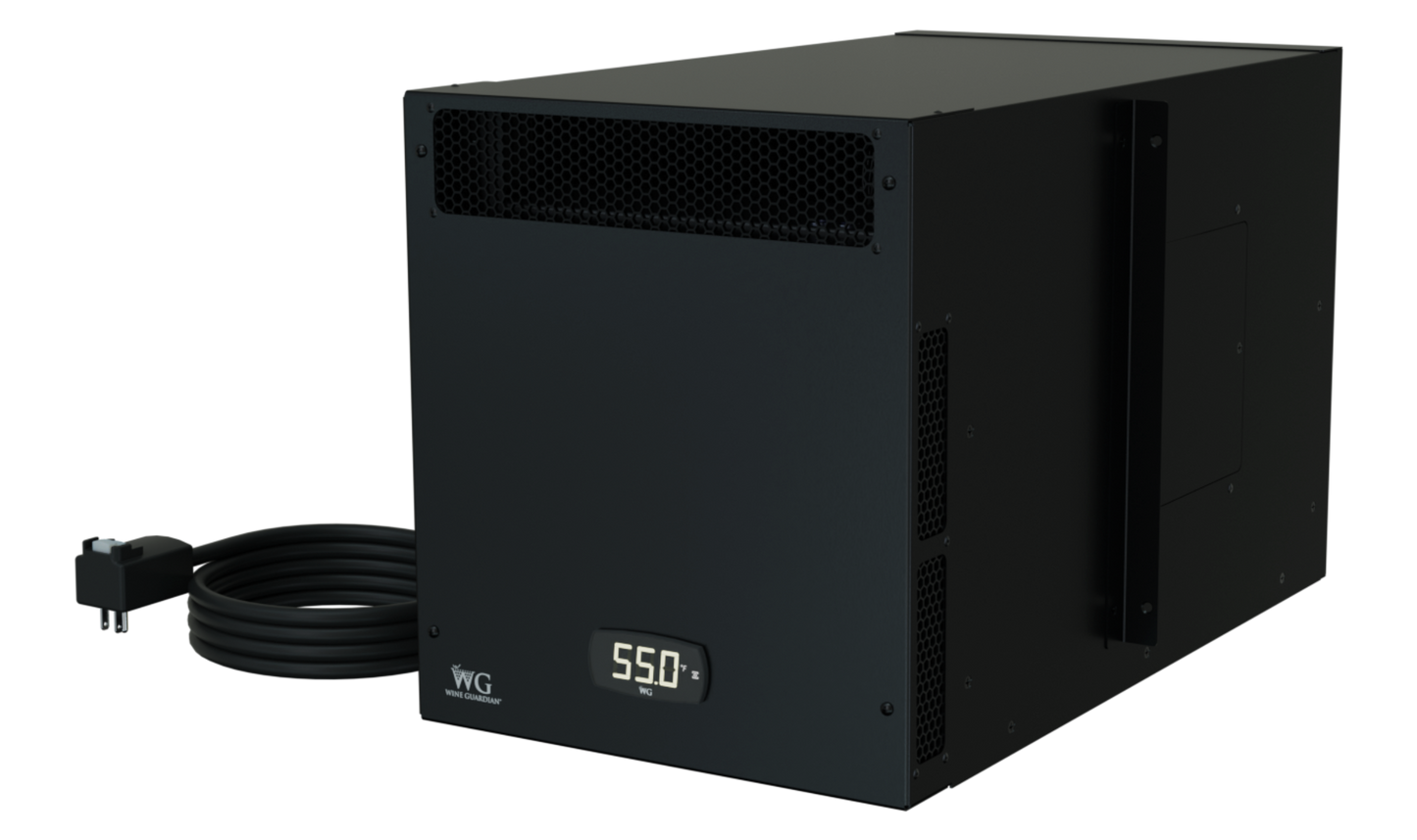

Wine Guardian TTW02B Classic - Through the Wall Wine Cellar Cooling Unit - 1779454692379_308

Wine Guardian TTW02B Classic - Through the Wall Wine Cellar Cooling Unit - 1779454692379_308

The Wine Guardian TTW02 Classic Series offers essential wine cellar cooling at an exceptional value. With a standard plug connection and simplified design, this unit offers precise temperature control and effortless installation for indoor use.

Uses the standard USA Type B plug.

What our Experts Think

• Reliable mid-capacity cellar cooling - Delivers approximately 2,650 BTU/h cooling capacity, making it well-suited for medium-sized wine rooms requiring stable temperature control.
• Classic Series simplicity advantage - Designed for value-focused collectors who want dependable cooling performance without advanced system complexity or add-ons.
• Easy through-the-wall installation - Plug-in design with standard Type B 120V connection supports straightforward indoor installation without specialized contractor requirements.
• Consistent wine preservation environment - Maintains steady cellar conditions to protect aging potential, flavor integrity, and long-term storage stability.
• Compact, space-efficient build - Engineered to fit cleanly within wall installations while maintaining strong airflow performance for uniform cooling distribution.
• Indoor-use focused design - Intended strictly for interior wall applications, ensuring optimal efficiency and system longevity when properly installed.
• Expert takeaway - A dependable, no-frills Wine Guardian solution offering balanced cooling performance and simple installation for serious wine storage without overcomplication.


Q&A

Q: What is the Wine Guardian TTW02B Classic Through-the-Wall Wine Cellar Cooling Unit used for?
A: The Wine Guardian TTW02B Classic is a through-the-wall cooling system designed to maintain stable temperature conditions in small to medium wine cellars, helping preserve wine quality by preventing heat swings and environmental damage.

Q: What is the cooling capacity of the TTW02B Classic?
A: It provides approximately 2,650 BTU/h at standard cellar conditions (75°F reference), making it suitable for compact wine rooms and residential wine cellars.

Q: How is the TTW02B Classic installed?
A: It is a through-the-wall, self-contained unit that installs into a wall opening between studs and plugs into a standard 120V outlet, with no need for ducting or external refrigeration lines.

Q: Does it require professional installation?
A: No. It is designed as a DIY-friendly system, allowing homeowners to install it directly through an interior wall without HVAC contractors.

Q: Can the TTW02B Classic be used on exterior walls?
A: No. This model is not rated for exterior installation and is intended for interior through-the-wall use only.

Q: Does it support humidity control?
A: No. The Classic series is not compatible with humidifiers, focusing only on temperature control.


Maintenance Tips

• Clean or replace air filters regularly to maintain airflow and stable cooling performance
• Keep intake and exhaust vents free of dust, obstructions, and nearby wall/fixture blockage
• Inspect and clean evaporator and condenser coils to prevent efficiency loss and overheating
• Ensure condensate drain or evaporation system is clear to avoid leaks and humidity imbalance
• Check wall sleeve and perimeter seals to prevent warm air infiltration into the cellar
• Maintain proper clearance around the unit for unrestricted heat exchange and airflow
• Verify thermostat and humidity sensor accuracy for stable wine storage conditions (42–64°F range)
• Inspect electrical connections and plug integrity for safe, continuous operation (120V plug-in design)
• Keep internal airflow paths clean to reduce compressor strain and noise buildup
• Schedule annual professional servicing for refrigerant check and overall system optimization
