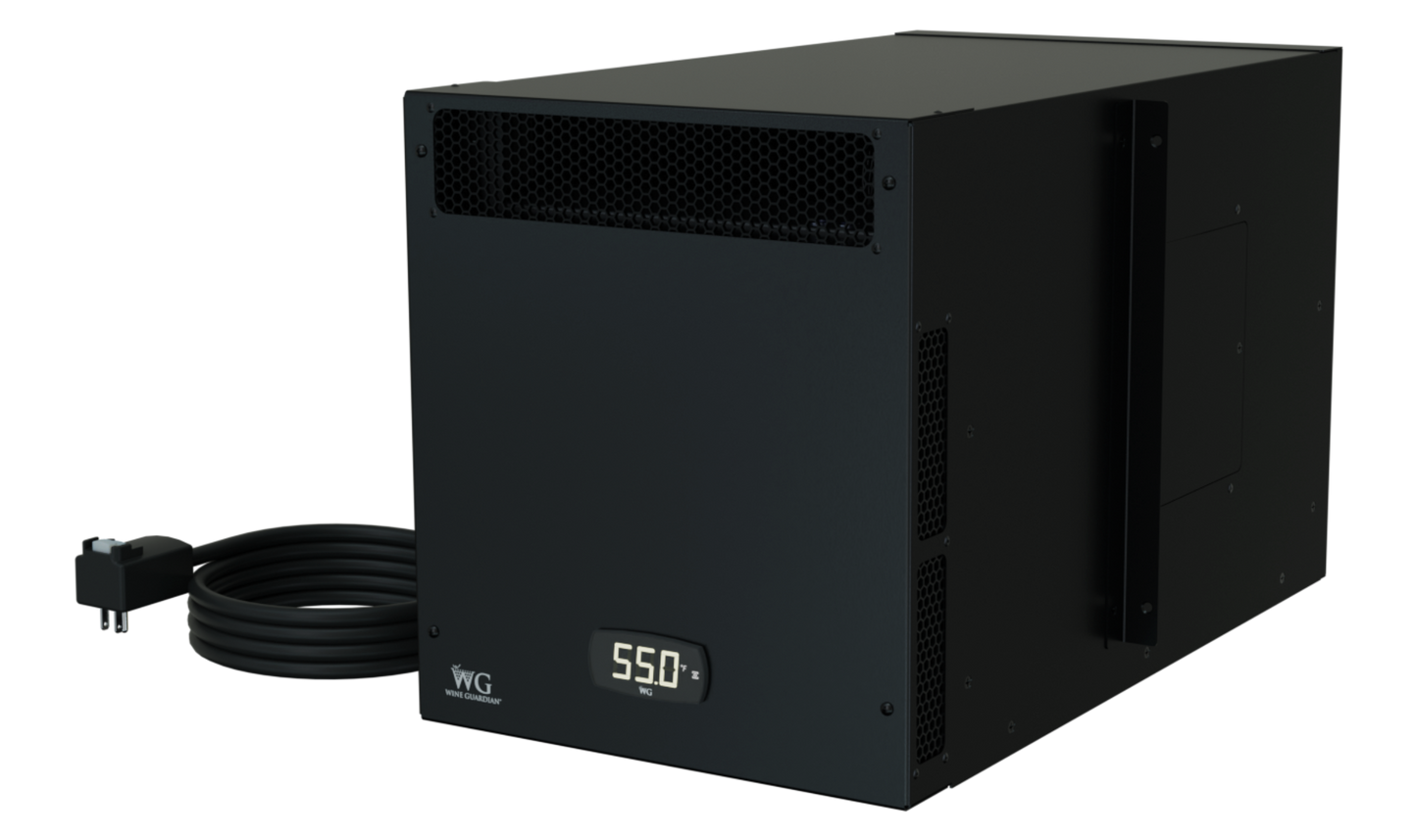

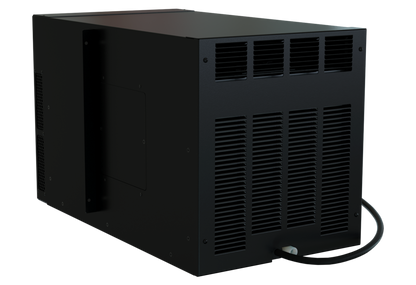

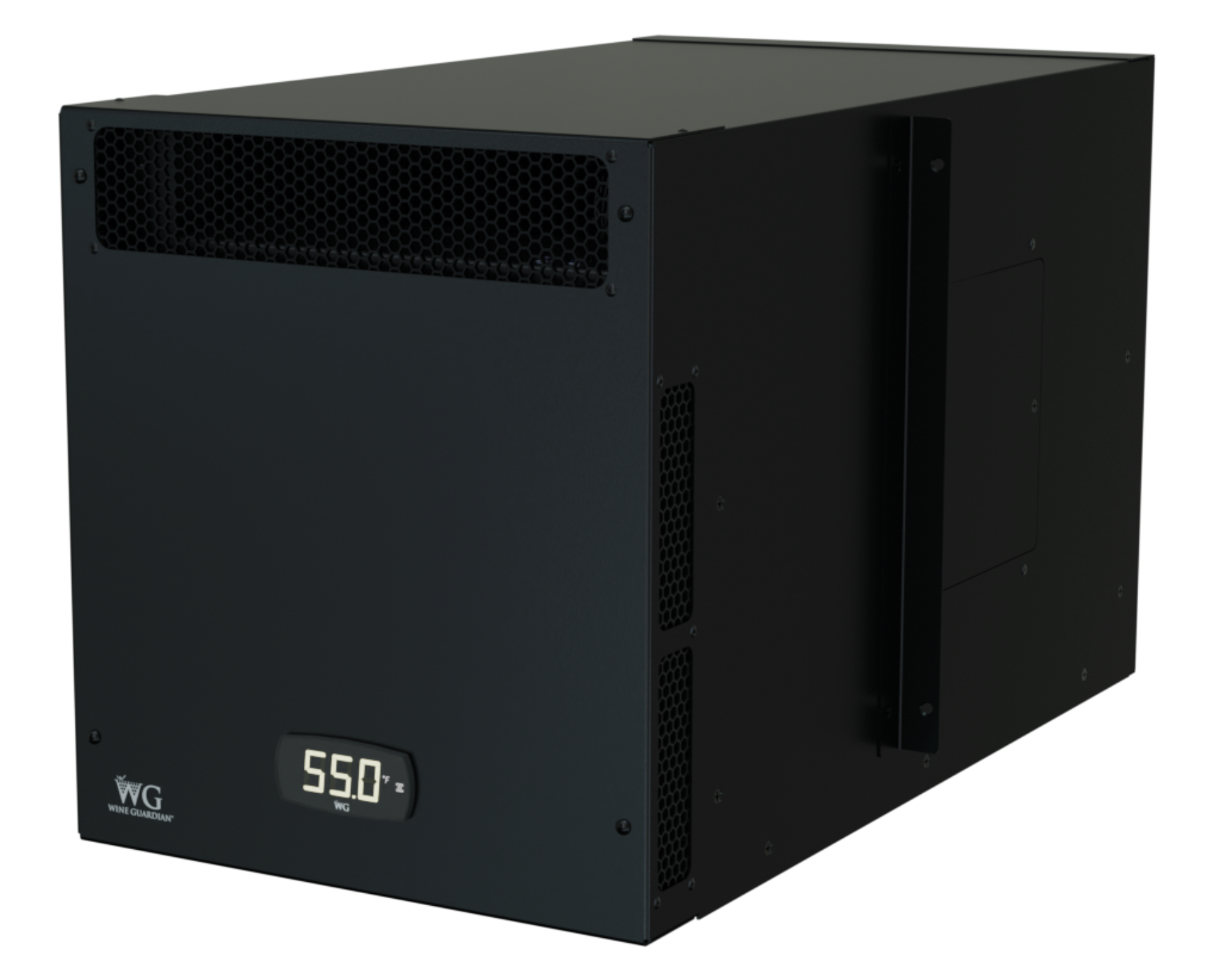

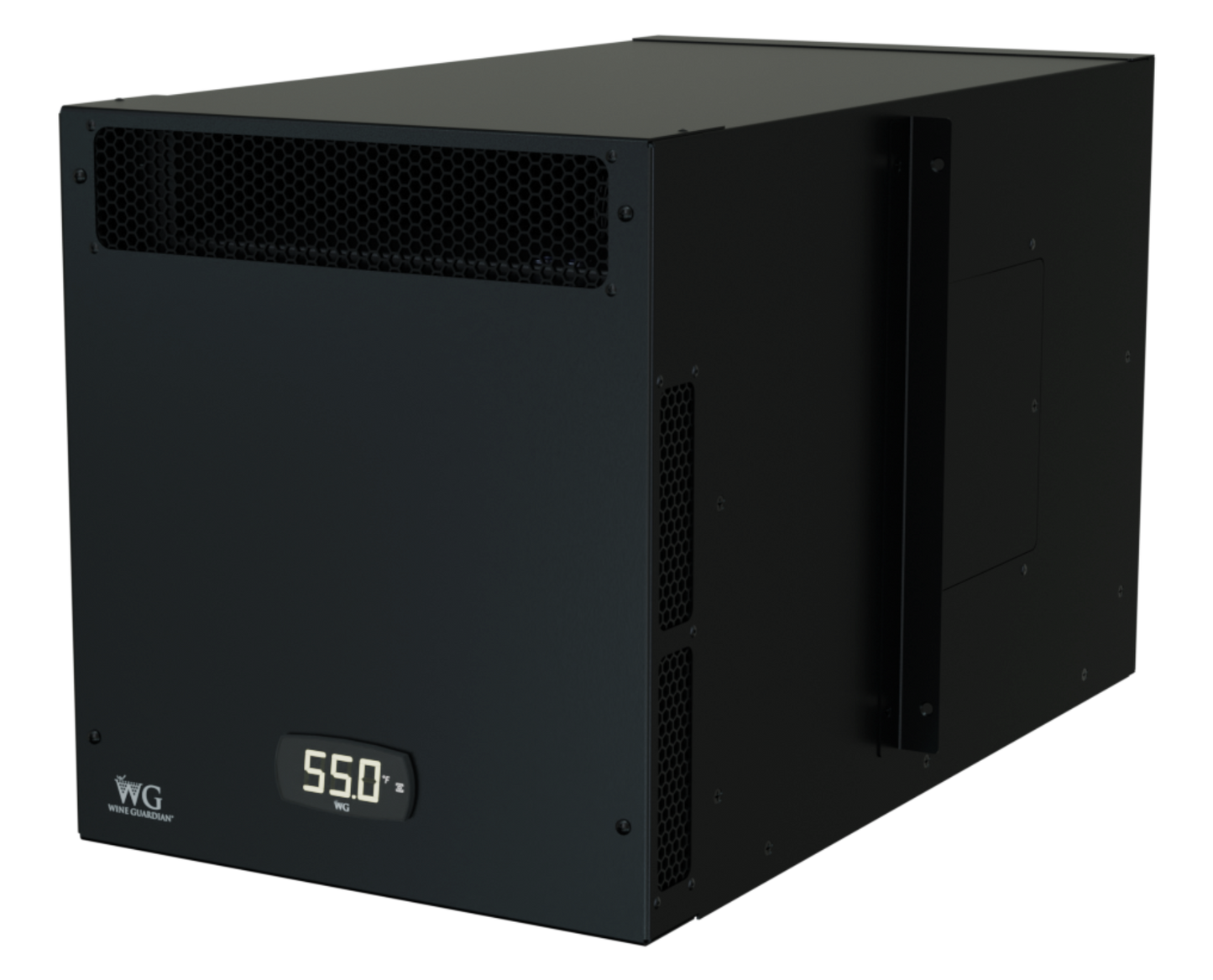

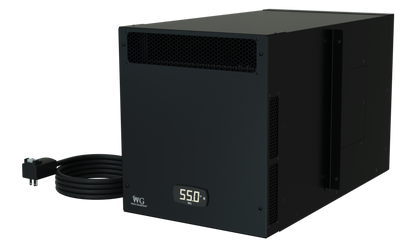

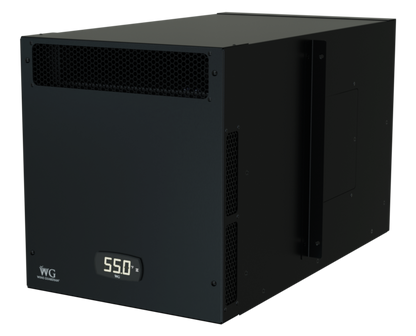

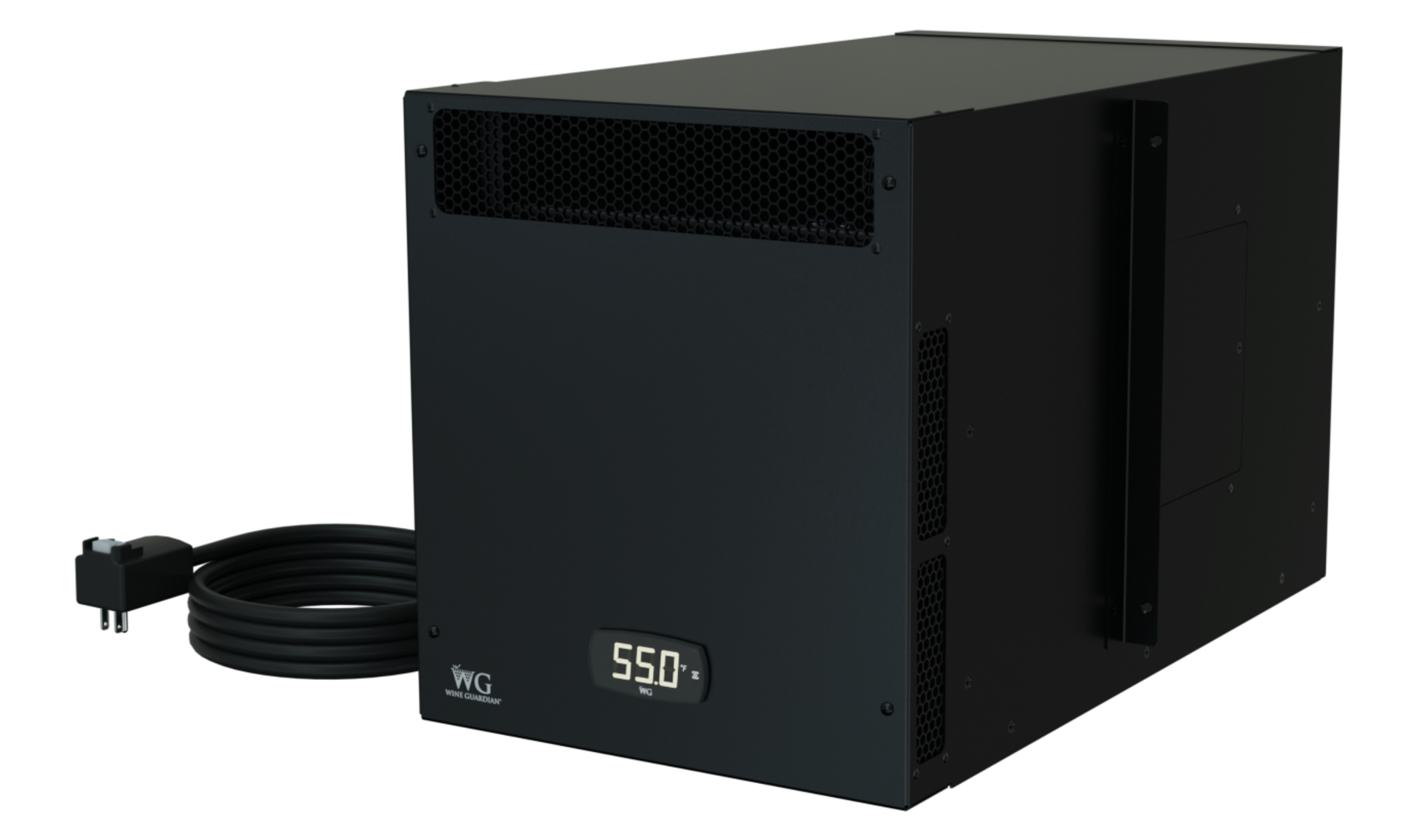

Wine Guardian TTW02 Classic - Through the Wall Wine Cellar Cooling Unit - 50Hz - 1779454754689_645

Wine Guardian TTW02 Classic - Through the Wall Wine Cellar Cooling Unit - 50Hz - 1779454754689_645

The Wine Guardian TTW02 Classic Series offers essential wine cellar cooling at an exceptional value. With a standard plug connection and simplified design, this unit offers precise temperature control and effortless installation for indoor use.

What our Experts Think


Q&A

Q: What is the Wine Guardian TTW02 Classic Through-the-Wall Wine Cellar Cooling Unit (50Hz) used for?
A: The Wine Guardian TTW02 Classic 50Hz is a through-the-wall wine cellar cooling unit designed to maintain stable temperature in small to medium wine cellars, helping preserve wine quality by preventing heat swings and environmental damage.

Q: What cooling capacity does the TTW02 Classic provide?
A: It delivers approximately 0.776 kW (~2,650 BTU/h at 24°C / 75°F conditions), making it suitable for compact residential or light commercial wine rooms.

Q: What makes the Classic series different?
A: The Classic series focuses on essential cooling performance with a simplified design, offering reliable temperature control without advanced extras like humidity integration or exterior-wall rating.

Q: How is the TTW02 Classic installed?
A: It is a through-the-wall, ductless unit that installs into an interior wall opening between studs and plugs into a standard electrical outlet, designed for straightforward DIY installation.

Q: Can it be installed through an exterior wall?
A: No. The TTW02 Classic is not rated for exterior wall installation and should only be used in interior through-the-wall applications.

Q: Does it control humidity as well as temperature?
A: No. The Classic series is not compatible with humidifiers, so it focuses only on temperature regulation, not humidity management.

Q: What type of wine spaces is it best for?
A: It is best suited for properly insulated small to mid-sized wine cellars, wine closets, or dedicated wine rooms where consistent temperature control is required.


Maintenance Tips

• Clean or replace air filters regularly to maintain steady airflow and cooling efficiency
• Keep intake and exhaust vents free from dust, blockage, and nearby obstructions
• Clean evaporator and condenser coils periodically to prevent performance loss and overheating
• Ensure condensate drain or internal evaporation system is clear to avoid leaks or humidity imbalance
• Maintain proper wall sleeve sealing to prevent warm air infiltration into the wine cellar
• Verify thermostat calibration for stable cellar temperature control (typically ~12–18°C range)
• Keep required clearance around unit for proper heat exchange and airflow circulation
• Inspect electrical connections and plug (50Hz Type F/G/I/J depending on region) for safe operation
• Avoid placing insulation or shelving that blocks internal airflow paths
