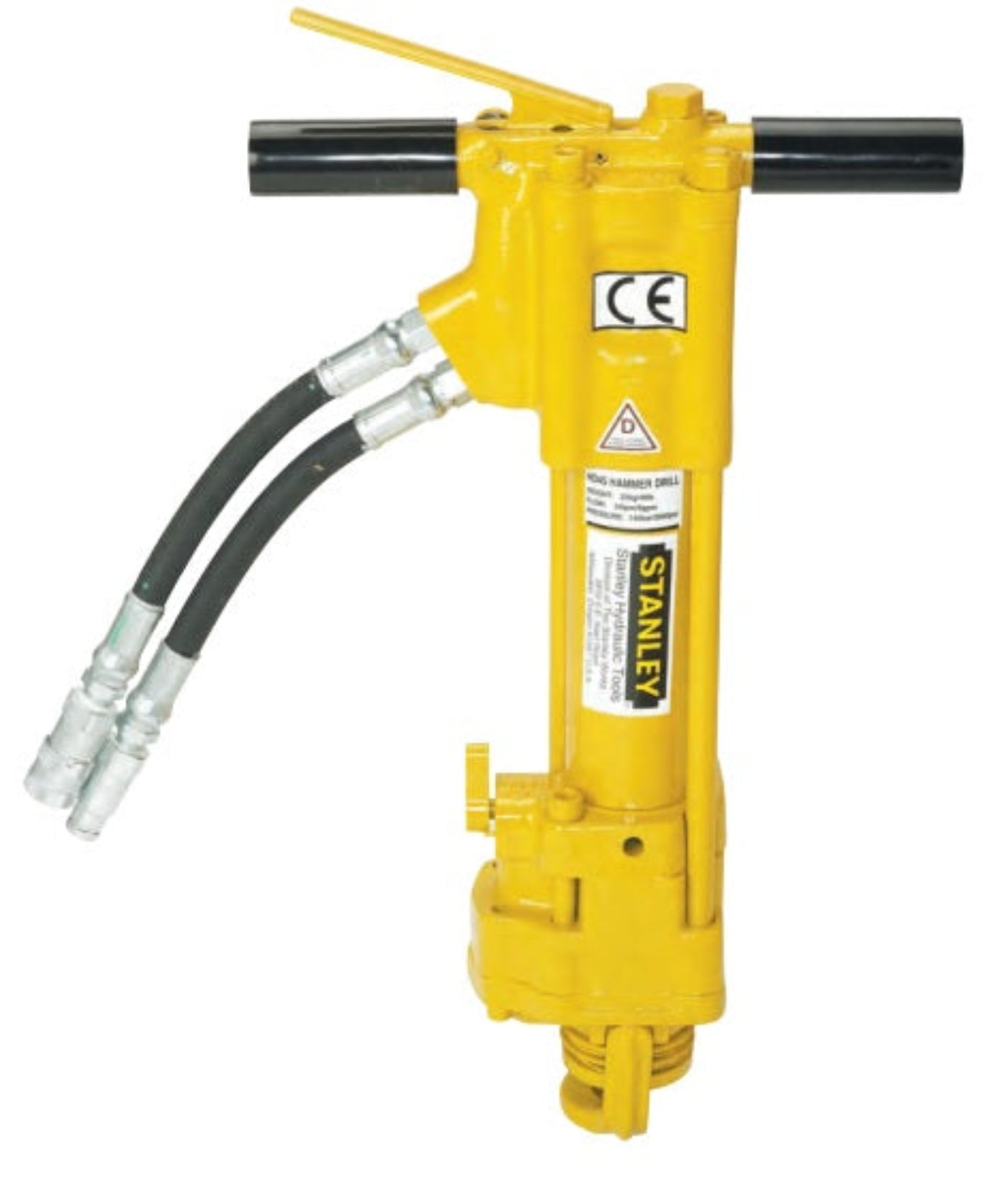

Stanley Hydraulic Underwater Hammer Drill - HD45310

• Designed for Professional Divers: Purpose-built for underwater drilling in marine construction, offshore maintenance, bridge repair, and commercial diving applications.
• Powerful Rotary Hammer Performance: Combines rotary drilling with hammer action to efficiently drill into concrete, masonry, and rock in demanding underwater environments.
• Superior Diver Control: Ergonomic side handle and responsive trigger provide excellent stability, precision, and safe operation while wearing diving gloves.
• Built to Resist Corrosion: Marine-grade, corrosion-resistant construction is engineered to withstand continuous exposure to saltwater and harsh underwater conditions.
• Reliable Hydraulic Efficiency: Stanley's proven hydraulic drive system delivers consistent power, low maintenance requirements, and dependable performance for heavy-duty underwater operations.

Q: What is the Stanley HD45310 Underwater Hammer Drill designed for?
A: It is a heavy-duty hydraulic hammer drill designed for underwater drilling in concrete, rock, masonry, and asphalt, making it ideal for commercial diving and anchor bolt installation.

Q: What is its drilling capacity?
A: It drills holes from 3/4 in. to 2 in. (19–50 mm) in diameter up to 29 in. (73.7 cm) deep and can core drill up to 4 in. (102 mm) in diameter.

Q: What hydraulic flow and pressure does it require?
A: It operates at 7–9 GPM (26–34 LPM) with a working pressure of 1,500–2,000 PSI (105–140 bar). The optimum flow is 8 GPM (30 LPM).

Q: Does it support forward and reverse rotation?
A: Yes. It features adjustable forward and reverse rotation with speeds up to 300 RPM for precise drilling control.

Q: Does it require water or air to clear drilled holes?
A: No. It uses standard 736 Skil fluted carbide drill bits, which do not require water or air to clear holes during underwater drilling.

Q: Are hose whips and couplers included?
A: The drill includes hose whips, while quick-disconnect couplers are sold separately.

• Rinse thoroughly with fresh water after every underwater use.
• Remove salt, silt, and debris from the drill and chuck.
• Inspect hydraulic hoses, fittings, and seals before each operation.
• Check the drill bit, latch, and trigger for wear or damage.
• Verify hydraulic flow and pressure meet the recommended specifications.
• Apply water-displacing lubricant to moving parts after cleaning.
• Tighten loose fasteners and replace worn components promptly.
• Store the drill clean, dry, and protected from impact and corrosion.
