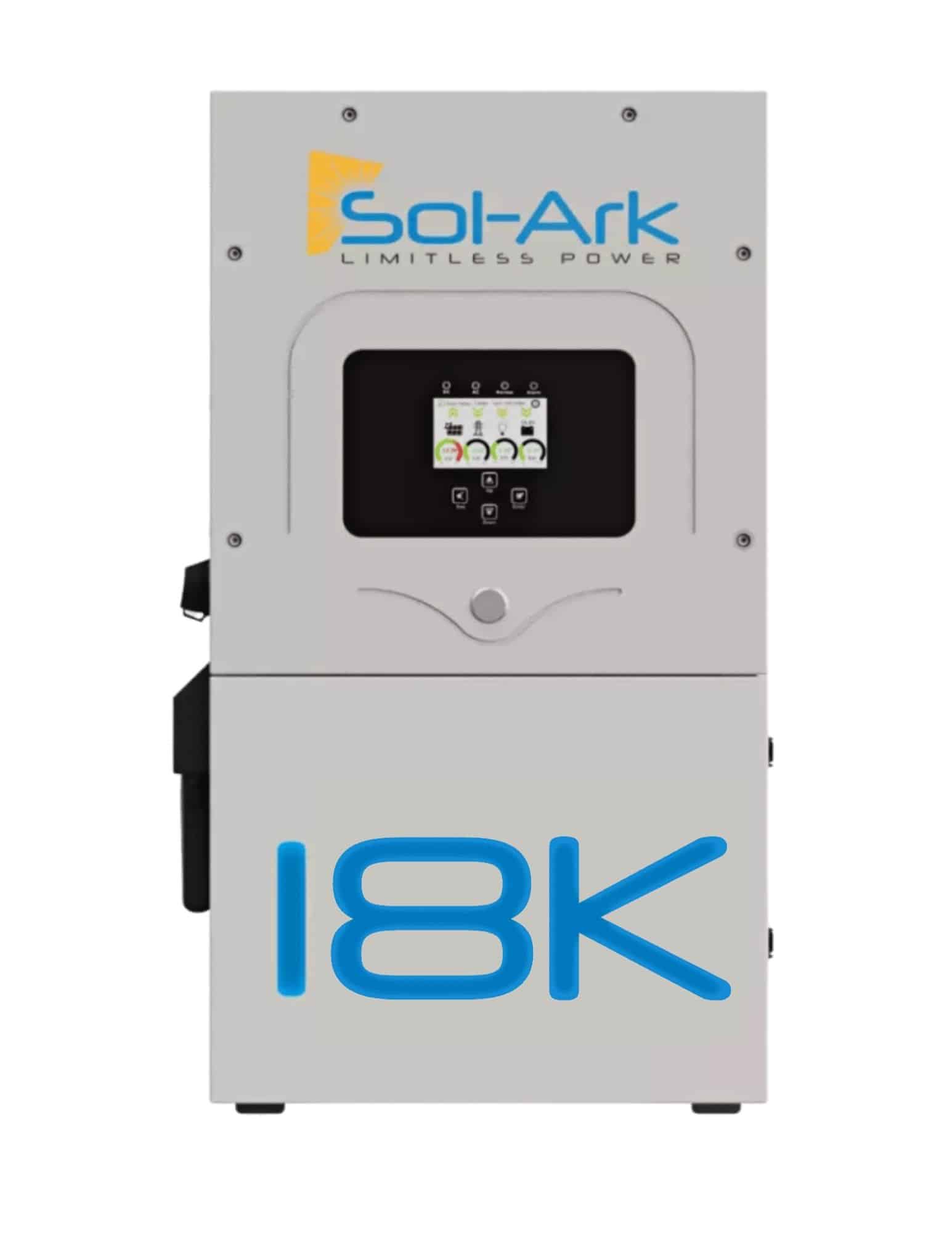

Sol-Ark 18kW Hybrid Inverter | All-In-One Solar Inverter | 23400W PV Input | 18000W Output | 48V 120/240V Split Phase | Sol-Ark 18K-2P

Sol-Ark’s 18K-2P hybrid inverter continuously outputs up to 18kW from batteries alone and can pass up to 200A from the grid. It’s ideal for off-grid systems, on-grid systems, and systems selling to the grid.

Specifications:

• Continuous output power: 18kW @ 120/240V
• 3x MPPTs, up to 500Vdc max
• 2x inputs per MPPT
• MPPT operating voltage range: 150-425V
• Max. usable input current per MPPT: 36A
• Max. short circuit current per MPPT: 54A
• Max. utilized solar power: 28.8kW
• Max. charge/discharge current: 350A
• Max. grid bypass: 200A
• Certified to UL 1741 Standards
• Weight: 137lbs
• Dimensions (H×W×D): 33.98×18.27×11.10in

Sol-Ark Specs: Download

Sol-Ark Manual: Download

Sol-Ark Battery Communications Integration Guide: Download

Sol-Ark Programming Guide: Download

Sol-Ark Warranty: Download

Sol-Ark My Sol-Ark User Guide: Download
