Sol-Ark 12kW Hybrid Inverter | All-In-One Solar Inverter | 13000W PV Input | 12000W Output | 48V 120/240V Split Phase | Sol-Ark 12K-2P

Sol-Ark 12kW Hybrid Inverter | All-In-One Solar Inverter | 13000W PV Input | 12000W Output | 48V 120/240V Split Phase | Sol-Ark 12K-2P

The Sol-Ark 12kW hybrid inverter is a good choice if you’re seeking reliable partial-home backup without costly electrical upgrades. With 13kW solar input capacity and 63A grid pass-through, it protects essential circuits during power outages.

• No Service Panel Upgrade Required
• 13kW Solar Input Capacity
• NEM 3.0 Compliance

About the Product

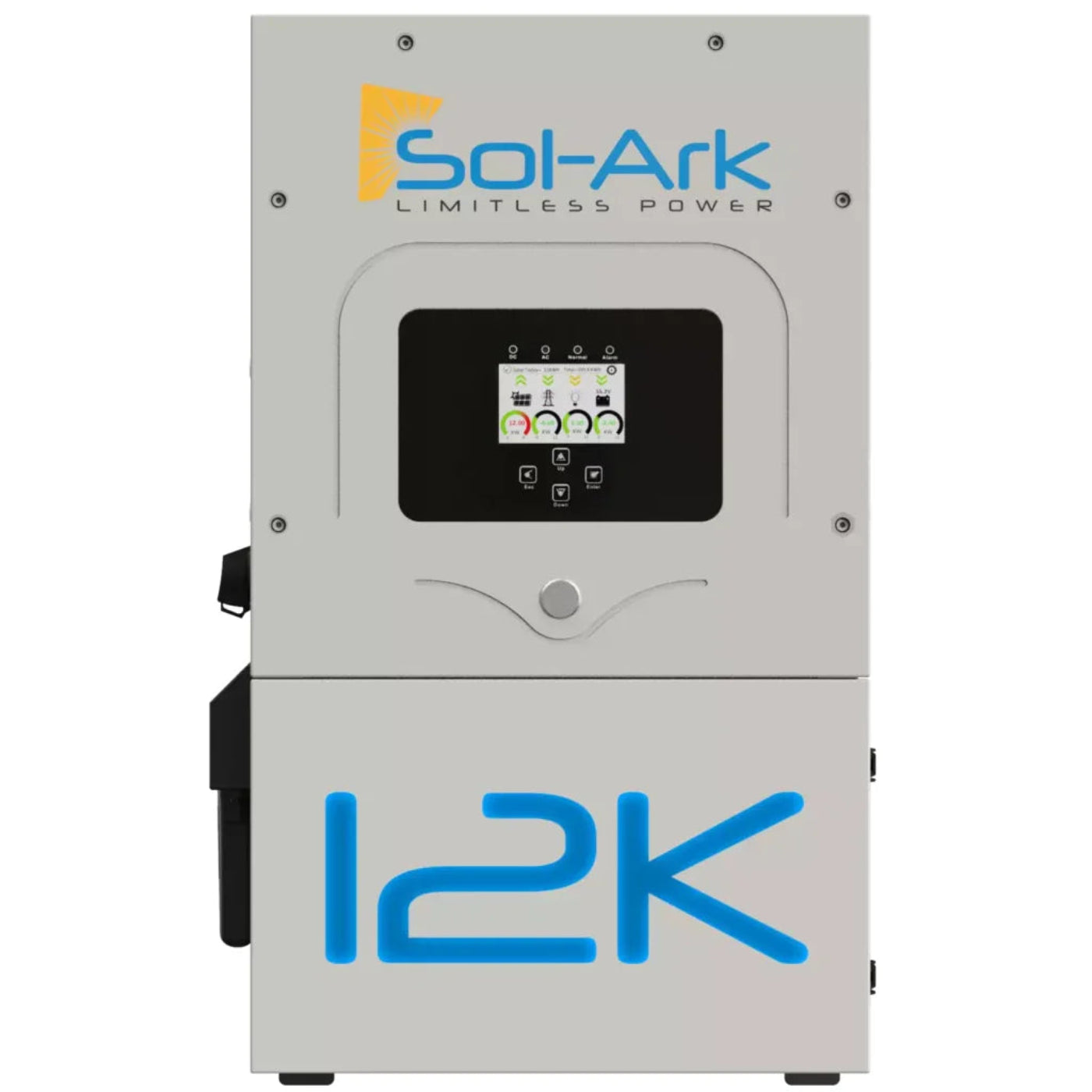

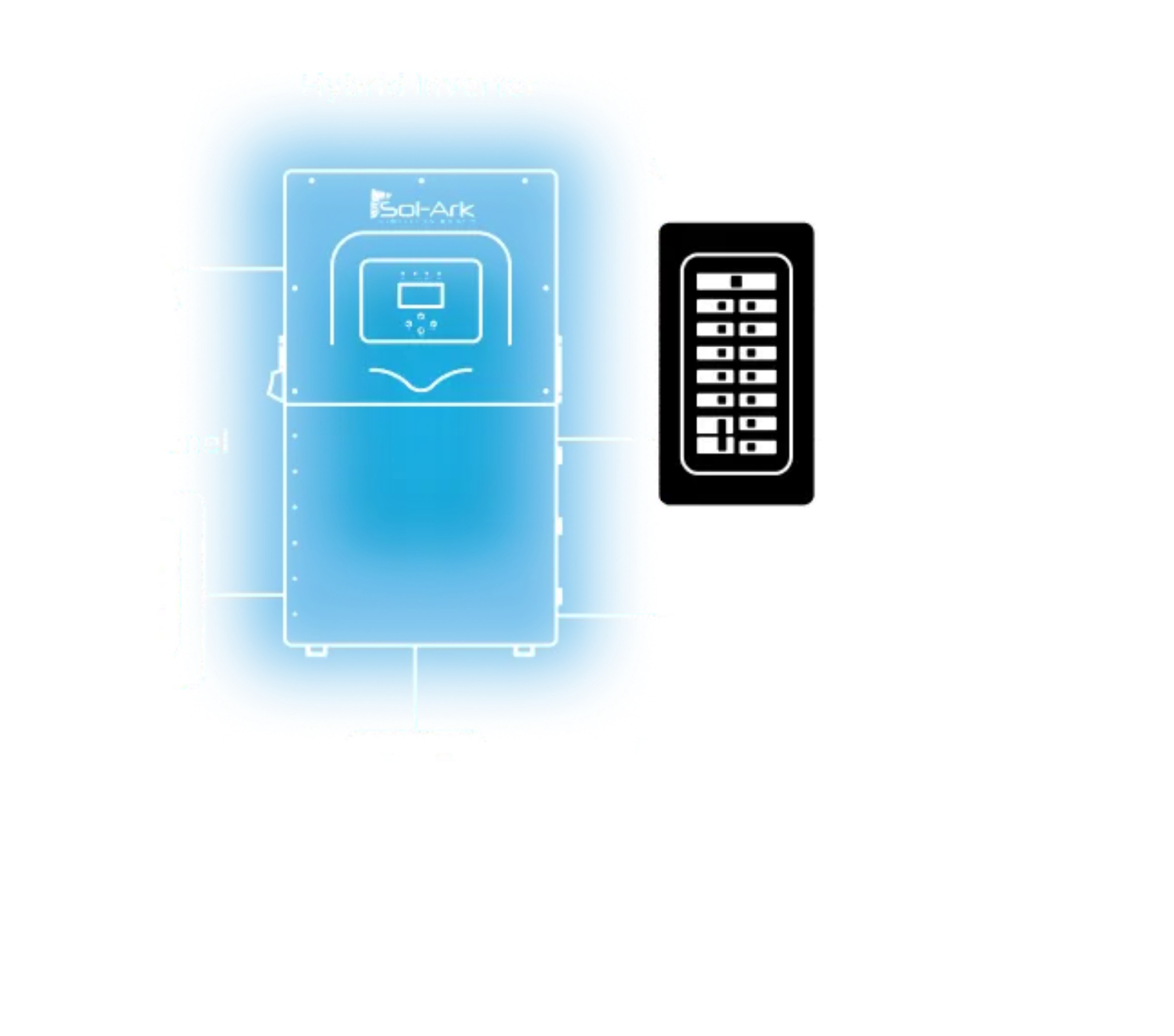

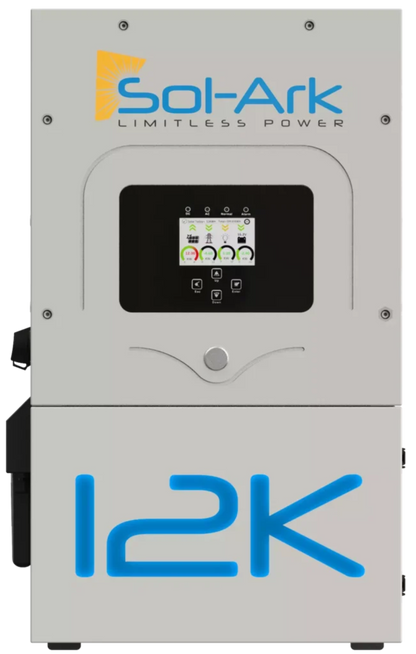

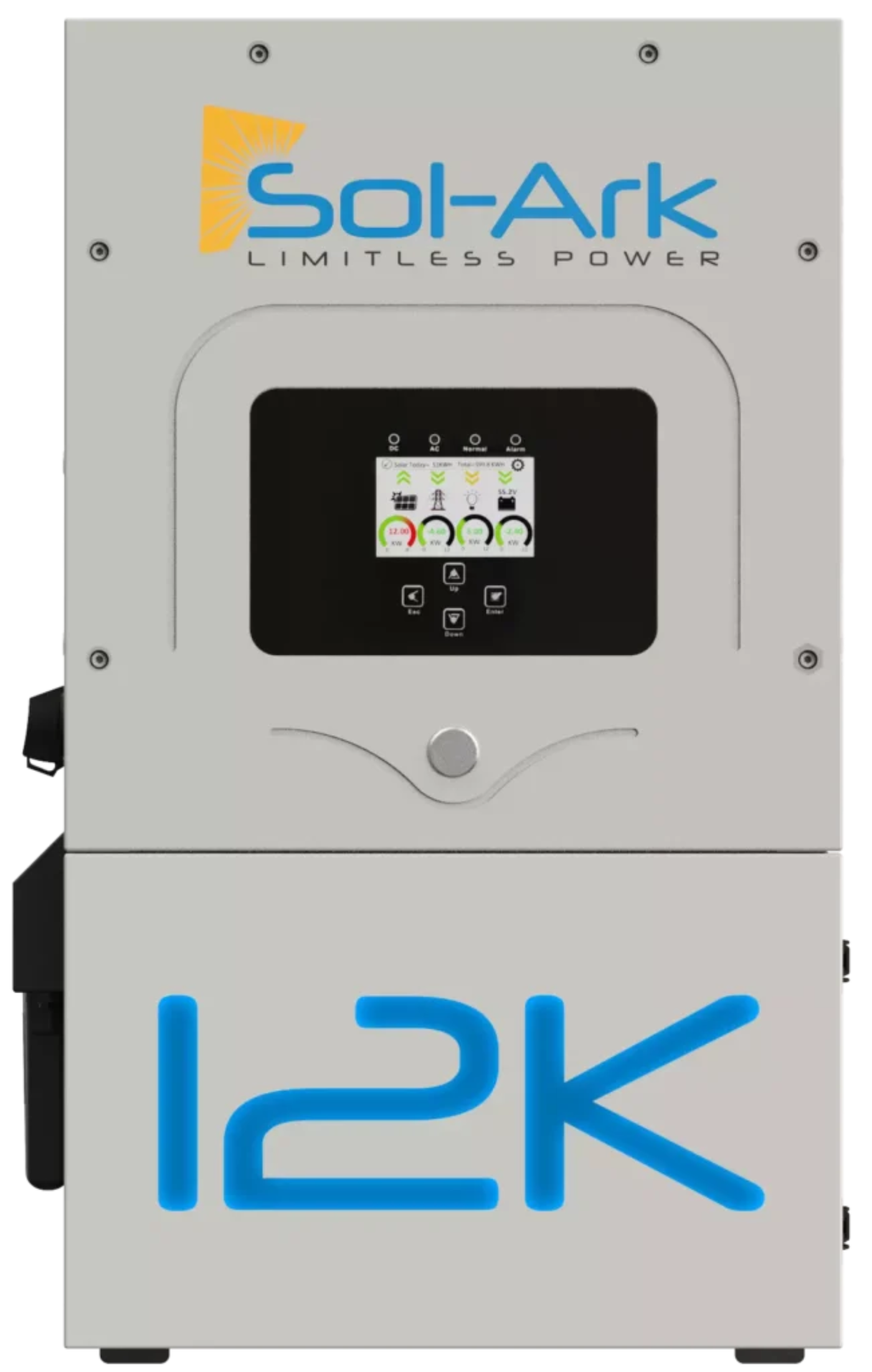

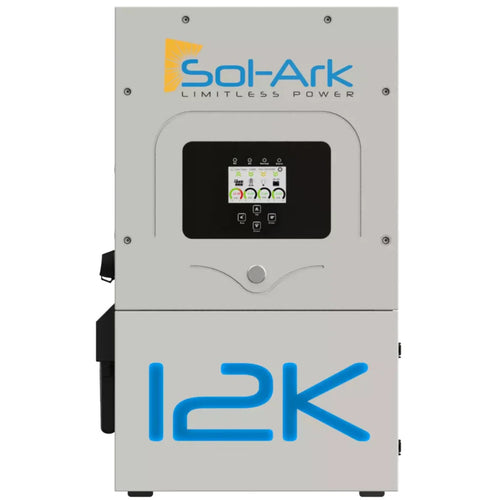

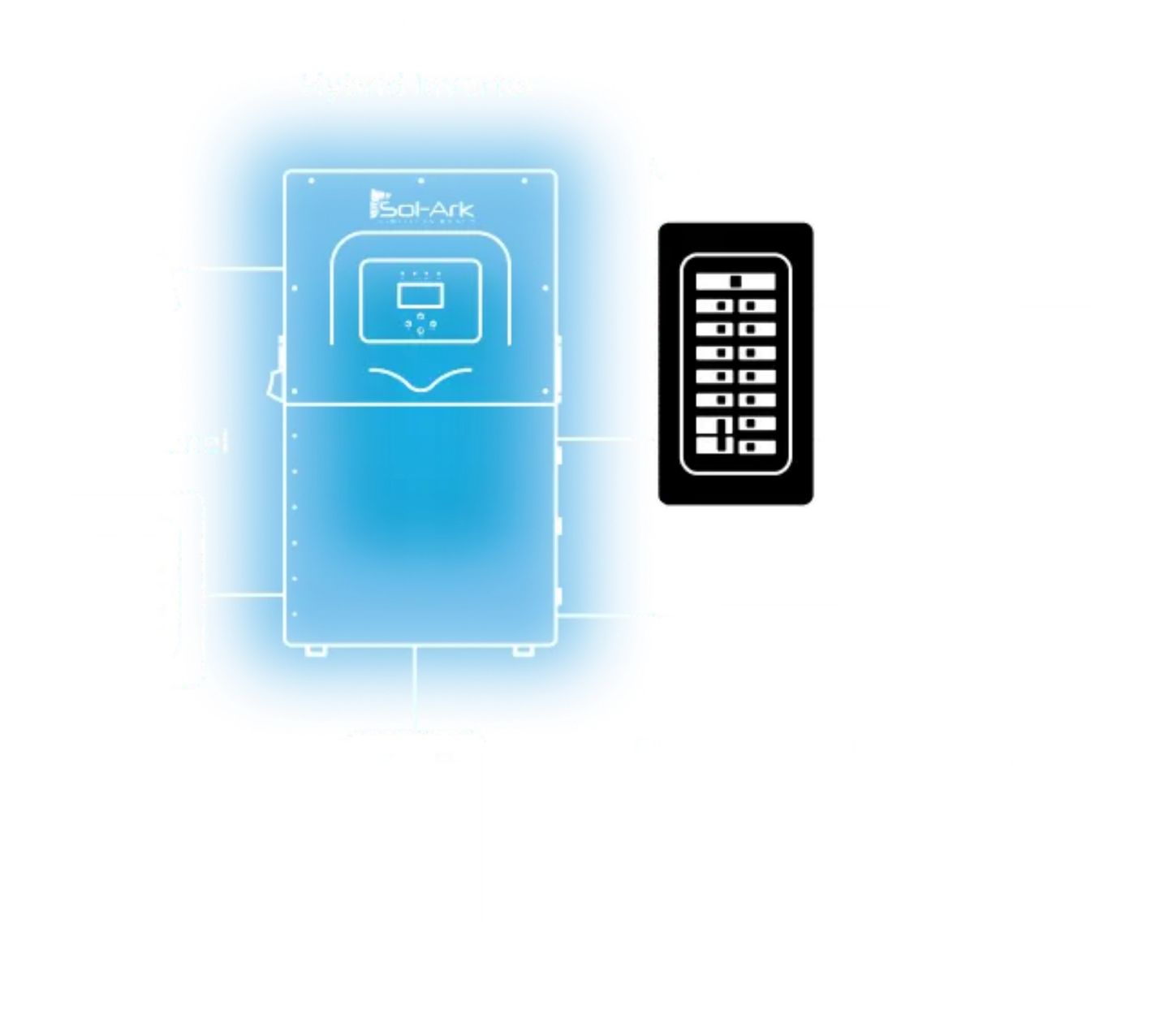

The Sol-Ark 12kW hybrid inverter combines 9,000W continuous AC output with support for up to 13,000W of solar input across two independent MPPT trackers. Unlike traditional grid-tie inverters requiring expensive service panel modifications, this hybrid inverter features 63A grid pass-through capability that integrates seamlessly into existing electrical infrastructure.

Designed for NEM 3.0 compliance and time-of-use optimization, the 12K-2P stores solar energy when rates peak and exports excess production when utility credits maximize returns. The 48V battery interface with 185A charge/discharge capacity supports both lead-acid and lithium iron phosphate batteries.

The 4ms automatic transfer switching maintains power to critical loads during grid failures, while 16kVA surge capacity handles well pumps, air conditioners, and motor-driven equipment. The IP65 / NEMA 3R weatherproof enclosure operates from -13°F to 131°F with natural convection cooling. Furthermore, with built-in Wi-Fi and Ethernet connectivity, the inverter enables remote monitoring and VPP enrollment for demand-response programs.

Specifications

What our Experts Think

• Inspect all AC, DC, PV, battery, and grounding connections regularly, ensuring terminals are clean, secure, and tightened to the manufacturer's specified torque.
• Keep the inverter enclosure, cooling vents, and air passages free of dust, dirt, and debris to maintain proper airflow and prevent overheating.
• Monitor PV production, battery status, system performance, and fault notifications through the Sol-Ark monitoring platform or LCD display to detect issues early.
• Periodically inspect breakers, disconnects, surge protection devices, communication cables, and wiring for corrosion, loose connections, damaged insulation, or signs of overheating.
• Disconnect AC, PV, and battery power before performing maintenance or cleaning, and always follow recommended electrical safety procedures.
• Install the inverter in a clean, dry, well-ventilated location and ensure ventilation openings remain unobstructed to maintain efficient cooling.
• Update inverter firmware only when recommended by Sol-Ark to maintain compatibility, reliability, and optimal system performance.
• Schedule an annual inspection by a qualified technician to verify inverter operation, electrical connections, grounding integrity, and overall system safety for dependable long-term performance.

Q&A

Q: What is the Sol-Ark 12K-2P Hybrid Inverter?
A: The Sol-Ark 12K-2P is an all-in-one 48V hybrid solar inverter that combines a solar inverter, battery charger, and transfer switch into a single unit for grid-tied, hybrid, and off-grid applications.

Q: How much solar PV can the inverter support?
A: The inverter supports up to 13,000W (13kW) of solar PV input, making it ideal for medium to large residential solar systems.

Q: What is the inverter's AC output?
A: It delivers 12,000W continuous 120/240V split-phase output, providing enough power for most household appliances and essential loads.

Q: Is the Sol-Ark 12K-2P compatible with battery storage?
A: Yes. It is designed for 48V battery systems and is compatible with many leading LiFePO₄ and lead-acid batteries using supported communication protocols.

Q: Can it provide backup power during outages?
A: Yes. The inverter automatically switches to battery power during grid failures, providing reliable backup power for connected household circuits.

Q: Does the inverter support off-grid operation?
A: Yes. The Sol-Ark 12K-2P supports grid-tied, hybrid, and fully off-grid installations, offering flexible energy management for a variety of applications.

Q: Can the system be expanded in the future?
A: Yes. The inverter supports battery expansion and can be integrated with additional compatible energy storage to meet growing power demands.

Q: Who is the Sol-Ark 12K-2P best suited for?
A: It is ideal for homeowners seeking a high-performance hybrid inverter with efficient solar energy management, battery backup, and reliable whole-home or essential-load power.

Maintenance Tips

• Inspect all AC, DC, PV, battery, and grounding connections regularly, ensuring terminals are clean, secure, and tightened to the manufacturer's specified torque.
• Keep the inverter enclosure, cooling vents, and air passages free of dust, dirt, and debris to maintain proper airflow and prevent overheating.
• Monitor PV production, battery status, system performance, and fault notifications through the Sol-Ark monitoring platform or LCD display to detect issues early.
• Periodically inspect breakers, disconnects, surge protection devices, communication cables, and wiring for corrosion, loose connections, damaged insulation, or signs of overheating.
• Disconnect AC, PV, and battery power before performing maintenance or cleaning, and always follow recommended electrical safety procedures.
• Install the inverter in a clean, dry, well-ventilated location and ensure ventilation openings remain unobstructed to maintain efficient cooling.
• Update inverter firmware only when recommended by Sol-Ark to maintain compatibility, reliability, and optimal system performance.
• Schedule an annual inspection by a qualified technician to verify inverter operation, electrical connections, grounding integrity, and overall system safety for dependable long-term performance.
