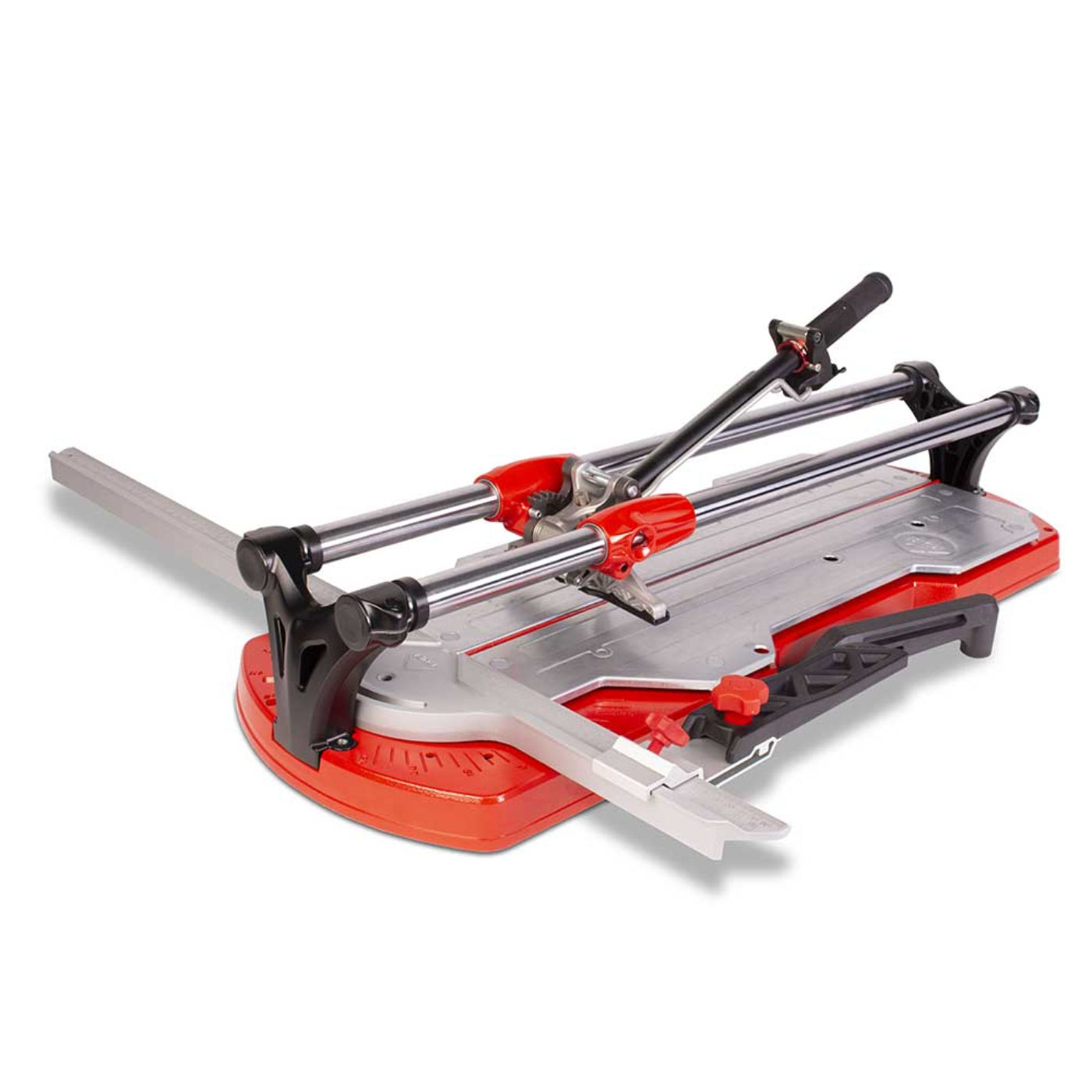

Rubi Tools TX-MAX Heavy Duty Tile Cutters - 17910

Rubi Tools TX-MAX Heavy Duty Tile Cutters - 17910

$559.99
$559.99 $745.71
SAVE 24% Sold out
Rubi Tools TX-MAX Heavy Duty Tile Cutters - 17910

Rubi Tools TX-MAX Heavy Duty Tile Cutters - 17910

$559.99
$559.99 $745.71
SAVE 24% Sold out

Rubi Tools TX-MAX Heavy Duty Tile Cutters - 17910

Features
  • Available in 3 sizes - TX-710 MAX (28" rip cut), TX-1020 MAX (40-3/16" rip cut) and TX-1250 MAX (49-3/16" rip cut)
  • For intensive cutting of all types of ceramic tile, ideal for porcelain tiles and extruded tiles
  • Highly efficient and price scoring system
  • Heavy duty, robust tile cutter with reinforced components
  • High, one-handed operation breaking power (2646 lb) - MASTER POWER
  • Head with extra-long aluminum sliders with “self-lubricating” friction bearings
  • Portable breaker with aluminum pressure pad, equipped with plastic protector to avoid marking delicate surfaces
  • Better visibility of the scoring and cutting zone
  • Pressure pad is locked by a ratchet mechanism and is unlocked by the trigger, allowing one-handed scoring and breaking
  • Injected-aluminum base, reinforced with a central rib, for increased strength
  • Floating tables and supplementary arms for large-size ceramic tile, increases cutting stability
  • Rotating square, with central pivot point and lateral end stop, greater precision in angle cuts
  • Handle with soft grip for better ergonomics and comfort
  • Includes: Ø5/16" (8 mm) SILVER and Ø 7/8" (22 mm) EXTREME scoring wheels, molded plastic carrying case (the 1250 model is equipped with wheels for easy transport)
What our Experts Think
  • Heavy-duty professional snap cutting system - Built for intensive cutting of all ceramic tiles, including porcelain stoneware, with consistent, jobsite-ready performance.
  • Extreme breaking power for tough materials - Delivers up to ~1200 kg (2646 lb) separation force, ensuring clean breaks even on dense porcelain tiles.
  • High precision scoring performance - Reinforced scoring head and guides provide smooth, accurate scoring with minimal deviation, improving cut consistency.
  • One-handed professional operation - Designed with a ratchet-based breaker system, allowing fast scoring and breaking with reduced effort.
  • Stability for large-format tiles - Integrated reinforced base and floating support tables improve stability when working with larger tile sizes.
  • Angle cutting capability (0°–45°) - Built-in rotating square system enables precise diagonal and mitre cuts for installation flexibility.
  • Jobsite durability focus - Heavy-duty construction with reinforced components and tubular steel guides ensures long-term reliability under constant use.

Q&A

Q: What is the Rubi TX-MAX used for?
A: It is a professional manual tile cutter designed for intensive cutting of ceramic, porcelain, and extruded stoneware tiles.

Q: What makes it “heavy duty”?
A: It features a reinforced chassis, 30 mm steel guide rails, and a high-power breaking system for demanding job site use.

Q: What is its cutting capacity?
A: It cuts tiles up to 71 cm straight (model 710 MAX) and up to 125 cm in larger versions, with diagonal cuts also supported.

Q: What thickness of tile can it cut?
A: It handles tiles up to about 21 mm thick, including dense porcelain slabs.

Q: How strong is the breaking system?
A: It delivers up to 1200 kg (≈2646 lbs) of breaking force for clean, controlled snaps.

Q: Can it cut porcelain tiles easily?
A: Yes, it is specifically designed for hard porcelain (BIa) and extruded stoneware, with high scoring precision for tough materials.

Q: Does it support angled cuts?
A: Yes, it allows fast and accurate angle cuts from 0° to 45° using a rotating square system.

Q: What makes it efficient on job sites?
A: One-handed scoring and breaking, improved visibility of the cutting line, and stable support arms for large tiles.

Q: Is it suitable for large-format tiles?
A: Yes, extended models support large tiles with floating tables and side supports for better stability.

Q: Why choose the TX-MAX series?
A: It combines high cutting power, durability, and precision, making it a reliable choice for professional tilers working with heavy-duty porcelain and large-format tile installations.



Maintenance Tips
  • Clean after each session: Remove ceramic dust and glaze from base, rails, and breaker system to keep scoring smooth and precise.
  • Do NOT lubricate rails: The double guide system is designed to run dry—oil attracts abrasive dust and reduces accuracy.
  • Inspect scoring wheel: Check carbide wheel for wear or chipping; rotate or replace to maintain clean, consistent scoring lines.
  • Keep guide rails aligned: Ensure 30 mm steel guides stay straight and firmly fixed for accurate cuts and long-term precision.
  • Maintain breaker system: Clean and check the high-pressure (up to 1200 kg) multipoint breaker for smooth, even tile separation.
  • Tighten all fasteners: Regularly inspect handle, square guide, and support arms to avoid play during heavy-duty cutting.
  • Protect sliding head: Keep aluminum sliders free of debris to preserve smooth one-hand scoring performance.
  • Dry storage only: Store in a dry, covered area to prevent corrosion and maintain calibration of cutting components.
