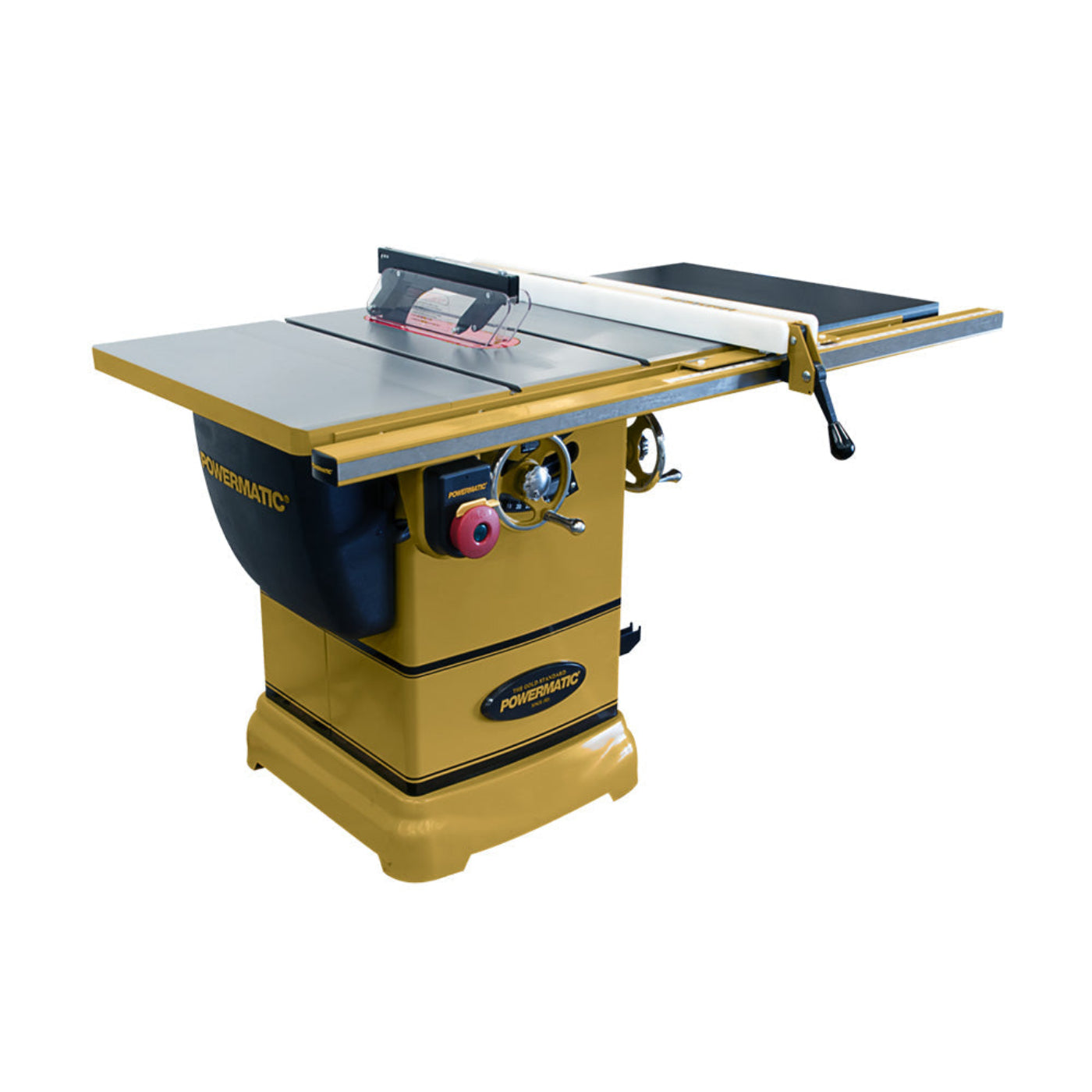

Powermatic PM1000 30" Rip Table Saw with Accu-Fence 1.75hp, 1PH, 115/230V - PM9-1791000K
Powermatic PM1000 30" Rip Table Saw with Accu-Fence 1.75hp, 1PH, 115/230V - PM9-1791000K
Couldn't load pickup availability
Powermatic PM1000 30" Rip Table Saw with Accu-Fence 1.75hp, 1PH, 115/230V - PM9-1791000K
Powermatic PM1000 30" Rip Table Saw with Accu-Fence 1.75hp, 1PH, 115/230V - PM9-1791000K
Powermatic PM1000 Table Saws are the perfect blend of capability and refinement. The superior internal design has been engineered to ensure precision and efficiency. Dust collection is maximized thanks to blade housing and a collection hose providing an unobstructed path for particles. The Poly V belt reduces vibration and maximizes efficiency of the 1.75hp motor. The hinged motor cover provides quick access to the interior of the cabinet.
Powermatic's rigid Accu-Fence System instills confidence with every cut. Cuts are made easier with a bevel along the entire cast iron work surface. The tool-less guard assembly with independent side leaves is easy to use, and the push-button arbor lock allows for easy blade changes with minimal tools.
Features
- Blade surround and collection hose provide an unobstructed path, maximizing dust collection
- Arbor lock allows for one handed blade changes with minimal tools
- Conveniently located hands-free power switch
- Ergonomically designed 7" handwheels provide momentum, making blade height and bevel adjustments easy
- Exclusive Accu-Fence provides rigidity and precision
- Precision ground cast iron work surface features a beveled edge for smoother operation
- Requires only 115V connection for easy installation
- The poly-V belt drive system reduces vibration and maximizes efficiency
- The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
- Toolless guard assembly with independent side leaves is easy to use, maximizing safety
Specifications
| Style (Type) | Floor Drill Press |
|---|---|
| Motor Power | 0.75 HP |
| Motor Phase | 1 Phase |
| Motor Voltage | 120V |
| Full Load Amps | 11.6 Amps |
| Recommended Circuit Size | 20 Amps |
| Chuck Capacity | 5/8" |
| Swing | 15" |
| Quill Travel | 5" |
| Quill Diameter | 2.04" |
| Scale Display | 4" |
| Depth Setting | 3.7" |
| Speed Range | 250 - 3,000 RPM |
| Max. Spindle to Table Distance | 18.5" |
| Max. Chuck to Table Distance | 11.02" |
| Max. Spindle to Base Distance | 22.83" |
| Table Size (L × W) | 12.6" × 11.6" |
| Table Tilt | 0° - 90° |
| Table Rotation | 360° |
| Overall Dimensions (L × W × H) | 24.5" × 20.5" × 70.1" |
| Shipping Dimensions (L × W × H) | 57.9" × 29.3" × 17.1" |
| Net Weight | 164 lbs. |
Video
What our Experts Think
- Professional Woodworking Quality – Built for precision cutting, making it a reliable choice for furniture makers and serious hobbyists.
- Powerful 1.75HP Motor – Delivers smooth and consistent performance for everyday woodworking tasks.
- 30" Rip Capacity – Provides excellent versatility for cutting standard boards, panels, and project materials.
- Accu-Fence System – Offers accurate alignment and repeatable cuts with improved control.
- Durable Workshop Construction – Designed with strong components for long-lasting stability and dependable operation.
- Compact Yet Capable Design – Ideal for workshops needing professional performance without excessive footprint.
- Flexible Power Setup – Supports 115/230V configurations for convenient installation.
- Enhanced User Experience – Designed for easier adjustments, reliable operation, and efficient workflow.
Q&A
Q: What is the Powermatic PM1000 30" Rip Table Saw used for?
A: The PM1000 is a precision woodworking table saw designed for ripping, crosscutting, and accurate cutting applications.
Q: What makes the Accu-Fence system valuable?
A: The Accu-Fence provides smooth adjustment, strong support, and precise alignment for consistent cuts.
Q: Is the PM1000 suitable for professional workshops?
A: Yes, it is built for cabinetmakers, furniture builders, and serious woodworkers who need reliable performance.
Q: What motor and power options does this model have?
A: It features a 1.75 HP motor with flexible 115V or 230V single-phase operation.
Q: What materials can the PM1000 cut?
A: It can cut hardwoods, softwoods, plywood, and other compatible woodworking materials.
Q: What is the benefit of the 30" rip capacity?
A: The 30" rip capacity provides enough workspace for common woodworking projects while maintaining a compact shop footprint.
Q: Does the PM1000 include safety features?
A: Yes, it includes safety-focused features such as a riving knife system and blade guard for controlled operation.
Q: Who is the Powermatic PM1000 ideal for?
A: It is ideal for professional woodworkers, hobbyists, and small-to-medium woodworking shops.
Maintenance Tips
- Clean sawdust and debris from the table, blade area, and cabinet after use.
- Keep the cast iron table clean and apply a protective coating to prevent rust.
- Inspect the blade regularly and replace dull or damaged blades for accurate cuts.
- Check blade alignment, height, and bevel adjustments periodically.
- Clean and maintain the Accu-Fence system for smooth and precise operation.
- Lubricate gears, adjustment points, and moving components as recommended.
- Inspect belts, pulleys, and internal parts for wear or damage.
- Keep dust collection areas clear to maintain airflow and performance.
- Check power cords, switches, and electrical connections before operation.
- Tighten bolts, knobs, and hardware regularly for safe, stable use.
