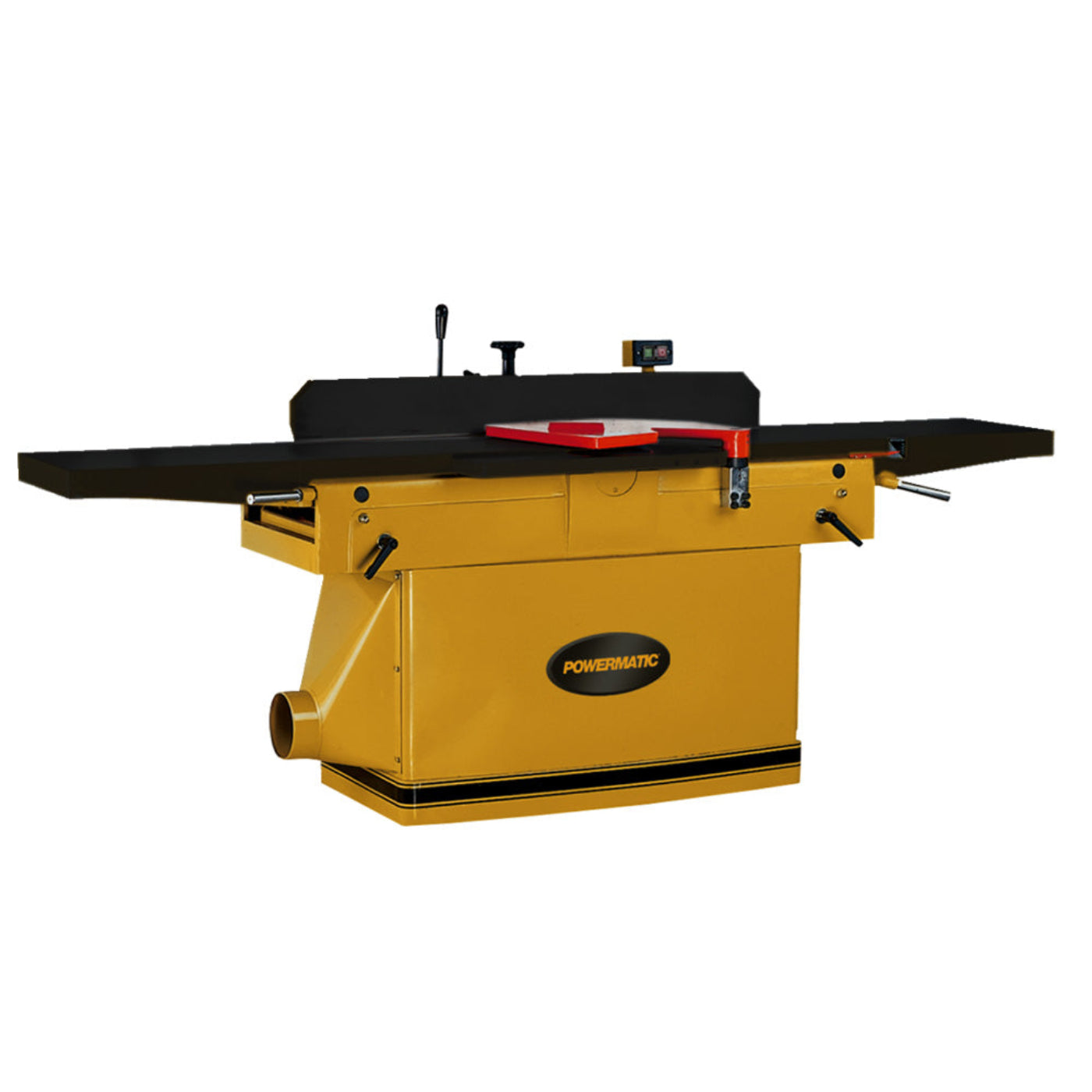

Powermatic 16" Parallelogram Helical Cutterhead Jointer with ArmorGlide 7.5hp, 3PH, 460V - PM1-1791283T-4

Powermatic 16" Parallelogram Helical Cutterhead Jointer with ArmorGlide 7.5hp, 3PH, 460V - PM1-1791283T-4

Now featuring ArmorGlide Technology, the Powermatic PJ1696T 16-Inch Jointer offers big capacity and performance in a machine loaded with features. A large center-mounted fence assembly adjusts easily by a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles.

The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty.

The specially-designed solid steel helical cutterhead consists of six rows of precision-ground staggered inserts. This system makes fast work of knife changing, and never needs adjustments. The heavy-duty 7.5hp motor delivers all the power you need for even the biggest jobs.

• Enhanced visibility: The dark surface reduces glare, so you can see where you're cutting better.
• Rust resistant: Ditch the steel wool and never worry about rust again.
• Low friction: Coated tables require 50% less force, so you get more control.
• Maintenance-free: Get rid of the waxes and messy cleaning supplies, so you can do more of what you love.
• Durable coating: ArmorGlide tables can withstand 250,000 passes without showing signs of wear.

Features

• ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
• Cast iron fence bevel controls include positive stops at 45 degrees and 90 degrees
• Full size rabbeting table supports large workpieces for rabbets up to 3/4-inch deep
• Helical cutterhead features 58 two-sided knife inserts that reduce noise, eliminate adjustments, and speed knife changes
• Large 16" x 96" precision ground cast iron table surface for maximum support and fine finish
• Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
• Rack and pinion adjustable cast iron fence assembly allows for smooth fence positioning without play

Specifications

Video

What our Experts Think

• Industrial-Grade Jointer Performance – Designed for professional woodworking shops requiring precise and consistent edge and face jointing.
• 16" Parallelogram Design – Provides wide jointing capacity for larger boards, panels, and furniture components.
• Helical Cutterhead Technology – Delivers smoother finishes, reduced tear-out, quieter operation, and longer cutter life.
• Powerful 7.5HP Motor – Offers heavy-duty performance for demanding hardwood applications.
• ArmorGlide Surface Technology – Helps reduce friction and improves workpiece movement for smoother operation.
• Precision Engineering – Built for accurate adjustments and repeatable jointing results.
• Heavy-Duty Construction – Designed for long-term durability in production environments.
• High-Capacity Workshop Solution – Ideal for cabinetmakers, furniture builders, and professional woodworkers.

Q&A

Q: What is the Powermatic 16" Parallelogram Jointer used for?
A: This jointer is designed for flattening, straightening, and preparing wood surfaces before assembly and finishing.

Q: What is the benefit of the helical cutterhead?
A: The helical cutterhead provides smoother cuts, quieter operation, reduced tear-out, and longer-lasting cutting performance.

Q: What makes the parallelogram table design useful?
A: The parallelogram design allows smooth table adjustment while maintaining the cutterhead relationship for accurate jointing.

Q: Is this jointer suitable for professional woodworking?
A: Yes, its 7.5 HP motor, 16" capacity, and heavy-duty build make it ideal for production shops and professional woodworkers.

Q: What materials can this jointer handle?
A: It is designed for jointing hardwoods, softwoods, and other compatible woodworking materials.

Q: What is ArmorGlide technology?
A: ArmorGlide provides a low-friction, rust-resistant surface that helps improve material movement and table durability.

Q: What power requirements does this model need?
A: This model operates on 460V three-phase power for demanding industrial woodworking environments.

Q: Who is the Powermatic 16" Jointer ideal for?
A: It is ideal for cabinetmakers, furniture manufacturers, professional workshops, and high-volume woodworking operations.

Maintenance Tips

• Clean dust, chips, and debris from the cutterhead, tables, and fence after each use.
• Keep the ArmorGlide table surface clean and protected for smooth stock movement.
• Inspect helical cutter inserts regularly and rotate or replace worn inserts as needed.
• Check fence alignment and parallelogram table adjustments periodically for accuracy.
• Lubricate moving parts, adjustment mechanisms, and slides according to recommendations.
• Keep dust collection ports clear to maintain efficient airflow.
• Inspect belts, bearings, and drive components for wear or damage.
• Remove resin buildup from cutterhead and surfaces to maintain cutting performance.
• Tighten bolts, handles, and hardware regularly for safe operation.
• Store the jointer in a dry environment to help prevent corrosion.
