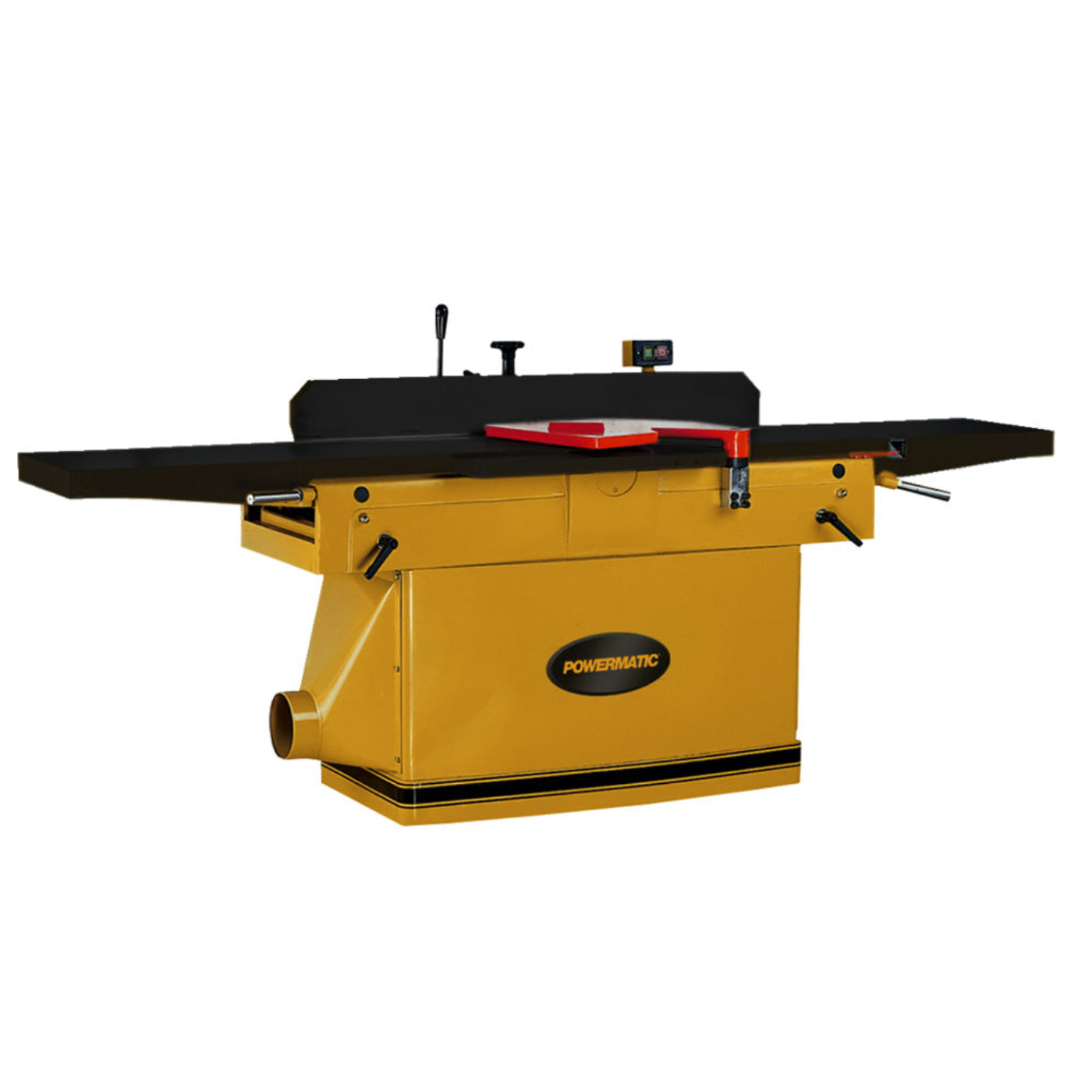

Powermatic 16" Parallelogram Helical Cutterhead Jointer with ArmorGlide 7.5hp, 3PH, 230V - PM1-1791283T

Powermatic 16" Parallelogram Helical Cutterhead Jointer with ArmorGlide 7.5hp, 3PH, 230V - PM1-1791283T

Now featuring ArmorGlide Technology, the Powermatic PJ1696T 16-Inch Jointer offers big capacity and performance in a machine loaded with features. A large center-mounted fence assembly adjusts easily by a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles.

The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty.

The specially-designed solid steel helical cutterhead consists of six rows of precision-ground staggered inserts. This system makes fast work of knife changing, and never needs adjustments. The heavy-duty 7.5hp motor delivers all the power you need for even the biggest jobs.

• Enhanced visibility: The dark surface reduces glare, so you can see where you're cutting better.
• Rust resistant: Ditch the steel wool and never worry about rust again.
• Low friction: Coated tables require 50% less force, so you get more control.
• Maintenance-free: Get rid of the waxes and messy cleaning supplies, so you can do more of what you love.
• Durable coating: ArmorGlide tables can withstand 250,000 passes without showing signs of wear.

Features

• ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
• Cast iron fence bevel controls include positive stops at 45 degrees and 90 degrees
• Full size rabbeting table supports large workpieces for rabbets up to 3/4-inch deep
• Helical cutterhead features 58 two-sided knife inserts that reduce noise, eliminate adjustments, and speed knife changes
• Large 16" x 96" precision ground cast iron table surface for maximum support and fine finish
• Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
• Rack and pinion adjustable cast iron fence assembly allows for smooth fence positioning without play

Specifications

Video

What our Experts Think

• The Powermatic 16" Parallelogram Helical Cutterhead Jointer is built for professional woodworkers who need maximum accuracy, power, and long-term durability.
• The 7.5HP three-phase motor delivers consistent cutting performance, making it ideal for heavy hardwood stock and demanding production environments.
• The helical cutterhead with 58 carbide inserts helps produce smoother finishes, reduces tear-out, lowers vibration, and requires less maintenance than traditional straight knives.
• The ArmorGlide table coating is a major advantage, helping boards move smoothly while resisting rust and reducing surface friction.
• The parallelogram table design keeps the cutterhead relationship consistent over time, supporting repeatable cuts and easier depth adjustments.
• With its 16" wide capacity and large cast iron tables, experts consider this a premium choice for shops handling large panels, wide boards, and precision joinery.
• Expert verdict: A high-end jointer designed for serious woodworking operations where accuracy, reliability, and finish quality matter most.

Q&A

Q: What is the Powermatic 16" Parallelogram Jointer with ArmorGlide?
A: The Powermatic PM1-1791283T is a professional 16-inch jointer designed for precision face jointing, edge jointing, and preparing large woodworking stock.

Q: What motor does the PM1-1791283T use?
A: It features a powerful 7.5 HP, 3-phase, 230V motor built for heavy-duty production woodworking.

Q: What is the benefit of the helical cutterhead?
A: The helical cutterhead uses 58 carbide inserts to provide smoother cuts, reduced tear-out, quieter operation, and longer cutting life.

Q: What does ArmorGlide technology do?
A: ArmorGlide creates a low-friction, rust-resistant table surface that helps boards move smoothly and improves long-term table durability.

Q: What is the cutting capacity of this jointer?
A: It offers a 16-inch cutting width, making it suitable for wide boards, hardwoods, furniture components, and large projects.

Q: What size are the tables?
A: It includes large 16" x 96" precision-ground cast iron tables for excellent support and accurate jointing.

Q: What is the advantage of the parallelogram table design?
A: The parallelogram design keeps the tables aligned with the cutterhead while allowing quick and precise depth adjustments.

Q: Does the fence provide precise adjustments?
A: Yes, the rack-and-pinion fence system allows smooth positioning with preset stops for common jointing angles.

Q: Can it cut rabbets?
A: Yes, it supports rabbeting up to 3/4 inch depth for additional woodworking applications.

Q: Does it include dust collection?
A: Yes, it features a 6-inch dust port for efficient chip and dust removal.

Q: Is this jointer suitable for professional shops?
A: Yes, its heavy-duty construction, wide capacity, helical head, and powerful motor make it ideal for production woodworking environments.

Q: Why choose the Powermatic 16" ArmorGlide Jointer?
A: It combines industrial power, precision alignment, premium helical cutting technology, and durable construction for professional woodworking results.

Maintenance Tips

• Clean sawdust, chips, and debris regularly from the cutterhead, tables, fence, and dust collection system to maintain smooth operation.
• Keep the ArmorGlide table surface clean and free of buildup to support smooth stock feeding and prevent residue accumulation.
• Inspect the helical cutterhead inserts regularly; rotate or replace damaged inserts to maintain sharp, consistent cuts.
• Keep the cast iron fence and jointer tables protected from moisture to help prevent rust and maintain precision.
• Check and adjust table alignment, fence settings, and cutterhead setup periodically for accurate jointing results.
• Maintain proper dust collection to reduce internal buildup and improve workshop cleanliness.
• Lubricate moving parts, adjustment mechanisms, and sliding components according to recommended maintenance schedules.
• Inspect belts, motor components, switches, and electrical connections for wear or damage.
• Tighten bolts, handles, and hardware regularly to keep the jointer stable during heavy-duty operation.
• Store the machine in a dry workshop environment and cover it during extended periods of non-use.
