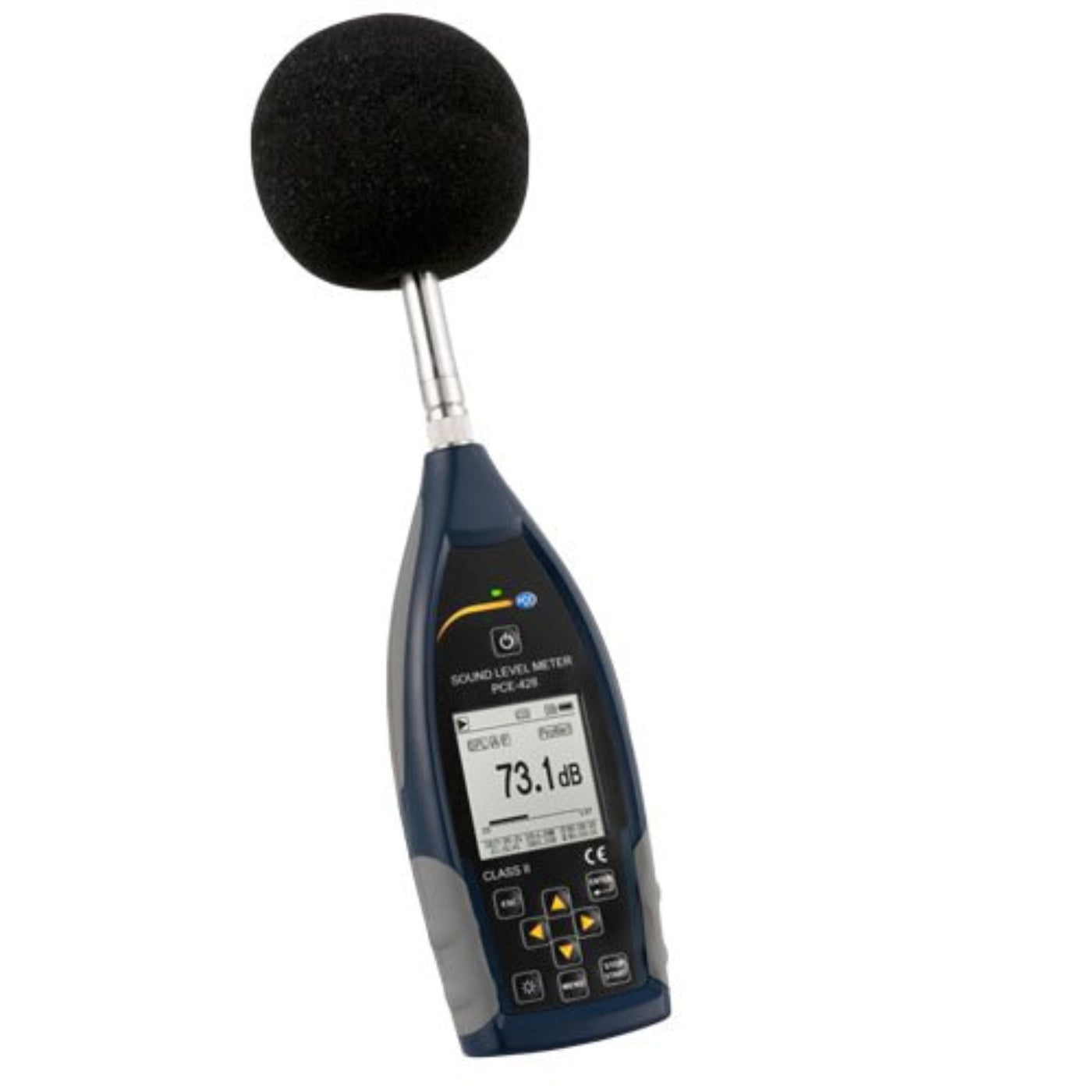

PCE Class 2 Decibel Sound Meter - PCE-428

PCE Class 2 Decibel Sound Meter - PCE-428

The PCE 428 Class 2 Decibel Sound Meter (25 - 136dB) meets IEC 60651:1979, IEC 60804:2000, IEC 61672-1:2013, ANSI S1.4-1983 and ANSI S1.43-1997 requirements. This portable, high-accuracy sound level meter has a large easy-to-read light-up LCD screen that displays the sound pressure level (SPL) numerically & graphically in real time. Thanks to octave band filtering, even the slightest difference in frequency is detected.

This handheld sound meter also functions as a data logger, recording measurements at an adjustable interval from 1 s - 24 h and storing the recorded measurement data to a micro SD card. The card can be removed from the meter and inserted into a PC. Alternatively, the decibel meter can be connected directly to a PC via USB. The provided PC-compatible software allows for quick and easy data analysis.

This device measures from 25 - 136 db(A) at a frequency of 20 Hz - 12.5 kHz. The meter features A, B, C and Z frequency weightings as well as fast, slow and impulse time weightings. The PCE-428 decibel meter is commonly used by professionals to ensure compliance with environmental noise regulations and workplace noise permissible exposure limits.

Features

•  Accuracy class 2
• A, B, C and Z frequency weightings
• Fast, slow and impulse time weightings
• 1/1 octave band filter (optional 1/3 octave band filter upgrade)
• Adjustable data-recording interval from 1 s ... 24 h
• Real-time numerical and graphical LCD display
• Adjustable alarm

Specifications

• Measuring range: 25 - 136 db(A)
• Accuracy: Class 2
• Frequency range: 20 Hz - 12.5 kHz
• Standards:
• GB/T 3785.1-2010
• GB/T 3785.2-2010
• IEC 60651:1979
• IEC 60804:2000
• IEC 61672-1:2013
• ANSI S1.4-1983
• ANSI S1.43-1997.
• Frequency analysis:

Highlights

• Measures from 25 - 136 db(A) at a frequency of 20 Hz - 12.5 kHz
• Portable
• High-accuracy
• 1/1 octave band filter (optional 1/3 octave band filter upgrade)

What our Experts Think

• Professional-Grade Sound Measurement: Class 2 accuracy makes it suitable for environmental, workplace, and industrial noise monitoring.
• High-Precision Decibel Detection: Delivers reliable readings for sound level analysis in compliance testing and audits.
• Wide Application Range: Ideal for construction sites, factories, HVAC systems, events, and environmental noise studies.
• Clear Digital Display: Easy-to-read interface helps users quickly interpret real-time sound levels and trends.
• Data Logging Capability: Supports recording and analysis of noise data over time for reporting and compliance purposes.
• Durable & Field-Ready Design: Built for consistent performance in both indoor and outdoor professional environments.

Q&A

Q: What is the PCE-428 Class 2 Sound Meter used for?
A: The PCE-428 is designed to measure and analyze noise levels for workplace safety, environmental monitoring, industrial inspections, and acoustic assessments.

Q: Is the PCE-428 compliant with professional noise measurement standards?
A: Yes. As a Class 2 sound level meter, it is suitable for many professional and regulatory noise monitoring applications.

Q: What types of environments can it be used in?
A: It is ideal for factories, construction sites, offices, schools, public spaces, and environmental noise surveys.

Q: Can the PCE-428 record measurement data?
A: Yes. The device supports data logging and storage, allowing users to track, analyze, and document noise levels over time.

Q: Does the meter measure different sound parameters?
A: Yes. It can measure key acoustic parameters used for noise assessment and compliance monitoring.

Q: Why choose the PCE-428 Class 2 Sound Meter?
A: It offers accurate noise measurements, reliable data logging, and professional-grade performance for sound monitoring and acoustic analysis.

Maintenance Tips

• Keep the microphone capsule clean and free from dust by using a soft brush or air blower only.
• Store the sound meter in its protective case to avoid shock damage and sensor misalignment.
• Avoid exposing the device to extreme humidity, moisture, or direct sunlight to protect internal electronics.
• Regularly check calibration status and recalibrate using a certified acoustic calibrator when required.
• Ensure battery is charged and replace or recharge it as needed to maintain measurement accuracy.
• Handle the microphone carefully—do not touch or apply pressure directly to the sensing element.
• Inspect cables, connectors, and mounting points for wear or loose connections before each use.
• Keep firmware (if applicable) updated for improved measurement stability and compliance with Class 2 standards.
