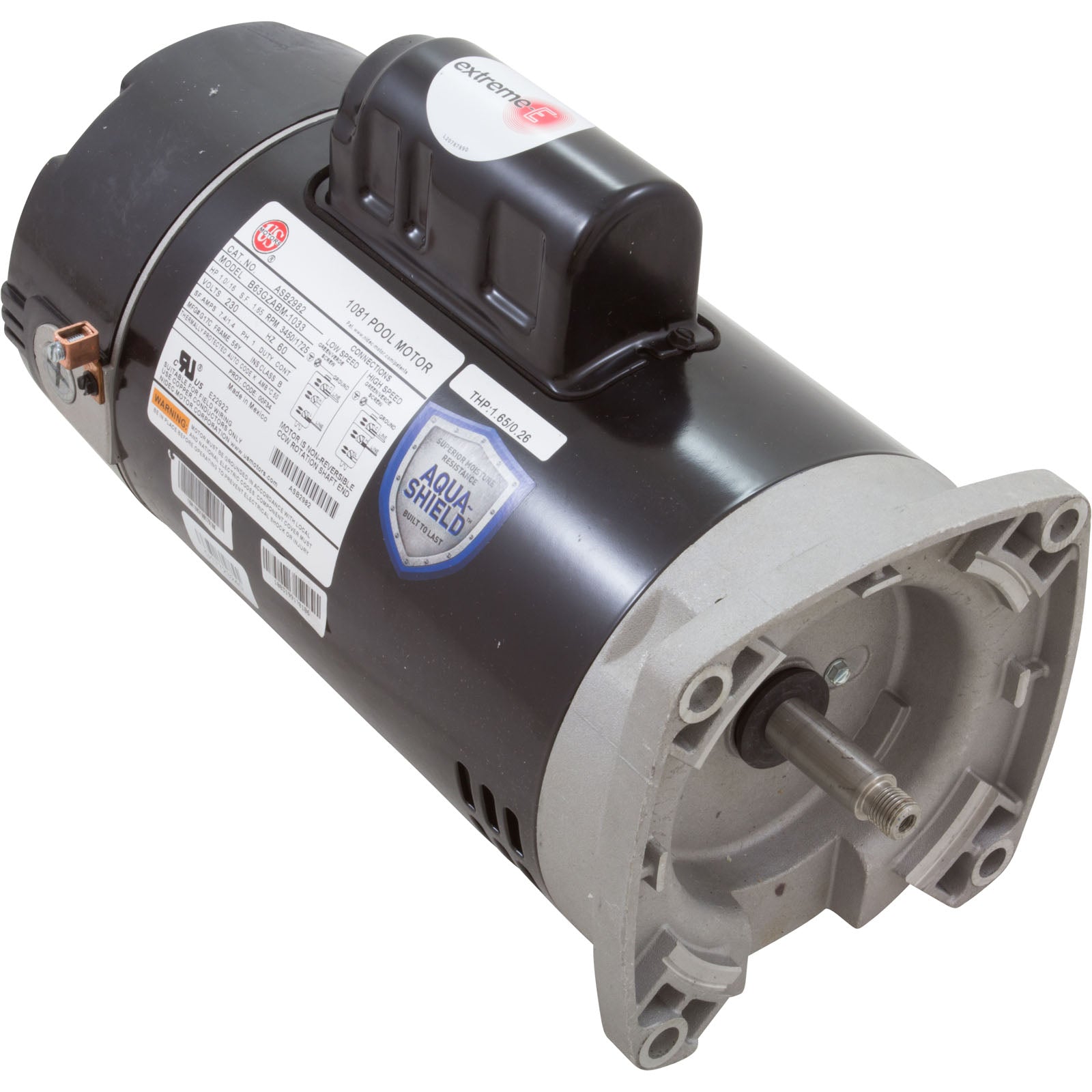

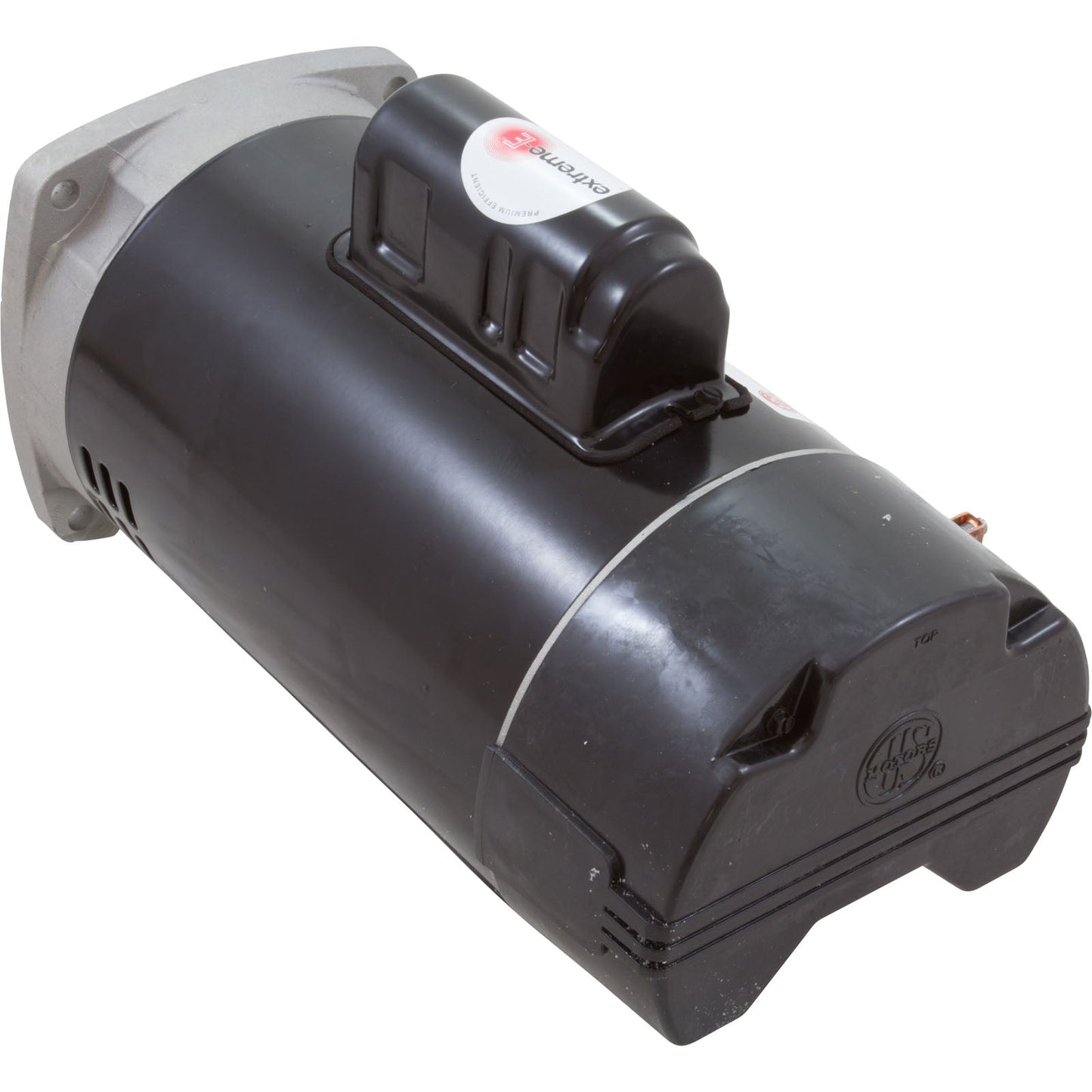

Nidec ASB2982 Motor, US Motor, 1.0hp, 230v, 2-SPD, 56Yfr, SQFL, Full - ASB2982

Nidec ASB2982 Motor, US Motor, 1.0hp, 230v, 2-SPD, 56Yfr, SQFL, Full - ASB2982

The Nidec ASB2982 is a reliable motor from Nidec Motor Corp/US Motors, featuring one horsepower and operating at two speeds. This motor is designed for efficient performance in various applications, especially in pool and spa systems.

Product Highlights

This motor offers a robust construction with an open dripproof enclosure and is designed for continuous duty. It allows for easy installation with its user-friendly features.

Features

• Item type: Electric Motor
• Single-phase design
• Square flange mounting style

Specifications

What our Experts Think

• Dual-Speed Versatility: Features a 2-speed operation, providing flexibility for different applications where variable speeds are required for optimal performance.

• Reliable Power Output: Delivers 1.0 HP at 230V, offering consistent and efficient power for a variety of light industrial or commercial systems.

• Compact & Robust Design: Built with a 56Y frame, ensuring a compact and sturdy motor that can handle demanding tasks while fitting into tight spaces.

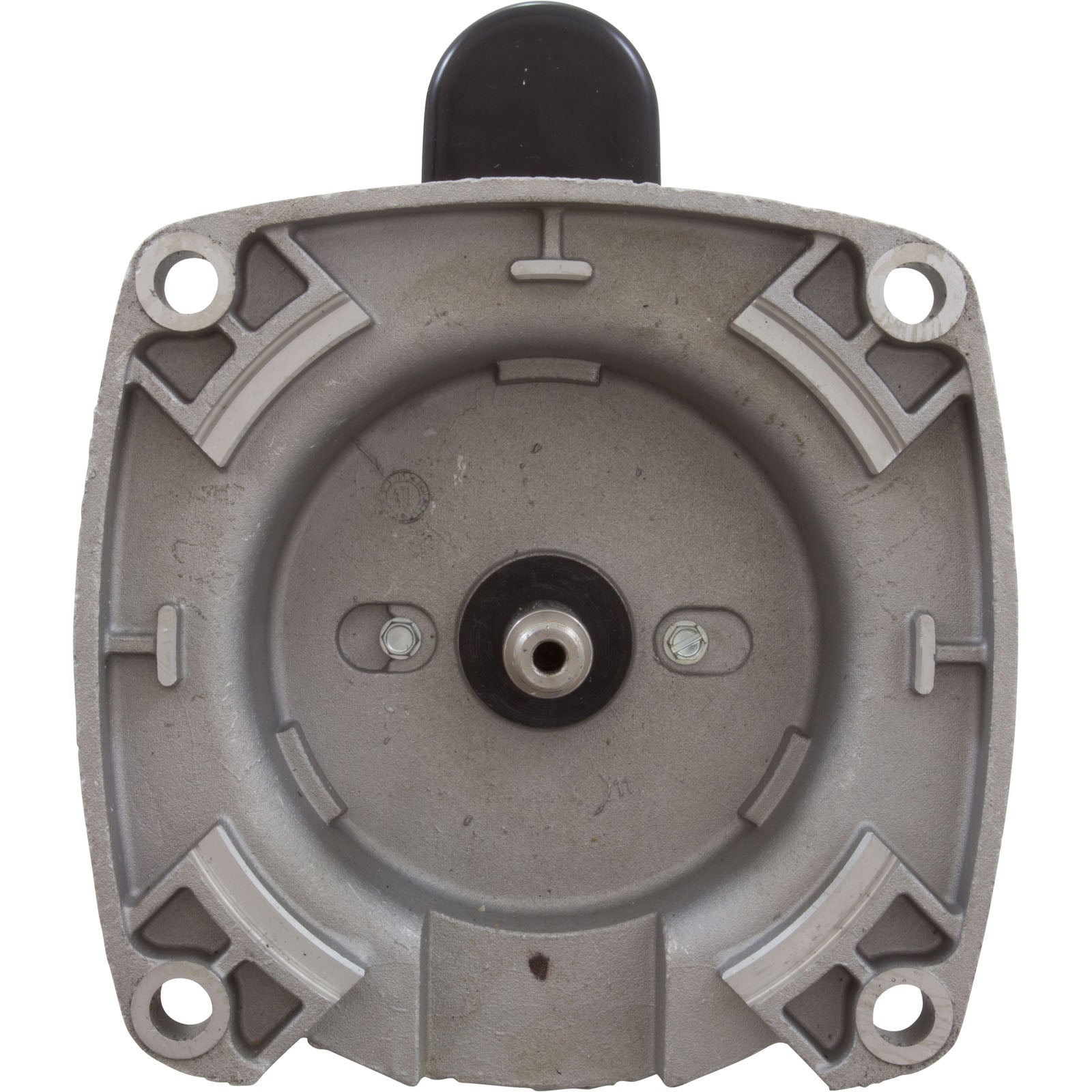

• SQFL (Square Flange): Designed with a square flange for secure and easy mounting, ensuring reliable installation in various equipment setups.

• Full Voltage Operation: Capable of running efficiently at full voltage, providing stable performance even under continuous operation.

• Durable Construction: Manufactured by Nidec, known for high-quality, long-lasting motors suitable for commercial and industrial environments.

Q&A

Q: What is the Nidec ASB2982 motor used for?
A: The ASB2982 is a 1.0 HP, two-speed motor designed for applications like fans, blowers, and other HVAC systems where variable speeds are needed for optimal performance.

Q: What are the power and voltage ratings of the ASB2982 motor?
A: It provides 1.0 horsepower and operates on a 230V single-phase electrical system, making it suitable for a wide range of residential and light commercial applications.

Q: What is the key feature of the ASB2982 motor's speed control?
A: The ASB2982 features a two-speed design, allowing for flexible operation in applications requiring different airflow rates or performance levels.

Q: What type of motor is the Nidec ASB2982?
A: It is a capacitor-start, open drip-proof (ODP) motor with a 56Y frame, providing reliability and durability in clean, dry environments.

Q: Where is the ASB2982 motor best suited?
A: Ideal for HVAC systems, ventilation fans, and air handling units that require flexible speed control to maintain consistent airflow and efficiency.

Maintenance Tips

• Clean Regularly:
  Keep the motor housing clean and free of dust, dirt, and debris. Use a soft brush or compressed air to clear vents and cooling fins to prevent overheating and ensure efficient operation.

• Inspect Electrical Connections:
  Regularly check that all electrical terminals are secure and free from corrosion. Loose or damaged connections can result in voltage drops, overheating, or failure.

• Check and Maintain Bearings:
  If applicable, lubricate bearings as per the manufacturer’s instructions. Ensure that the bearings are not overly lubricated, as excess grease can lead to overheating or damage to the seals.

• Verify Proper Voltage:
  Ensure the motor is operating within the rated 230V voltage range. Incorrect voltage can reduce efficiency or cause the motor to overheat or fail prematurely.

• Monitor for Unusual Noise or Vibration:
  Listen for any abnormal sounds such as grinding or excessive humming. Unusual noises or vibrations may indicate misalignment, worn bearings, or internal component failure.

• Check for Proper Motor Alignment:
  Confirm that the motor is properly aligned with the driven equipment. Misalignment can result in additional strain on the motor, causing premature wear or failure.

• Test Motor Speed Settings:
  Ensure that the two-speed settings are functioning properly. If there is any issue with speed control, check the wiring or speed switch for damage or malfunction.

• Ensure Clean and Dry Environment:
  Operate the motor in a clean, dry environment to prevent moisture or contaminants from entering the motor housing, which can cause electrical issues or rusting.

• Inspect the Shaft and Couplings:
  Periodically check the motor shaft and couplings for signs of wear or damage. Properly aligned and intact couplings ensure smooth operation and prevent strain on the motor.

• Schedule Periodic Professional Inspections:
  Schedule regular inspections, including testing insulation resistance and checking for any electrical or mechanical issues. Routine checks can prevent unexpected downtime and extend the motor's lifespan.
