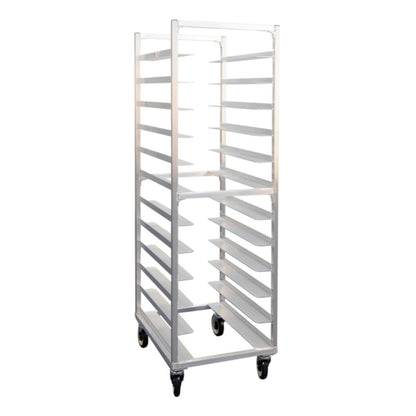

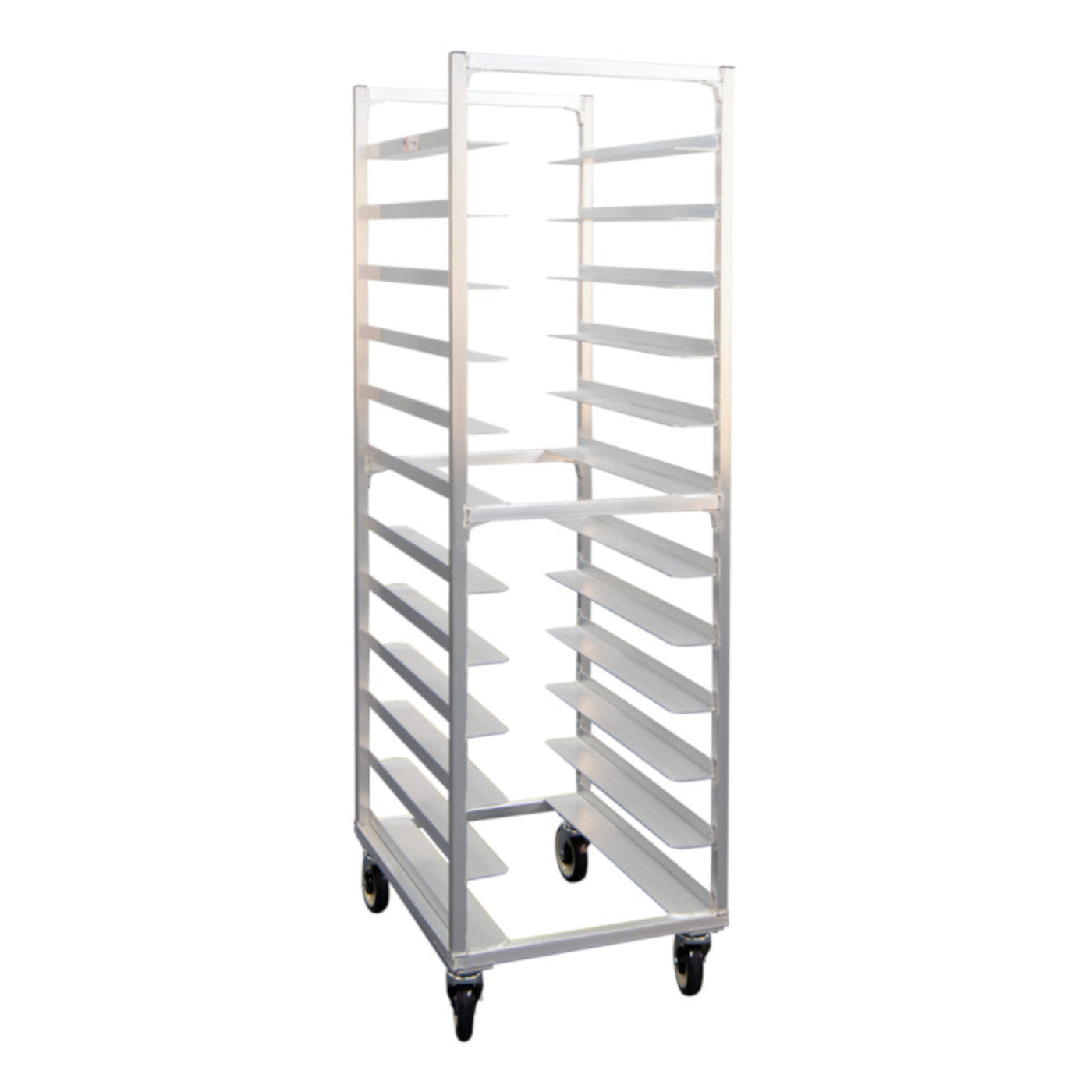

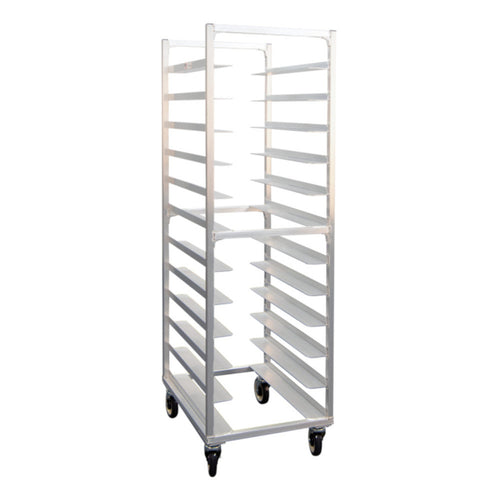

New Age Mobile Universal 20.875"W x 67"H x 27"D Pan Rack with Open Frame - NW1305

New Age 1305 is a mobile universal pan rack. With the ability to store a variety of pans and trays, it is ideal for transferring food from one area to another. It has a durable construction. Being made from all welded aluminum, it has heavy-duty aluminum tubes and angle slides for maximum strength. It has an all welded rectangular frame with caster plates pre-tapped for caster bolts. The casters are 5" and are designed for heavy-duty use. This 1305 is guaranteed for life against rust and corrosion and has a five-year warranty against material defects.

Features
  • Extremely versatile
  • Extra wide 3-1/4" angles are welded to the heavy duty frame giving you the freedom to mix–and–match pans and trays of mixed sizes on one rack
  • Designed to hold trays by the bottom to ensure equal load distribution for easy handling
  • Heavy duty aluminum tube and angle slides maximize strength and durability
  • All welded aluminum racks
  • Equipped with four 5" heavy duty platform type casters
  • Non-marking wheels protect floors and minimize noise
  • All heli-arc welded with all seams welded and sealed (no rivets)
  • Each side had two vertical posts of 1" x 1" x .070" wall tube
  • Welded to each side are angle runners of 1-1/2" x 3-1/4" x .100" wall aluminum angle, spaced on 3" or 5" centers
  • Each rack has (4) horizontal supports located at the top and center. These supports are 1" x 1" x .070" wall tube
  • Gussets of 1-1/2" x 1-1/2" x 5/8" thick angle are welded to the inside angles (bottom side) where horizontal cross bracing meets vertical uprights
  • All welded rectangular frame with caster plates pre-tapped for caster bolts welded to each corner
  • Lifetime guarantee against rust and corrosion
Specifications
  • Model: 1305
  • Capacity: 8" x 26" and 12" x 20" pans or trays
  • Number of Universal Slides: 12
  • Dimensions: 69.75" H x 20.38" W x 26.38" D
  • Approximate Shipping Weight: 56.2 lbs.
  • Approximate Product Weight: 48 lbs.
  • Certifications: NSF
What our Experts Think
  • Commercial-grade aluminum construction: Built with all-welded aluminum tubing, this rack delivers long-term durability, corrosion resistance, and dependable performance in high-volume kitchens.
  • Efficient universal storage design: Supports multiple pan types including 12" x 20", 18" x 26", and 13" x 18" trays, making it highly versatile for baking, prep, and holding operations.
  • Space-optimized footprint: Slim 20.875" W x 27" D x 67" H design maximizes vertical storage capacity while maintaining easy maneuverability through tight kitchen aisles.
  • High-performance slide system: Features approximately 12 universal slide levels on 5" spacing, enabling balanced airflow and efficient product organization.
  • Smooth mobility under load: Equipped with (4) heavy-duty 5" swivel casters, allowing easy transport between prep, bake, and storage stations.
  • Open-frame workflow efficiency: End-loading, open-side structure speeds up loading and unloading, improving productivity during peak service periods.
  • Built for continuous commercial use: Reinforced welded frame design is engineered to maintain rigidity under heavy loads, reducing flex and improving safety in daily operation.
  • Sanitation-focused design: Smooth welded surfaces and open structure simplify cleaning and help maintain food-safe standards in professional environments.
Q&A

Q: What is the New Age NW1305 Mobile Universal Pan Rack used for?
A: A commercial open-frame aluminum rack designed for storing, staging, and transporting sheet pans, trays, and baked goods in bakeries, restaurants, and food production kitchens.

Q: What are the dimensions of this rack?
A: 20.875"W x 27"D x 67"H (approx. 20.38"W x 26.38"D x 69.75"H depending on spec variation).

Q: How many pans does it hold?
A: Typically supports about 12 universal slide levels, suitable for multiple pan sizes including 18" x 26", 12" x 20", and 13" x 18" trays.

Q: What makes it “universal”?
A: Its wide-angle aluminum runners allow mixed pan sizes on the same rack, improving workflow flexibility in busy kitchens.

Q: What is it made of?
A: Heavy-duty all-welded aluminum construction for strength, corrosion resistance, and long service life in commercial environments.

Q: Is this rack mobile?
A: Yes. It includes four 5" swivel casters for smooth movement even when fully loaded.

Q: What is the loading style?
A: End-loading open frame design, allowing fast access and efficient pan handling from both sides.

Maintenance Tips
  • Daily cleaning: Wipe open frame and runners with mild detergent and warm water; dry completely to prevent buildup and corrosion.
  • Open frame care: Clean internal corners and joints regularly where grease, flour, and debris can accumulate.
  • Runner maintenance: Keep pan guides free of residue to ensure smooth loading and reduce sticking.
  • Caster care: Inspect wheels often, remove debris, and lubricate to maintain safe and easy mobility.
  • Load distribution: Evenly distribute pans to maintain stability and prevent frame stress.
  • Sanitation routine: Apply food-safe sanitizer frequently in commercial kitchen environments.
  • Avoid harsh chemicals: Do not use abrasive pads or chlorine-based cleaners that may damage the finish.
  • Structural checks: Inspect welds, supports, and frame integrity regularly under heavy-duty use.
  • Level operation: Ensure rack is positioned level to prevent shifting or sliding during transport.
  • Dry storage: Store in a dry, ventilated area when not in use to extend service life.
