Diamond Audio 6-Channel 1500W RMS CLASS D Amplifier with 8CH DSP - NEO15006DSP

Diamond Audio 6-Channel 1500W RMS CLASS D Amplifier with 8CH DSP - NEO15006DSP

Extensive System Power Meets Precision Control

The Diamond Audio NEO15006DSP is the ultimate solution for audiophiles seeking the perfect balance of multi-channel flexibility and sophisticated tuning with onboard 8CH DSP. As a high-efficiency Class D 6-Channel amplifier, it delivers a massive 1500W RMS total output. 150W RMS x 6 @ 4Ω or 250W RMS x 6 @ 2Ω, providing the dependable strength needed to drive complete active systems or high-output multi-speaker setups, with the ability to bridge channels to 500W x 3 @ 4Ω —all while maintaining the pure sonic clarity Diamond Audio is known for.

Advanced Full DSP Integration

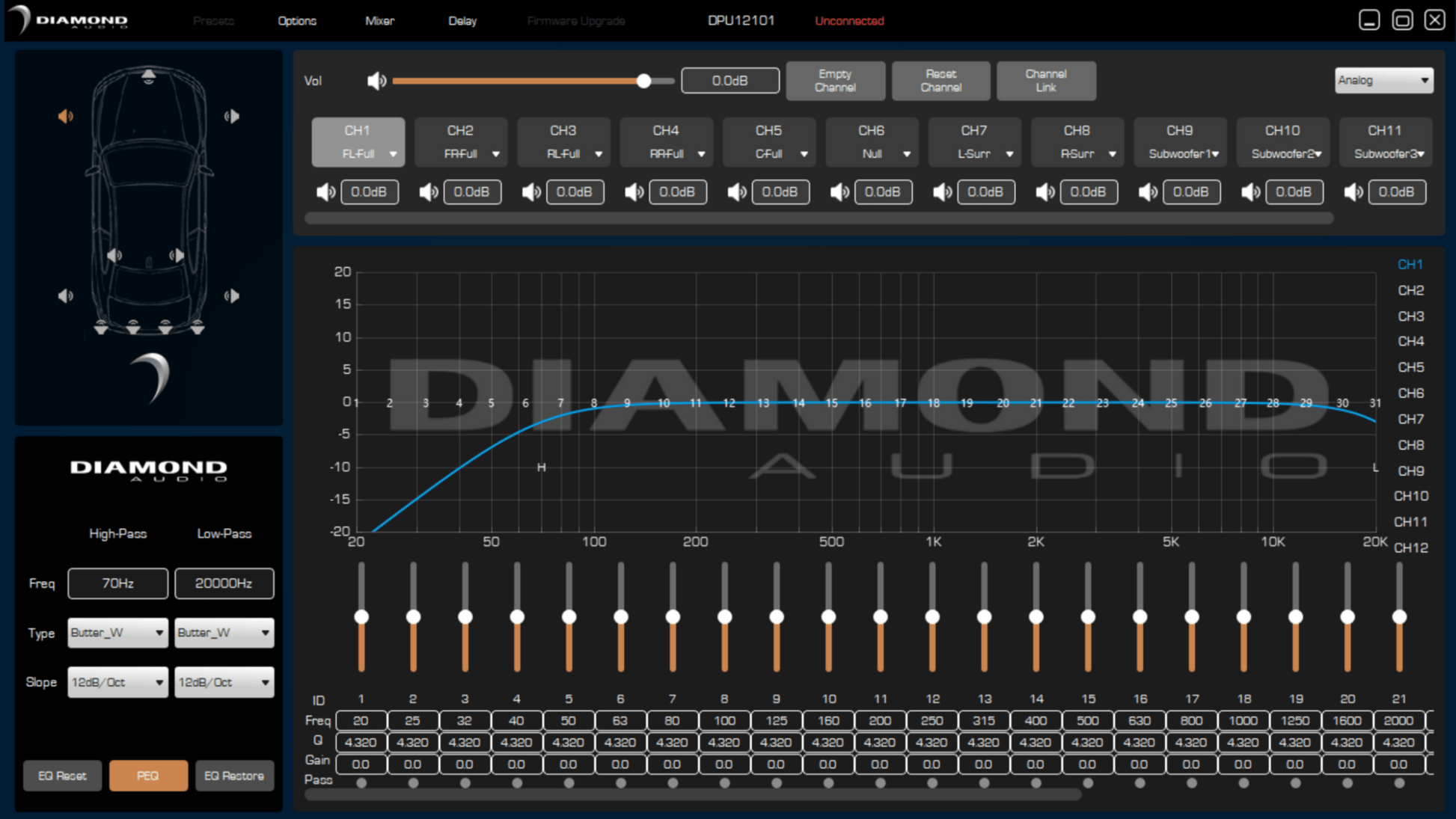

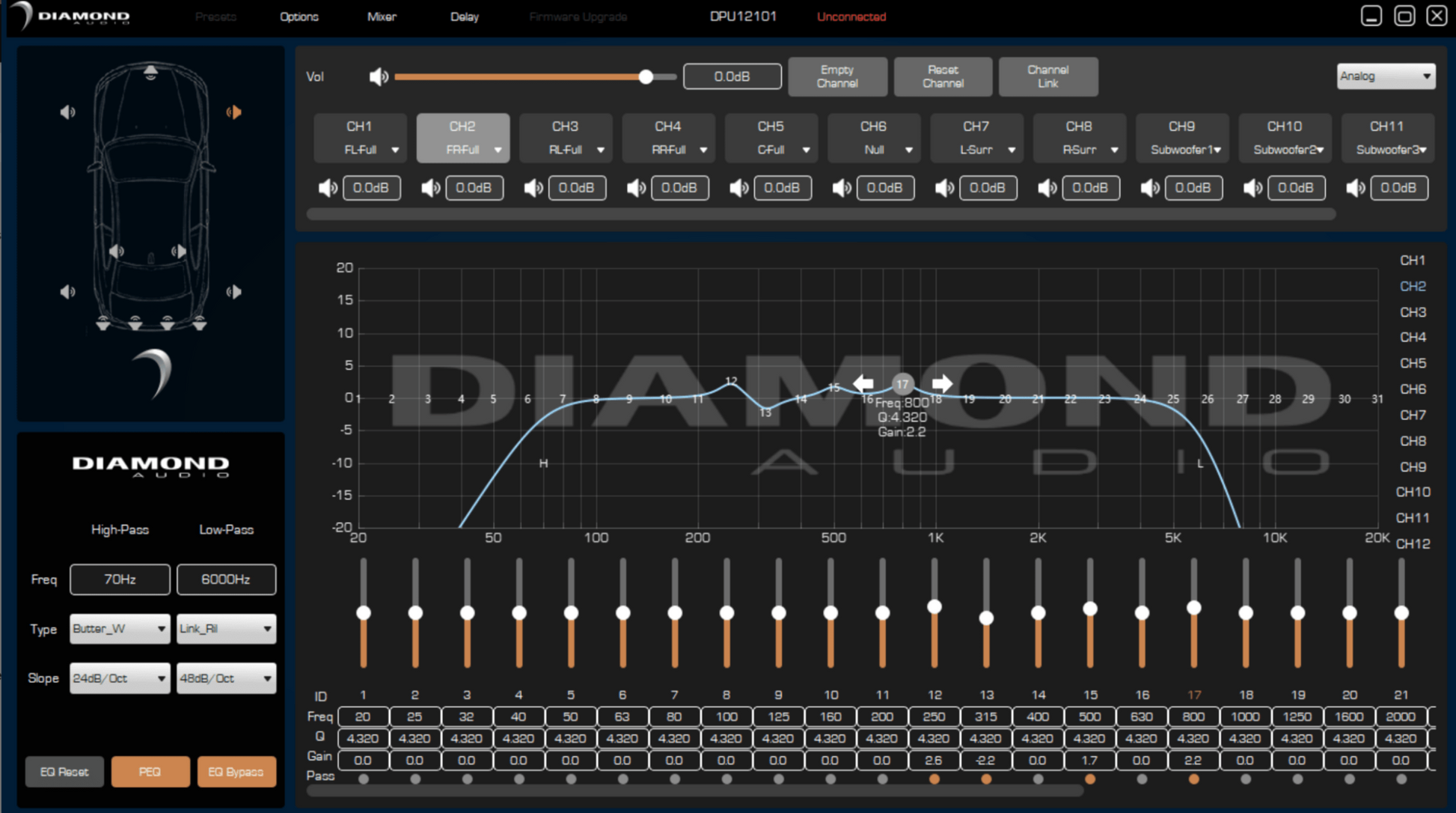

Unlike standard multi-channel amplifiers, the NEO15006DSP features an integrated, full-service Digital Signal Processor . With 31 bands of parametric EQ per channel , precise crossovers, time delay , and channel linking, you have total command over every aspect of your soundstage. Whether you are tuning via PC or Android , the NEO Series provides a professional-grade interface to meticulously calibrate complex 6-channel configurations for any acoustic environment.

Seamless OEM & EV Integration

Designed for the modern vehicle landscape, the NEO15006DSP excels in integration. It features high-voltage signal inputs (up to 20V) and selectable on-board load resistors (10Ω - 20kΩ) to interface perfectly with complex factory (OEM) systems . Furthermore, its EV-friendly voltage compatibility (8-17V) ensures stable performance in electric and hybrid vehicles without compromising the vehicle’s electrical integrity.

Versatile & Rugged Engineering

Built to perform in diverse environments, the NEO15006DSP features a marine-ready, water-resistant chassis , making it an ideal choice for high-end car audio, marine, and powersports installations . Despite its expanded 6-channel capability , the compact footprint , staggered RCA connections, and high-current quick-connect power blocks ensure a clean, professional installation in any high-performance audio setup.

Features

• Full 8CH DSP integration: 6CH internal, 2CH output. 31 band parametric EQS per channel, crossovers, time delay, channel linking, PC or Android programming for advanced tuning and much more
• Easy OEM integration features:
• Up to 20V signal inputs (High/Low level 20V – 0.4V)
• Selectable on-board load resistors (10Ω, 20Ω, 60Ω, 20kΩ)
• EV friendly voltage compatibility (8V – 17V)
• Bluetooth Audio streaming direct to amplifier

• Control via IOS or Android App (coming soon)
• Marine ready, water-resistant chassis
• Staggered RCA connections for clean installations

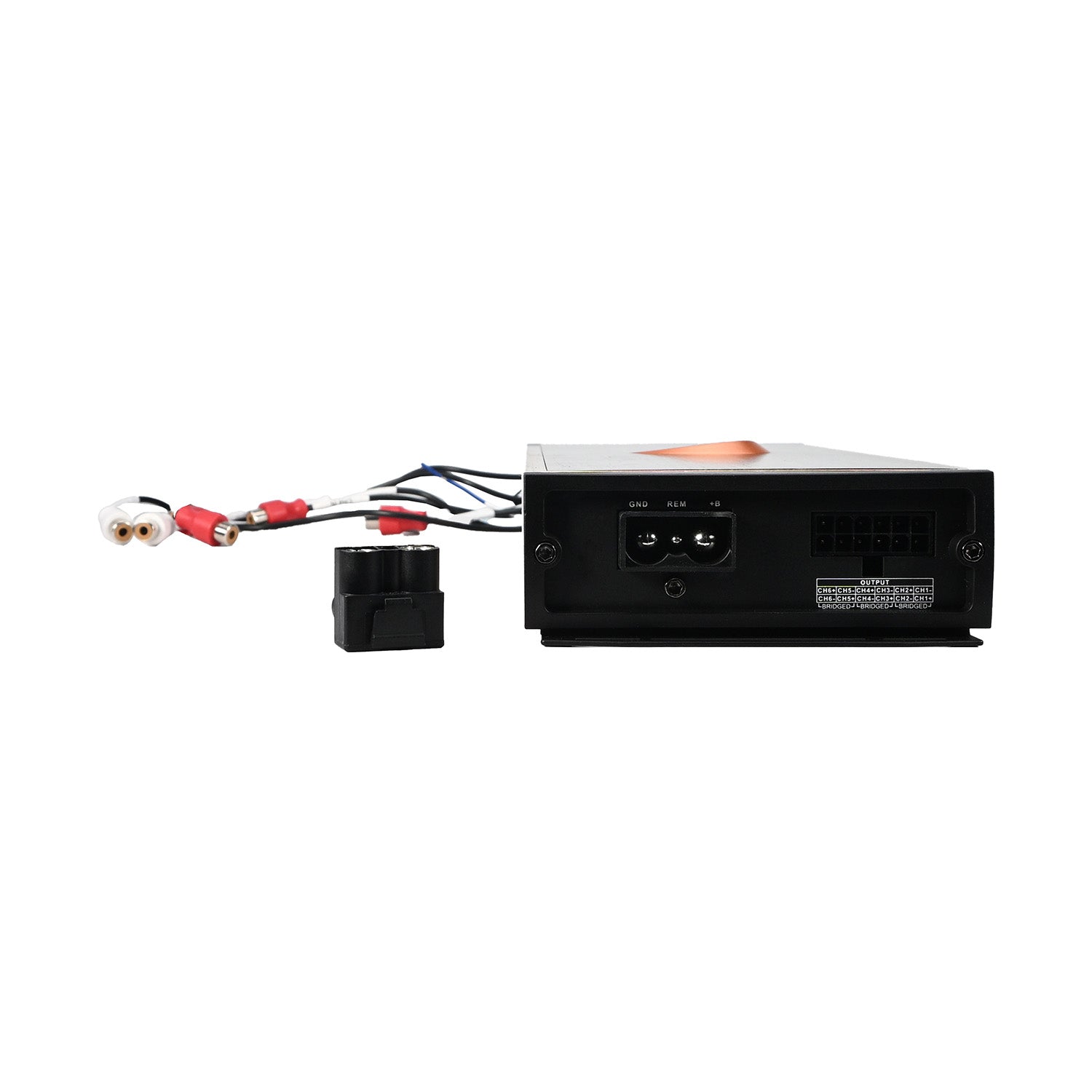

• High-current quick-connect power block
• NeoDRC1 Diamond Remote Commander compatible (sold separately)
• 2 RCA preamp outputs for system expansion
• Ultra-low distortion (0.05% THD)

What our Experts Think

• All-in-one 6-channel Class D amplifier with 8-channel DSP, ideal for fully tuned multi-speaker systems.
• Delivers up to 1500W RMS of clean, efficient power for high-output, distortion-free performance.
• Advanced DSP provides precise control over EQ, crossovers, time alignment, and system tuning.
• Supports complex front/rear + subwoofer integration, making it perfect for complete audio builds.
• Compact NEO-series chassis allows flexible installation in motorcycles, cars, and powersports vehicles.
• High-efficiency design ensures stable thermal performance even under heavy continuous load.
• Best suited for users wanting a premium, single-unit solution for power, tuning, and system control.


Q&A

Q: What is the Diamond Audio NEO15006DSP?
A: Diamond Audio NEO15006DSP 6-Channel 1500W RMS Class D Amplifier with 8CH DSP is a high-power 6-channel Class D amplifier with integrated 8-channel DSP, designed for advanced tuning and full-system audio control in cars, motorcycles, and powersports builds.

Q: How much power does it deliver?
A: It provides up to 1500W RMS total output with flexible multi-channel configurations, allowing high-efficiency power distribution across full audio systems.

Q: What does the built-in DSP do?
A: The 8-channel DSP enables precise tuning including equalization, crossovers, time alignment, and output balancing for full sound system optimization.

Q: Can it run a complete audio system?
A: Yes. It is designed to power front, rear, and additional channels such as subwoofers or midrange drivers in a fully active setup.

Q: Is it compatible with factory systems?
A: Yes. It supports OEM integration with high-level inputs, making it suitable for factory audio upgrades in Harley-Davidson, automotive, and marine systems.

Q: Is it suitable for harsh environments?
A: Yes. It features a compact, durable, and vibration-resistant design built for motorcycles and powersports applications.

Q: What is the main advantage of this amplifier?
A: It combines high power output with advanced DSP control, allowing both loud performance and precise professional tuning in one unit.

Maintenance Tips

• Install in a dry, well-ventilated area to ensure proper cooling and performance.
• Regularly check all power, ground, and speaker connections for tight, corrosion-free contact.
• Inspect RCA, signal, and DSP control cables for secure fit and wear.
• Keep amplifier and DSP unit free from dust using a soft, dry cloth or low-pressure air.
• Avoid blocking heatsinks or ventilation fins during operation.
• Ensure stable power supply to prevent voltage drops, clipping, or DSP errors.
• Properly tune DSP settings (gain, EQ, crossover, time alignment) for clean output.
• Avoid exposure to moisture, high humidity, or direct water spray.
• Power off system before making wiring or DSP adjustments.
• Periodically check for vibration-related loosening in mobile or motorcycle installations.
