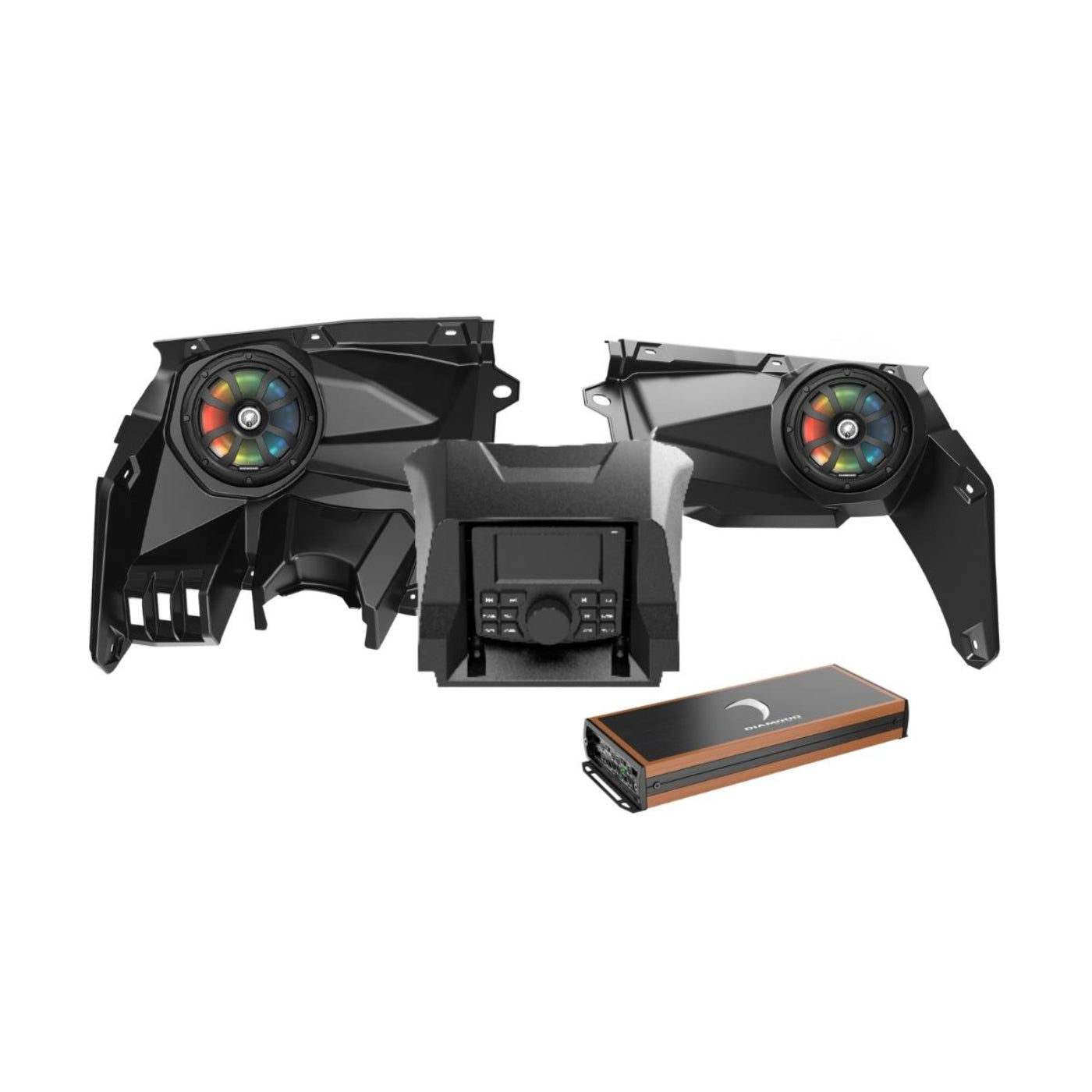

Diamond Audio 2017+ Can-Am X3 Dash Audio Speaker Kit - MSX3KD1

Diamond Audio 2017+ Can-Am X3 Dash Audio Speaker Kit - MSX3KD1

Diamond Audio MSX3KD1 - Premium Dash Audio Speaker Kit for Can-Am X3

Transform your Can-Am X3 with the ultimate in audio performance: the Diamond Audio MSX3KD1 Dash Audio Speaker Kit. Designed to deliver high-fidelity sound and robust durability, this kit will revolutionize your off-road audio experience.

Features

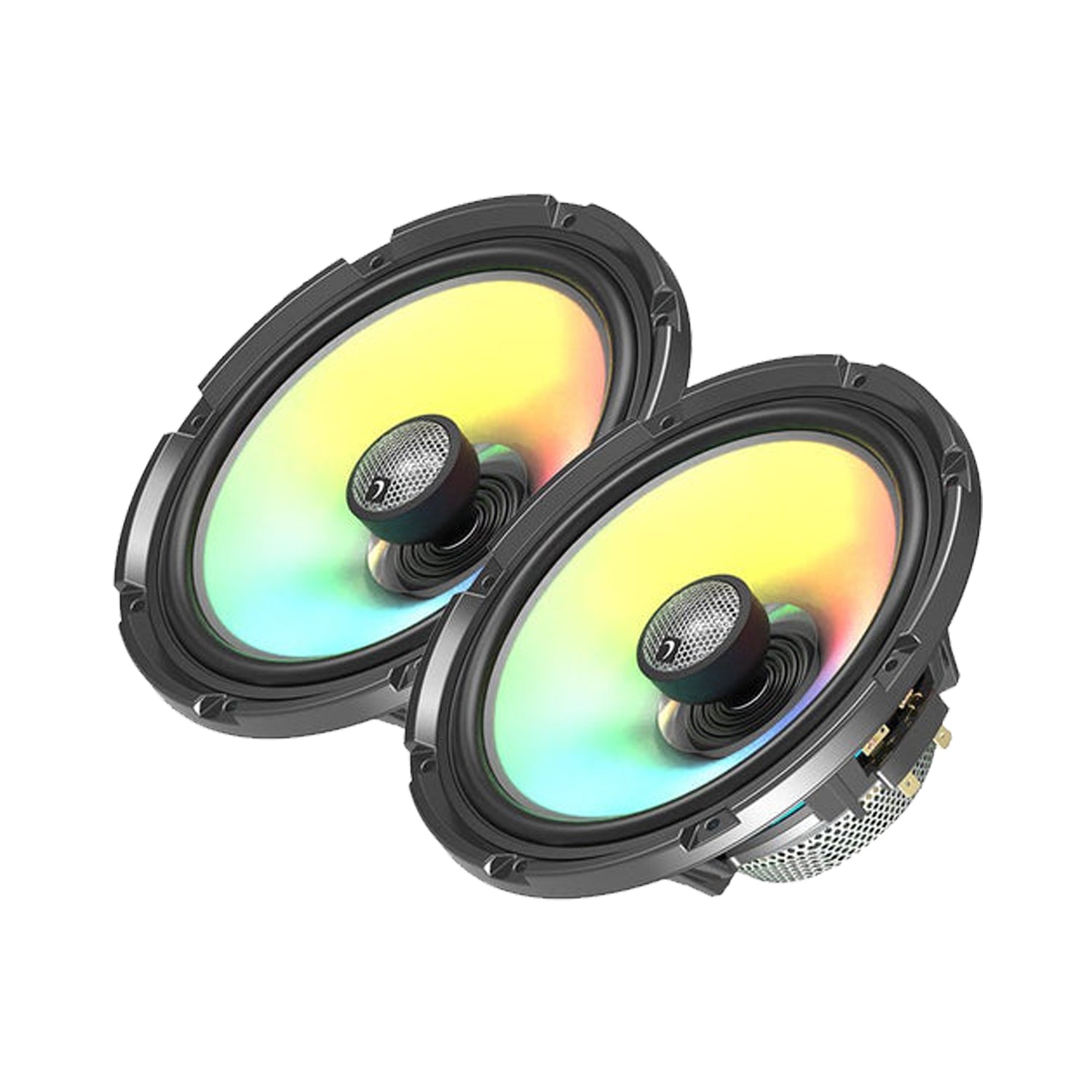

HXM65F4 Speakers

• Exceptional Audio Performance: 6.5" 2-Way Power Sports All Weather Coaxial Speakers with 125W RMS and 250W MAX power handling, providing clear, powerful sound.
• Compact Design: Ultra-compact motor structure ensures maximum efficiency without sacrificing space.
• Dynamic LED Lighting: Optional integrated LED lighting enhances the visual appeal (DALEDLC remote control sold separately).
• Plug-and-Play Convenience: EZ compatible LED connection and plug-n-play wire harness make installation straightforward and hassle-free.
• Rugged Construction: High impact and high-strength HDPE speaker panel ensures durability in the toughest environments.

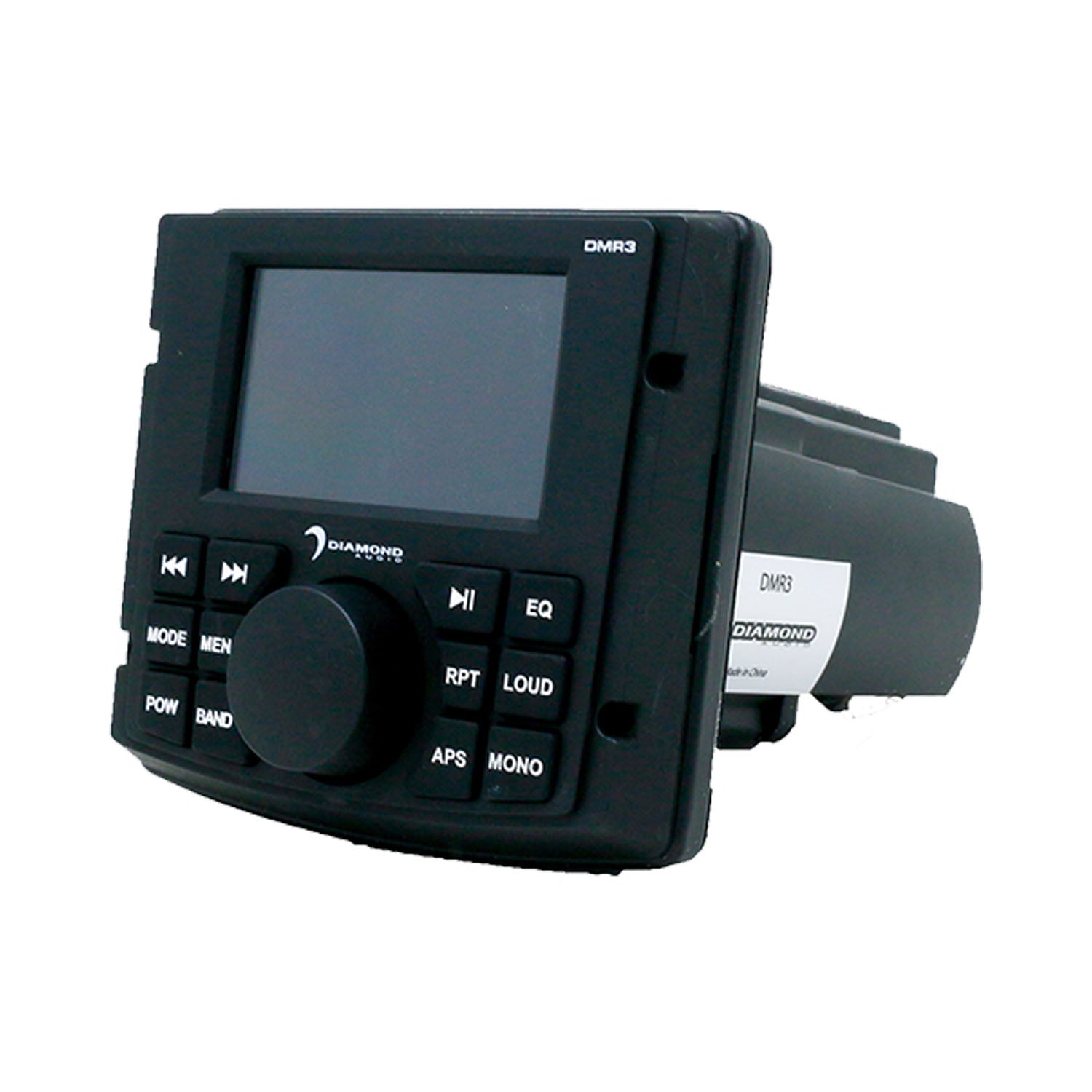

DMR3 Head Unit

• Seamless Connectivity: Bluetooth A2DP for wireless streaming, allowing you to play your favorite music from any compatible device.
• User-Friendly Display: 3-inch TFT color display with brightness control for easy visibility in any lighting conditions.
• Versatile Tuning Options: AM/FM tuner and multi-region radio frequencies for a wide range of listening options.
• Waterproof Protection: IP66 rating ensures the head unit can withstand water and dust, ideal for off-road adventures.
• Comprehensive Outputs: Front/Rear/Sub RCA outputs for versatile audio configuration.

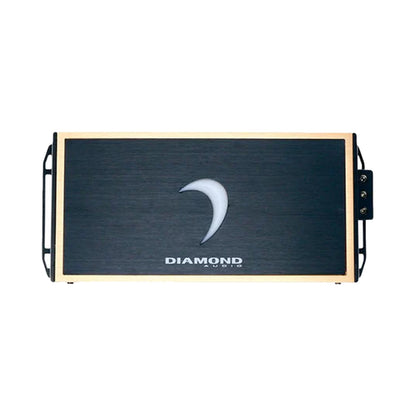

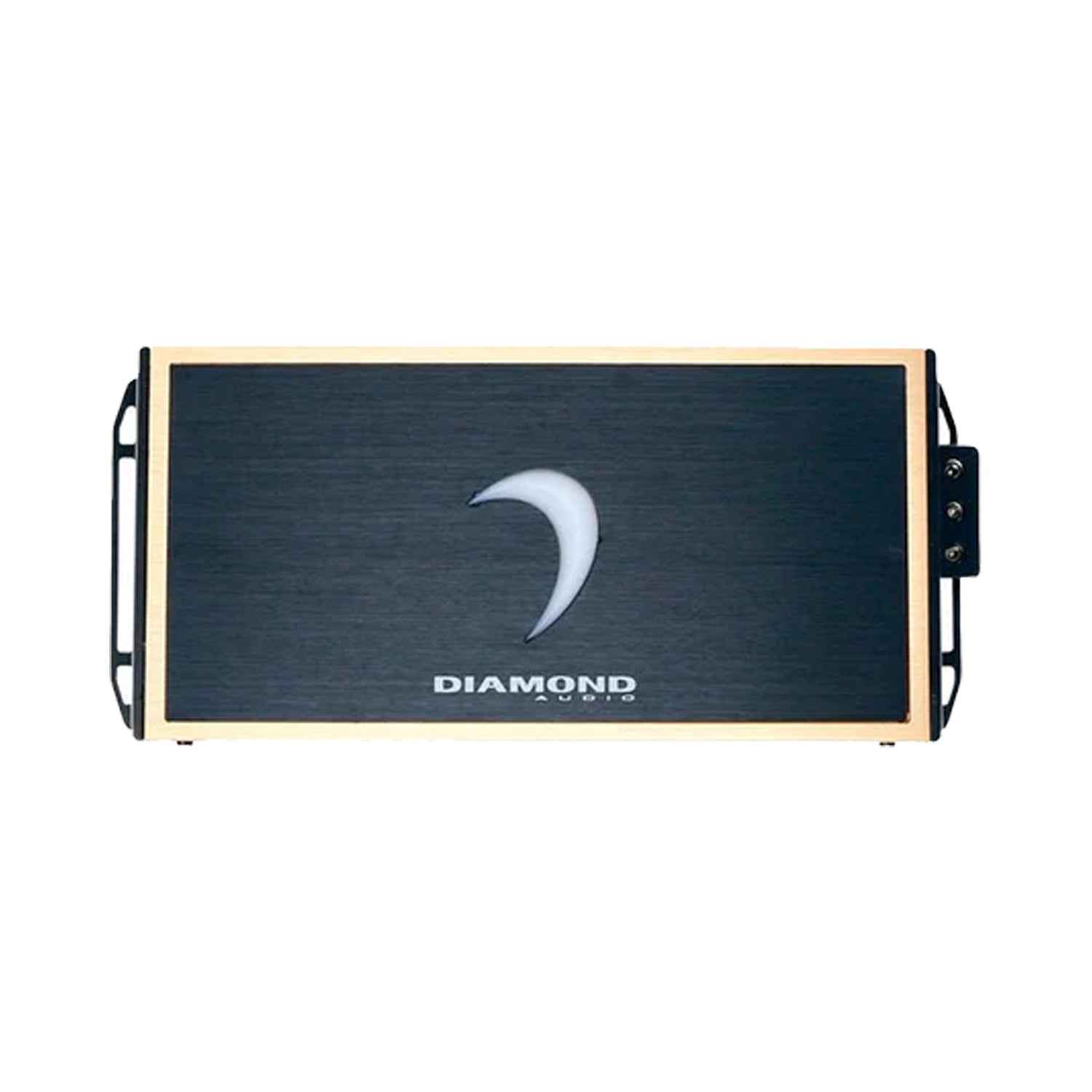

MICRO82U Amplifier

• Powerful Output: 2 Channel Full Range Digital Amplifier with 300W x 2CH @ 2Ω, 200W x 2CH @ 4Ω, and 600W x 1CH @ 4Ω bridged RMS power output.
• Precision Tuning: Input sensitivity range of 0.2-10 Volt for optimal performance.
• Enhanced Control: Remote bass knob included for convenient adjustment of bass levels.
• Compact Size: Dimensions of 9.1” x 4.1” x 1.46” (230.5 x 103 x 37.2 mm) for easy installation and integration.

What our Experts Think

• Designed specifically for 2017+ Can-Am X3 models for a direct-fit audio upgrade.
• Complete dash speaker kit improves factory sound with clearer and more powerful audio.
• Provides enhanced vocals, stronger mid-bass, and improved overall sound balance.
• Built to perform in off-road environments with vibration and outdoor conditions in mind.
• Vehicle-specific design helps ensure a clean installation and factory-style appearance.
• High-efficiency speakers deliver strong output without requiring excessive power.
• Ideal for riders wanting a premium audio upgrade for trail, dune, and adventure driving.
• A great choice for louder, clearer, and more immersive Can-Am X3 sound performance.


Q&A

Q: What Can-Am models is the Diamond Audio MSX3KD1 designed for?
A: The MSX3KD1 is designed for 2017+ Can-Am Maverick X3 / X3 Max models, delivering a complete dash audio upgrade built for off-road use.

Q: What is included in the MSX3KD1 audio kit?
A: The kit includes 6.5" HXM65F4 all-weather coaxial speakers, DMR3 Bluetooth digital media receiver, MICRO82U amplifier, speaker panels, wiring, and installation hardware for a complete system.

Q: How powerful is the MSX3KD1 sound system?
A: The speakers deliver 125W RMS / 250W MAX, while the included amplifier provides up to 300W x 2 channels at 2Ω for loud, clear trail-ready audio.

Q: Is the MSX3KD1 built for harsh off-road conditions?
A: Yes. It features rugged speaker panels, all-weather speakers, and an IP66-rated waterproof head unit designed for mud, dust, and outdoor environments.

Q: Does the MSX3KD1 support Bluetooth music streaming?
A: Yes. The included DMR3 receiver offers Bluetooth A2DP streaming, AM/FM radio, RCA outputs, and a color display for easy control on the trail.


Maintenance Tips

• Clean speakers and dash panels with a soft microfiber cloth to prevent dust buildup.
• Inspect wiring, connectors, and mounting hardware regularly for secure connections.
• Keep electrical components protected from mud, water, and excessive moisture.
• Avoid prolonged use at distorted or maximum volume levels to protect speakers.
• Check mounting points after off-road rides to prevent vibration-related loosening.
