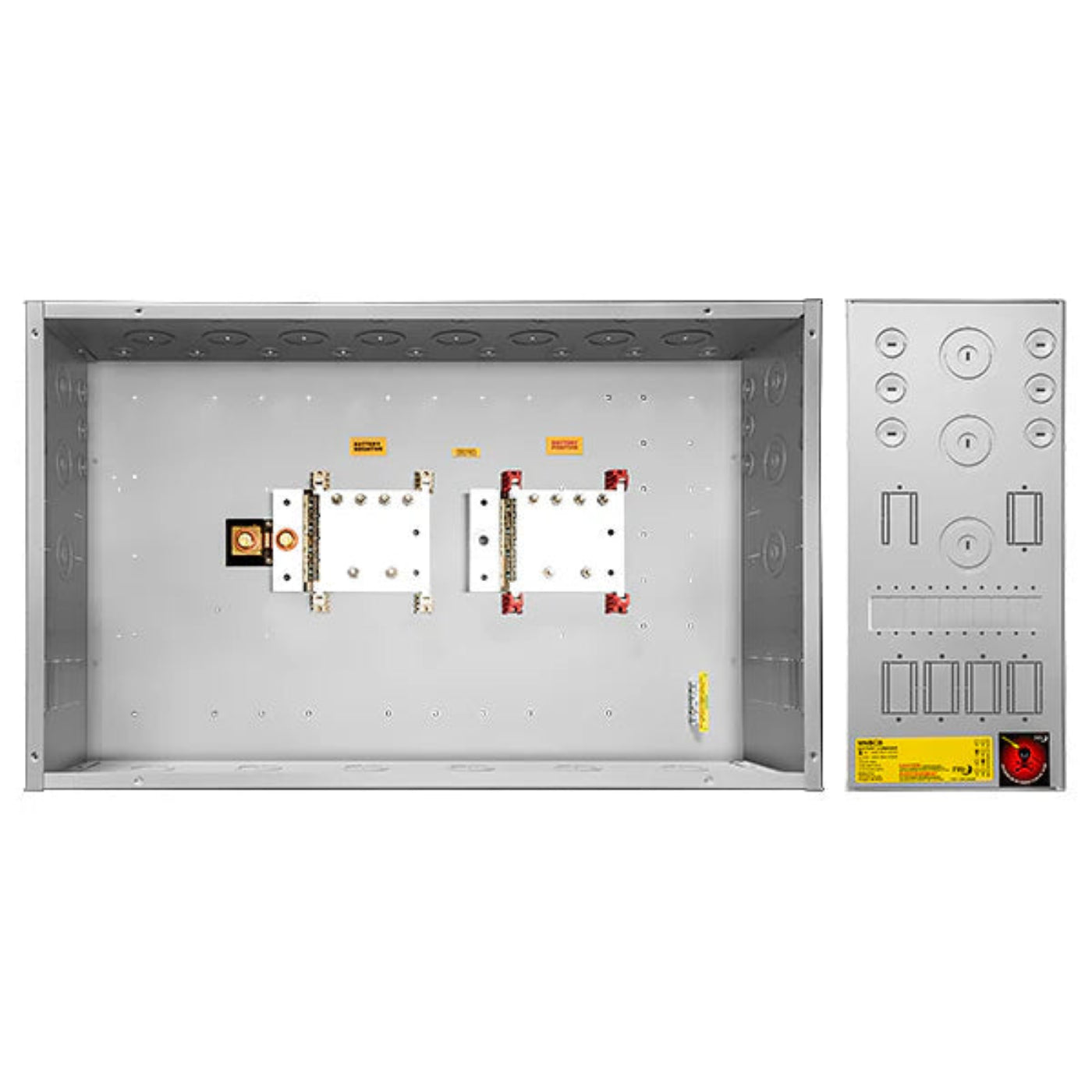

Midnite Solar MNBCB 2000/200 Battery Combiner - 80998001053235
The MidNite Solar 2000 Amp Battery Combiner Box is a heavy-duty power distribution solution designed for safely combining multiple battery strings in solar, off-grid, backup power, and energy storage systems. Built with powder-coated steel and made in the USA, this battery combiner box includes both positive and negative 2000A bus bars with 3/8-inch studs, plus a 2000A 200mV shunt with a 1/2-inch customer connection bolt.
Engineered for flexibility, cables can be double lugged, and the copper bus bar can be drilled for additional mounting locations. For added ring terminal connections, 3/8-inch stainless steel bolts are recommended when drilling extra holes. The enclosure also includes space for up to 12 MidNite MNEDC Battery Breakers, making it ideal for larger battery bank installations that require organized, high-capacity overcurrent protection.
This indoor-rated combiner box is designed for demanding battery applications with support for up to 277VAC, 300VDC, and 4/0 wire size.
Features
- Heavy-duty 2000A battery combiner box for multiple battery strings
- Includes 2000A positive and negative bus bars with 3/8-inch studs
- Includes 2000A 200mV shunt with 1/2-inch bolt for customer connection
- Supports up to 12 MidNite MNEDC Battery Breakers
-
Copper bus bar can be drilled for additional mounting locations
- Cables can be double lugged for flexible installation
- Durable powder-coated steel enclosure
- Type 1 indoor environmental rating
- Compatible with max wire size 4/0
- Made in the USA
- Backed by a 5-year warranty
Specifications
| Brand: |
MidNite Solar |
| Product Type: |
Battery Combiner Box |
| Amperage Rating: |
2000A |
| Shunt Rating: |
2000A / 200mV |
| Bus Bar Stud Size: |
3/8 inch |
| Customer Connection Bolt Size: |
1/2 inch |
| Breaker Spaces: |
12 |
| Max AC Voltage: |
277VAC |
| Max DC Voltage: |
300VDC |
| Max Wire Size: |
4/0 |
| Environment Rating: |
Type 1 (Indoor) |
| Material: |
Powder-Coated Steel |
| Country of Manufacture: |
USA |
What our Experts Think
Q&A
Q1: What is the MNBCB 2000/200 Battery Combiner used for?
A: It safely combines multiple battery strings into a single high-capacity connection for off-grid, backup power, and energy storage systems.
Q2: What is the current rating?
A: The unit features 2,000A positive and negative bus bars and includes a 2,000A / 200mV shunt for high-current battery installations.
Q3: How many battery breakers does it support?
A: It provides mounting locations for up to 12 MidNite MNEDC battery breakers, making it ideal for large battery banks.
Q4: What wire size is supported?
A: The combiner accepts up to 4/0 AWG wire, supporting demanding high-power battery systems.
Q5: Is it suitable for indoor installation?
A: Yes. It features a Type 1 indoor-rated powder-coated steel enclosure for durability and reliable protection.
Q6: Where is the MNBCB 2000/200 manufactured?
A: The battery combiner is made in the USA and is backed by a 5-year manufacturer warranty.
