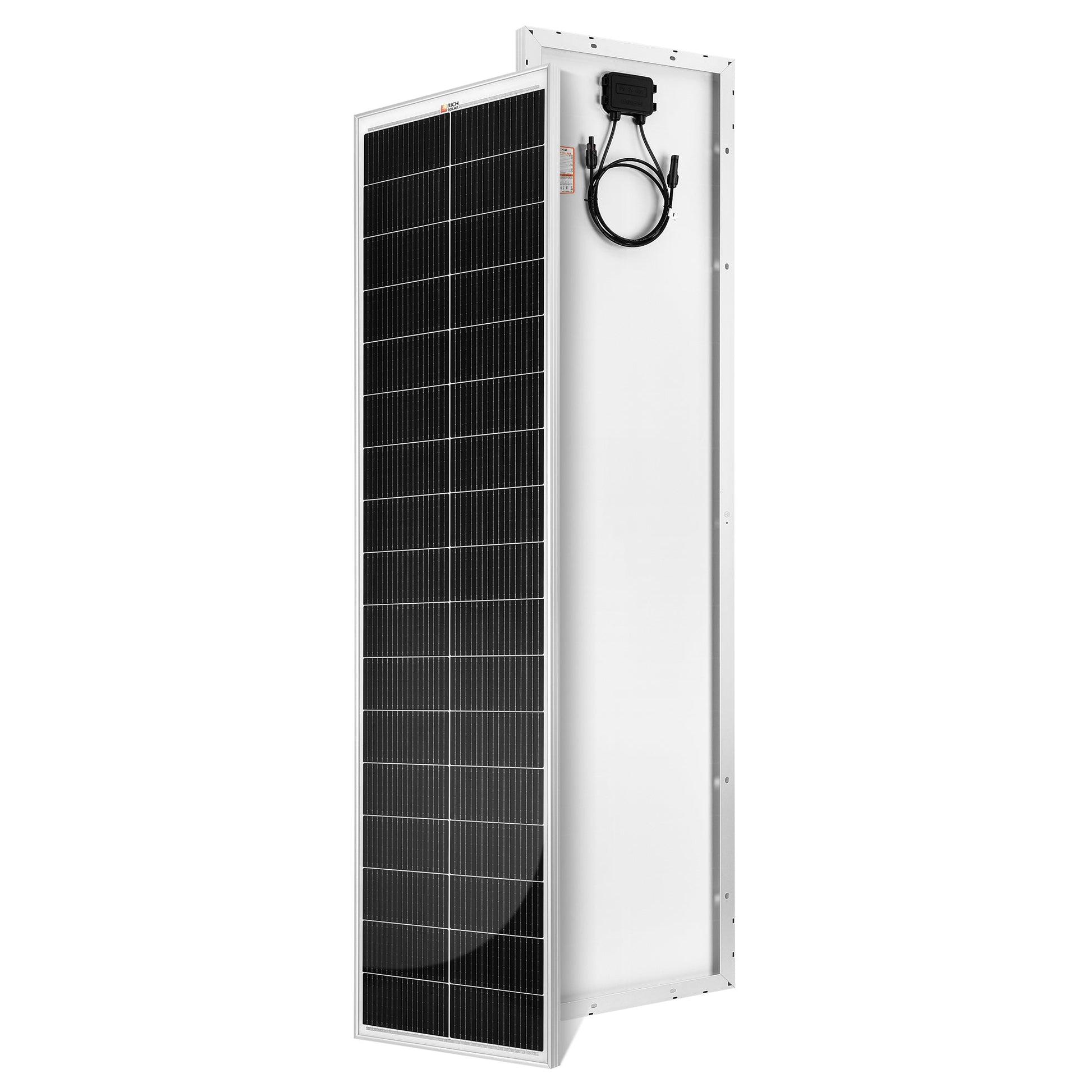

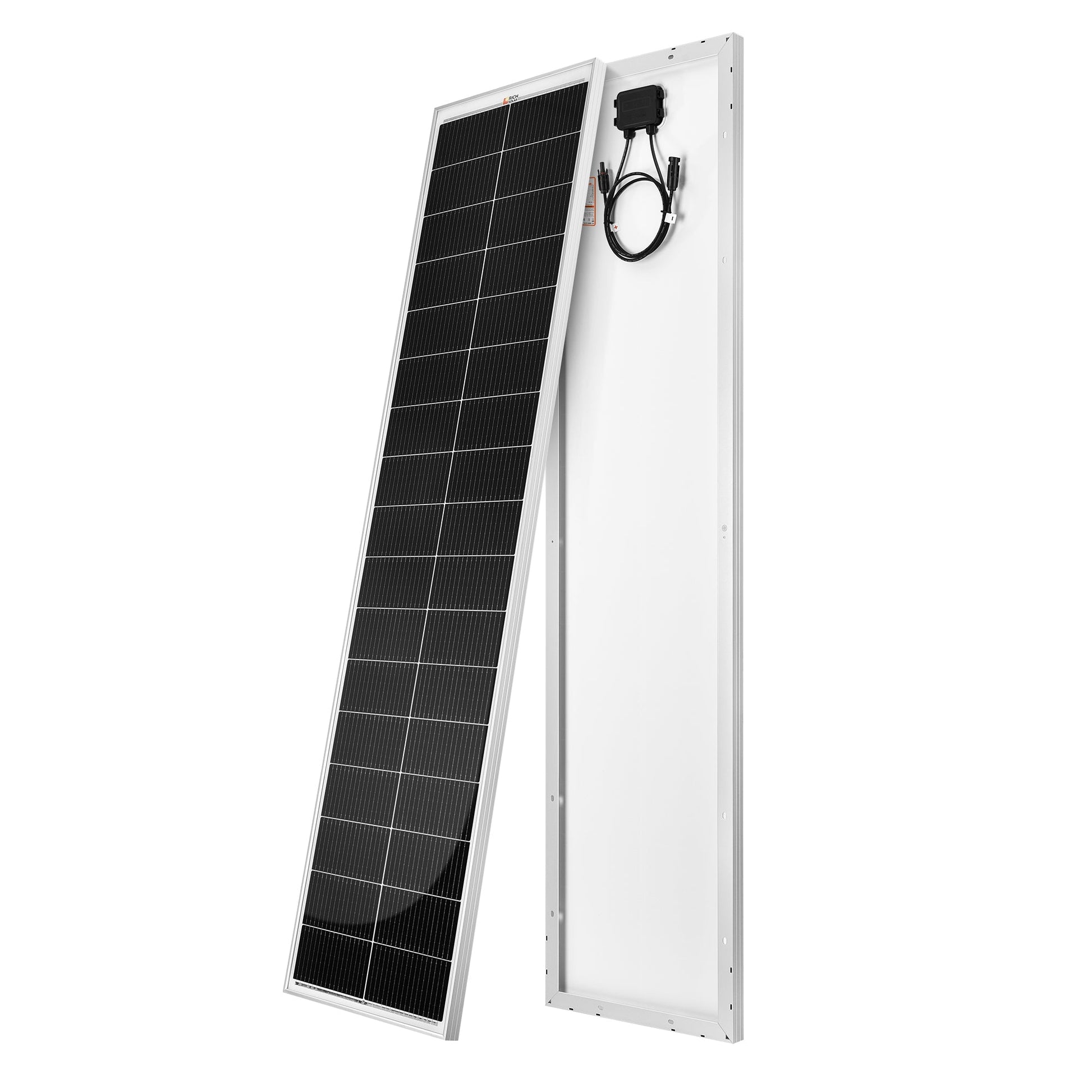

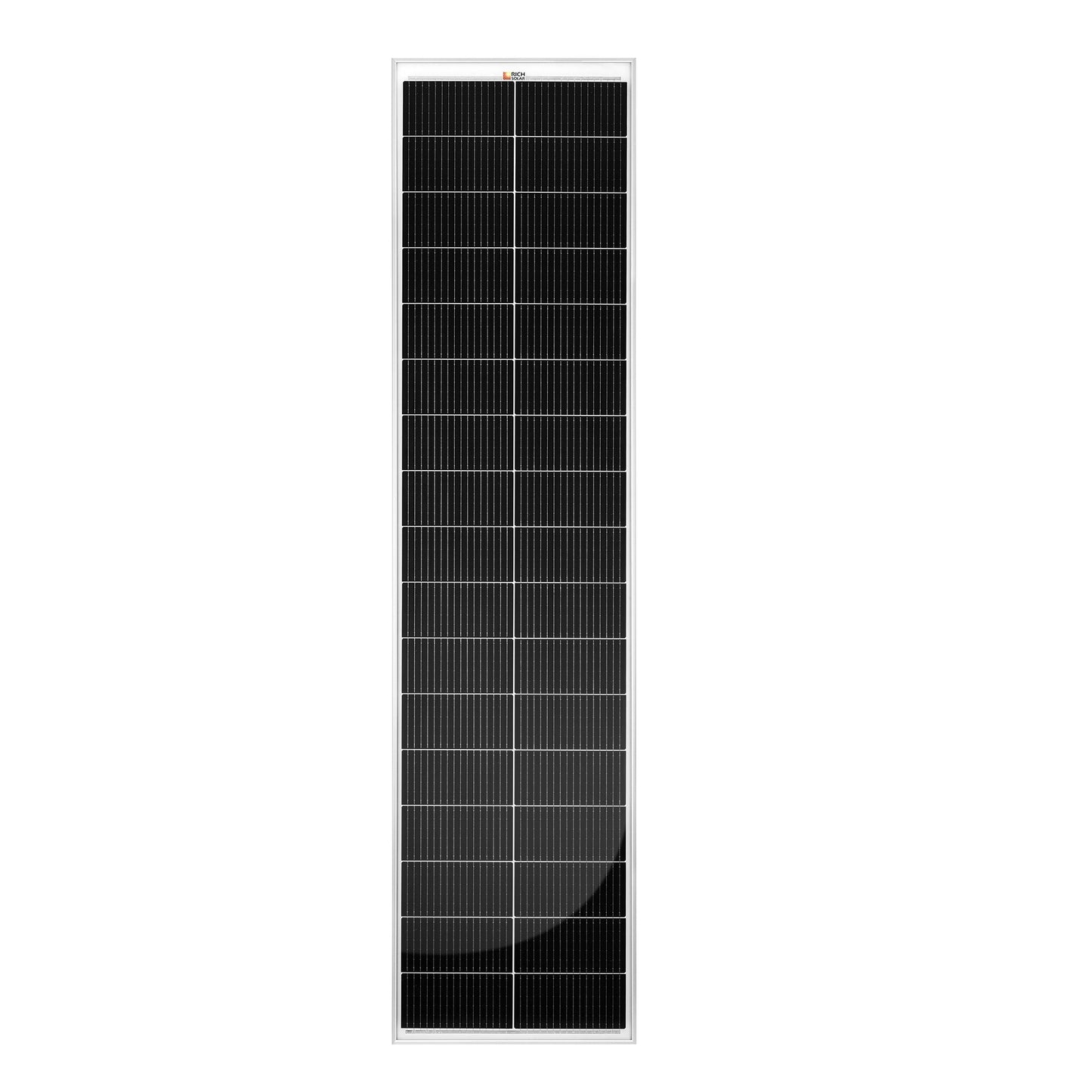

Rich Solar 130 SLIM | 130 Watt Slim Solar Panel | Compact 12V Narrow Panel for Vans, Campers, Boats - RS-M130SL

Rich Solar 130 SLIM | 130 Watt Slim Solar Panel | Compact 12V Narrow Panel for Vans, Campers, Boats  - RS-M130SL

Features

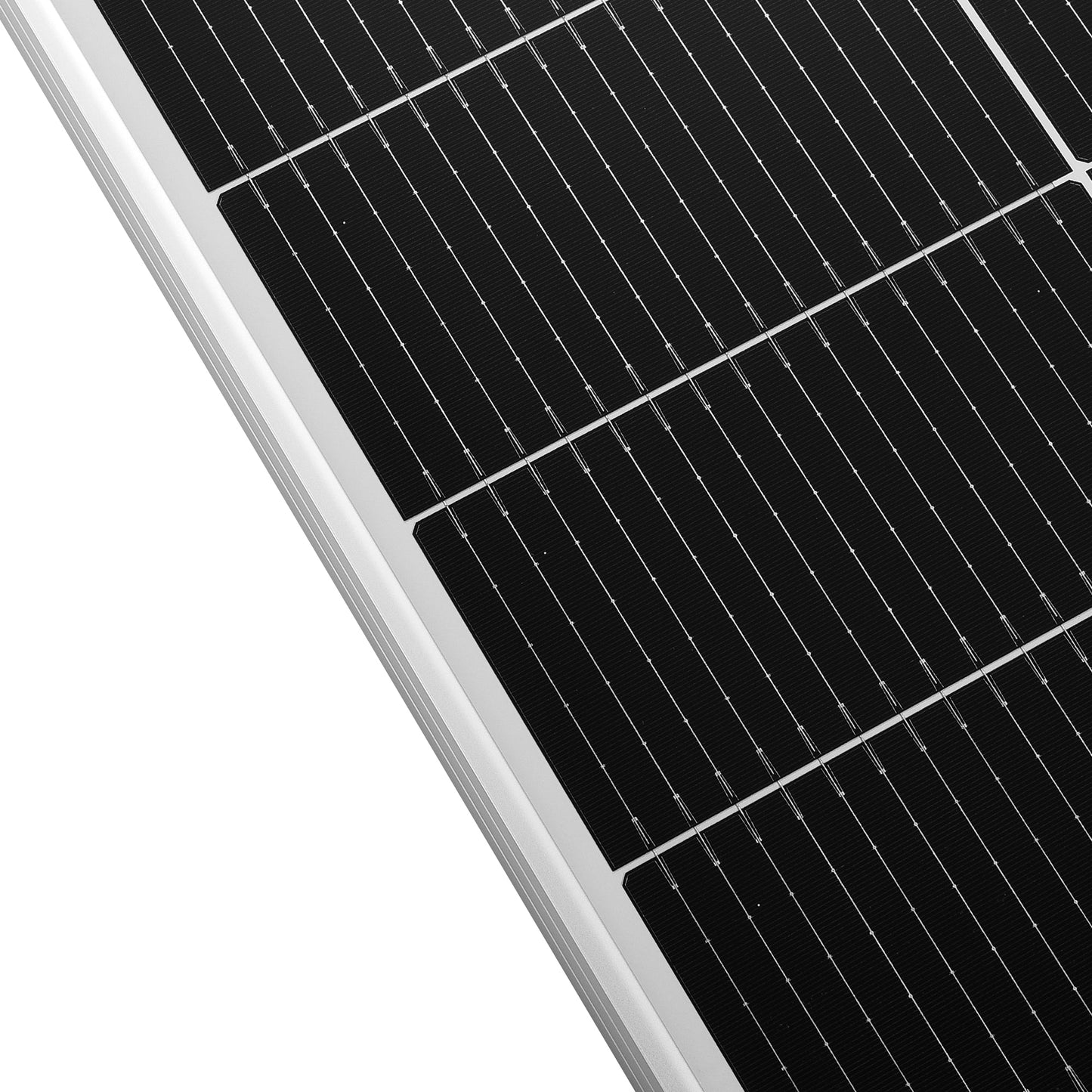

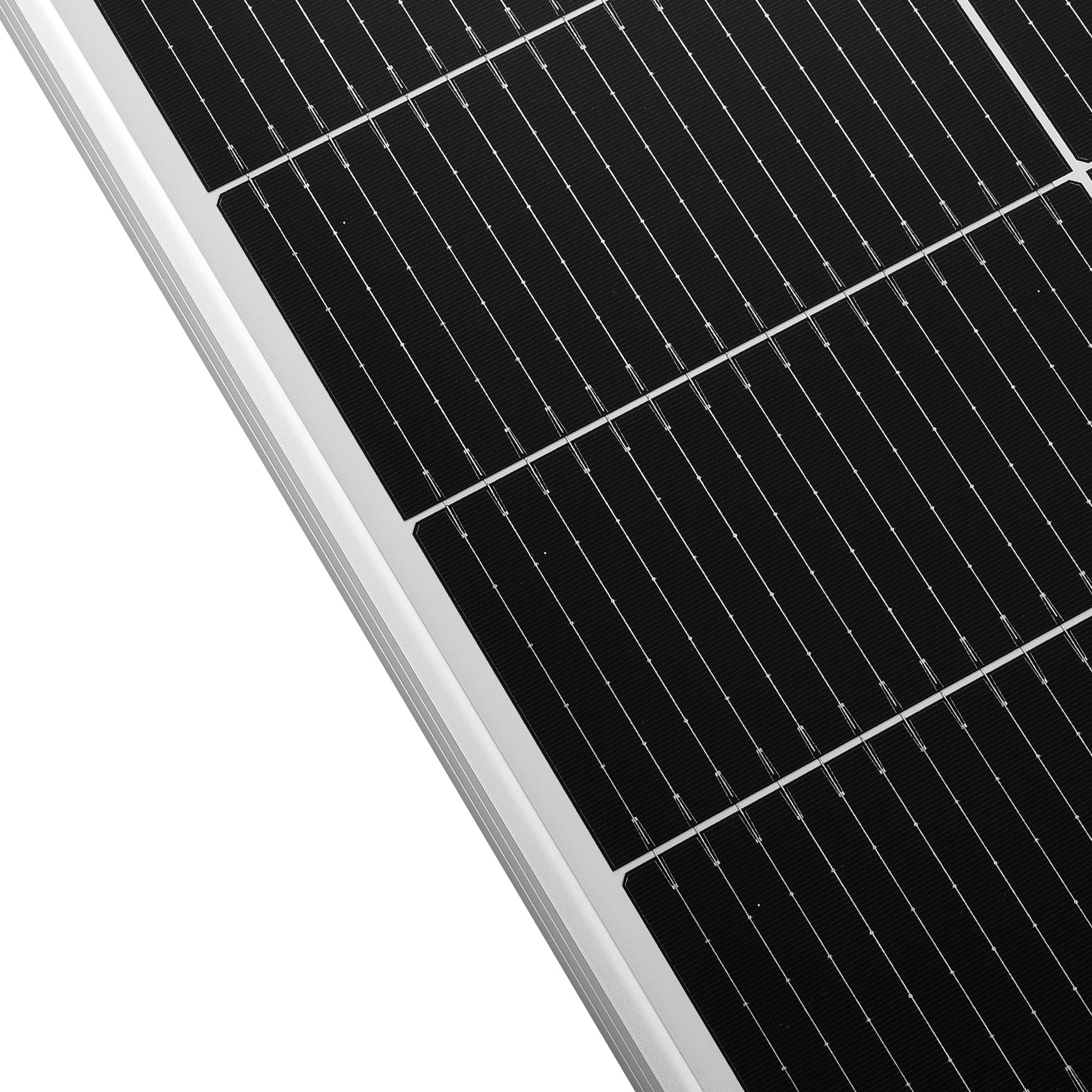

• 16-busbar N-Type TOPCon monocrystalline cells with up to 25.3% efficiency
• 34-cell configuration delivers a reliable 130W output
• 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability
• Power tolerance 0 to +5W ensures at least the rated output
• Excellent low-light performance on cloudy days and at dawn/dusk
• Rigorously tested for UV, thermal cycling, humidity freeze, and more
• PID-resistant and double EL-inspected to prevent microcracks
• Certified to withstand 2400 Pa wind and 5400 Pa snow load
• Perfect for off-grid systems, RVs, boats, and mobile power setups

Installation

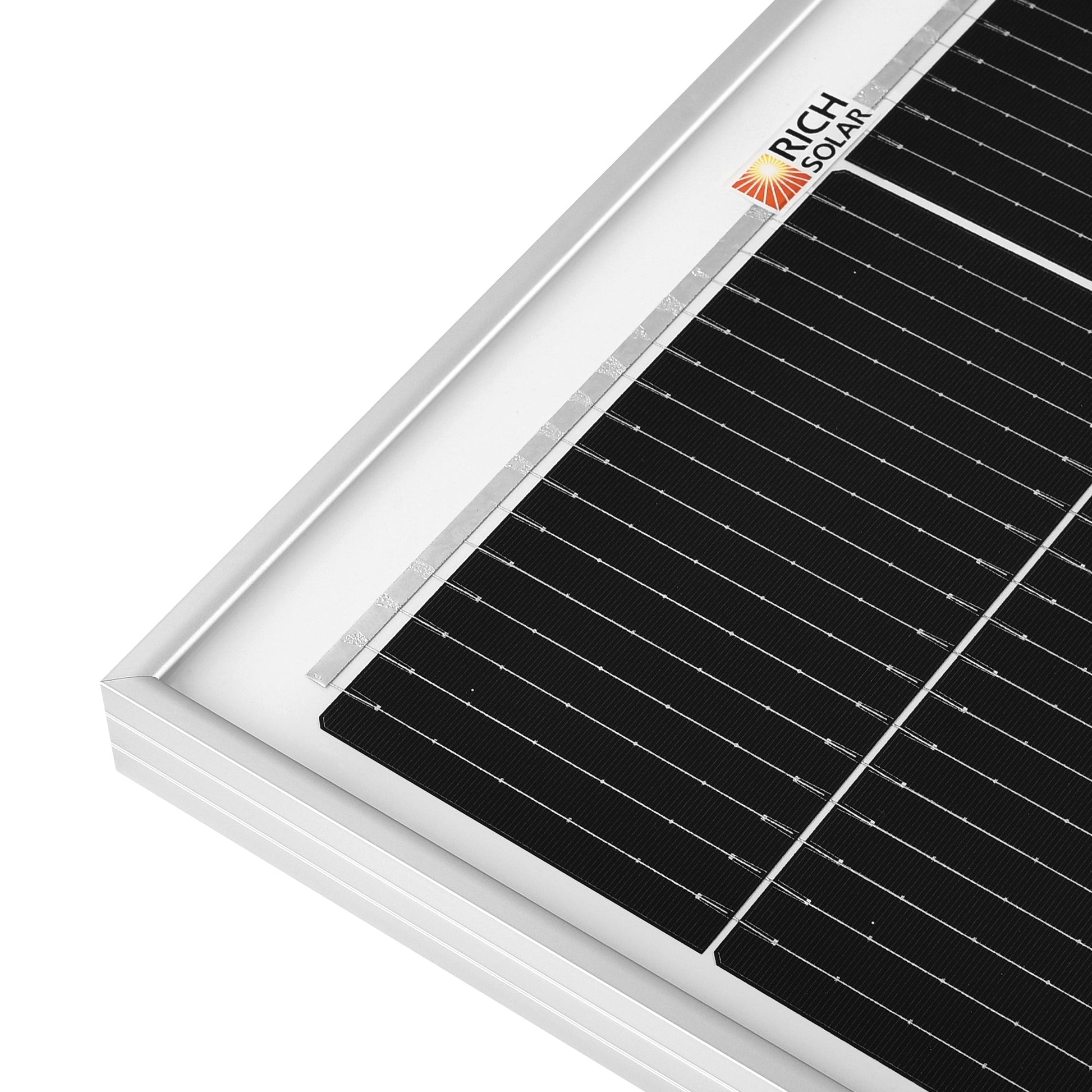

• Anodized aluminum frame – lightweight, strong, and corrosion-resistant
• 12 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
• Pre-attached 3 ft solar cables with connectors for fast setup
• Compatible with both on-grid and off-grid inverters

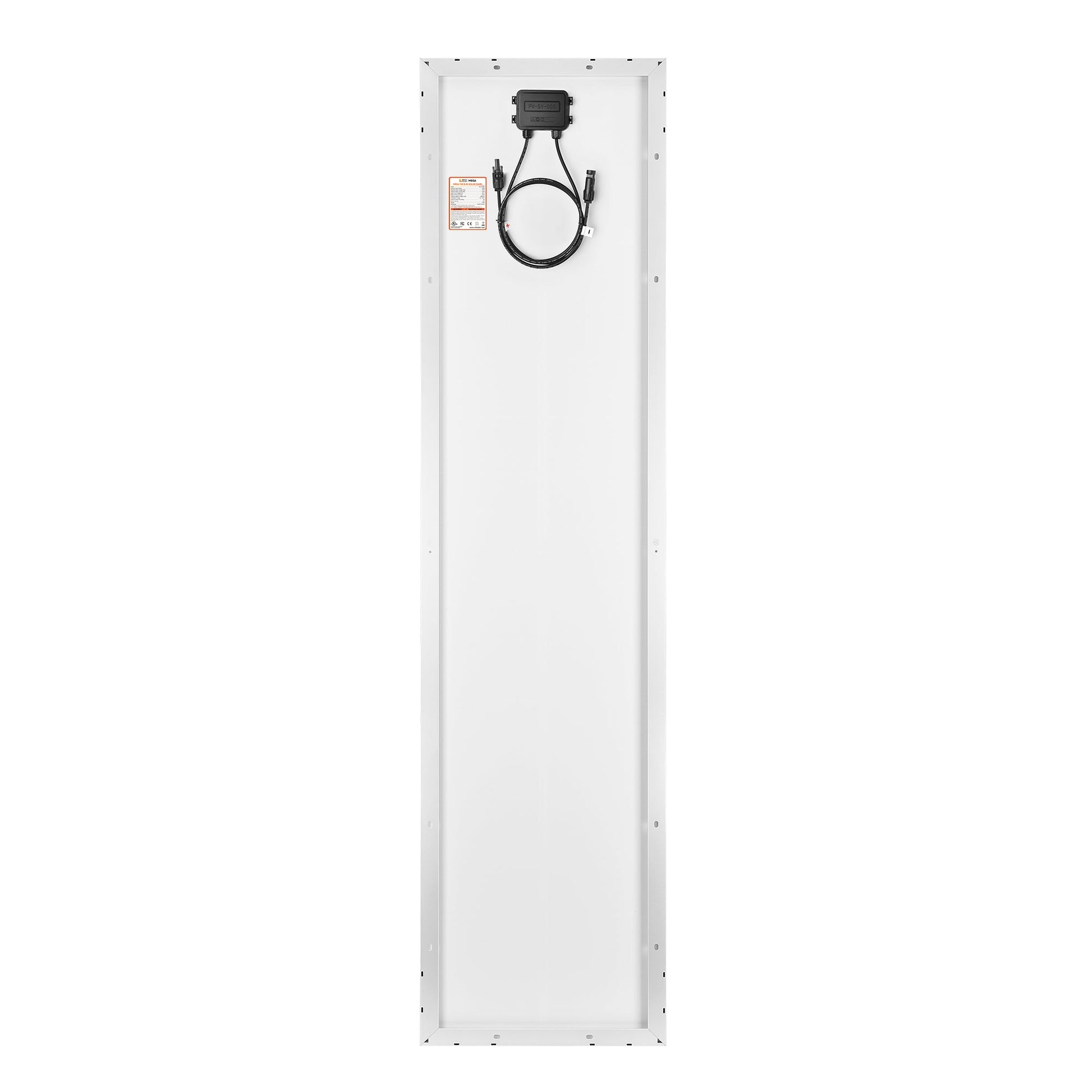

Built-in Components

• Panel leads (pair): 3 feet each

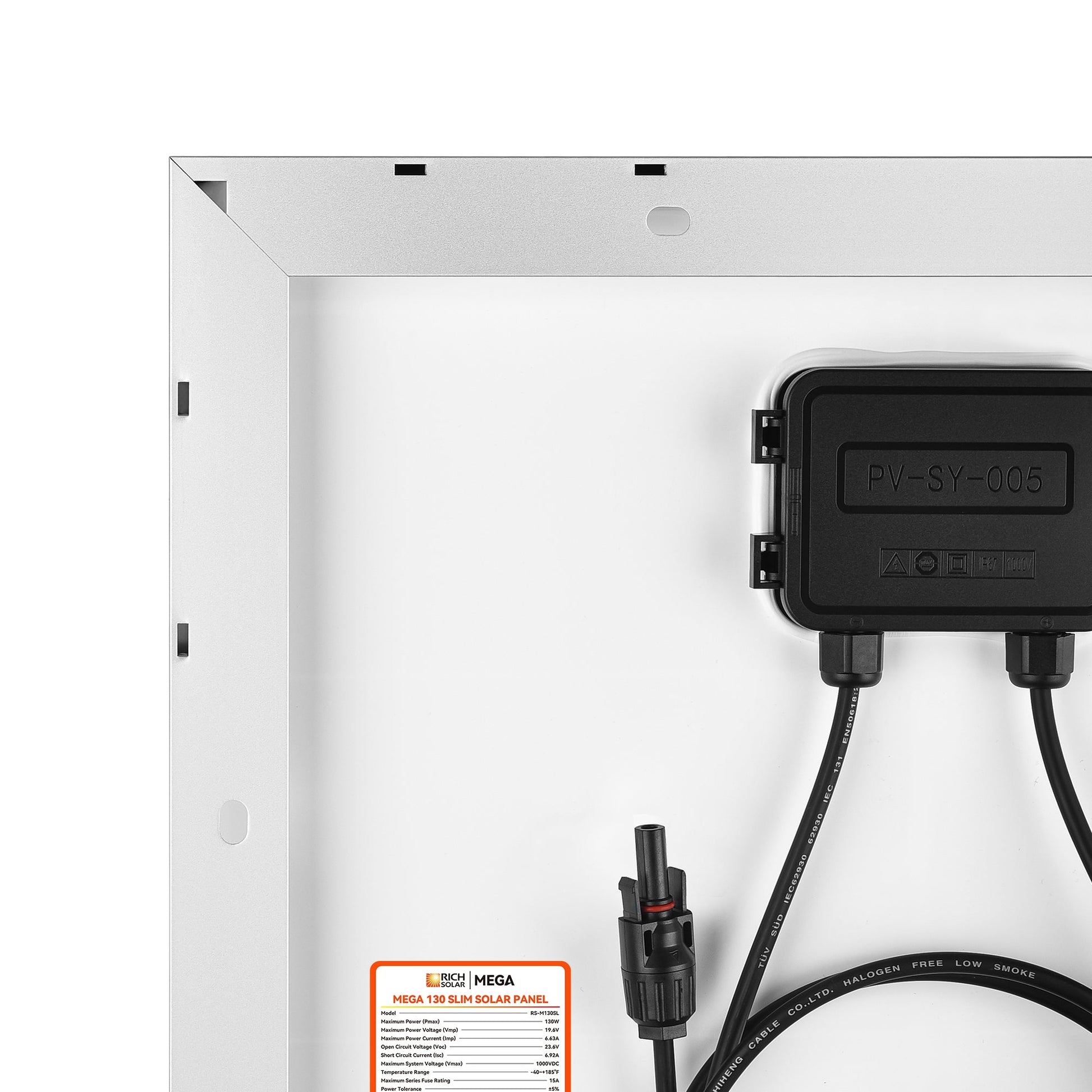

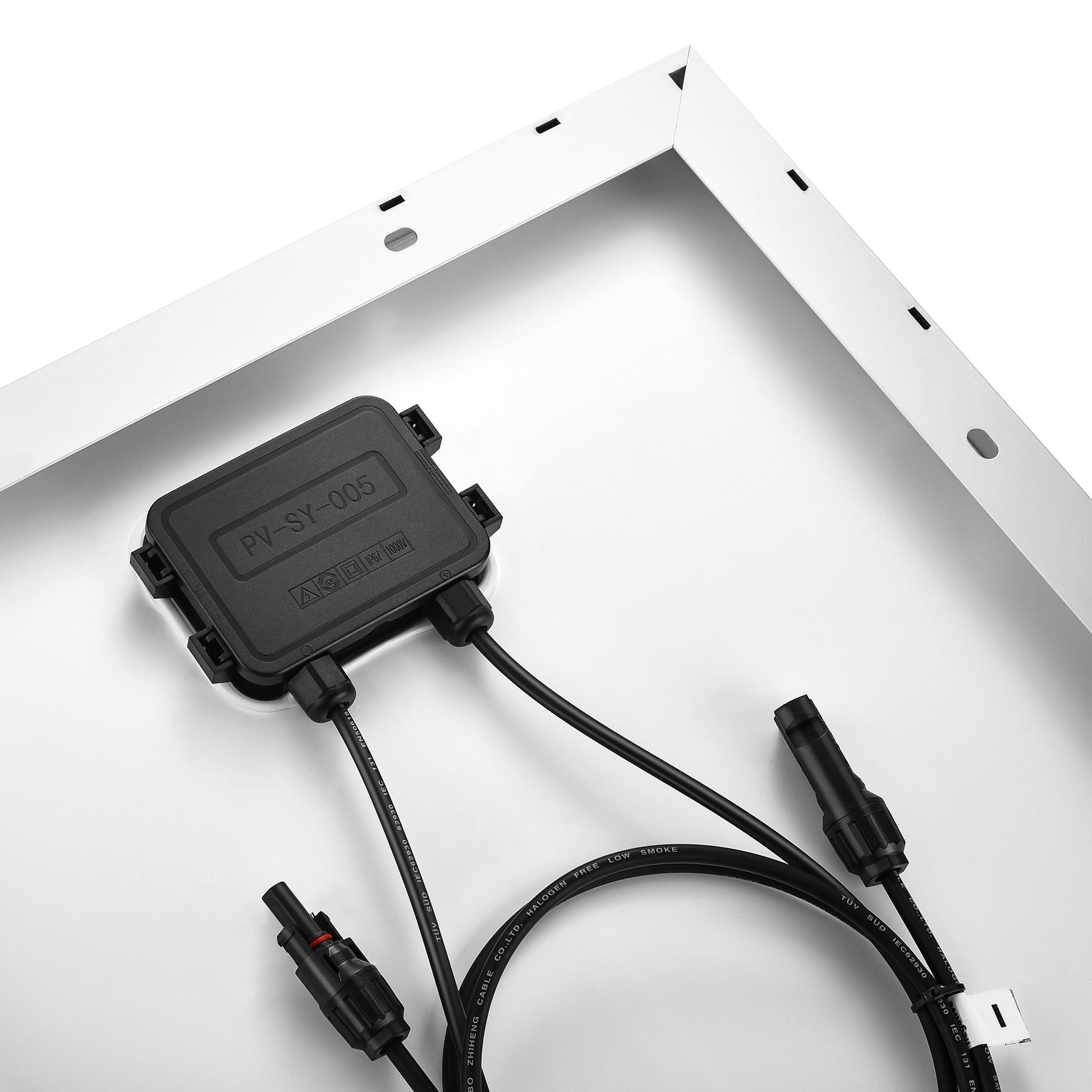

• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Bypass diodes built into the junction box

Specifications

• Model: RS-M130SL
• Maximum Power(Pmax): 130W
• Maximum Power Voltage(Vmp): 19.6V
• Maximum Power Current(Imp): 6.63A
• Open Circuit Voltage(Voc): 23.6V
• Short Circuit Current(Isc): 6.92A
• Maximum System Voltage(Vmax): 1000 VDC
• Maximum Series Fuse Rating: 15A
• Module Efficiency: 19.8%
• Temperature Range: -40℉ to +185℉
• Weight: 15.4 lb

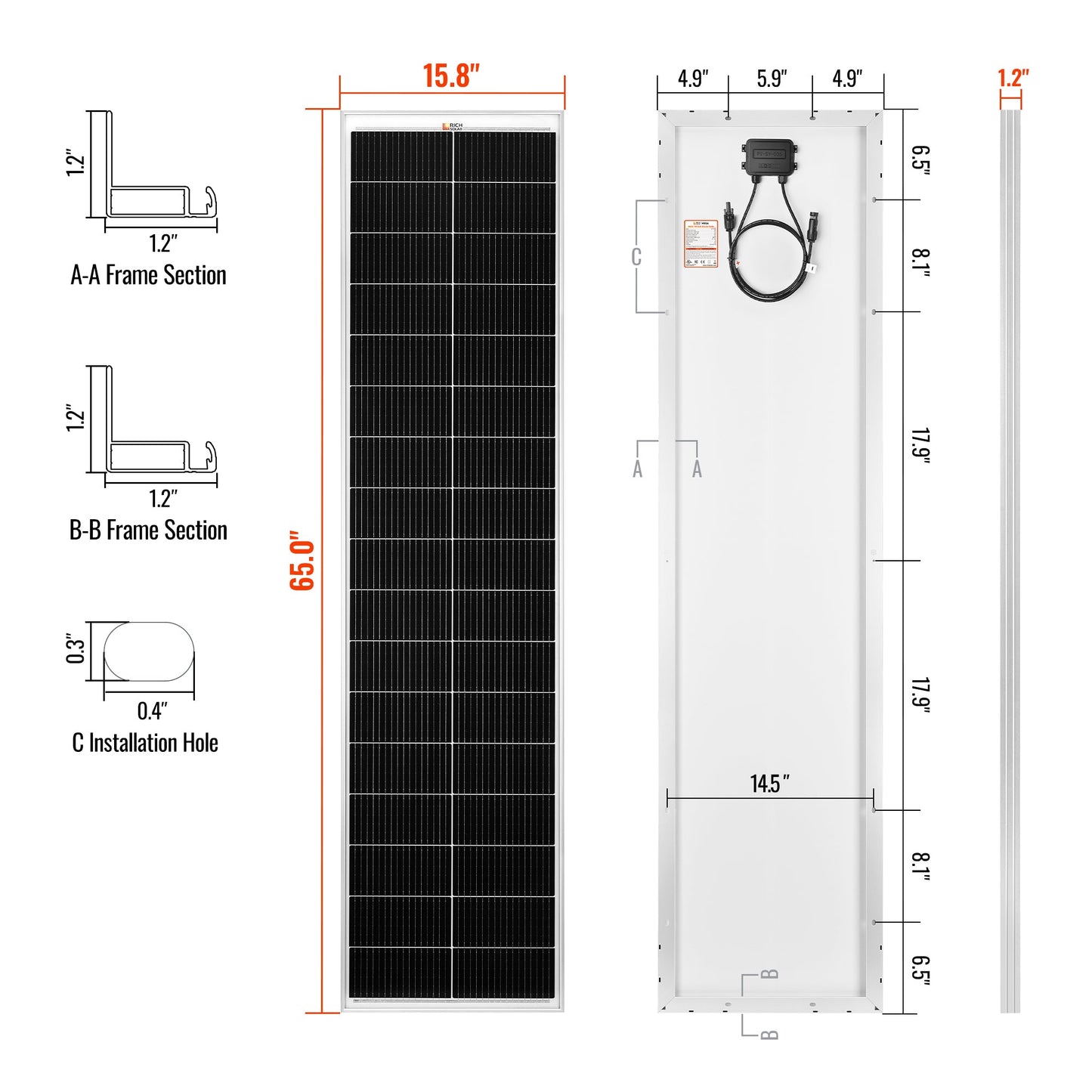

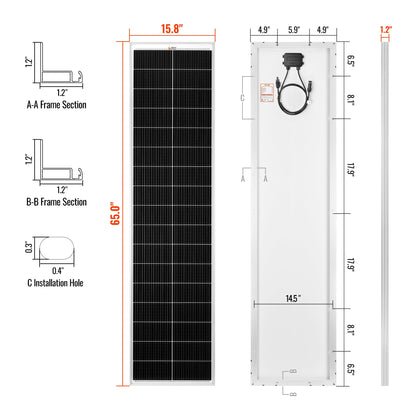

• Dimensions: 65.0 x 15.8 x 1.2 in

What our Experts Think

Q&A

Q: What is the Rich Solar 130 SLIM (RS-M130SL)?
A: It is a compact 130W monocrystalline 12V solar panel designed for tight installation spaces like vans, campers, boats, and off-grid mobile systems where standard panels won’t fit.

Q: How much power does it produce?
A: It delivers 130W max output with 19.6V Vmp and 6.63A current, optimized for 12V battery charging systems and MPPT controllers.

Q: What makes it “slim”?
A: It has a narrow long-body design (about 65" × 15.8") that fits roof edges, van racks, and side mounts where space is limited without sacrificing full panel output.

Q: Is it good for off-grid use?
A: Yes. It is built for RV, marine, and off-grid systems, working well with batteries, charge controllers, and portable solar setups.

Q: How efficient is it?
A: It offers around ~19.8% module efficiency with strong low-light performance for cloudy or early/late sun conditions.

Q: Is it durable for outdoor use?
A: Yes. It features tempered anti-reflective glass, an aluminum frame, and weather resistance designed for harsh outdoor environments.

Maintenance Tips

• Clean the tempered glass surface regularly with soft water and a microfiber cloth to maintain maximum solar output and efficiency.
• Avoid abrasive cleaners, solvents, or pressure washing, which can damage the anti-reflective coating and seals.
• Inspect MC4 connectors and junction box periodically for loose wiring, corrosion, or moisture ingress to prevent power loss.
• Ensure the panel is installed at the correct angle and remains unshaded throughout the day for optimal charging performance.
• Check mounting hardware regularly, especially on RVs and boats, to confirm it remains tight and vibration-resistant.
• Remove dust, bird droppings, and debris promptly, as buildup can significantly reduce energy production.
• Avoid stepping on or applying pressure to the panel surface to prevent micro-cracks in solar cells.
• Ensure proper airflow beneath the panel during installation to reduce heat buildup and efficiency loss.
• Store safely during travel or off-season use to protect edges, cables, and the slim frame design.
• Perform an annual inspection of output performance to detect early signs of degradation or shading issues.
