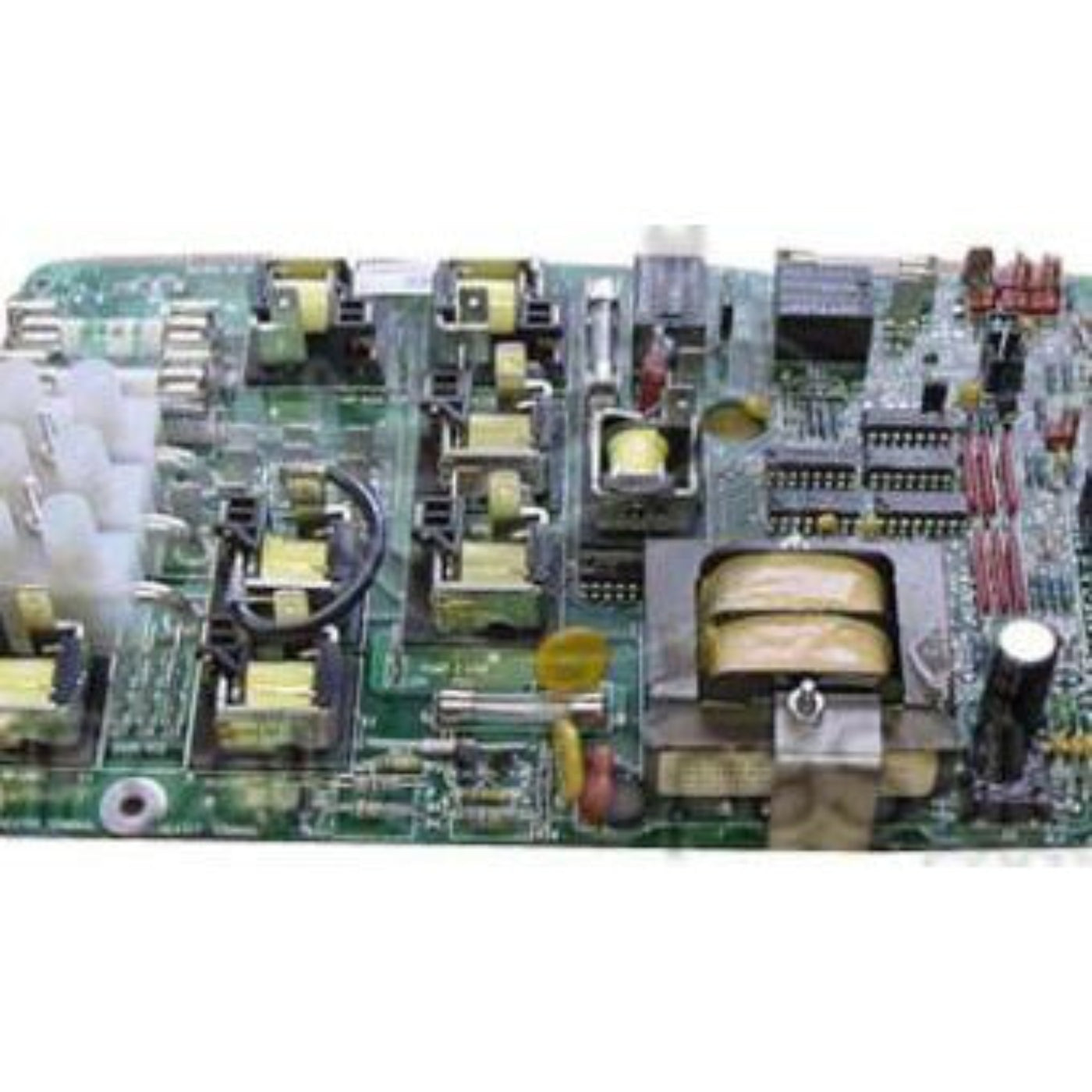

Master Spa Circuit Board MAS460 PC Board - X801040
What our Experts Think
-
Core OEM control module: The MASTER SPAS MAS460 PC Board - X801040 is a factory-style Balboa-based circuit board that acts as the central controller for spa operations including pumps, heating, lighting, and safety systems.
-
Restores full system functionality: Commonly used to fix issues like dead spa packs, error codes, or unresponsive pumps and heaters, making it a go-to replacement for MAS460 systems.
-
Built for precise system logic: Designed around the MAS460R1 configuration, ensuring accurate communication with topside panels and spa sensors for stable operation.
-
OEM direct-fit replacement: Matches original Master Spas specifications (X801040 / 52551), ensuring compatibility when installed in the correct system version.
-
Service-grade reliability: Widely used by spa technicians because it integrates multiple functions into a single board—reducing downtime when properly configured.
-
Important configuration requirement: Not plug-and-play—requires correct dip-switch setup and system calibration, which is critical for safe operation and preventing component damage.
-
Compatibility is essential: MAS460 boards look similar across versions, so exact part-number matching is required before replacement to avoid system failure or incorrect heating/pump behavior.
Q&A
Q: What is the Master Spas MAS460 PC Board (X801040)?
A: The X801040 is a genuine OEM Balboa MAS460 circuit board used in select Master Spas hot tubs and swim spas to control core system functions including pumps, heater, filtration, and safety systems.
Q: What does the MAS460 control board do?
A: It acts as the main spa control system (“brain”), managing temperature regulation, jet pumps, circulation, lighting, and timing functions for compatible spa packs.
Q: Is this an OEM replacement part?
A: Yes. The X801040 is a genuine OEM direct replacement Master Spas/Balboa circuit board designed for proper compatibility and reliable performance.
Q: What chip or model number is on this board?
A: This board typically uses the MAS460R1 chip designation, often cross-referenced with Balboa part number 52551.
Q: Which spas is it compatible with?
A: It is used in select Master Spas Value Series and compatible MAS460-equipped systems. Always confirm your existing board part number before ordering.
Q: What are signs the circuit board may need replacement?
A: Common symptoms include no power to spa components, unresponsive controls, error codes, or failure of pumps, heater, or lights to activate.
Q: Is professional installation recommended?
A: Yes. Because this is a high-voltage control component, installation by a qualified spa technician is strongly recommended.
