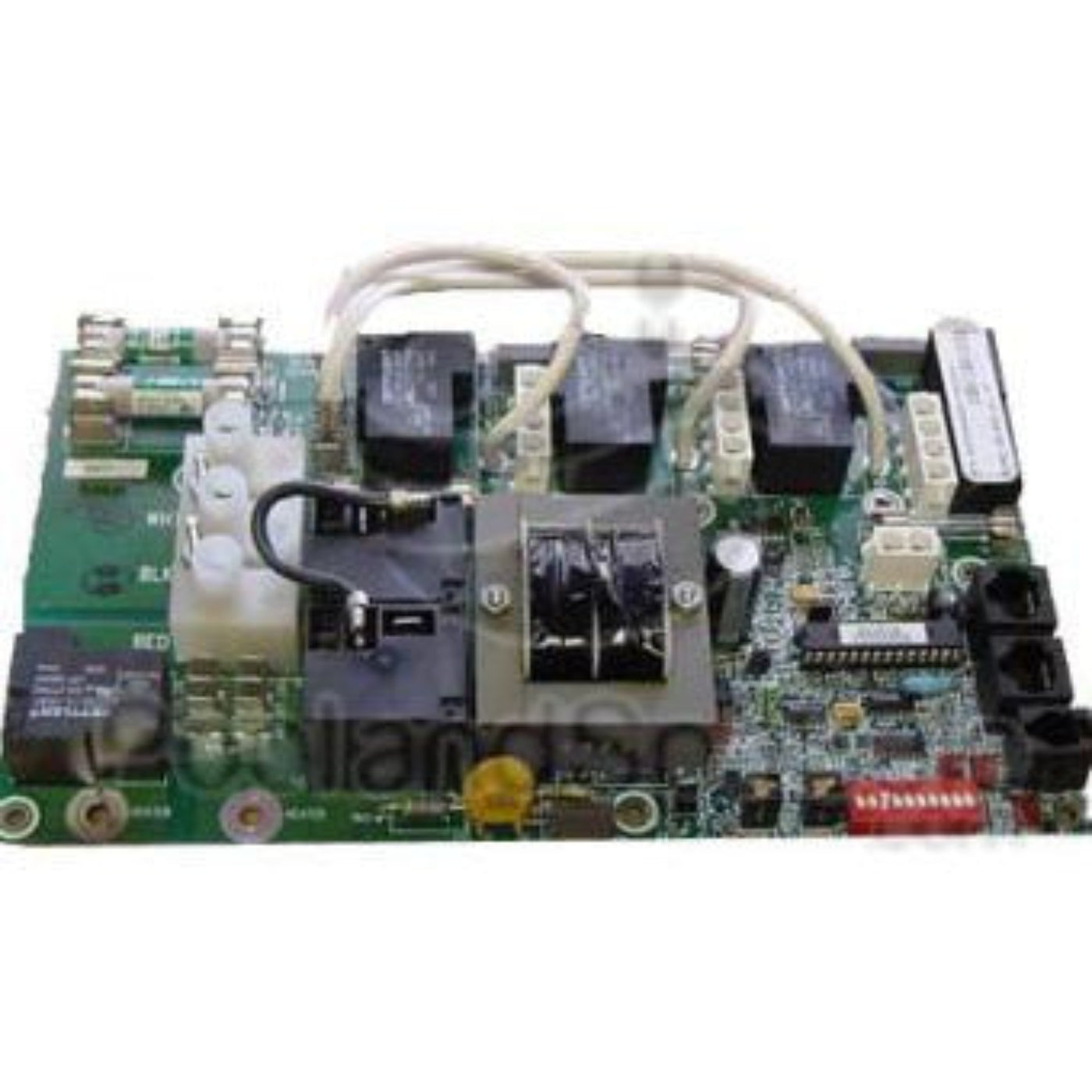

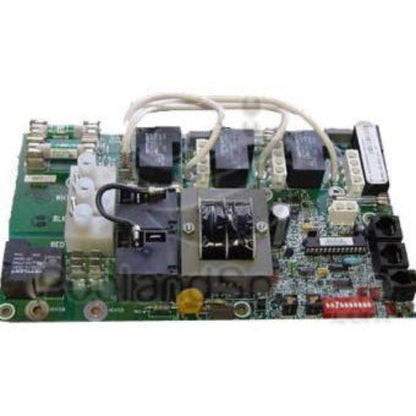

Master Spa Circuit Board MAS260 PC Board - X800960
What our Experts Think
-
OEM Replacement Confidence – The MAS260 (X800960) is a genuine Master Spas control board designed to restore full system functionality in compatible spa packs.
-
Critical System Component – Acts as the central “brain” of the spa, managing pumps, heater functions, sensors, and safety controls for stable operation.
-
Wide Compatibility Range – Commonly used in Master Spas Freedom, Legend, Legacy, and select Down East spa systems with Balboa 52641 configurations.
-
Direct Replacement Fit – Replaces multiple Balboa 53516-series boards, helping simplify repairs and reduce downtime.
-
Reliability-Critical Repair Part – Recommended when spas show symptoms like no heating, non-responsive pumps, or total system failure caused by board malfunction.
-
Installation Awareness Required – Not plug-and-play in all cases; correct dip switch settings and wiring configuration are essential for safe operation.
Q&A
Q: What is the Master Spa MAS260 Circuit Board (X800960)?
A: An OEM Balboa-based control circuit board used in Master Spas systems to manage pumps, heater, sensors, lighting, and overall spa operation.
Q: What does this part replace?
A: It replaces Balboa 53516 series boards used in MAS260 spa systems.
Q: Which spas is it compatible with?
A: Commonly used in Master Spas, Freedom Spas, Down East Spas, and select Legend/Legacy models with MAS260 control systems.
Q: Is it plug-and-play?
A: No. It requires proper dip-switch configuration, wiring setup, and system programming after installation.
Q: What connector type does it use?
A: 8-pin phone-style connector for topside control panels.
Q: Is this an original OEM part?
A: Yes, it is a genuine replacement control board designed for MAS260 spa systems.
Q: Important installation note?
A: Must be installed correctly—incorrect wiring or configuration can damage spa components or prevent operation.
Maintenance Tips
- Maintain balanced water chemistry (pH, alkalinity, sanitizer levels) to reduce corrosion risk to the MAS260 PC board.
- Keep the equipment compartment dry and well-ventilated to prevent moisture damage and condensation buildup.
- Inspect all wiring connections periodically for tightness, corrosion, or heat damage.
- Ensure stable voltage and proper grounding to protect sensitive electronic components.
- Keep insects, rodents, and debris away from the control box enclosure.
- Prevent leaks or spray from pumps, heaters, or plumbing near the control board area.
- Monitor system error codes and address related issues early to avoid stress on the board.
- Always disconnect power at the breaker before servicing or replacing the circuit board.
