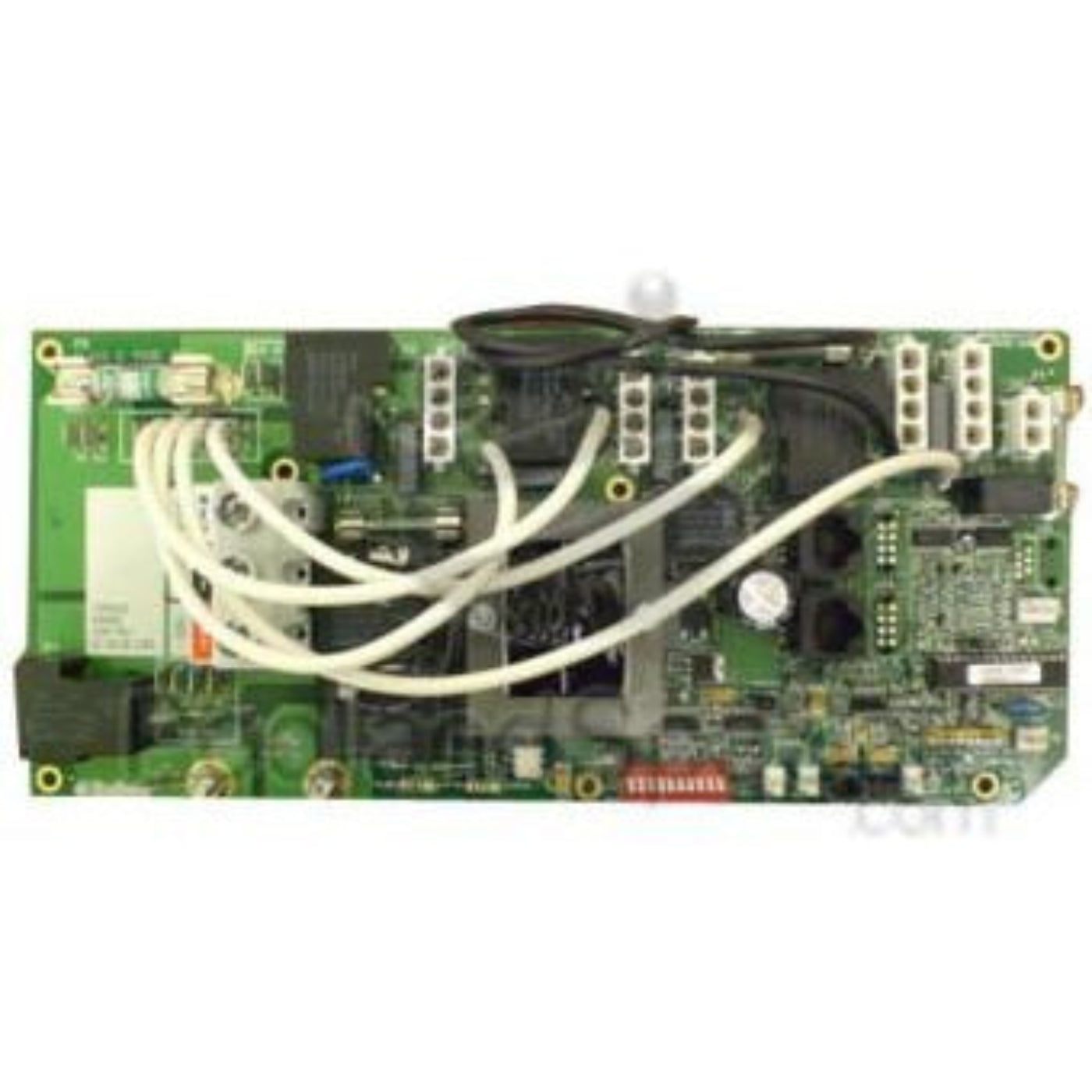

MASTER SPAS MAS520 PC Board - X801125
What our Experts Think
-
OEM control platform for MS520 systems: The MASTER SPAS MAS520 PC Board - X801125 is a Balboa-based control board designed to manage core spa functions including heating, jet pumps, lighting, and safety shutoffs.
-
Restores full spa operation: Common replacement for failed boards causing no power, erratic pump behavior, heating loss, or persistent error codes, bringing the spa back to normal function.
-
Central system coordination: Acts as the communication hub between the topside control panel, sensors, and high-voltage components to ensure stable and synchronized operation.
-
Built for legacy Whirlpool/Master Spas systems: Frequently used in older MS520 configurations, making it a key service part for restoring discontinued or aging spa packs.
-
Service-proven replacement part: Widely stocked by spa suppliers due to high failure replacement demand in moisture- and heat-exposed environments.
-
Installation-critical component: Requires correct system matching and configuration (wiring, dip switches, sensor pairing). Incorrect installation can lead to pump/heater malfunction or board failure.
-
Expert recommendation: Always verify exact MS520 system compatibility before purchase—similar-looking boards may differ in firmware and voltage configuration.
Q&A
Q: What is the Master Spas MAS520 PC Board (X801125)?
A: The X801125 is a genuine OEM Master Spas MAS520 circuit board (Balboa-based control system) used to manage core spa functions such as pumps, heater, filtration, lighting, and safety systems.
Q: What does the MAS520 control board do?
A: It acts as the main spa control system (“brain”), regulating temperature, jet pump operation, filtration cycles, and system protection features for compatible spas.
Q: Is this an OEM replacement part?
A: Yes. The X801125 is an original equipment replacement board designed for proper compatibility with Master Spas MAS520 systems.
Q: Which spas is it compatible with?
A: It is used in select Master Spas models equipped with the MAS520/Balboa control system. Always verify your existing board part number before ordering.
Q: What are common signs the MAS520 board needs replacement?
A: Symptoms include no power, unresponsive controls, pump or heater failure, or repeated error codes indicating system faults.
Q: Is professional installation recommended?
A: Yes. Because the board handles high-voltage components, installation by a qualified spa technician is strongly recommended for safety and correct setup.
Maintenance Tips
- Maintain balanced water chemistry (pH, alkalinity, sanitizer) to reduce corrosion risk to the MAS520 PC board.
- Keep the equipment bay dry, clean, and well-ventilated to prevent moisture damage and condensation buildup.
- Inspect wiring connections regularly for tightness, corrosion, or heat damage.
- Ensure stable power supply and proper grounding to protect sensitive electronic components.
- Keep insects, rodents, and debris away from the control box enclosure.
- Avoid water exposure from nearby pumps, heaters, or plumbing leaks.
- Monitor for error codes and address related system issues early to prevent board strain.
- Always shut off power at the breaker before installing, servicing, or replacing the PC board.
