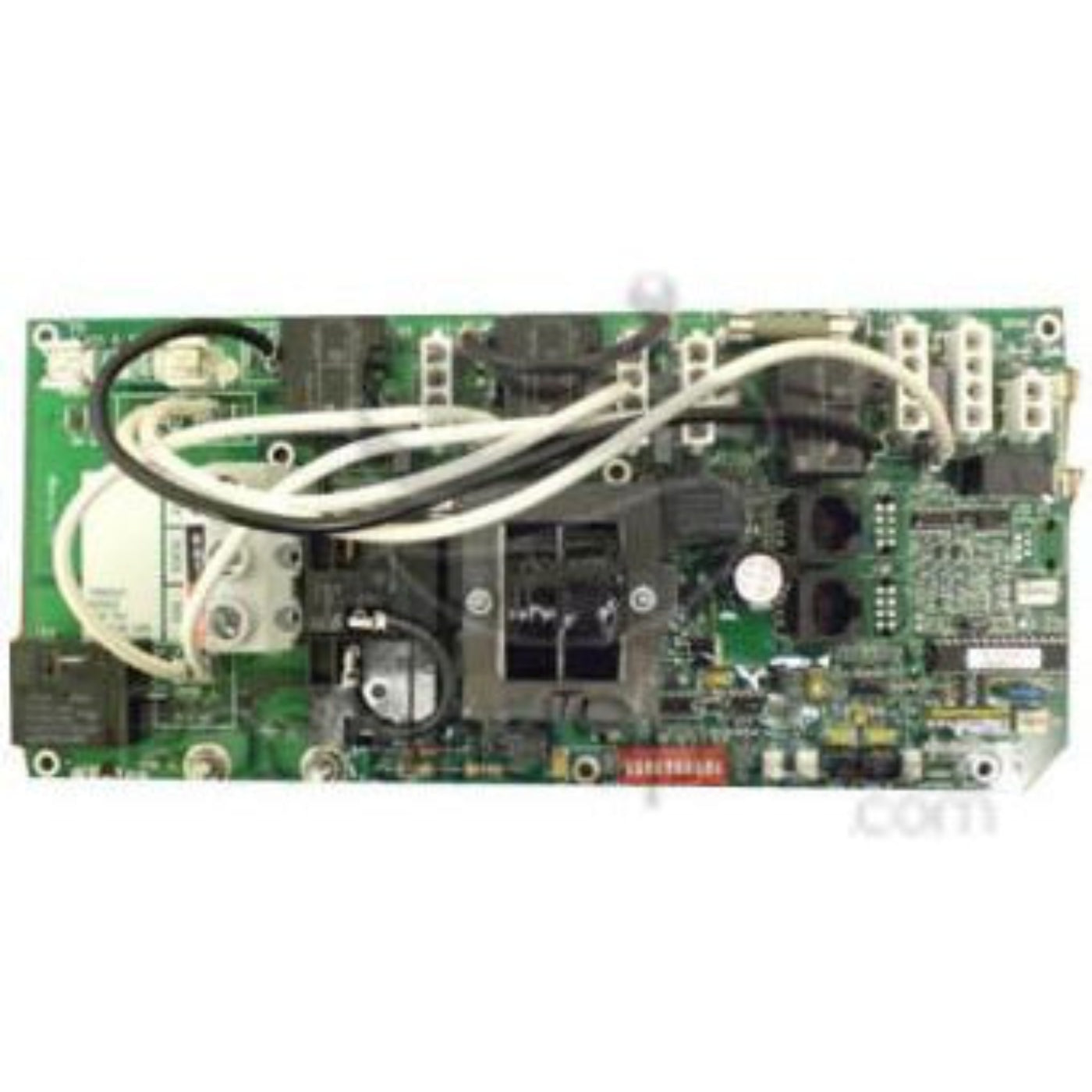

MASTER SPAS MAS1600 PC Board - X801115
What our Experts Think
-
Core system intelligence: The MAS1600 PC Board (X801115) is the central control hub that manages pumps, heater operation, filtration cycles, lighting, and safety shutdowns for compatible spa systems.
-
OEM Balboa-based platform: Built on a Balboa Water Group control architecture (MS1600R1A / VS501SZ), ensuring stable communication between spa components and consistent system logic.
-
Direct OEM replacement: Designed as a factory replacement board for MAS1600 systems, restoring full spa functionality when the original PCB fails or becomes unresponsive.
-
Multi-function control: Coordinates all essential spa operations including temperature regulation, jet sequencing, and safety cutoffs to protect equipment and users.
-
Wide model compatibility: Used across multiple Master Spas, swim spas, and legacy series systems, making it a common and reliable service replacement part.
-
Service-critical repair component: Often selected for restoration jobs due to its OEM reliability and ability to bring non-functioning spa systems back to full operation without replacing the entire pack.
Q&A
Q: What is the MASTER SPAS MAS1600 PC Board – X801115?
A: It is an OEM replacement electronic control circuit board used in Master Spas systems with the MAS1600/MS1600 control platform.
Q: What does this PC board do?
A: It manages key spa functions including pumps, heater operation, filtration cycles, lighting, temperature control, and safety shut-offs.
Q: Is this a genuine OEM part?
A: Yes. X801115 is a genuine Master Spas / Balboa-manufactured circuit board (Balboa part 55241) designed for MS1600 systems.
Q: What systems is it compatible with?
A: It is used in select Master Spas, Down East Spas, H2X swim spas, Twilight Series, and other models that use the MS1600 control platform.
Q: Does it replace multiple older boards?
A: Yes. It replaces failed MAS1600/MS1600 boards with matching chip and system configuration (MS1600R1A platform).
Q: Does it include wiring or sensors?
A: No. It is the circuit board only; existing sensors, topside panel, and wiring harness are reused if compatible.
Q: Is installation DIY-friendly?
A: No. Professional installation is recommended due to high-voltage connections, system programming, and risk of damage if miswired.
