Marhsall I Full-HD PTZ Camera (Black) - CV620-ND

Marhsall I Full-HD PTZ Camera (Black) - CV620-ND

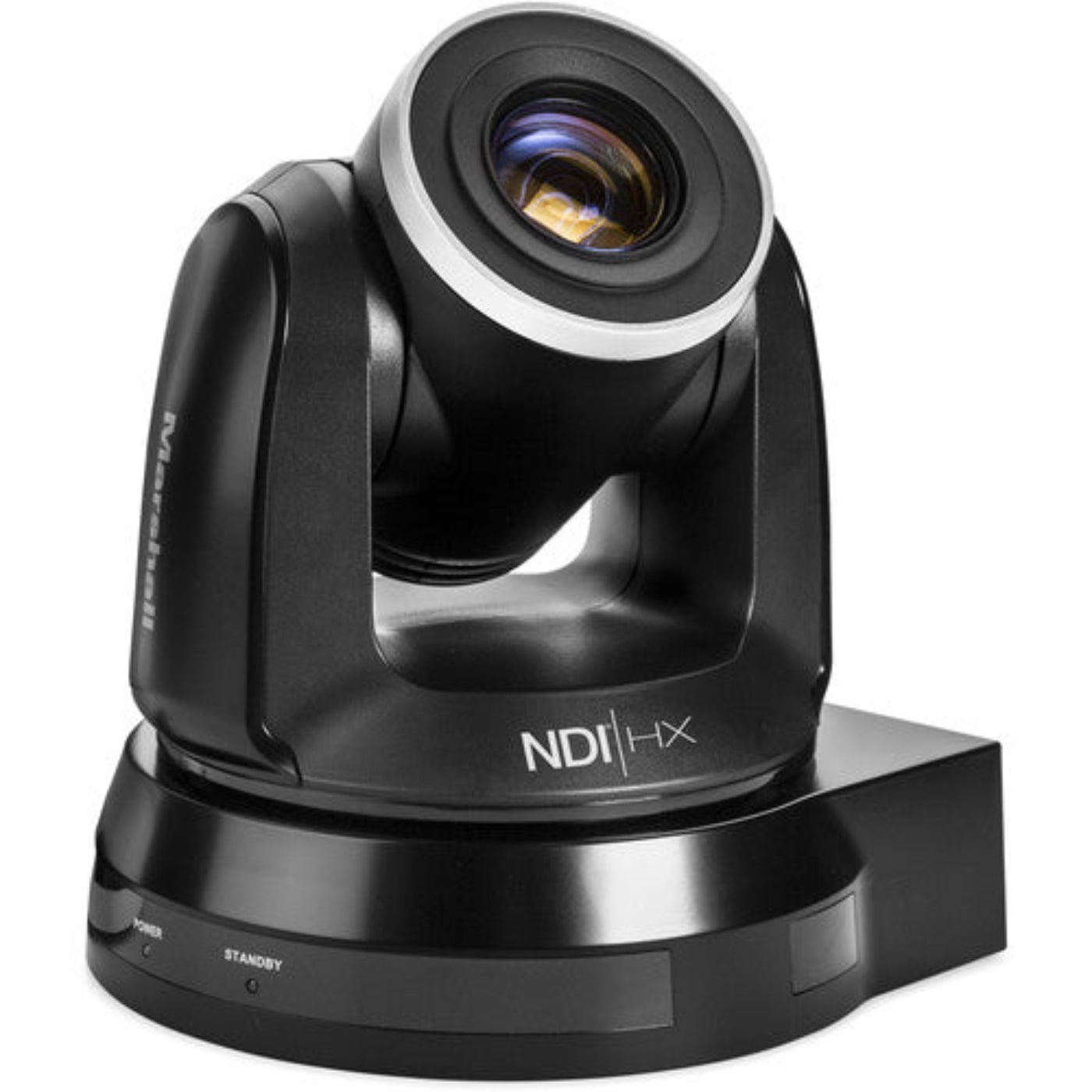

The Marshall CV620-NDI Full-HD PTZ Camera combines the performance and versatility of the popular Marshall CV620 PTZ Camera with NewTek's NDI|HX technology for use with NDI compatible systems. The CV620-NDI is built around a professional grade 2-Megapixel 1/2.8-inch sensor with 20x optical zoom, 340-degree horizontal pan, and 120-degree vertical tilt for complete crisp video coverage of meeting rooms, connected classrooms, control rooms, live events, and more.

In addition to 3G/HD-SDI and HDMI outputs, the CV620-NDI's NDI capability enables this camera to be easily integrated, controlled, and managed using a range of NDI-enabled equipment for seamless IP-based workflows.

Features

• 1080p/i & 720p Resolution up to 60 fps
• 4.7-94mm Lens, 20x Optical Zoom
• 2MP 1/2.8" Sensor

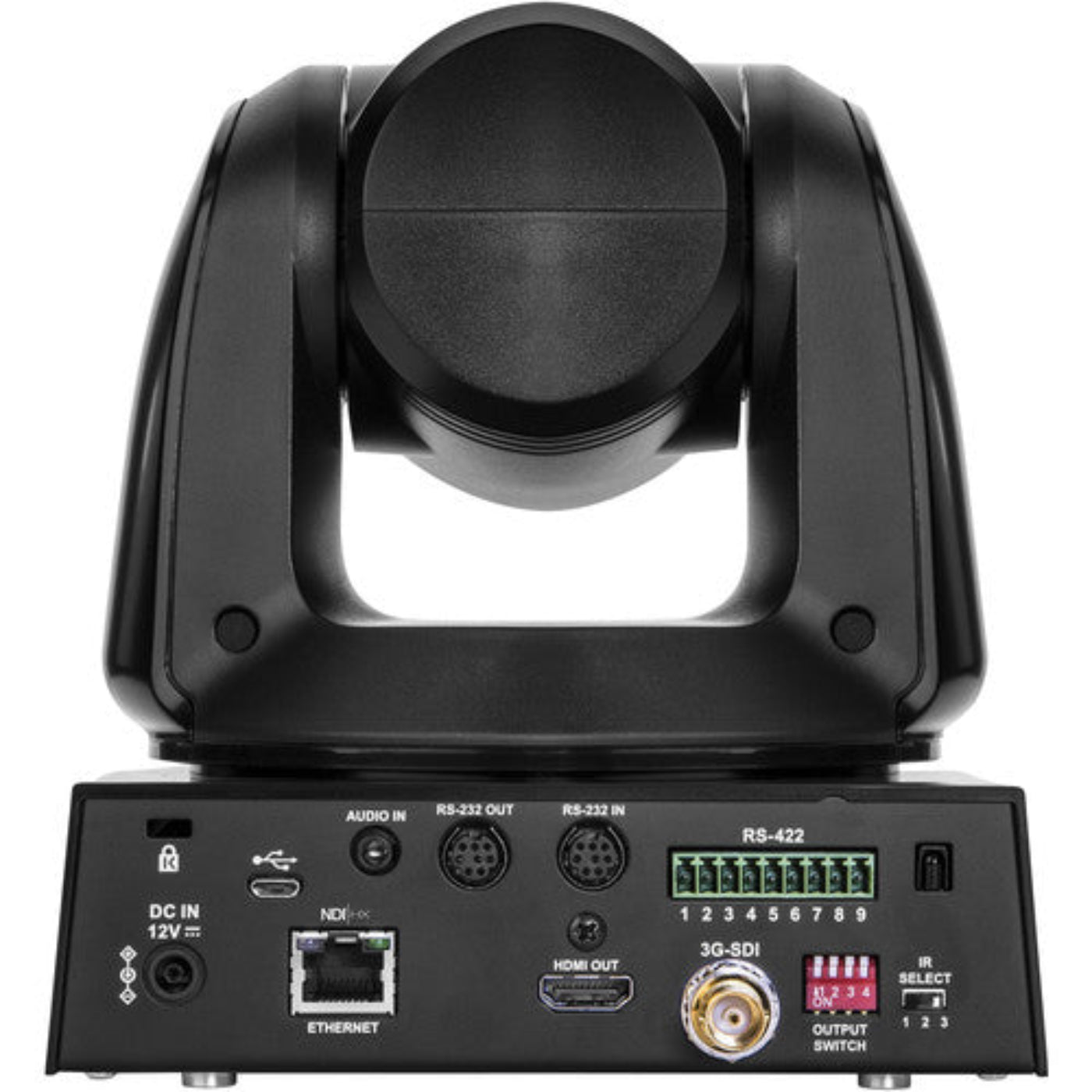

• 3G/HD-SDI, HDMI, and NDI Outputs
• 2-Megapixel 1/2.8-inch Sensor
• Full-HD: 1920x1080i, 1920x1080p, 1280x720p
• High Speed: 60, 59.94, 50, 30, 29.97, 25 fps
• 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital
• Wide Pan-Tilt Range: 340-degree Horizontal Pan - 120-degree Vertical Tilt
• TRS Audio Line/Mic level select (2.5V to mic)
• Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor
• Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.
• 3G/HD-SDI, HDMI, and NDI simultaneous outputs with support for
• PoE+ (802.3af) Power over Ethernet
• RS422/RS232 Remote Control Interface at High Comm Speeds
• Mountable via table, wall, ceiling mounts included for use with built-in image flip setting
• Compatible with integrated video conferencing systems and NDI-enabled networks

What our Experts Think

• Full-HD Resolution: Delivers clear, professional-quality video for live production and streaming.

• PTZ Functionality: Smooth pan, tilt, and zoom for precise framing and dynamic shots.

• NDI|HX Compatible: Easy IP workflow integration for low-latency network streaming.

• Compact, Professional Design: Black finish fits studios, conference rooms, and event spaces.

• Reliable Performance: Built for consistent operation in demanding professional environments.

Q&A

Q: What video quality does the CV620‑ND deliver?
A: Professional Full HD 1080p/1080i and 720p capture up to 60 fps from a 2 MP 1/2.8″ sensor for clear broadcast‑grade video.

Q: How strong is the zoom and movement?
A: Features 20× optical zoom (with additional digital zoom) and smooth 340° pan / 120° tilt movement for versatile framing.

Q: Which outputs and connectivity are supported?
A: Offers 3G/HD‑SDI, HDMI, and IP/NDI outputs simultaneously plus PoE+ support for simplified cabling.

Q: Can the camera be remotely controlled?
A: Yes — supports RS‑232/RS‑422 control plus network/NDI control for PTZ and settings integration.

Q: What audio and power features are included?
A: Includes an analog TRS audio input and supports Power over Ethernet (PoE+) for one‑cable deployment.

Q: What installations is it ideal for?
A: Great for conferencing, broadcast, corporate AV, education, houses of worship, and live production environments needing flexible HD PTZ coverage.

Maintenance Tips

• Clean the lens & housing with a soft microfiber cloth and approved cleaner to maintain sharp Full‑HD video.

• Secure all connections (NDI/PoE, power) to prevent signal interruptions and ensure reliable control.

• Update firmware regularly to improve performance, stability, and compatibility with NDI workflows.

• Check PTZ mechanics often for smooth pan/tilt/zoom movement without noise or sticking.

• Ensure good airflow around the unit; avoid blocked vents and excessive heat to extend lifespan.

• Use surge protection/UPS to safeguard against power spikes and network disruptions.

• Monitor network stability for consistent high‑quality streaming and remote operation.
