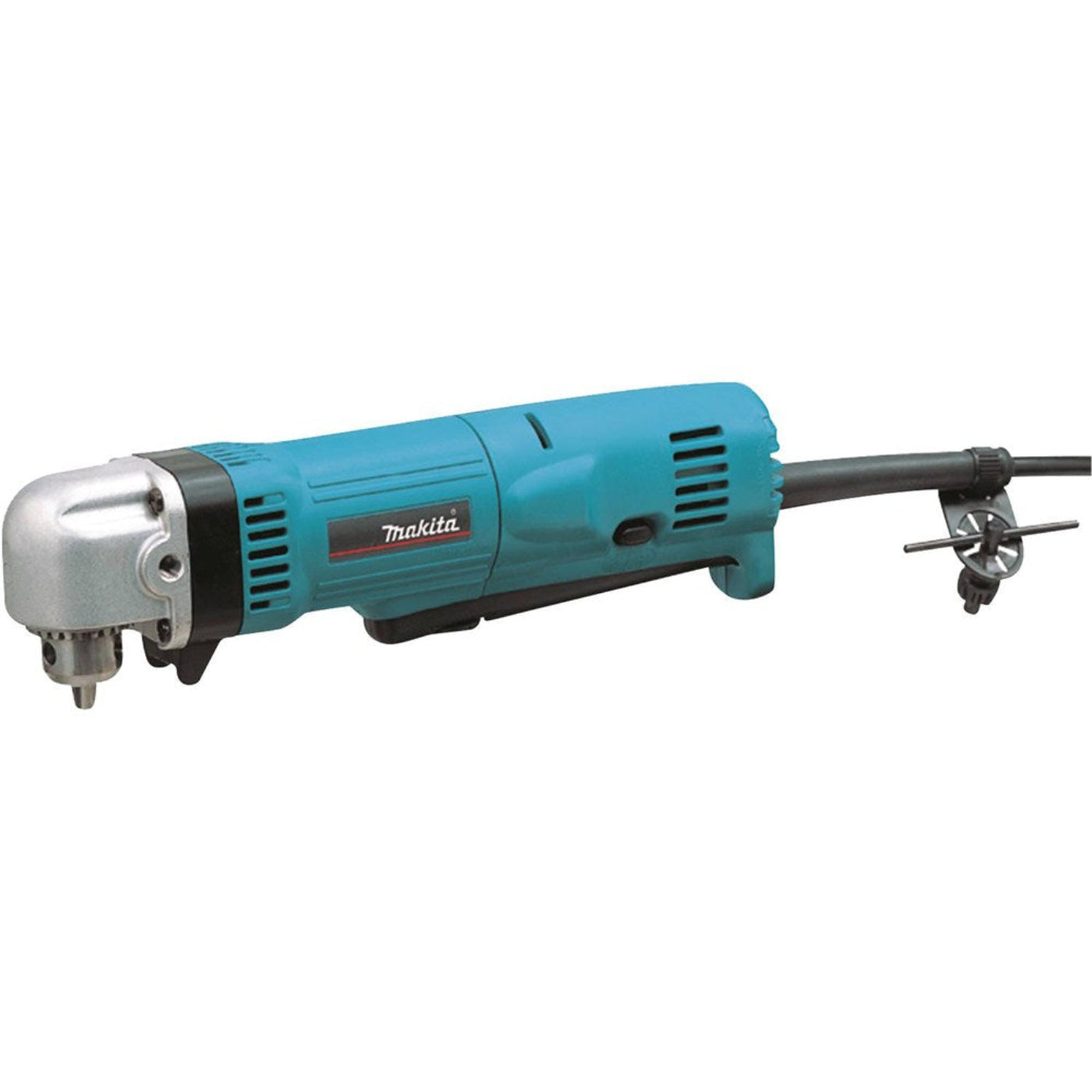

Makita DA3010F - 3/8" Angle Drill, 4 AMP, 0-2,400 RPM, var. spd., reversible, L.E.D. Light - DA3010F

Makita DA3010F - 3/8" Angle Drill, 4 AMP, 0-2,400 RPM, var. spd., reversible, L.E.D. Light - DA3010F

With a 10-5/8 in. long body and 2-5/8 in. head width, the Makita 3/8 in. Angle drill (model DA3010F) provides a compact solution when working between framing studs and other close quarter applications. The paddle switch with variable speed provides increased user convenience, and the torque-limiting clutch is engineered to disengage the gears if the bit binds. The LED light illuminates the work surface for improved visibility.

Features

• Powerful 4.0 AMP motor with less weight (3.5 lbs.)
• Variable speed (0 to 2,400 RPM) for drilling in a wide variety of materials

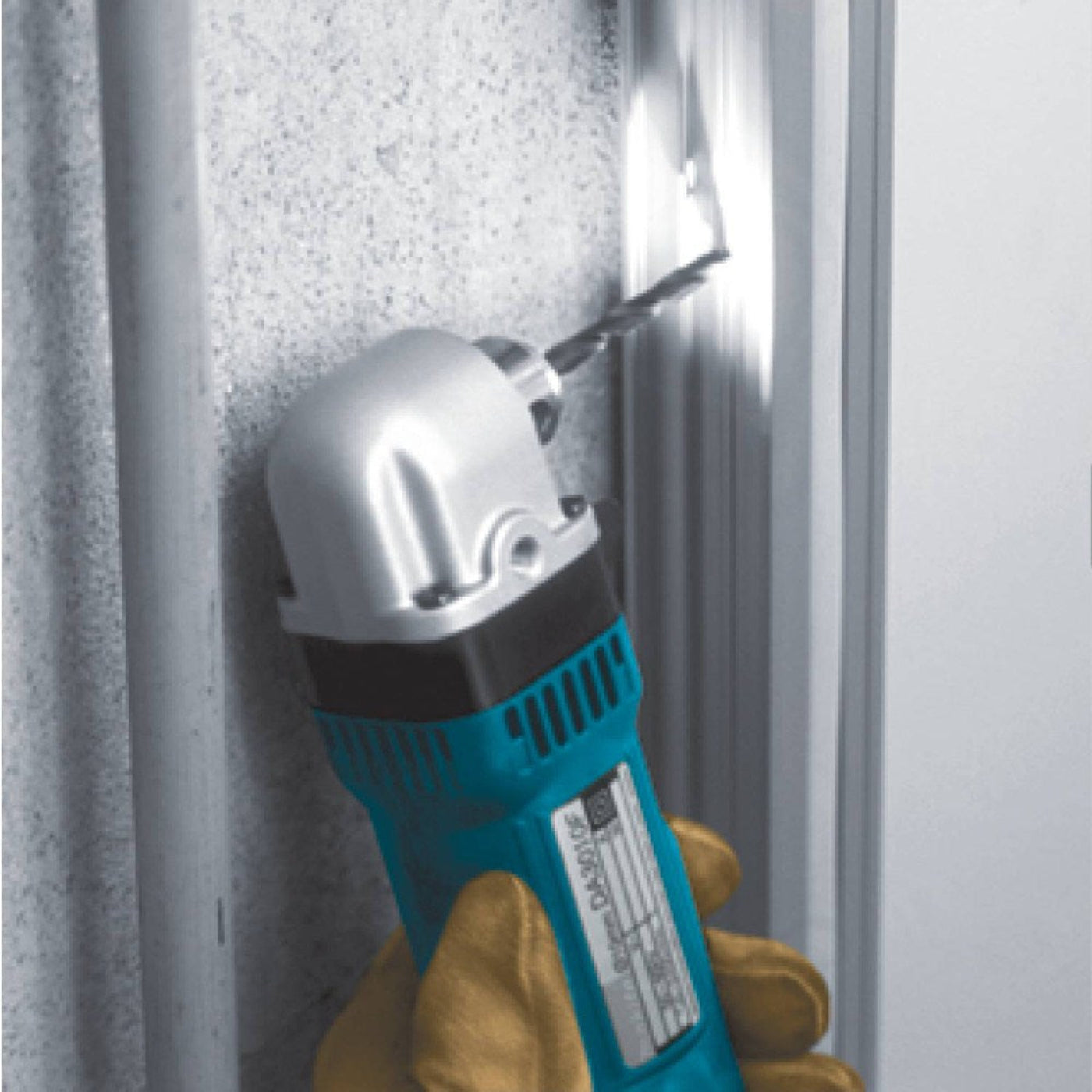

• Compact design (10-5/8 in. long and 2-5/8 in. head width) for use when working between framing studs and other close quarter applications
• Paddle switch with speed limiting dial to prevent over-tightening of fasteners

What our Experts Think

• Compact Power for Tight Spaces: The Makita DA3010F 3/8" Angle Drill features a 4 AMP motor in a compact design, making it ideal for drilling between studs, cabinets, and other hard-to-reach areas.
• Precise Speed Control: Variable speed operation from 0–2,400 RPM allows users to match drilling speed to different materials and applications for improved control.
• Improved Visibility: Built-in L.E.D. job light illuminates the drilling surface, helping improve accuracy in dimly lit work areas.
• Comfortable One-Handed Operation: The paddle switch with speed-limiting dial provides easier handling and better control during drilling and fastening tasks.
• Durable Professional Design: All-ball-bearing construction and industrial metal gear housing help extend tool life for frequent jobsite use.
• Enhanced Protection & Control: The built-in clutch helps protect gears by disengaging if the bit binds, reducing the risk of damage during operation.
• Expert Recommendation: A reliable choice for electricians, carpenters, and installers who need a lightweight, precise angle drill for confined-space drilling applications.

Q&A

Q: What is the Makita DA3010F used for?
A: It is a compact angle drill designed for drilling in tight spaces, including between studs, cabinets, and confined work areas.

Q: What motor power does the DA3010F have?
A: It features a 4.0 AMP motor that delivers reliable drilling performance in wood and metal applications.

Q: What is the speed range of the Makita DA3010F?
A: The variable-speed trigger provides 0–2,400 RPM for controlled drilling performance.

Q: Is the DA3010F reversible?
A: Yes. The reversible design allows easy bit removal and increased versatility for different drilling tasks.

Q: What materials can this angle drill handle?
A: It drills up to 3/8" in steel and 1" in wood, making it suitable for installation and general construction work.

Q: Does the Makita DA3010F have an LED light?
A: Yes. The built-in LED job light illuminates the drilling area for improved visibility in dark or confined spaces.

Q: Is this drill designed for tight spaces?
A: Yes. Its compact 10-5/8" length and 2-5/8" head width make it ideal for close-quarter applications.

Maintenance Tips

• Unplug the drill before cleaning, inspecting, or performing maintenance.
• Remove dust and debris from the motor vents, chuck, and gear housing after use.
• Keep the 3/8" keyed chuck clean and properly tightened; inspect bits for wear or damage.
• Check the power cord, paddle switch, and LED light for signs of damage or wear.
• Avoid using excessive force; allow the variable-speed motor and clutch system to work properly.
• Do not use gasoline, thinner, alcohol, or harsh chemicals when cleaning the tool.
• Inspect carbon brushes periodically and replace worn parts through authorized Makita service centers.
• Use genuine Makita replacement parts to maintain tool performance and reliability.
• Store the angle drill in a dry, clean location away from moisture and extreme temperatures.
