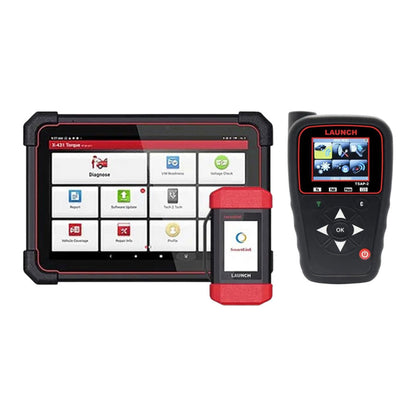

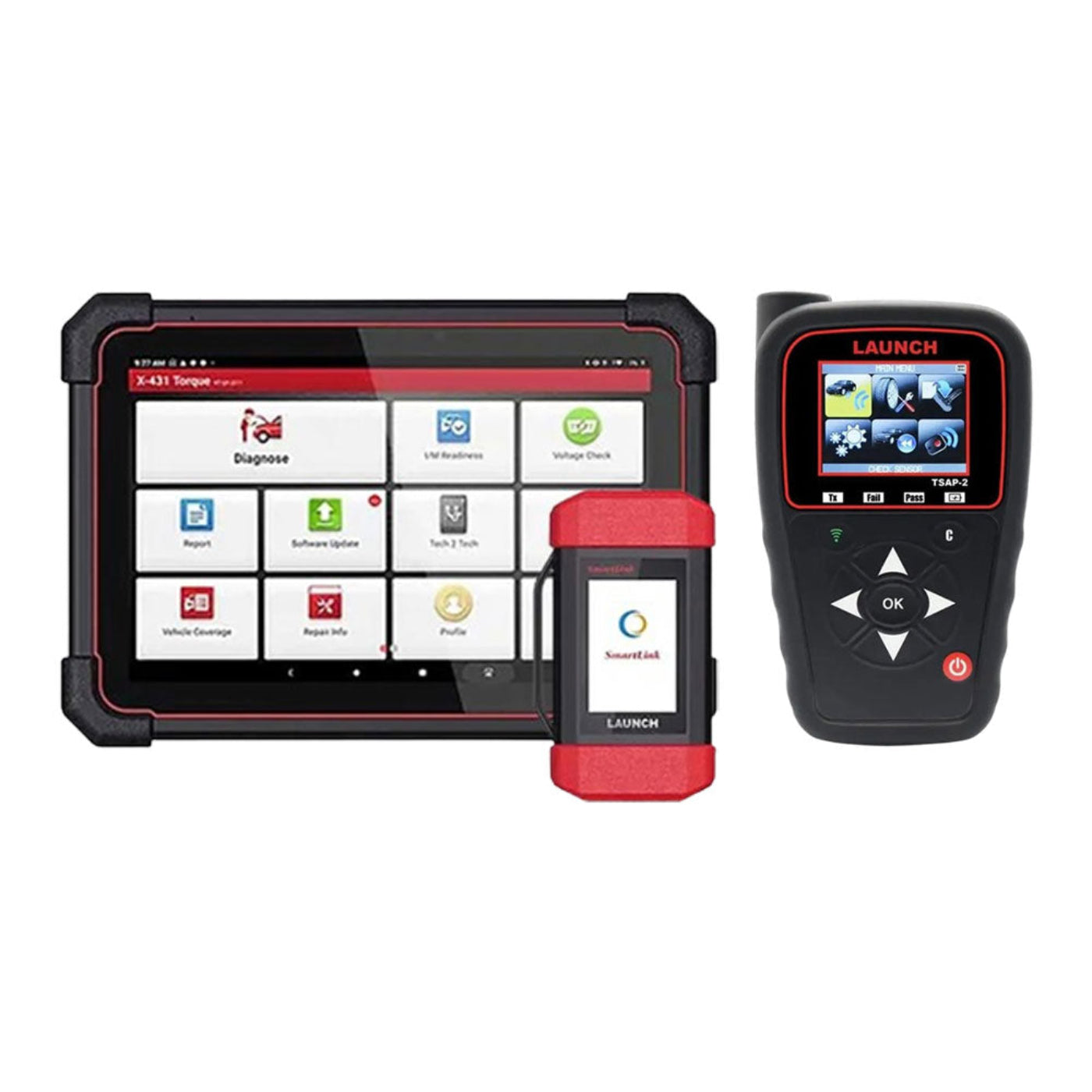

Launch Diagnostic Device with Free Tool and 10 LTR TPMS Sensors - LNCH-X431-TORQUE-LINK-TSAP2-LTR

Launch Diagnostic Device with Free  Tool and 10 LTR TPMS Sensors - LNCH-X431-TORQUE-LINK-TSAP2-LTR

X-431 Torque LINK is an advanced intelligent car diagnostic device which is developed based on Android 10.0 system. Using 2.0Ghz 4-core high-efficiency processor, 10.1-inch color display, 4GB RAM+128GB ROM large storage, equipped with high-endurance battery, running faster, more stable and longer.

X-431 Torque LINK supports full system fault diagnosis, with functions such as Read DTCs, Clear DTCs, Read Data stream, Special function, Actuation test, Coding, Matching and more. It supports CANFD / DOIP diagnosis protocol.

Features

• Full System & Full Function Diagnosis
• Auto Detect Vins in Minutes
• Bi-Directional Control / Remote Diagnostic Function
• Dual Band 5G & 2.4 G Wireless Connection with Ultra-Fast Speeds
• Advanced Vehicle protocols including DOIP, CANFD ETC
• Support X431 Fix Repair Information. Driven By Motor
• Code Assist Databse By Identifix
• SGW Security Gateway Approved By FCA
• Pin detection function to detect Pin volt, Data Rate and protocols
• More available software can be purchased via In-APP mall
• Build-in passenger car software, truck software purchase alone
• One-click upgrade for car models software
• Non-16 pin passenger car adapter cable kit covered
• Support USB Type C, USD Type A interface, Etc

Specifications

• Android 10.0
• 10.1 inch touch screen 1280*800
• Rear 8 MP, Front 5 MP
• Battery: 47880mWh (7.6V, 6300mAh)
• CPU 2.0 GHz Quad-core
• Memory:4GB+ Storage :128GB
• Connectivity:WiFI/Bluetooth
• Dimensions: 274 x 190 x 40.5 mm / 10.79 x 7.48 x 1.59 inches
• Weight:1.45 kg
• Power adapter, 5V / 5A
• USB A-type to B-type cable
• Six Kinds of Gigabit Networks (Blue)
• Type A to type C USB data cable
• OBD16 male to HDB15F test main line (with DC)
• HD15M to OBDII 16 male integrated test connector
• Multilingual quick start
• Universal PIN envelope
• SmartLink C Diagnostic Connector
• Front camera host 4 +128

Includes

• X-431 Torque Link Diagnostic Device
• TSAP-2 TPMS Tool
• LTR TPMS sensors

What our Experts Think

• Complete workshop bundle: This package combines the Launch X-431 Torque Link diagnostic platform with the TSAP-2 TPMS tool and 10 LTR TPMS sensors, giving technicians a ready-to-use solution for diagnostics and tire service workflows.
• Fast full-system diagnostics: Torque Link delivers OE-level scanning with full system coverage including engine, ABS, transmission, SRS, and body modules, plus active tests and coding functions.
• Modern vehicle support: Built on an Android-based platform with CAN-FD and DoIP compatibility for diagnosing newer vehicle architectures and secure gateway systems.
• Smart TPMS integration: The included TSAP-2 tool supports sensor activation, programming, and relearn procedures across most OEM and aftermarket TPMS systems.
• Ready-to-install LTR sensors: Bundle includes 10 LTR TPMS sensors designed for broad vehicle coverage and fast programming, reducing service downtime in tire shops.
• Workshop efficiency focus: Combines diagnostics + TPMS service into one ecosystem, minimizing tool switching and improving throughput for busy garages.
• Guided service workflow: Step-by-step TPMS relearn and diagnostic functions help reduce errors during sensor replacement and wheel service operations.
• Scalable professional setup: Ideal for tire shops and general repair centers wanting an all-in-one entry into advanced diagnostics and TPMS programming.

Q&A

Maintenance Tips

• Keep software updated: Regularly update diagnostic system and TPMS database for accurate sensor programming and vehicle coverage.
• Protect TPMS sensors: Store sensors in a dry, anti-static container; avoid drops, heat, and moisture exposure.
• Install sensors correctly: Ensure proper torque and valve alignment during installation to prevent air leaks and signal issues.
• Avoid RF interference: Program and test TPMS sensors away from strong electromagnetic sources.
• Battery awareness (sensors): Do not expose sensors to extreme temperatures that can shorten internal battery life.
• Handle programming tool carefully: Keep connectors clean, dry, and free from bent pins or corrosion.
• Clean after use: Wipe diagnostic device and accessories with a soft dry cloth—avoid liquids or solvents.
• Stable vehicle conditions: Perform TPMS learning and diagnostics on stationary vehicles in a controlled environment.
• Proper storage: Keep device and sensors in protective case away from heat, dust, and workshop vibration.
• Regular system checks: Periodically verify TPMS readings and relearn functions for consistent performance.
