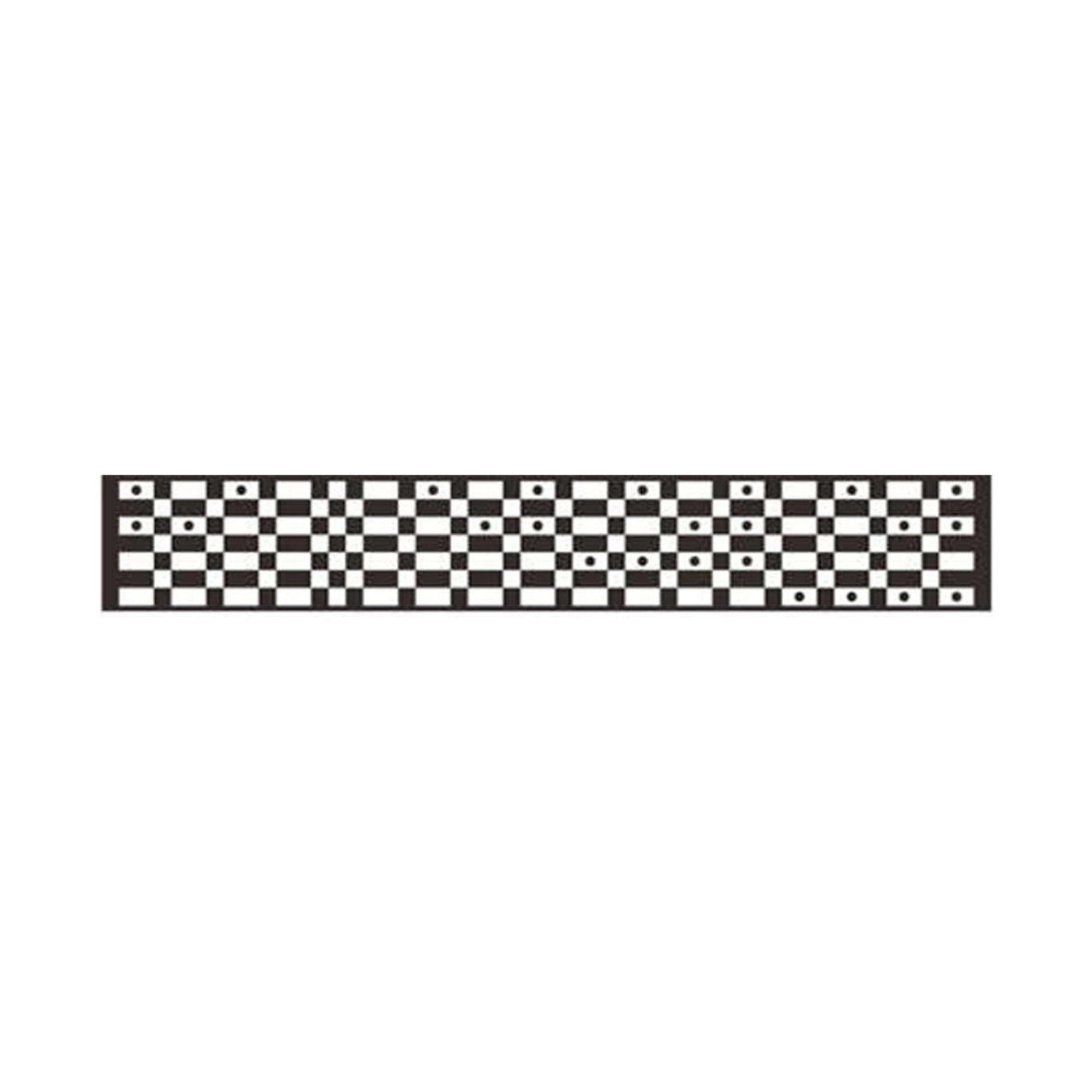

Launch Ford AVM Target - LNCH-LAC04-07

Launch Ford AVM Target - LNCH-LAC04-07

Features

• Brand: Launch Tech USA
• MPN: LAC04-07

What our Experts Think

• Ford-Specific AVM Calibration Tool: Engineered for accurate Around View Monitor (AVM) calibration on compatible Ford vehicles after camera or body repairs.
• OEM Alignment Accuracy: Ensures precise restoration of 360° surround-view systems to factory specifications for safe parking assistance.
• Launch X-431 ADAS Compatibility: Fully integrates with Launch X-431 ADAS platforms for guided calibration workflows and consistent results.
• Essential After Repairs: Required following rear camera replacement, bumper repair, or any work affecting camera positioning.
• High-Precision Target Design: Clear, durable AVM patterns enable reliable recognition during static calibration procedures.
• Reduces Parking System Errors: Helps eliminate misaligned guidelines, distorted stitching, and inaccurate proximity readings.
• Workshop-Ready Durability: Built for repeated professional use in collision repair and ADAS calibration environments.
• Time-Efficient Setup: Streamlined design supports faster calibration processes while maintaining strict OEM standards.

Q&A

Q: What is the Launch Ford AVM Target LNCH-LAC04-07 used for?
A: It is a precision ADAS calibration target used to align Ford Around View Monitoring (AVM) 360° camera systems after repair, replacement, or collision work.

Q: Which vehicles is it compatible with?
A: It is designed for Ford models equipped with factory-installed 360° surround view (AVM) camera systems.

Q: Is it a standalone tool?
A: No, it is used with the Launch X-431 ADAS calibration frame and diagnostic system for accurate OEM-level calibration.

Q: Why is AVM calibration necessary?
A: It ensures correct 360° image stitching, accurate parking assist performance, and restores factory camera alignment and safety function.

Q: What makes the LNCH-LAC04-07 important?
A: It provides Ford-specific target positioning, ensuring precise calibration for AVM systems that require exact geometric alignment.

Maintenance Tips

• Keep surface clean: Wipe with a soft microfiber cloth; avoid chemicals that can blur or distort the calibration pattern.
• Prevent bending/warping: Store flat in a rigid case to maintain geometric accuracy.
• Protect printed markers: Avoid scratches, abrasion, or UV exposure that can fade reference points.
• Use on level ground only: Uneven placement causes incorrect 360° AVM calibration results.
• Check pattern clarity before use: Ensure all markers are sharp, visible, and fully intact.
• Avoid moisture & heat: Store in a dry, temperature-stable environment to prevent material deformation.
• Handle with care: Use clean hands or gloves to prevent oil or fingerprint contamination.
• Inspect regularly: Replace if any peeling, fading, or structural damage is detected.
