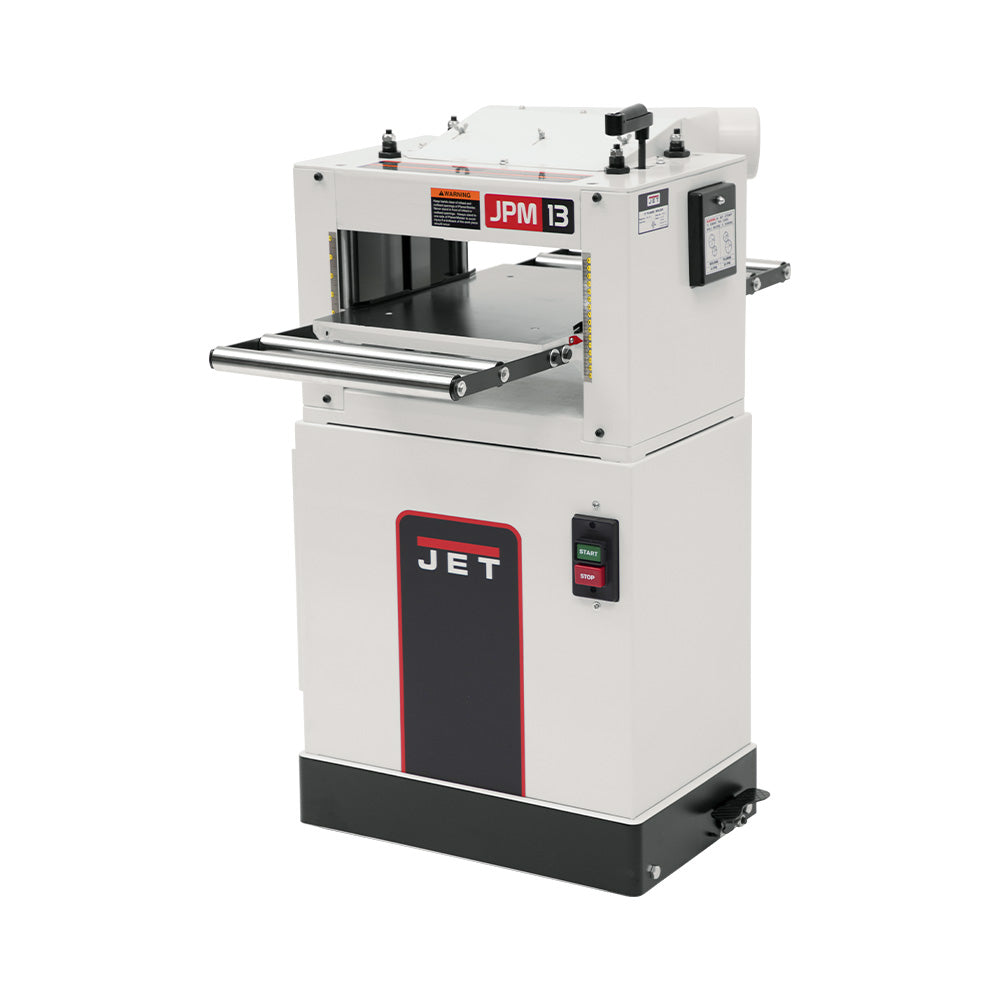

The JET JPM-13CS 13" Closed Stand Planer / Molder boasts a totally enclosed fan-cooled 1.5hp motor, which uses two matched V-belts to deliver smooth, consistent power to the cutter head. The three cutter head design produces a superior finish in either planing or molding. The molding cutter head accommodates over 40 standard molding cutter sets — most 2" or smaller heads can be installed without removing the planing knives to save you time!

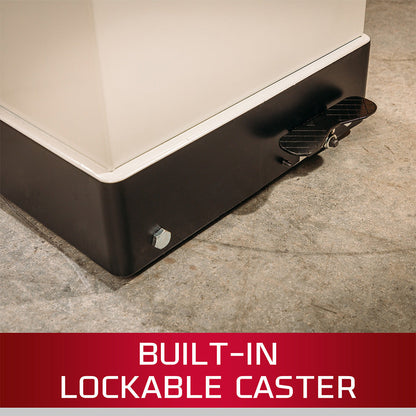

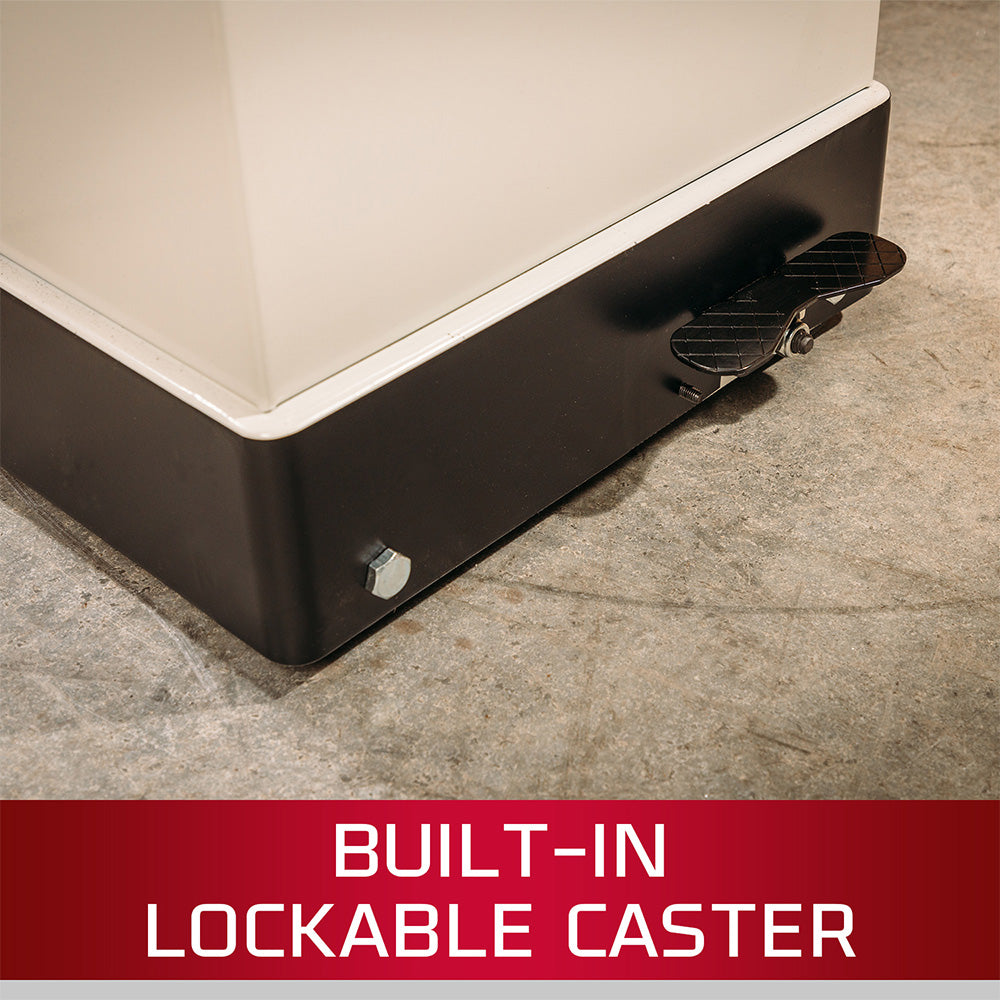

You will find that the JPM-13CS was designed with sturdiness in mind. The four precision-ground columns add stability when raising and lowering the table. Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood. Built in lockable casters allow you to easily move the machine around your shop.
JET warrants every product they sell against manufacturer's defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
[TABS]
Features
- Exclusive angled 4" dust port keeps hose out of the way while providing efficient chip and dust removal
- Four precision-ground column design feature adds stability when raising and lowering the table
- Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood
- Molding cutter head accommodates most 2" or smaller heads without removing the planing knives
- Top-mounted height adjustment handle allows for quick table height changes
- Two speed gear box has feed rates set for optimum planing and molding results
Specs
Motor: 1.5hp, 1-phase, 115/230V
Pre-wired voltage: 115V
Electrical: 15/7.5A, 60Hz
Recommended circuit: 30A or 15A
No. of knives: 3
Knife size (L x W x H): 13-1/16" x 1/8" x 5/8"
Cutter head dia.: 2-9/16"
Cutter head speed: 4,500 RPM
Max. cutting width: 13" (330mm)

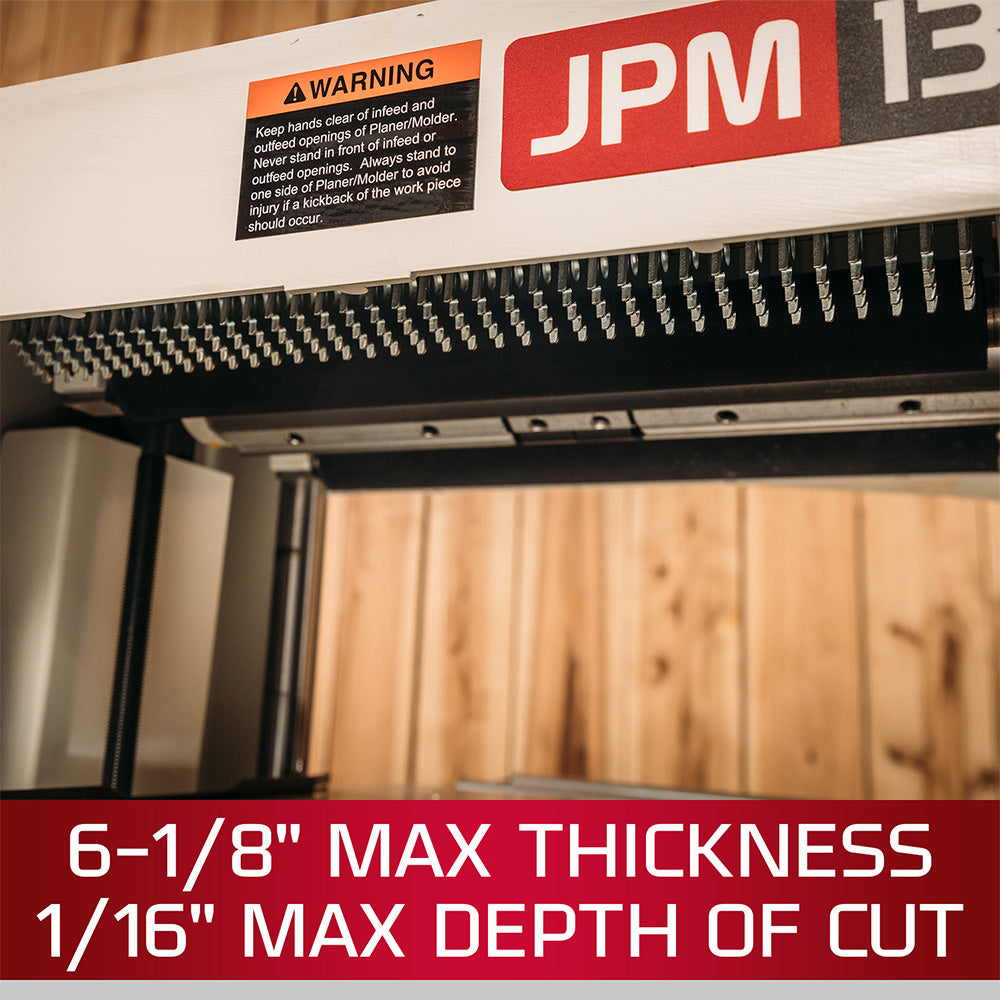

Max. thickness: 6-1/8" (156mm)
Min. planing length: 14" (356mm)
Cuts per minute: 13,500
Feed rate (planing): 20 FPM
Feed rate (molding): 10 FPM
Dust port dia.: 4" (100mm)
Overall dimensions (W x D x H): 23-31/32" x 36-1/2" x 43-1/2"
Net weight: 225 lbs.
Shipping weight: 262 lbs.
