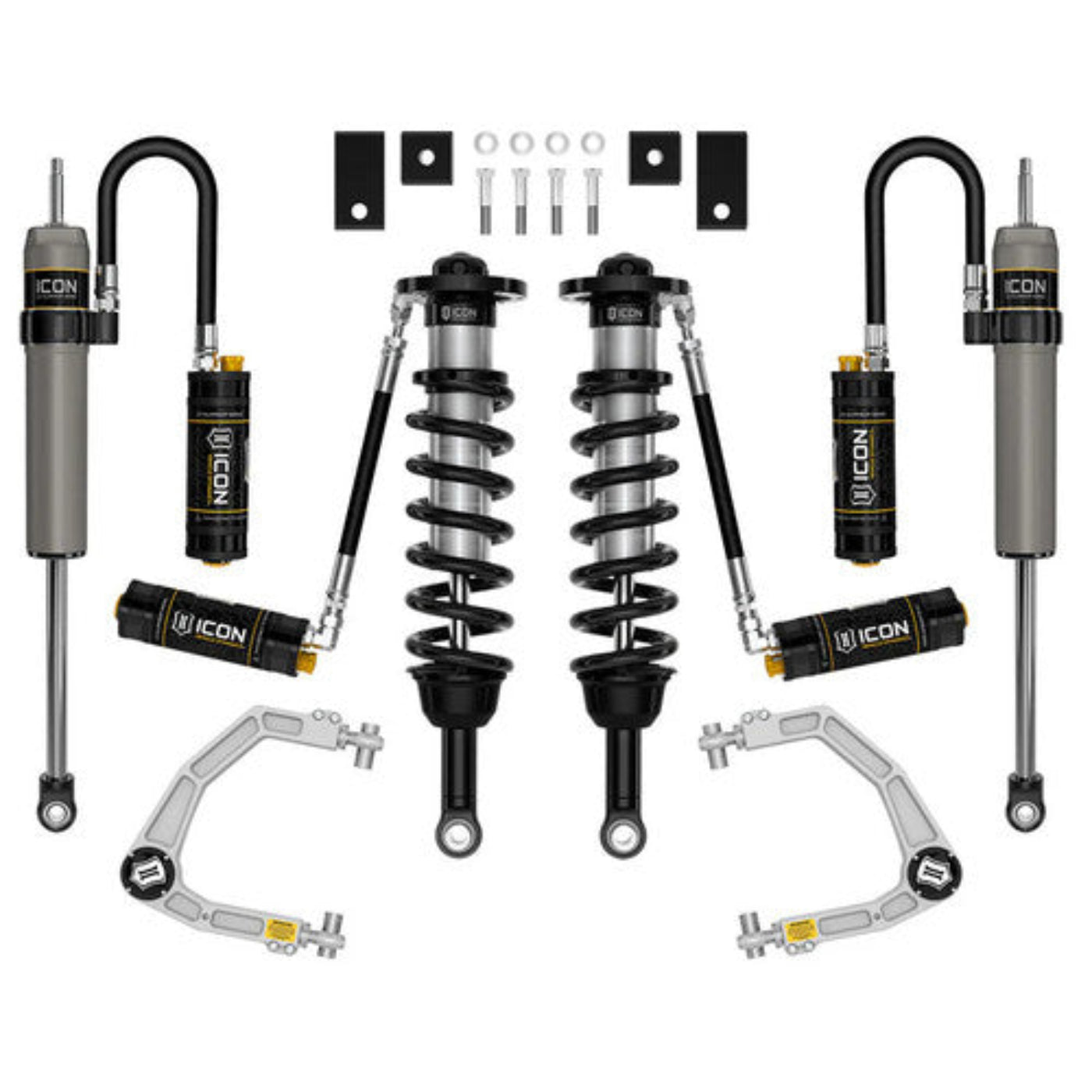

Air Lift ICON Vehicle Dynamics Stage 9 Suspension System 1.25-3.5" Lift | 2022+ Toyota Sequoia - KITICOK53199T-2

Air Lift ICON Vehicle Dynamics Stage 9 Suspension System 1.25-3.5" Lift | 2022+ Toyota Sequoia - KITICOK53199T-2

Dial-in your suspension performance on your 3rd Gen Toyota Sequoia with the ICON Stage 9 Kit which features the ICON 2.5 CDCV Front Coilovers and rear shocks.

Stage 9 features ICON's exclusive Compression Damping Control Valves (CDCV) for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.

Get up to 40% more travel versus stock! ICON's Billet or Tubular Upper Control Arms to squeeze every inch of travel out of the Sequoia's suspension while increasing available lift height to 1.25 to 3.5" (front). ICON UCA's are optimized for lifted or leveled trucks, with caster adjustment built into the geometry of the arm, making it easier to dial in your truck's steering alignment. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90-degrees of movement to allow bind-free movement throughout the full range of suspension travel afforded by the ICON coilovers. Get increased rear shock performance to match the 2.5 front coilovers. Stage 7 includes ICON's 2.5-inch diameter VS Series rear shock absorbers with remote reservoirs, for a massive increase in shock oil volume and surface area for heat dissipation to help prevent cavitation and maintain damping performance over long stretches of rough terrain. In addition, the 2.5 VS rear shocks feature 7/8" rods and other beefier components to handle the long travel and punishing cycle rates of moving fast across the terrain.

Features

• Adjustable 1.25-3.5" of Front Lift
• 2.5 VS CDCV Coilovers
• 7/8” diameter induction hardened, chrome plated shock shaft.
• 2.5” diameter monotube design.
• Fitment for up to  35" tires (larger tires may fit with minor fender trimming and modifications)
• TIRE & WHEEL: 35X12.50 ON 8.5" WIDE WHEEL W/ 5.75" BACKSPACE (MINOR TRIMMING REQUIRED)
• Improved suspension performance and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular or billet UCA for added strength, durability and an additional degree of caster (Select Stages)
• UCAs feature the Delta Joint Pro with 90 degrees of total articulation (Select Stages)
• Vehicle specific design.
• Vehicle specific tuned for superior shock damping and control
• CNC machined 6061 aluminum components
• 100% Rebuildable and revalveable
• Fits: 2022+ Toyota Sequoia

What our Experts Think

• ICON's flagship suspension package. Stage 9 combines front 2.5 VS RR CDCV coilovers, rear 2.5 CDCV remote reservoir shocks, upper control arms, and a sway bar drop kit for a complete performance upgrade.
• Maximum adjustability. The 10-position CDCV compression adjusters let you quickly fine-tune ride quality for commuting, towing, overlanding, or aggressive off-road driving.
• More travel, more control. Delivers up to 40% more front wheel travel than stock, improving suspension articulation, stability, and confidence on rough terrain.
• Ready for larger tires. The adjustable 1.25–3.5" front lift accommodates up to 35-inch tires (with appropriate wheel specs and minor trimming if required), giving your Sequoia an aggressive stance and added capability.
• Engineered for long-term durability. Rebuildable shocks, CNC-machined 6061 aluminum components, remote reservoirs, and premium upper control arms ensure reliable performance in demanding conditions.
• Best suited for: Enthusiasts who want a complete premium suspension system with outstanding ride quality, precise adjustability, and exceptional off-road performance for their 2022+ Toyota

Q&A

Q: What vehicles is this suspension system designed for?
A: Fits 2022+ Toyota Sequoia models. Verify compatibility with your trim and factory suspension before ordering.

Q: What is included in the ICON Stage 9 Suspension System?
A: The kit includes 2.5 VS RR CDCV front coilovers, CDCV rear remote reservoir shocks, upper control arms, a sway bar drop kit, and rear coil springs for a complete suspension upgrade.

Q: How much lift does this system provide?
A: It delivers an adjustable front lift of approximately 1.25–3.5 inches, depending on vehicle configuration and installed accessories.

Q: What is CDCV technology?
A: ICON's Compression Damping Control Valve (CDCV) system provides external compression damping adjustment, allowing you to fine-tune ride quality for street and off-road driving.

Q: Will this system fit 35-inch tires?
A: Yes. With the recommended wheel specifications, the Stage 9 system is designed to accommodate up to 35-inch tires.

Q: Are the shocks rebuildable?
A: Yes. ICON's 2.5 Series shocks are fully rebuildable and re-valvable for long-term performance and serviceability.

Q: Is this a bolt-on suspension system?
A: Yes. The kit is engineered as a direct bolt-on upgrade using vehicle-specific components.

Maintenance Tips

• Inspect shocks, coilovers, upper control arms, links, bushings, and hardware every 5,000 miles or after demanding off-road use.
• Clean shock bodies, shafts, and suspension components with mild soap and water to remove mud, salt, and debris; avoid pressure washing shock seals.
• Check for oil leaks, worn bushings, damaged reservoir hoses, loose fasteners, and unusual suspension noise. Re-torque hardware after installation and periodically thereafter.
• Verify ride height and perform a wheel alignment after installation or whenever suspension adjustments are made.
• Cycle CDCV adjusters periodically (if equipped) to ensure smooth operation and consistent damping performance.
• Rebuild or service shocks at recommended intervals based on driving conditions to maintain optimal ride quality, handling, and durability.
