Air Lift ICON Vehicle Dynamics Stage 9 Suspension System 1.25-3.5" Lift | 2022-2026 Toyota Tundra - KITICOK53199T

Air Lift ICON Vehicle Dynamics Stage 9 Suspension System 1.25-3.5" Lift | 2022-2026 Toyota Tundra - KITICOK53199T

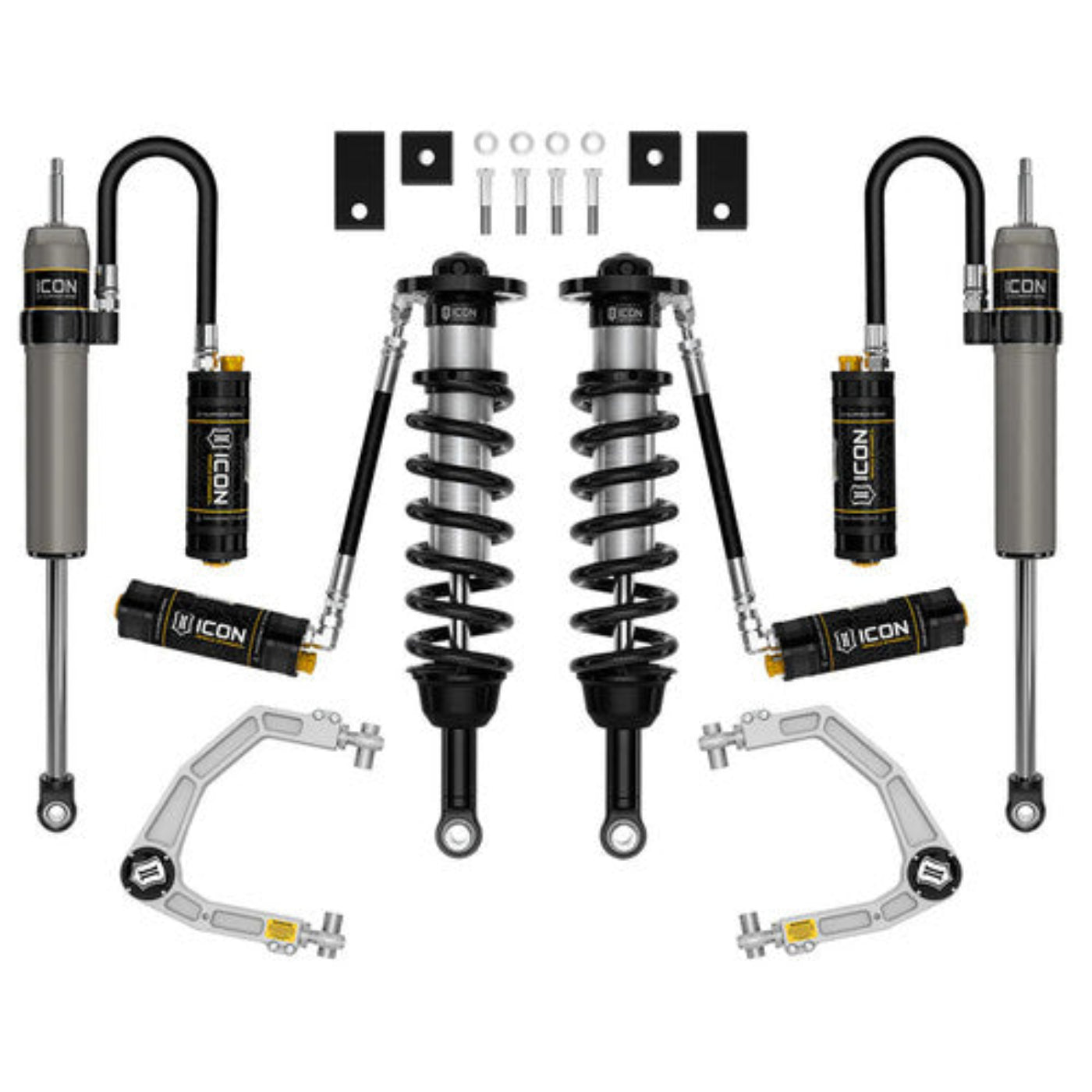

Dial-in your suspension performance on your 3rd Gen Toyota Tundra with the ICON Stage 9 Kit which features the ICON 2.5 CDCV Front Coilovers and rear shocks.

Stage 9 features ICON's exclusive Compression Damping Control Valves (CDCV) for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.

Get up to 40% more travel versus stock! ICON's Billet or Tubular Upper Control Arms to squeeze every inch of travel out of the Tundra's suspension while increasing available lift height to 1.25 to 3.5" (front). ICON UCA's are optimized for lifted or leveled trucks, with caster adjustment built into the geometry of the arm, making it easier to dial in your truck's steering alignment. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90-degrees of movement to allow bind-free movement throughout the full range of suspension travel afforded by the ICON coilovers. Get increased rear shock performance to match the 2.5 front coilovers. Stage 7 includes ICON's 2.5-inch diameter VS Series rear shock absorbers with remote reservoirs, for a massive increase in shock oil volume and surface area for heat dissipation to help prevent cavitation and maintain damping performance over long stretches of rough terrain. In addition, the 2.5 VS rear shocks feature 7/8" rods and other beefier components to handle the long travel and punishing cycle rates of moving fast across the terrain.

Features

• Adjustable 1.25-3.5" of Front Lift
• 2.5 VS CDCV Coilovers
• 7/8” diameter induction hardened, chrome plated shock shaft.
• 2.5” diameter monotube design.
• Fitment for up to  35" tires (larger tires may fit with minor fender trimming and modifications)
• TIRE & WHEEL: 35X12.50 ON 8.5" WIDE WHEEL W/ 5.75" BACKSPACE (MINOR TRIMMING REQUIRED)
• Improved suspension performance and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular or billet UCA for added strength, durability and an additional degree of caster (Select Stages)
• UCAs feature the Delta Joint Pro with 90 degrees of total articulation (Select Stages)
• Vehicle specific design.
• Vehicle specific tuned for superior shock damping and control
• CNC machined 6061 aluminum components
• 100% Rebuildable and revalveable
• Fits: 2022+ Toyota Tundra

What our Experts Think

• 1.25–3.5 inches of adjustable lift for improved ground clearance and larger tire fitment.
• Complete Stage 9 system with premium suspension components for superior handling and control.
• Advanced adjustable shocks allow fine-tuning for different driving styles and terrain.
• Improves wheel travel and articulation for enhanced off-road performance.
• Reduces body roll, brake dive, and suspension fade while maintaining excellent on-road comfort.
• Vehicle-specific engineering ensures optimal fit, performance, and reliability.
• Rebuildable and serviceable components provide long-term value and durability.

Q&A

Q: What vehicles does this suspension system fit?
A: This suspension system is designed for 2022–2026 Toyota Tundra models.

Q: How much lift does this kit provide?
A: It delivers 1.25 to 3.5 inches of adjustable lift for improved ground clearance and a leveled stance.

Q: What is included in the ICON Stage 9 Suspension System?
A: The kit includes premium ICON shocks, coilovers, rear suspension components, and billet upper control arms for maximum suspension performance.

Q: What are the benefits of the Stage 9 system?
A: It enhances ride quality, suspension travel, handling, off-road capability, and overall vehicle control.

Q: Is the ride height adjustable?
A: Yes. The front coilovers feature threaded-body ride height adjustment for precise lift settings.

Q: Is this kit suitable for off-road use?
A: Yes. It is engineered for aggressive off-road driving while maintaining excellent on-road comfort.

Q: Can this suspension accommodate larger tires?
A: Yes. The added lift helps provide clearance for larger tire and wheel combinations (fitment depends on tire size and wheel offset).

Q: Is professional installation recommended?
A: Yes. Professional installation and a wheel alignment after installation are recommended for optimal performance and safety.

Maintenance Tips

• Inspect shocks, coilovers, control arms, and hardware every 3,000–5,000 miles or after off-road use.
• Clean suspension components with mild soap and water to remove mud, dirt, and road salt.
• Avoid pressure washing directly at shock seals, rod ends, or bushings.
• Check for oil leaks, damaged components, loose hardware, and excessive wear.
• Inspect reservoir hoses, coil springs, bushings, and rod ends for wear or damage.
• Verify all mounting hardware is tightened to the manufacturer's torque specifications.
• Perform a professional wheel alignment after adjusting ride height or replacing suspension components.
• Rebuild ICON shocks at the recommended service intervals or sooner under frequent off-road or severe-duty use.
• Address unusual noises, reduced damping, or changes in handling promptly to maintain suspension performance.
