Air Lift ICON Vehicle Dynamics Stage 7 Suspension System 1.25-3.5" Lift | 2023+ Toyota Sequoia - KITICOK53197T-2

Air Lift ICON Vehicle Dynamics Stage 7 Suspension System 1.25-3.5" Lift | 2023+ Toyota Sequoia - KITICOK53197T-2

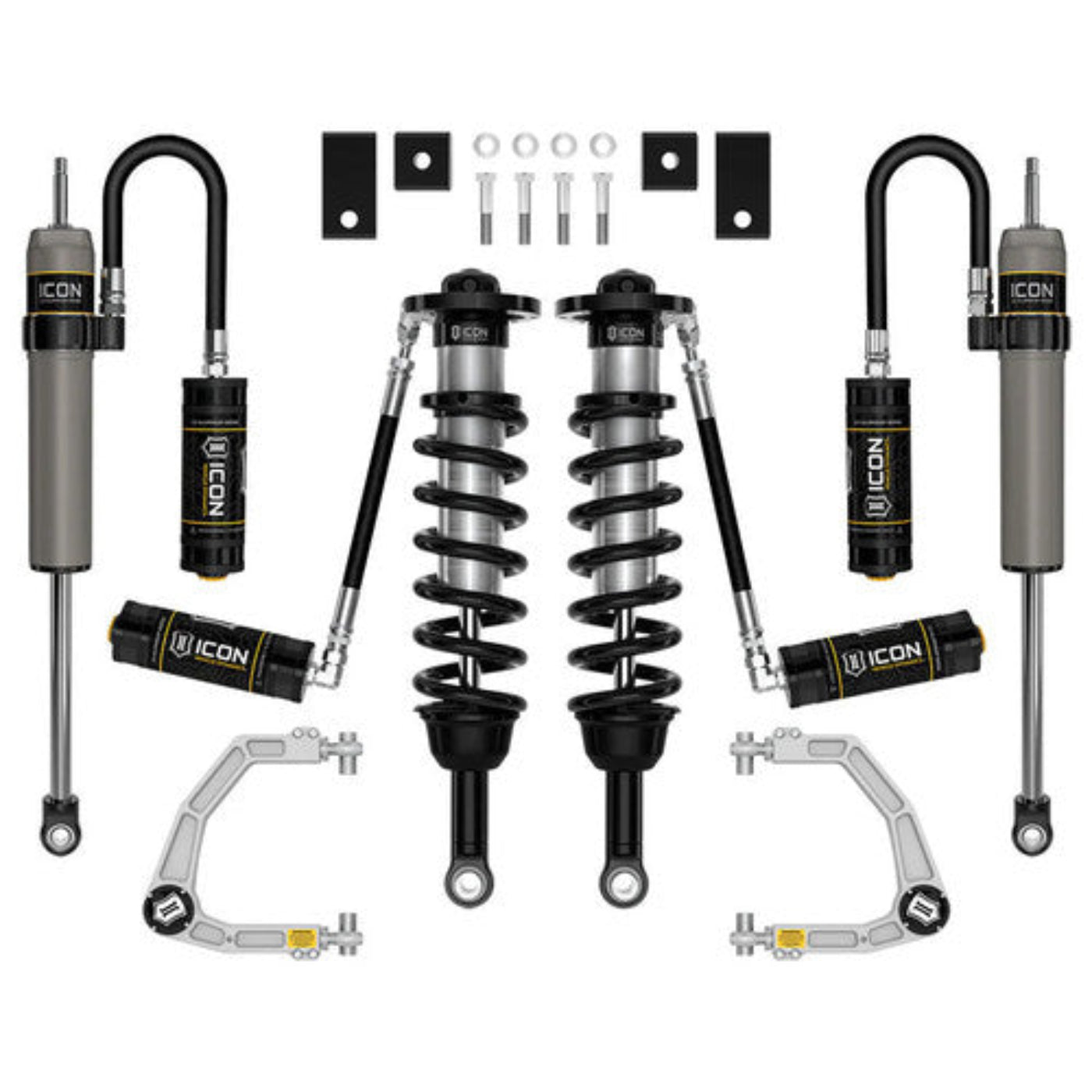

The 3rd Gen Toyota Sequoia ICON Vehicle Stage 7 is the Big Shock System featuring 2.5 Remote Reservoir front Coilovers and 2.5 Remote Reservoir rear shocks with UCA's!

Get up to 40% more travel versus stock! ICON's Billet or Tubular Upper Control Arms to squeeze every inch of travel out of the Sequoia's suspension while increasing available lift height to 1.25 to 3.5" (front). ICON UCA's are optimized for lifted or leveled trucks, with caster adjustment built into the geometry of the arm, making it easier to dial in your truck's steering alignment. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90-degrees of movement to allow bind-free movement throughout the full range of suspension travel afforded by the ICON coilovers. Get increased rear shock performance to match the 2.5 front coilovers. Stage 7 includes ICON's 2.5-inch diameter VS Series rear shock absorbers with remote reservoirs, for a massive increase in shock oil volume and surface area for heat dissipation to help prevent cavitation and maintain damping performance over long stretches of rough terrain. In addition, the 2.5 VS rear shocks feature 7/8" rods and other beefier components to handle the long travel and punishing cycle rates of moving fast across the terrain.

Features

• Adjustable 1.25-3.5" of Front Lift
• 2.5 Aluminum Series front coilover shock
• 7/8” diameter induction hardened, chrome plated shock shaft.
• 2.5” diameter monotube design.
• Fitment for up to  35" tires (larger tires may fit with minor fender trimming and modifications)
• TIRE & WHEEL: 35X12.50 ON 8.5" WIDE WHEEL W/ 5.75" BACKSPACE (MINOR TRIMMING REQUIRED)
• Improved suspension performance and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular or billet UCA for added strength, durability and an additional degree of caster (Select Stages)
• UCAs feature the Delta Joint Pro with 90 degrees of total articulation (Select Stages)
• Vehicle specific design.
• Vehicle specific tuned for superior shock damping and control
• CNC machined 6061 aluminum components
• 100% Rebuildable and revalveable
• Fits: 2023+ Toyota Sequoia

What our Experts Think

• 1.25–3.5 inches of adjustable lift provides extra clearance and supports larger tire setups.
• Complete Stage 7 suspension package combines performance components for a balanced upgrade.
• ICON 2.5 Series shocks offer improved damping control, heat resistance, and consistent performance.
• Enhances off-road capability with increased suspension travel and improved terrain control.
• Maintains excellent street comfort for daily driving and long-distance trips.
• Vehicle-specific tuning ensures optimized performance for the 2023+ Toyota Sequoia platform.
• Durable, rebuildable components are built for long-term reliability and demanding use.

Q&A

Q: What vehicles does this suspension system fit?
A: This ICON Stage 7 Suspension System is designed for 2023+ Toyota Sequoia models.

Q: How much lift does this kit provide?
A: It provides 1.25 to 3.5 inches of adjustable front lift for improved clearance and a more aggressive stance.

Q: What is included in the ICON Stage 7 kit?
A: The system includes ICON coilovers, rear shocks, and supporting suspension components engineered for enhanced performance.

Q: What are the benefits of upgrading to the Stage 7 system?
A: It improves ride quality, handling, suspension travel, off-road capability, and overall vehicle control.

Q: Is the lift height adjustable?
A: Yes. The front coilovers feature adjustable ride height settings for customized fitment and stance.

Q: Is this suspension system built for off-road driving?
A: Yes. It is designed for adventure use, trail driving, and demanding off-road conditions while maintaining daily drivability.

Q: Can this kit support larger tires?
A: Yes. The added lift provides increased clearance for larger tire and wheel setups (fitment depends on tire size and wheel offset).

Maintenance Tips

• Inspect shocks, coilovers, control arms, and mounting hardware every 3,000–5,000 miles or after off-road use.
• Clean suspension components with mild soap and water to remove dirt, mud, and road salt.
• Avoid pressure washing directly on shock seals, bushings, and moving suspension joints.
• Check for oil leaks, loose bolts, damaged parts, or excessive wear.
• Inspect coil springs, reservoirs, hoses, bushings, and rod ends for signs of damage.
• Confirm all hardware is torqued to manufacturer specifications after installation and heavy use.
• Perform a wheel alignment after ride height adjustments or suspension service.
• Service or rebuild ICON shocks at the recommended maintenance intervals for optimal performance.
• Monitor for changes in ride quality, handling, or suspension noise and address issues promptly.
