Air Lift ICON Vehicle Dynamics Stage 6 Suspension System 1.25-3.5" Lift | 2023+ Toyota Sequoia - ICOK53236T

Air Lift ICON Vehicle Dynamics Stage 6 Suspension System 1.25-3.5" Lift | 2023+ Toyota Sequoia - ICOK53236T

The 3rd Gen Sequoia Icon Stage 6 Provides improved cooling under hard use, featuring the ICON Vehicle Dynamics 2.5 Remote Reservoir front coilovers and 2.0 Remote Reservoir rear shocks.

Get up to 40% more travel versus stock! ICON's Billet or Tubular Upper Control Arms to squeeze every inch of travel out of the Sequoia's suspension while increasing available lift height to 1.25 to 3.5" (front). ICON UCA's are optimized for lifted or leveled trucks, with caster adjustment built into the geometry of the arm, making it easier to dial in your truck's steering alignment. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90-degrees of movement to allow bind-free movement throughout the full range of suspension travel afforded by the ICON coilovers. Stage 5 adds Remote Reservoirs to the 2.0 VS rear shocks to provide increased fluid volume and surface area, resulting in better heat dissipation. To provide for sustained shock performance at speed through rough terrain, Stage 6 adds remote reservoirs to the ICON 2.5 front coilovers and 2.0 rear shocks. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

Features

• Adjustable 1.25-3.5" of Front Lift
• 2.5 Aluminum Series front coilover shock
• 7/8” diameter induction hardened, chrome plated shock shaft.
• 2.5” diameter monotube design.
• Fitment for up to  35" tires (larger tires may fit with minor fender trimming and modifications)
• TIRE & WHEEL: 35X12.50 ON 8.5" WIDE WHEEL W/ 5.75" BACKSPACE (MINOR TRIMMING REQUIRED)
• Improved suspension performance and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular or billet UCA for added strength, durability and an additional degree of caster (Select Stages)
• UCAs feature the Delta Joint Pro with 90 degrees of total articulation (Select Stages)
• Vehicle specific design.
• Vehicle specific tuned for superior shock damping and control
• CNC machined 6061 aluminum components
• 100% Rebuildable and revalveable
• Fits: 2022+ Toyota Sequoia

What our Experts Think

• A premium suspension for serious adventure. The ICON Stage 6 Suspension System is engineered for 2023+ Toyota Sequoia, delivering exceptional ride quality, improved handling, and outstanding off-road capability.
• Adjustable 1.25–3.5" front lift. 2.5 Series remote reservoir front coilovers provide adjustable lift for a leveled stance and clearance for up to 35-inch tires with the recommended wheel and tire setup.
• Maximum control and articulation. Includes tubular upper control arms with Delta Joint PRO, improving suspension geometry, alignment, and increasing front wheel travel by up to 40% over stock.
• Built for demanding conditions. Remote reservoir front coilovers and 2.0 remote reservoir rear shocks provide greater oil capacity, improved cooling, and consistent damping to resist shock fade during towing or extended off-road use.
• Complete suspension package. Features dual-rate rear springs and sway bar drop brackets for improved ride comfort, better bottom-out resistance, enhanced articulation, and balanced on-road performance.
• Best for: Sequoia owners seeking a premium adjustable suspension system with superior ride quality, increased wheel travel, and confident performance for daily driving, overlanding, towing, and challenging off-road adventures

Q&A

Q: What does the ICON Stage 6 Suspension System do?
A: It provides 1.25–3.5 inches of adjustable front lift, improving ride quality, suspension travel, handling, and off-road performance while maintaining excellent on-road comfort.

Q: Which vehicles is this kit compatible with?
A: Fits 2023+ Toyota Sequoia models. It is not compatible with factory load-leveling rear air suspension or Adaptive Variable Suspension (AVS).

Q: What is included in the Stage 6 system?

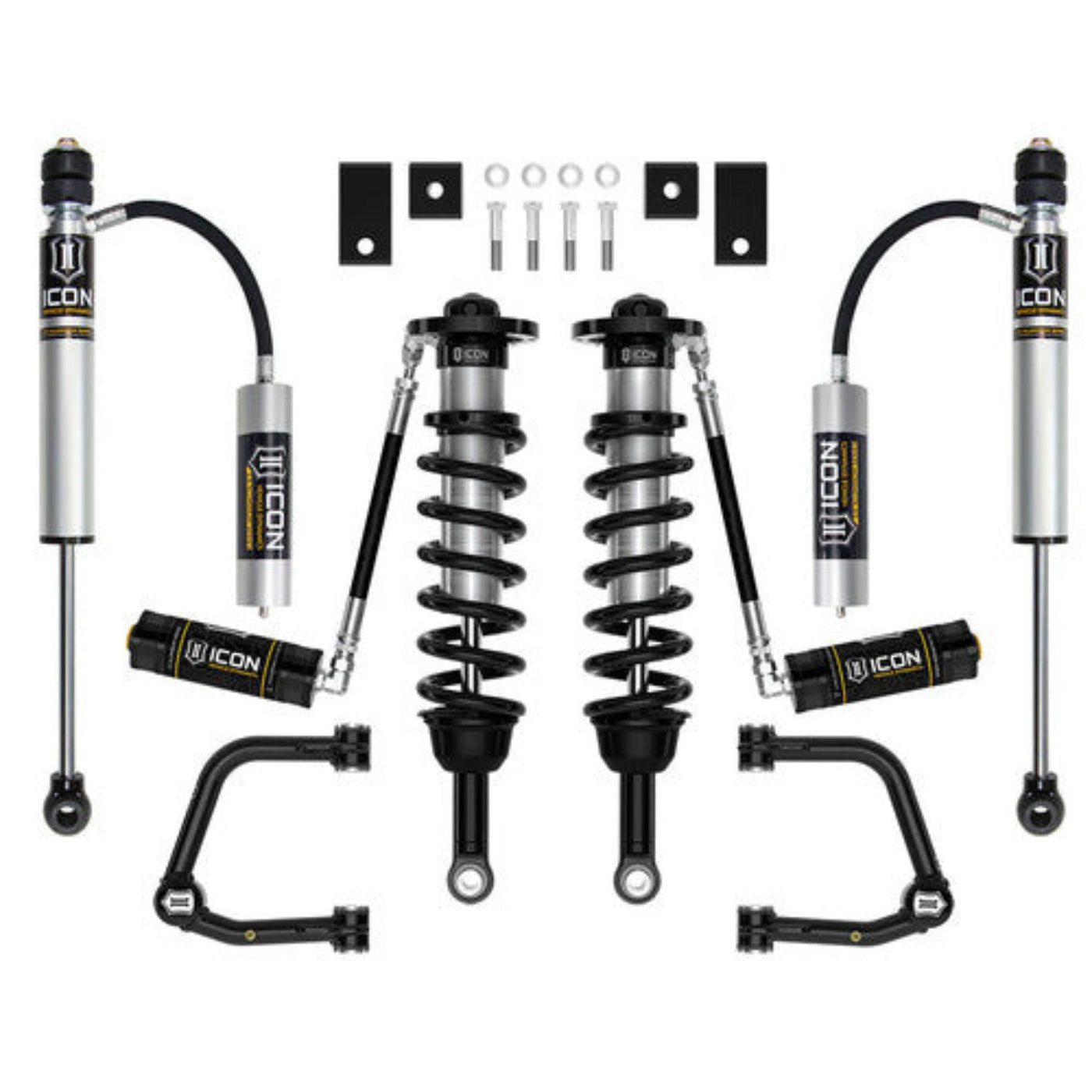

A: The kit includes 2.5 Series remote reservoir front coilovers, tubular upper control arms with Delta Joint PRO, dual-rate rear coil springs, 2.0 Series remote reservoir rear shocks, sway bar drop brackets, and installation hardware.

Q: What tire size can this suspension support?
A: It is designed to fit up to 35-inch tires, depending on wheel specifications and minor trimming if required.

Q: What are the benefits of the remote reservoir shocks?
A: Remote reservoirs improve shock cooling, reduce fade under heavy use, and deliver more consistent damping for demanding on- and off-road driving.

Q: Are the shocks rebuildable?
A: Yes. All included ICON shock absorbers are fully rebuildable and re-tunable for long-term performance and serviceability.

Q: Why choose the ICON Stage 6 Suspension System?
A: It's an excellent upgrade for Sequoia owners seeking adjustable lift, premium remote reservoir suspension, improved wheel travel, and exceptional off-road capability without sacrificing daily driving comfort.

Maintenance Tips

• Re-torque all suspension hardware after the first 500 miles and inspect it regularly thereafter.
• Inspect the 2.5 VS remote reservoir front coilovers, 2.0 remote reservoir rear shocks, tubular upper control arms, Delta Joint PROs, and bushings for leaks, wear, or loose components.
• Have the vehicle professionally aligned after installation and whenever ride height or tire wear changes.
• Grease the serviceable Delta Joint PROs at the recommended service intervals to maintain smooth articulation and extend component life.
• Clean shocks, reservoirs, and suspension components regularly to remove mud, salt, and road debris, helping prevent corrosion and maintain performance.
• Service the fully rebuildable ICON shocks at the manufacturer's recommended intervals or after frequent off-road use to maintain optimal ride quality and damping performance.
