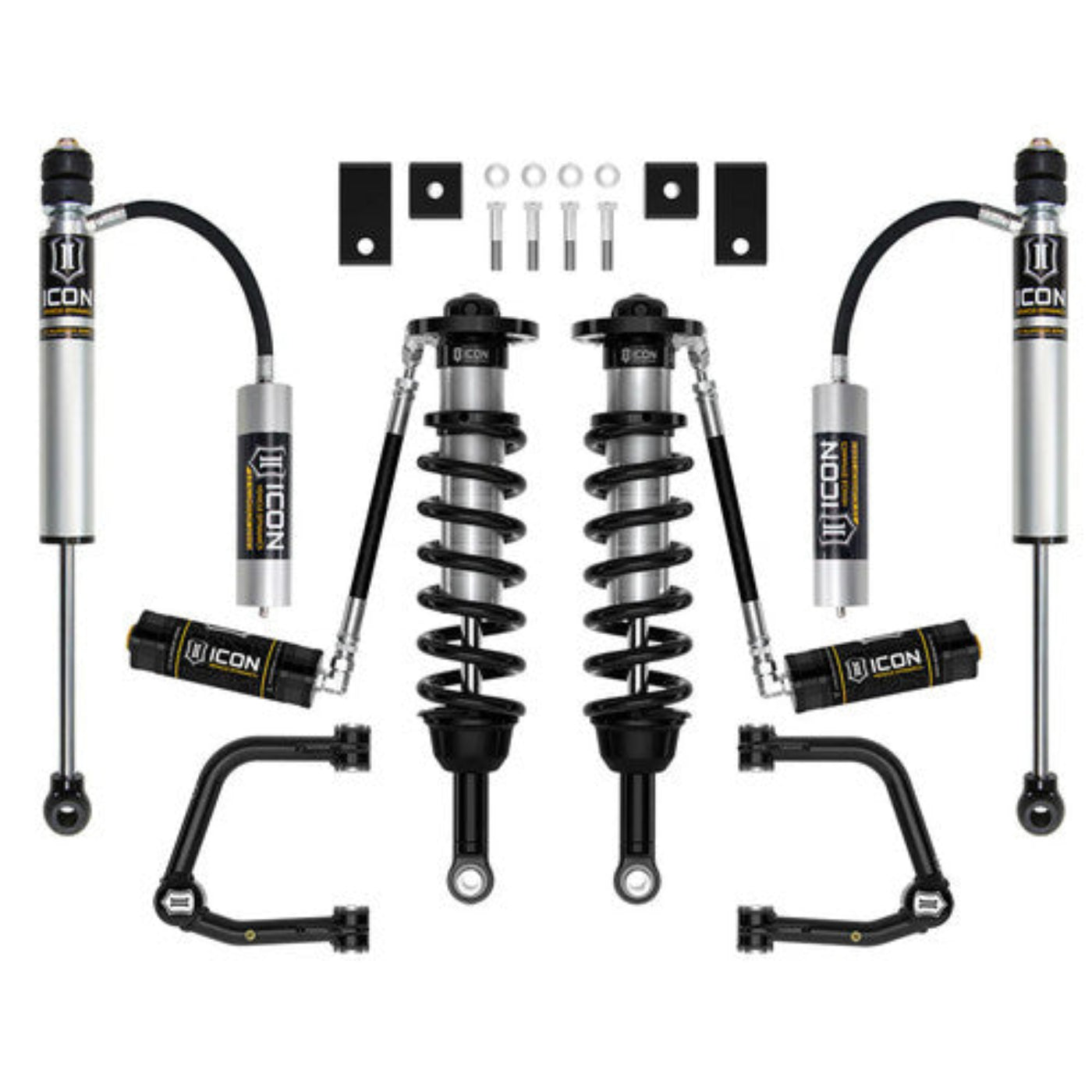

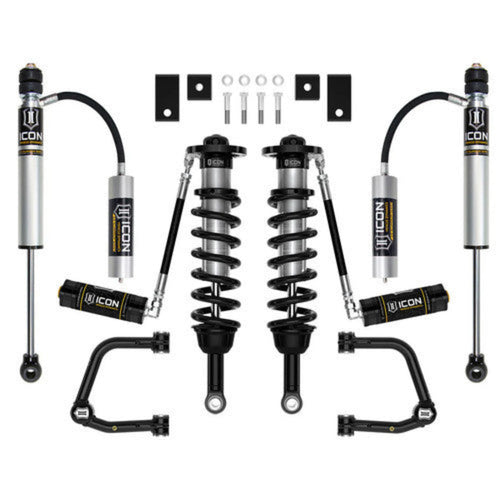

Air Lift ICON Vehicle Dynamics Stage 6 Suspension System 1.25-3.5" Lift | 2022-2026 Toyota Tundra - KITICOK53196T

Air Lift ICON Vehicle Dynamics Stage 6 Suspension System 1.25-3.5" Lift | 2022-2026 Toyota Tundra - KITICOK53196T

The 3rd Gen Tundra Icon Stage 6 Provides improved cooling under hard use, featuring the ICON Vehicle Dynamics 2.5 Remote Reservoir front coilovers and 2.0 Remote Reservoir rear shocks.

Get up to 40% more travel versus stock! ICON's Billet or Tubular Upper Control Arms to squeeze every inch of travel out of the Tundra's suspension while increasing available lift height to 1.25 to 3.5" (front). ICON UCA's are optimized for lifted or leveled trucks, with caster adjustment built into the geometry of the arm, making it easier to dial in your truck's steering alignment. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90-degrees of movement to allow bind-free movement throughout the full range of suspension travel afforded by the ICON coilovers. Stage 5 adds Remote Reservoirs to the 2.0 VS rear shocks to provide increased fluid volume and surface area, resulting in better heat dissipation. To provide for sustained shock performance at speed through rough terrain, Stage 6 adds remote reservoirs to the ICON 2.5 front coilovers and 2.0 rear shocks. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

Features

• Adjustable 1.25-3.5" of Front Lift
• 2.5 Aluminum Series front coilover shock
• 7/8” diameter induction hardened, chrome plated shock shaft.
• 2.5” diameter monotube design.
• Fitment for up to  35" tires (larger tires may fit with minor fender trimming and modifications)
• TIRE & WHEEL: 35X12.50 ON 8.5" WIDE WHEEL W/ 5.75" BACKSPACE (MINOR TRIMMING REQUIRED)
• Improved suspension performance and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular or billet UCA for added strength, durability and an additional degree of caster (Select Stages)
• UCAs feature the Delta Joint Pro with 90 degrees of total articulation (Select Stages)
• Vehicle specific design.
• Vehicle specific tuned for superior shock damping and control
• CNC machined 6061 aluminum components
• 100% Rebuildable and revalveable
• Fits: 2022+ Toyota Tundra

What our Experts Think

• A high-performance suspension system for serious Tundra builds. The ICON Vehicle Dynamics Stage 6 Suspension System (KITICOK53196T) is engineered for the 2022-2026 Toyota Tundra with adjustable lift, premium damping, and enhanced off-road capability.
• Adjustable 1.25-3.5" front lift range. Fine-tune your truck’s stance and tire clearance while maintaining a balanced setup for street driving, towing, and trail use.
• Premium 2.5 Series remote reservoir coilovers. The front coilovers improve heat dissipation, suspension control, and performance during demanding off-road conditions.
• Built with strength-focused components. Includes ICON billet aluminum upper control arms with Delta Joint Pro technology for improved alignment adjustment, durability, and suspension articulation.
• Improved suspension travel and ride quality. ICON tuning provides up to 40% more front wheel travel than stock, helping the Tundra handle rough terrain with greater confidence.
• Ready for larger tires. Designed to support aggressive wheel and tire upgrades, including up to 35-inch tires with proper fitment.
• Rear performance upgrade included. Remote reservoir rear shocks help balance the system, improving control and comfort across varying terrain.
• Best for: Tundra owners who want a premium lift system with race-inspired suspension technology, better off-road performance, and excellent daily drivability.
• Fitment note: Not compatible with models equipped with Load-Leveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS). ADAS recalibration may be required after installation.

Q&A

Q: What vehicles does the Air Lift ICON Vehicle Dynamics KITICOK53196T fit?
A: This Stage 6 suspension system is designed for 2022–2026 Toyota Tundra models with compatible suspension configurations.

Q: How much lift does the ICON Stage 6 kit provide?
A: The system provides an adjustable 1.25–3.5 inches of lift, allowing drivers to customize ride height, clearance, and stance.

Q: What is included in the ICON Stage 6 suspension system?
A: The kit includes ICON performance suspension components engineered to improve ride quality, handling, and off-road capability for Toyota Tundra applications.

Q: What are the benefits of the ICON Stage 6 system?
A: It enhances suspension performance, increases ground clearance, improves off-road control, and provides a more capable setup for towing, daily driving, and adventure use.

Q: Can I fit larger tires with this suspension kit?
A: Yes. The increased clearance allows for larger wheel and tire combinations. Final fitment depends on tire size, wheel offset, and vehicle configuration.

Q: Is the ICON Stage 6 kit suitable for daily driving?
A: Yes. The system is designed to deliver improved off-road performance while maintaining comfortable on-road drivability.

Q: Does this kit improve off-road performance?
A: Yes. The upgraded suspension components help improve articulation, stability, damping control, and overall capability on challenging terrain.

Q: Does this lift kit increase towing or payload capacity?
A: No. A suspension lift improves ride height and handling characteristics but does not increase the Toyota Tundra’s factory towing or payload ratings.

Maintenance Tips

• Inspect shocks, coilovers, control arms, brackets, and mounting hardware regularly for wear or damage.
• Check all bolts, nuts, and fasteners periodically to ensure proper torque and security.
• Keep suspension components clean and free from dirt, mud, salt, and road debris.
• Inspect suspension parts after off-road driving, towing, or heavy loads for signs of stress.
• Check for unusual noises, vibrations, or changes in ride quality.
• Maintain proper wheel alignment to promote even tire wear and improve handling.
• Inspect tires regularly and maintain recommended tire pressure.
• Verify suspension clearance and check for rubbing or interference with tires and steering components.
• Inspect bushings, joints, and control arm components for wear or play.
• Service shocks and suspension components according to manufacturer recommendations.
• Avoid exceeding your Toyota Tundra's manufacturer-rated GVWR and suspension limits.
