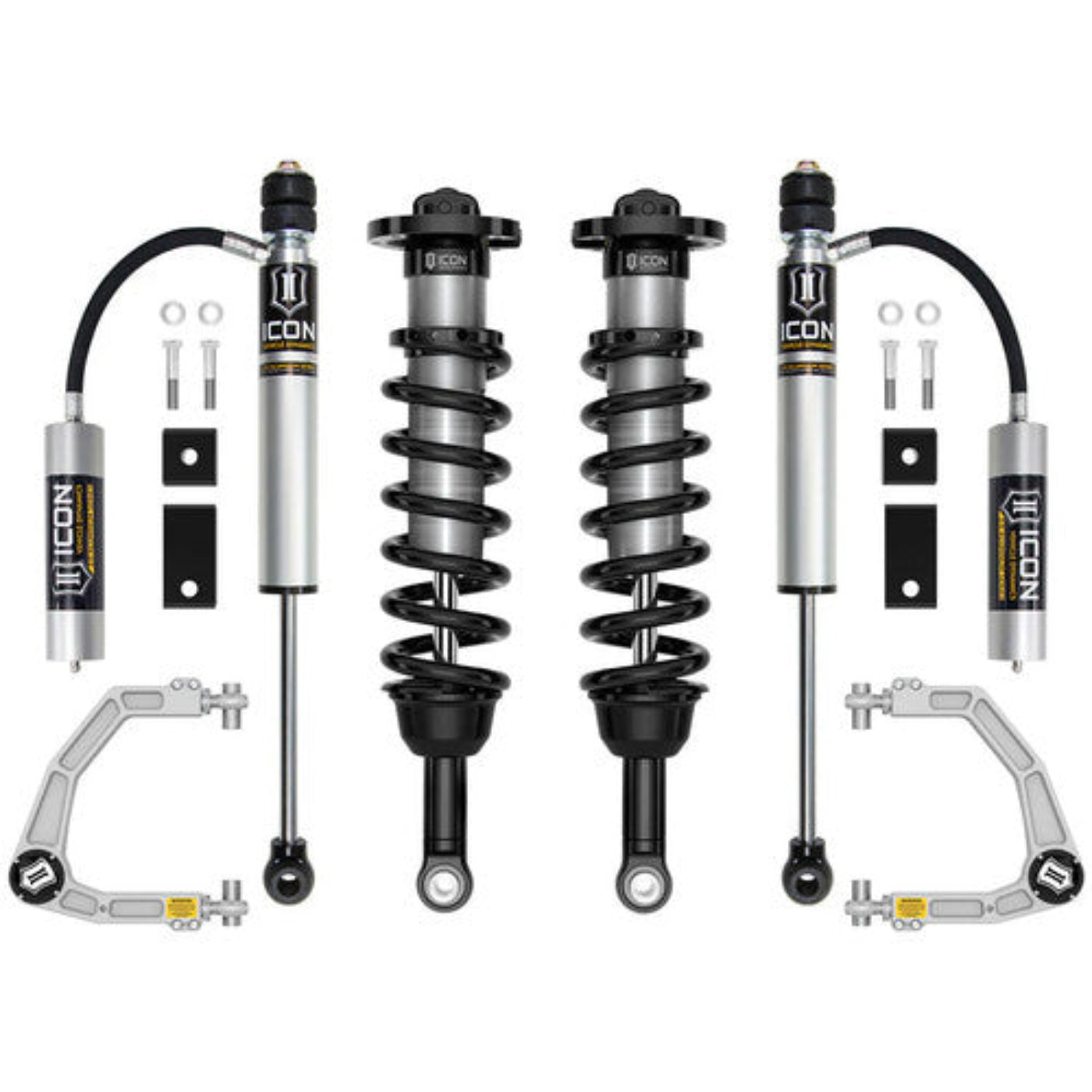

Air Lift ICON Vehicle Dynamics Stage 5 Suspension System 1.25-3.5" Lift | 2023+ Toyota Sequoia - KITICOK53195T-2

Air Lift ICON Vehicle Dynamics Stage 5 Suspension System 1.25-3.5" Lift | 2023+ Toyota Sequoia - KITICOK53195T-2

The 3rd Gen Sequoia Icon Stage 5 is the maximum travel package which features the ICON 2.5 Coilovers up front and remote reservoir rear shocks with UCA's

Get up to 40% more travel versus stock! ICON's Billet or Tubular Upper Control Arms to squeeze every inch of travel out of the Sequoia's suspension while increasing available lift height to 1.25 to 3.5" (front). ICON UCA's are optimized for lifted or leveled trucks, with caster adjustment built into the geometry of the arm, making it easier to dial in your truck's steering alignment. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90-degrees of movement to allow bind-free movement throughout the full range of suspension travel afforded by the ICON coilovers. Stage 5 adds Remote Reservoirs to the 2.0 VS rear shocks to provide increased fluid volume and surface area, resulting in better heat dissipation. Stage 5 provides improved rear shock cooling without the increased price of larger 2.5 rear shocks.

Features

• Adjustable 1.25-3.5" of Front Lift
• 2.5 Aluminum Series front coilover shock
• 7/8” diameter induction hardened, chrome plated shock shaft.
• 2.5” diameter monotube design.
• Fitment for up to  35" tires (larger tires may fit with minor fender trimming and modifications)
• TIRE & WHEEL: 35X12.50 ON 8.5" WIDE WHEEL W/ 5.75" BACKSPACE (MINOR TRIMMING REQUIRED)
• Improved suspension performance and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular or billet UCA for added strength, durability and an additional degree of caster (Select Stages)
• UCAs feature the Delta Joint Pro with 90 degrees of total articulation (Select Stages)
• Vehicle specific design.
• Vehicle specific tuned for superior shock damping and control
• CNC machined 6061 aluminum components
• 100% Rebuildable and revalveable
• Fits: 2023+ Toyota Sequoia

What our Experts Think

• A top-level suspension upgrade for the 2023+ Toyota Sequoia. The ICON Vehicle Dynamics Stage 5 Suspension System (KITICOK53195T-2) is built for enthusiasts who want maximum suspension travel, premium components, and serious off-road performance.
• Adjustable 1.25-3.5" front lift range. Fine-tune your Sequoia’s stance, improve tire clearance, and create a more aggressive adventure-ready profile while maintaining excellent drivability.
• ICON 2.5 Series front coilovers. The large-body coilovers provide increased damping control, improved heat management, and up to 40% more front suspension travel than stock for better off-road capability.
• Premium upper control arm options. Designed with ICON UCAs to improve alignment geometry, caster adjustment, articulation, and suspension durability after lifting.
• Remote reservoir rear shocks included. Upgraded rear shocks help reduce heat buildup during demanding driving while delivering improved control on trails and rough terrain.
• Built for larger tire setups. Supports up to 35-inch tires with proper wheel fitment, giving your Sequoia a more capable and aggressive appearance.
• Dual-rate rear springs improve versatility. The system balances daily comfort with off-road strength by providing better ride quality, bottom-out resistance, and load support.
• Designed for long-term performance. ICON shocks are fully rebuildable and re-tunable, allowing future servicing and suspension customization as your build evolves.
• Best for: Toyota Sequoia owners who want a premium suspension package for overlanding, trail use, larger tires, and a refined daily-driving experience.
• Fitment note: Verify compatibility with factory air suspension, AVS-equipped models, and required post-installation alignment or ADAS calibration before installation.

Q&A

Q: What vehicles does the ICON Vehicle Dynamics KITICOK53195T-2 fit?
A: This Stage 5 suspension system is designed for 2023+ Toyota Sequoia models with compatible suspension configurations.

Q: How much lift does the ICON Stage 5 kit provide?
A: The system provides an adjustable 1.25–3.5 inches of lift, allowing you to customize ride height, ground clearance, and vehicle stance.

Q: What is included in the ICON Stage 5 suspension system?
A: The kit includes ICON performance suspension components designed to improve ride control, handling, and off-road capability for Toyota Sequoia applications.

Q: What are the benefits of the ICON Stage 5 system?
A: It enhances suspension performance, improves off-road capability, increases clearance for larger tires, and provides improved stability for both street and trail driving.

Q: Can I install larger tires with this lift kit?
A: Yes. The added lift clearance supports larger wheel and tire combinations. Final fitment depends on tire size, wheel offset, and vehicle configuration.

Q: Is the ICON Stage 5 kit suitable for daily driving?
A: Yes. ICON suspension systems are engineered to deliver improved off-road performance while maintaining comfortable on-road drivability.

Q: Does this kit improve off-road performance?
A: Yes. The upgraded suspension components help improve articulation, damping control, ride quality, and overall capability on uneven terrain.

Q: Does this lift kit increase towing or payload capacity?
A: No. A suspension lift improves ride height and handling characteristics but does not increase the Toyota Sequoia’s factory towing or payload ratings.

Maintenance Tips

• Inspect coilovers, shocks, control arms, brackets, and mounting hardware regularly for wear or damage.
• Check all bolts, nuts, and fasteners periodically to ensure proper torque and security.
• Keep suspension components clean and free from dirt, mud, salt, and road debris.
• Inspect suspension parts after off-road driving, towing, or heavy loads for signs of stress.
• Check for unusual noises, vibrations, or changes in ride quality.
• Maintain proper wheel alignment to promote even tire wear and stable handling.
• Inspect tires regularly and maintain recommended tire pressure.
• Verify suspension clearance and check for rubbing or interference with tires and steering components.
• Inspect bushings, joints, and shock mounts for wear or looseness.
• Service adjustable shocks and suspension components according to manufacturer recommendations.
• Avoid exceeding your Toyota Sequoia's manufacturer-rated GVWR and suspension limits.
