Air Lift ICON Vehicle Dynamics Stage 5 Suspension System 1.25-3.5" Lift | 2022-2026 Toyota Tundra - KITICOK53195T

Air Lift ICON Vehicle Dynamics Stage 5 Suspension System 1.25-3.5" Lift | 2022-2026 Toyota Tundra - KITICOK53195T

The 3rd Gen Tundra Icon Stage 5 is the maximum travel package which features the ICON 2.5 Coilovers up front and remote reservoir rear shocks with UCA's

Get up to 40% more travel versus stock! ICON's Billet or Tubular Upper Control Arms to squeeze every inch of travel out of the Tundra's suspension while increasing available lift height to 1.25 to 3.5" (front). ICON UCA's are optimized for lifted or leveled trucks, with caster adjustment built into the geometry of the arm, making it easier to dial in your truck's steering alignment. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90-degrees of movement to allow bind-free movement throughout the full range of suspension travel afforded by the ICON coilovers. Stage 5 adds Remote Reservoirs to the 2.0 VS rear shocks to provide increased fluid volume and surface area, resulting in better heat dissipation. Stage 5 provides improved rear shock cooling without the increased price of larger 2.5 rear shocks.

Features

• Adjustable 1.25-3.5" of Front Lift
• 2.5 Aluminum Series front coilover shock
• 7/8” diameter induction hardened, chrome plated shock shaft.
• 2.5” diameter monotube design.
• Fitment for up to  35" tires (larger tires may fit with minor fender trimming and modifications)
• TIRE & WHEEL: 35X12.50 ON 8.5" WIDE WHEEL W/ 5.75" BACKSPACE (MINOR TRIMMING REQUIRED)
• Improved suspension performance and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular or billet UCA for added strength, durability and an additional degree of caster (Select Stages)
• UCAs feature the Delta Joint Pro with 90 degrees of total articulation (Select Stages)
• Vehicle specific design.
• Vehicle specific tuned for superior shock damping and control
• CNC machined 6061 aluminum components
• 100% Rebuildable and revalveable
• Fits: 2022+ Toyota Tundra

What our Experts Think

• Premium performance without compromise. The ICON Stage 5 Suspension System is engineered for 2022–2026 Toyota Tundra owners seeking exceptional on-road comfort, off-road capability, and precise suspension control.
• Adjustable 1.25–3.5" front lift. High-performance 2.5 Series front coilovers let you fine-tune ride height while providing clearance for up to 35-inch tires with the recommended wheel setup.
• Superior ride and wheel travel. Billet aluminum upper control arms with Delta Joint PRO improve alignment, increase suspension articulation by up to 40%, and enhance handling on rough terrain.
• Remote reservoir rear shocks. Upgraded 2.0 Series remote reservoir shocks improve cooling, reduce shock fade, and deliver consistent performance during extended off-road driving.
• 100% bolt-on installation. Designed for a direct fit with no cutting, drilling, or welding, making installation straightforward while maintaining factory suspension geometry.
• Best for: Tundra owners who want a premium adjustable suspension system with improved ride quality, greater wheel travel, and confident performance on both highways and challenging trails.

Q&A

Q: What does the ICON Stage 5 Suspension System do?
A: It provides 1.25–3.5 inches of adjustable lift, improving ride quality, wheel travel, handling, and off-road performance while maintaining excellent on-road comfort.

Q: Which vehicles is this kit compatible with?
A: Fits 2022–2026 Toyota Tundra models. It is not compatible with factory rear air suspension or Adaptive Variable Suspension (AVS).

Q: What is included in the Stage 5 system?

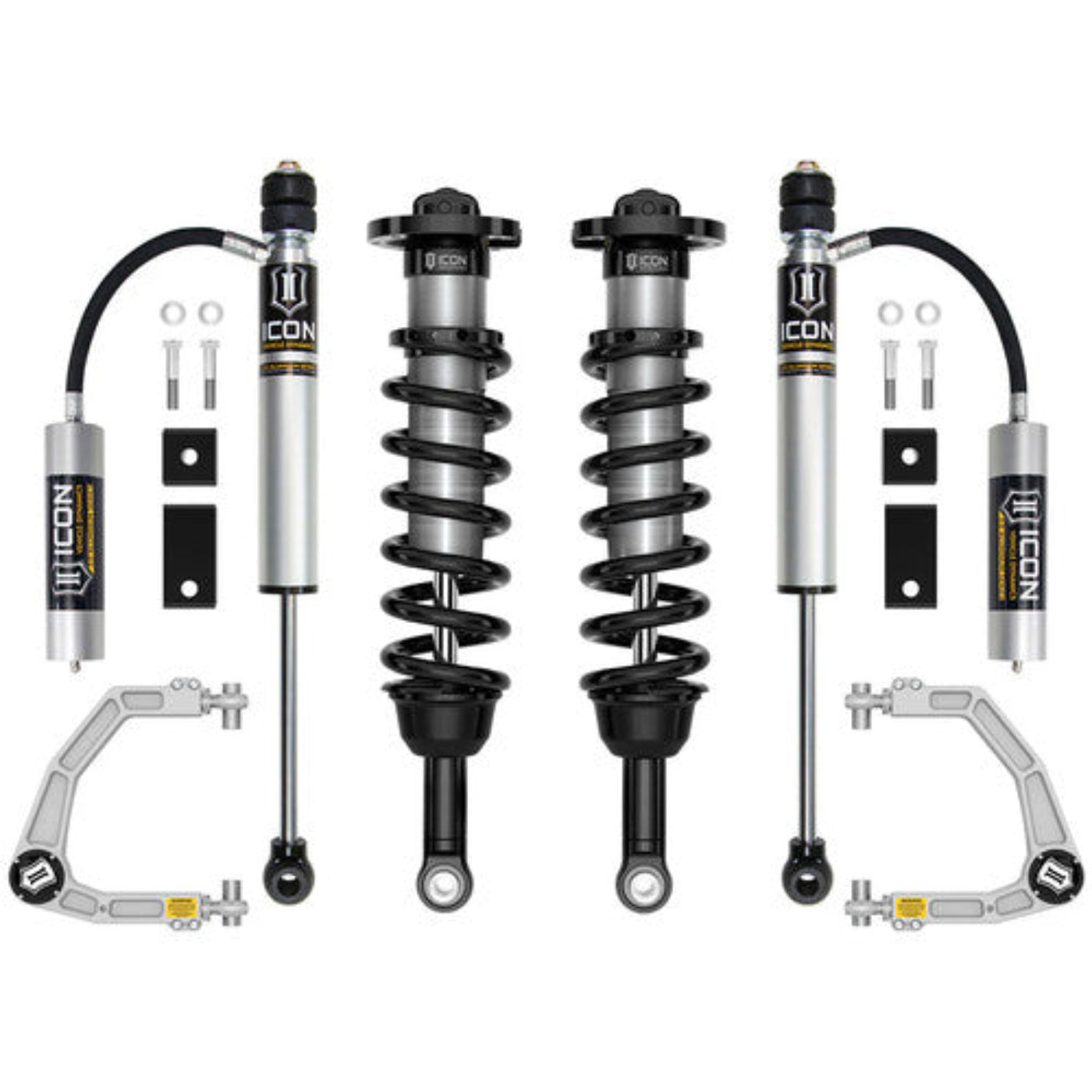

A: The kit includes 2.5 Series front coilovers, tubular upper control arms with Delta Joint PRO, 2.0 Series rear remote reservoir shocks, sway bar drop brackets, and installation hardware.

Q: What tire size can this suspension support?
A: It is designed to fit up to 35-inch tires, depending on wheel offset and minor trimming if required.

Q: What are the benefits of the remote reservoir shocks?
A: They improve heat dissipation, reduce shock fade, and provide more consistent damping during demanding off-road driving.

Q: Are the shocks rebuildable?
A: Yes. All included ICON shock absorbers are fully rebuildable and re-tunable for long-term performance.

Maintenance Tips

• Re-torque all suspension hardware after the first 500 miles and inspect it regularly thereafter.
• Inspect coilovers, remote reservoir shocks, tubular upper control arms, Delta Joint PROs, and bushings for leaks, wear, or loose components.
• Have the vehicle professionally aligned after installation and whenever ride height or tire wear changes.
• Grease the serviceable Delta Joint PROs at the recommended service intervals to maintain smooth articulation and extend component life.
• Clean shocks, reservoirs, and suspension components regularly to remove mud, salt, and road debris, helping prevent corrosion and maintain performance.
• Service the fully rebuildable ICON shocks at the manufacturer's recommended intervals or after frequent off-road use to ensure optimal ride quality.
