Air Lift ICON Vehicle Dynamics Stage 4 Suspension System 6" Lift With Billet UCA | 2022-2026 Toyota Tundra - K53274

Air Lift ICON Vehicle Dynamics Stage 4 Suspension System 6" Lift With Billet UCA | 2022-2026 Toyota Tundra - K53274

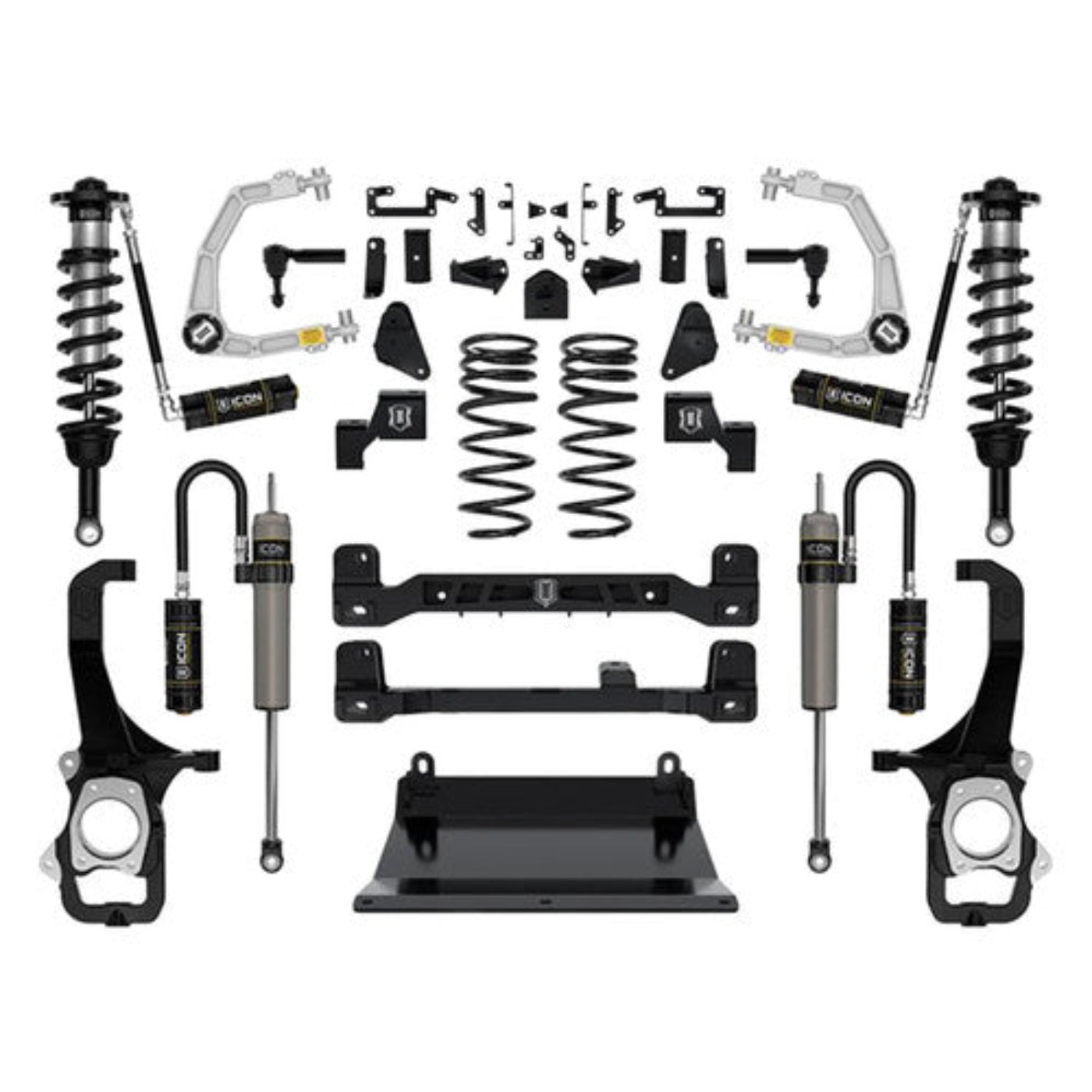

TheYotaGarage is proud to offer the ICON Vehicle Dynamics Stage 4 Suspension System 6" Lift with Billet UCA for your 2022+ Toyota Tundra. Experience the ultimate levels of off-road performance with this ICON Vehicle Dynamics Stage 4 Suspension System. Featuring 2.5 Series coilovers and rear shocks with remote reservoirs and optimized geometry that nearly eliminates bump steer, you can explore trails with up to 40% increase in front wheel travel and 37" tires with full articulation. Upgrade your ride to the next level with this 6" lift and Billet UCA system today.

Features

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

What our Experts Think

• A top-tier suspension upgrade for extreme Tundra builds. The ICON Vehicle Dynamics Stage 4 Suspension System (K53274) delivers a massive 6-inch lift for the 2022-2026 Toyota Tundra, combining premium components for serious off-road performance and aggressive styling.
• Built for maximum capability. The system uses 2.5 Series coilovers and remote reservoir rear shocks to improve damping control, heat management, and performance during demanding trail use.
• Ready for 37-inch tires. Designed to support 37" tires with full articulation when properly configured, giving your Tundra increased ground clearance and a more commanding off-road presence.
• Premium billet upper control arms included. ICON billet aluminum UCAs with Delta Joint Pro technology provide added strength, durability, and improved caster/camber adjustment for better alignment after lifting.
• Engineered suspension geometry. High-clearance crossmembers, dropped steering components, and optimized geometry help improve handling while reducing common lift-related suspension issues.
• Maintains off-road performance. The kit allows increased front wheel travel while supporting aggressive driving conditions, from overlanding trails to rugged terrain.
• Important fitment note. This system is not compatible with Tundras equipped with Load-Leveling Rear Height Control Air Suspension or AVS-equipped models and requires proper wheel fitment and ADAS recalibration after installation.

Q&A

Q: What vehicles does the Air Lift ICON Vehicle Dynamics K53274 fit?
A: This Stage 4 suspension system is designed for 2022–2026 Toyota Tundra models with compatible suspension configurations.

Q: How much lift does the ICON Stage 4 kit provide?
A: The system provides approximately 6 inches of lift, increasing ground clearance and creating an aggressive off-road stance.

Q: What is included in the ICON Stage 4 suspension system?
A: The kit includes ICON performance suspension components and billet upper control arms (UCA) designed to optimize suspension geometry and performance after lifting.

Q: What are the benefits of the ICON Stage 4 system?
A: It improves off-road capability, suspension travel, ride quality, handling control, and provides additional clearance for larger wheel and tire setups.

Q: Can I install larger tires with this 6-inch lift kit?
A: Yes. The increased lift height allows for larger tires, with final fitment depending on wheel offset, tire size, and vehicle configuration.

Q: Are the billet upper control arms necessary with this lift?
A: The included billet UCAs help restore proper suspension geometry, improve alignment range, and support optimal performance after lifting the truck.

Q: Is this suspension system suitable for daily driving?
A: Yes. ICON designs its suspension systems to provide improved off-road performance while maintaining comfortable on-road drivability.

Q: Does this lift kit increase towing or payload capacity?
A: No. A lift kit improves suspension performance and ground clearance but does not increase the Toyota Tundra’s factory towing or payload ratings.

Maintenance Tips

• Inspect shocks, coilovers, control arms, brackets, and mounting hardware regularly for wear or damage.
• Check all bolts, nuts, and fasteners periodically to ensure proper torque and security.
• Keep suspension components clean and free from dirt, mud, salt, and road debris.
• Inspect suspension parts after off-road driving, towing, or heavy loads for signs of stress.
• Check for unusual noises, vibrations, or changes in ride quality.
• Maintain proper wheel alignment to promote even tire wear and stable handling.
• Inspect tires regularly and maintain recommended tire pressure.
• Verify clearance between tires, suspension components, and steering parts to prevent rubbing.
• Check billet upper control arms and bushings for wear or damage.
• Service shocks and suspension components according to manufacturer recommendations.
• Avoid exceeding your Toyota Tundra's manufacturer-rated GVWR and suspension limits.
