Air Lift ICON Vehicle Dynamics Stage 4 Suspension System 1.25-3.5" Lift | 2023+ Toyota Sequoia - K53234T

Air Lift ICON Vehicle Dynamics Stage 4 Suspension System 1.25-3.5" Lift | 2023+ Toyota Sequoia - K53234T

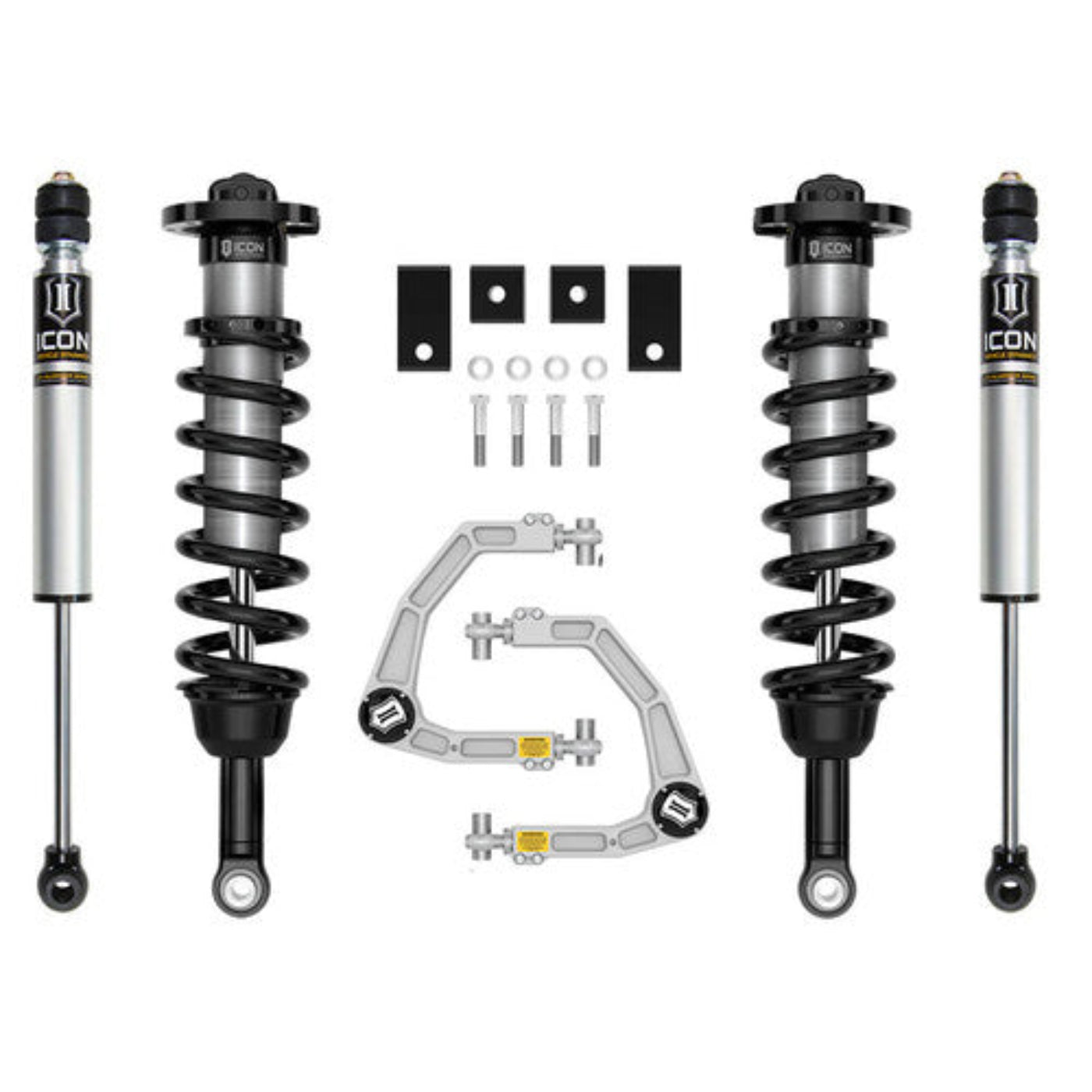

The 3rd Gen Sequoia Icon Stage 4 is the maximum travel package which features the ICON 2.5 Coilovers up front and 2.0 Rear Shocks, with upgrades UCA's.

Get up to 40% more travel versus stock! Stage 4 adds ICON's Billet or Tubular Upper Control Arms to squeeze every inch of travel out of the Sequoia's suspension while increasing available lift height to 1.25 to 3.5" (front). ICON UCA's are optimized for lifted or leveled trucks, with caster adjustment built into the geometry of the arm, making it easier to dial in your truck's steering alignment. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90-degrees of movement to allow bind-free movement throughout the full range of suspension travel afforded by the ICON coilovers.

Features

• Adjustable 1.25-3.5" of Front Lift
• 2.5 Aluminum Series front coilover shock
• 7/8” diameter induction hardened, chrome plated shock shaft.
• 2.5” diameter monotube design.
• Fitment for up to  35" tires (larger tires may fit with minor fender trimming and modifications)
• TIRE & WHEEL: 35X12.50 ON 8.5" WIDE WHEEL W/ 5.75" BACKSPACE (MINOR TRIMMING REQUIRED)
• Improved suspension performance and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular or billet UCA for added strength, durability and an additional degree of caster (Select Stages)
• UCAs feature the Delta Joint Pro with 90 degrees of total articulation (Select Stages)
• Vehicle specific design.
• Vehicle specific tuned for superior shock damping and control
• CNC machined 6061 aluminum components
• 100% Rebuildable and revalveable
• Fits: 2023+ Toyota Sequoia

What our Experts Think

• A high-performance suspension upgrade for the 2023+ Toyota Sequoia. The ICON Vehicle Dynamics Stage 4 Suspension System (K53234T) is engineered for drivers who want premium off-road capability, improved handling, and a more aggressive stance.
• Adjustable lift for bigger adventures. Provides approximately 3-4.5 inches of front lift adjustment (depending on configuration), creating additional clearance for larger wheels and tires while maintaining a balanced appearance.
• ICON 2.5 Series coilover performance. Front internal reservoir coilovers deliver improved damping control, increased heat management, and up to 40% more front wheel travel than stock for enhanced off-road performance.
• Upgraded tubular upper control arms included. ICON UCAs improve suspension geometry, caster adjustment, and durability while featuring Delta Joint PRO technology for increased articulation and strength.
• Ready for larger tire setups. Designed to support up to 35-inch tires with proper wheel fitment, giving your Sequoia a tougher, adventure-ready appearance.
• Balanced street and trail performance. Dual-rate rear springs and ICON 2.0 Series rear shocks provide improved ride comfort, better bottom-out resistance, and stronger control during off-road driving.
• Built for long-term performance. ICON shocks are fully rebuildable and re-tunable, allowing suspension performance to be maintained and customized over time.
• Important fitment note. Not compatible with Sequoia models equipped with Load-Leveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS). ADAS recalibration may be required after installation.
• Best for: Toyota Sequoia owners who want a premium lift system with advanced suspension tuning, improved off-road capability, larger tire clearance, and dependable daily drivability.

Q&A

Q: What vehicles does the ICON Vehicle Dynamics K53234T fit?
A: This Stage 4 suspension system is designed for 2023+ Toyota Sequoia models with compatible suspension configurations.

Q: How much lift does the ICON Stage 4 kit provide?
A: The system provides an adjustable 1.25–3.5 inches of lift, allowing you to customize ride height, ground clearance, and vehicle stance.

Q: What is included in the ICON Stage 4 suspension system?
A: The kit includes ICON performance suspension components designed to improve ride control, handling, and off-road capability for Toyota Sequoia applications.

Q: What are the benefits of the ICON Stage 4 system?
A: It improves suspension performance, increases ground clearance, enhances off-road capability, and provides better stability for both trail use and everyday driving.

Q: Can I install larger tires with this lift kit?
A: Yes. The additional clearance allows for larger wheel and tire combinations. Final fitment depends on tire size, wheel offset, and vehicle configuration.

Q: Is the ICON Stage 4 kit suitable for daily driving?
A: Yes. ICON suspension systems are engineered to deliver improved off-road performance while maintaining comfortable on-road drivability.

Q: Does this kit improve off-road performance?
A: Yes. The upgraded components help improve suspension travel, articulation, damping control, and overall vehicle capability on uneven terrain.

Q: Does this lift kit increase towing or payload capacity?
A: No. A suspension lift improves ride height and handling characteristics but does not increase the Toyota Sequoia’s factory towing or payload ratings.

Maintenance Tips

• Inspect shocks, coilovers, control arms, brackets, and mounting hardware regularly for wear or damage.
• Check all bolts, nuts, and fasteners periodically to ensure proper torque and security.
• Keep suspension components clean and free from dirt, mud, salt, and road debris.
• Inspect suspension parts after off-road driving, towing, or heavy loads for signs of stress.
• Check for unusual noises, vibrations, or changes in ride quality.
• Maintain proper wheel alignment to promote even tire wear and stable handling.
• Inspect tires regularly and maintain recommended tire pressure.
• Verify suspension clearance and check for rubbing or interference with tires and steering components.
• Inspect bushings, joints, and control arm components for wear or looseness.
• Service shocks and suspension components according to manufacturer recommendations.
• Avoid exceeding your Toyota Sequoia's manufacturer-rated GVWR and suspension limits.
