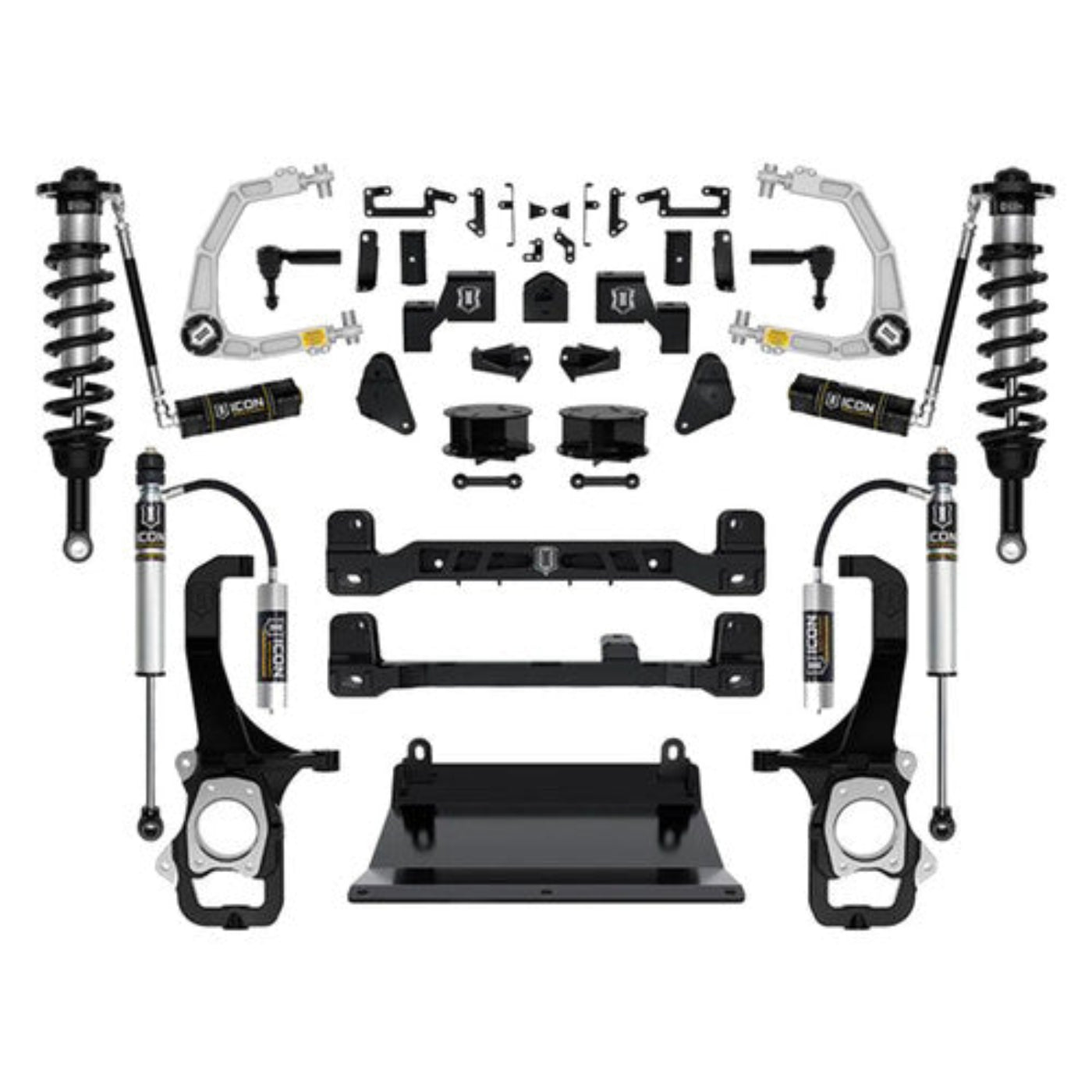

Air Lift ICON Vehicle Dynamics Stage 3 Suspension System 6" Lift With Billet UCA | 2022-2026 Toyota Tundra - K53273

Air Lift ICON Vehicle Dynamics Stage 3 Suspension System 6" Lift With Billet UCA | 2022-2026 Toyota Tundra - K53273

TheYotaGarage is proud to offer the ICON Vehicle Dynamics Stage 3 Suspension System 6" Lift with Billet UCA for your 2022+ Toyota Tundra. Experience superior on and off road performance with the ICON Vehicle Dynamics Stage 3 Suspension System 6" Lift. Boasting 2.5 Series coilovers and remote reservoirs for superior damping and vehicle control, this system allows for up to 40% increase in front wheel travel with no overstressing of OEM components. Fit up to 37" tires with full articulation, and enjoy the nearly eliminated bump steer found in a stock Tundra. Plus, the adjustable front ride heights and Billet UCAs with Delta Joint Pro make this system complete. Get the most out of your 2022+ Toyota Tundra!

Features

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Maintains factory track width
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• 2.0 Aluminum Series rear shocks with remote reservoirs provide balanced tune with the front coilovers and increased fluid volume for better heat dissipation
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

What our Experts Think

• A premium 6-inch lift system for extreme Tundra builds. The ICON Vehicle Dynamics Stage 3 Suspension System (K53273) is designed for 2022-2026 Toyota Tundra owners who demand maximum clearance, advanced suspension performance, and a serious off-road presence.
• Built for 37-inch tires. The system is optimized to fit 37" tires with full articulation, giving your Tundra improved ground clearance and a more aggressive adventure-ready stance.
• Performance-tuned 2.5 Series coilovers. Front coilovers with remote reservoirs improve shock cooling, damping consistency, and control during demanding trail conditions.
• Premium billet upper control arms included. ICON billet aluminum UCAs with Delta Joint Pro technology provide increased strength, durability, and improved caster/camber adjustment for better drivability after lifting.
• Improved suspension travel and geometry. Designed to increase front wheel travel by up to 40% over stock while helping reduce common lift-related handling issues.
• Heavy-duty off-road components. Includes high-clearance crossmembers, dropped steering components, front skid protection, rear shock upgrades, and suspension brackets engineered for rugged use.
• Maintains factory track width. ICON’s engineered design helps preserve predictable handling characteristics while delivering significant lift height and tire clearance.
• Built for serious adventures. Ideal for overlanding, trail driving, and truck builds where durability, articulation, and long-term suspension performance matter.
• Important fitment note: Not compatible with Tundras equipped with Load-Leveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS). ADAS recalibration is required after installation.

Q&A

Q: What vehicles does the ICON Vehicle Dynamics K53273 fit?
A: This Stage 3 suspension system is designed for 2022–2026 Toyota Tundra models with compatible suspension configurations.

Q: How much lift does the ICON Stage 3 kit provide?
A: The system provides approximately 6 inches of lift, increasing ground clearance and creating an aggressive off-road stance.

Q: What is included in the ICON Stage 3 suspension system?
A: The kit includes ICON performance suspension components and billet upper control arms (UCA) designed to optimize suspension geometry and alignment after lifting.

Q: What are the benefits of the ICON 6-inch lift system?
A: It improves off-road capability, increases suspension performance, enhances ride control, and provides clearance for larger wheel and tire combinations.

Q: Why are billet upper control arms included?
A: The billet UCAs help restore proper suspension angles, improve alignment adjustment, and support improved handling and durability after installing a 6-inch lift.

Q: Can I install larger tires with this lift kit?
A: Yes. The increased ride height allows for larger tires, with final fitment depending on wheel offset, tire size, and vehicle configuration.

Q: Is the ICON Stage 3 kit suitable for daily driving?
A: Yes. ICON suspension systems are engineered to deliver enhanced off-road performance while maintaining comfortable street drivability.

Q: Does this lift kit increase towing or payload capacity?
A: No. A suspension lift improves clearance and suspension performance but does not increase the Toyota Tundra’s factory towing or payload ratings.

Maintenance Tips

• Inspect coilovers, shocks, billet upper control arms, brackets, and mounting hardware regularly for wear or damage.
• Check all bolts, nuts, and fasteners periodically to ensure proper torque and security.
• Keep suspension components clean and free from dirt, mud, salt, and road debris.
• Inspect suspension parts after off-road driving, towing, or heavy loads for signs of stress.
• Check for unusual noises, vibrations, or changes in ride quality.
• Maintain proper wheel alignment to promote even tire wear and stable handling.
• Inspect tires regularly and maintain recommended tire pressure.
• Verify clearance between tires, steering components, and suspension parts to prevent rubbing.
• Check billet upper control arm joints, bushings, and hardware for wear or looseness.
• Service shocks and suspension components according to manufacturer recommendations.
• Avoid exceeding your Toyota Tundra's manufacturer-rated GVWR and suspension limits.
