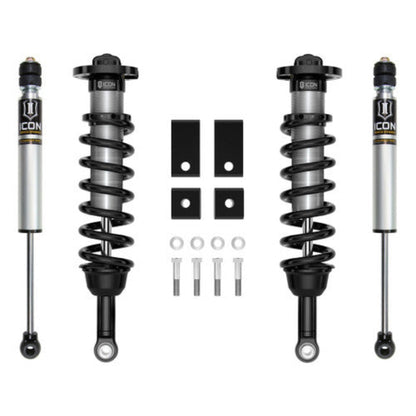

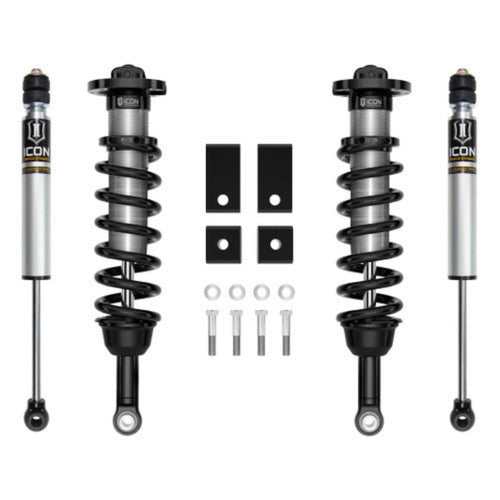

Air Lift ICON Vehicle Dynamics Stage 3 Suspension System 1.25-2.25" Lift | 2023+ Toyota Sequoia - KITICOK53193-1

Air Lift ICON Vehicle Dynamics Stage 3 Suspension System 1.25-2.25" Lift | 2023+ Toyota Sequoia - KITICOK53193-1

The ICON Vehicle Dynamics Stage Stage 3 is the most basic system that features complete ICON threaded-body 2.5" VS Series Coilovers in the front, with adjustable lift height from 1.25" to 2.25" when using the OE upper control arms. The coilovers are paired with ICON 2.0 rear shocks sized for 0" to 1" of rear lift.iceable and provides up to 90-degrees of movement to allow bind-free movement throughout suspension travel.

Features

• Adjusttable 1.25-2.25" of Front Lift
• 2.5 Aluminum Series front coilover shock
• 7/8” diameter induction hardened, chrome plated shock shaft.
• 2.5” diameter monotube design.
• Fitment for up to  35" tires (larger tires may fit with minor fender trimming and modifications)
• TIRE & WHEEL: 35X12.50 ON 8.5" WIDE WHEEL W/ 5.75" BACKSPACE (MINOR TRIMMING REQUIRED)
• Improved suspension performance and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular or billet UCA for added strength, durability and an additional degree of caster (Select Stages)
• UCAs feature the Delta Joint Pro with 90 degrees of total articulation (Select Stages)
• Vehicle specific design.
• Vehicle specific tuned for superior shock damping and control
• CNC machined 6061 aluminum components
• 100% Rebuildable and revalveable
• Fits: 2023+ Toyota Sequoi

What our Experts Think

Q&A

Q: What does the ICON Stage 3 Suspension System do?
A: It provides 1.25–2.25 inches of adjustable front lift, improving ride quality, suspension travel, handling, and off-road performance while maintaining excellent daily driving comfort.

Q: Which vehicles is this kit compatible with?
A: Fits 2023+ Toyota Sequoia models. It is not compatible with factory Adaptive Variable Suspension (AVS).

Q: What is included in the Stage 3 system?

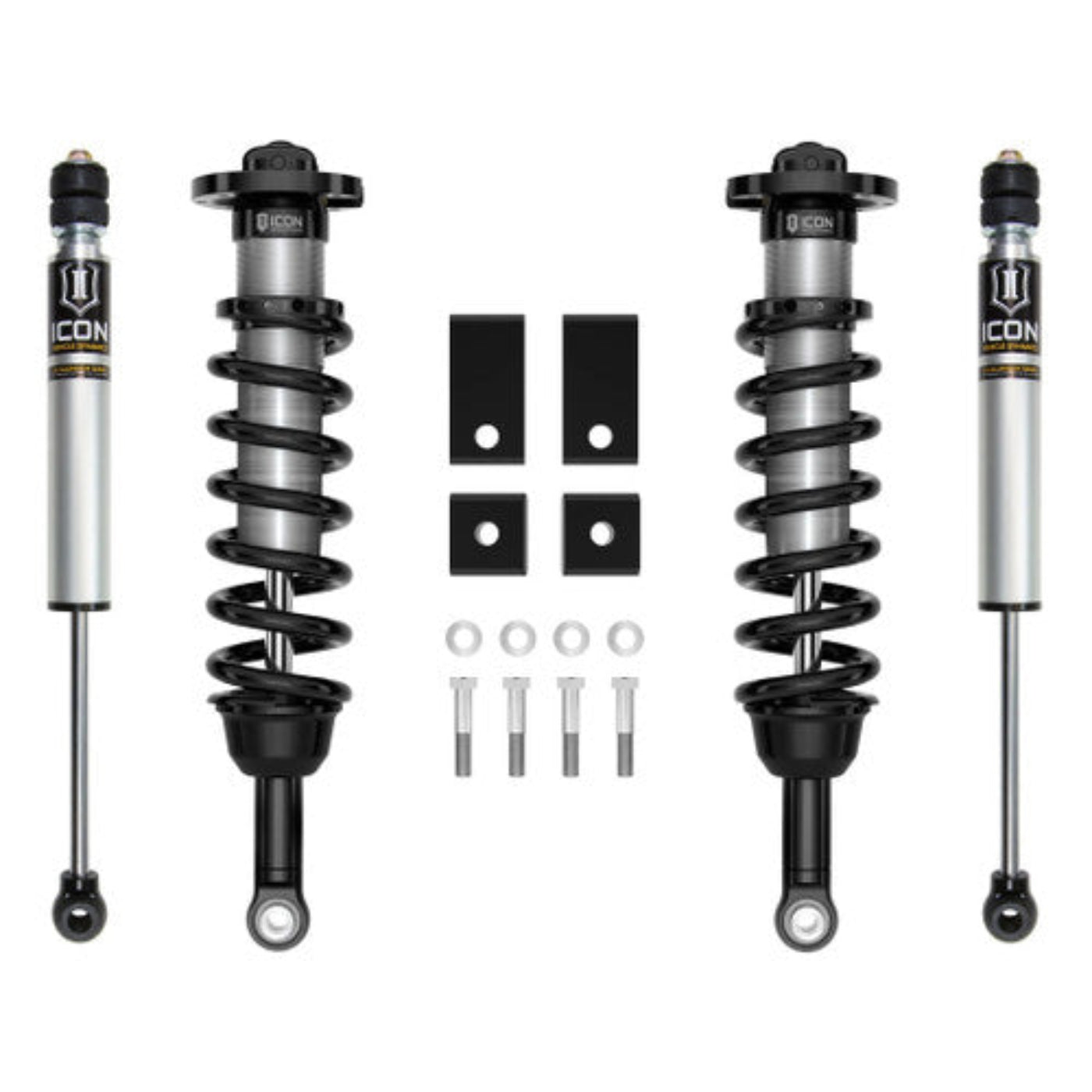

A: The kit includes 2.5 Series front coilovers, 2.0 aluminum rear shocks, sway bar drop brackets, and installation hardware, while retaining the factory upper control arms.

Q: What tire size can this suspension support?
A: It is designed to fit up to 35-inch tires, depending on wheel offset and minor trimming if required.

Q: Does this kit improve suspension travel?
A: Yes. It offers up to a 40% increase in front wheel travel over stock for improved off-road capability and ride quality.

Q: Are the shocks rebuildable?
A: Yes. All included ICON shock absorbers are fully rebuildable and re-tunable for long-term performance and serviceability.
