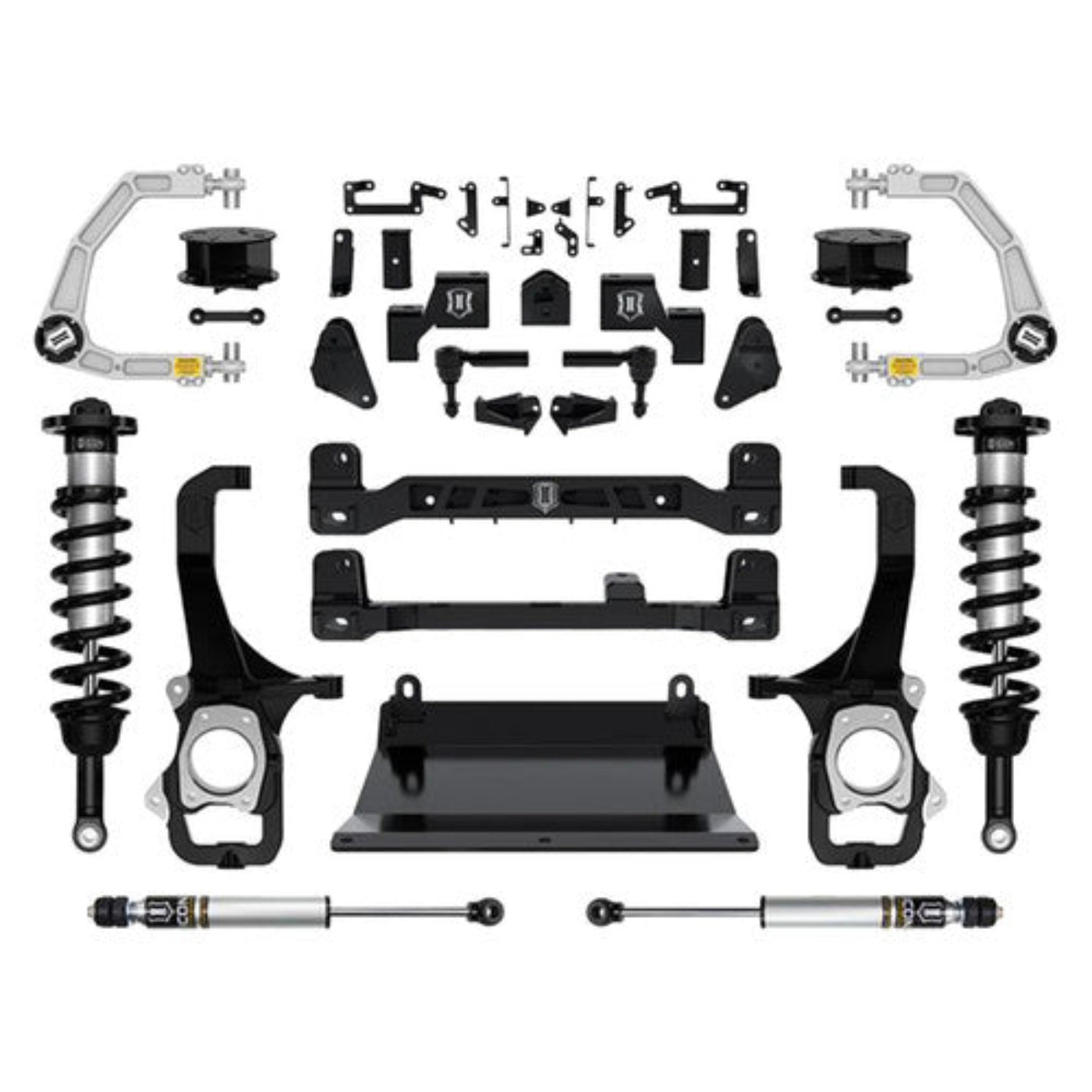

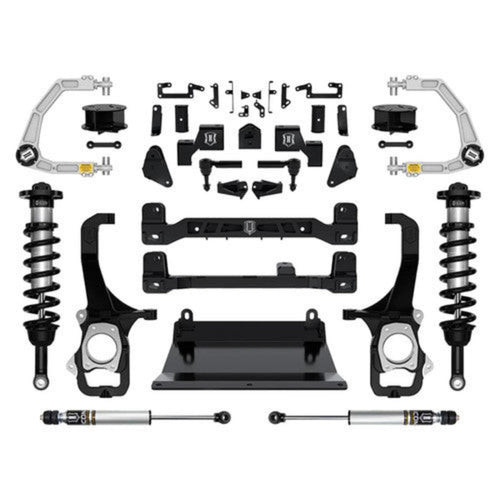

ICON Vehicle Dynamics Stage 2 Suspension System 6" Lift With Billet UCA | 2022-2026 Toyota Tundra - K53272

Air Lift ICON Vehicle Dynamics Stage 2 Suspension System 6" Lift With Billet UCA | 2022-2026 Toyota Tundra - K53272

TheYotaGarage is proud to offer the ICON Vehicle Dynamics Stage 1 Suspension System 6" Lift for your 2022+ Toyota Tundra.  Experience better off-road performance with the ICON Vehicle Dynamics Stage 2 Suspension System 6" Lift with Billet UCA for the 2022+ Toyota Tundra. It includes 2.5 Series front coilovers with internal reservoirs to improve damping and vehicle control, offering up to 40% increase in front wheel travel. This system fits 37" tires with full articulation and ensures factory track width, while its optimized suspension geometry nearly eliminates bump steer. It also features adjustable 5-6" front lift, and Billet UCAs with Delta Joint Pro to provide strength, durability, and on-vehicle caster/camber adjustment. Get the ultimate driving experience now!

Features

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Maintains factory track width
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• 2.0 Aluminum Series rear shocks provide balanced tune with the front coilovers
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

What our Experts Think

• A serious 6-inch lift solution for the 2022-2026 Toyota Tundra. The ICON Vehicle Dynamics Stage 2 Suspension System (K53272) is built for truck owners seeking maximum clearance, aggressive styling, and improved off-road capability.
• Designed for extreme tire upgrades. The system is optimized for 37-inch tires with full articulation when properly configured, giving your Tundra a commanding off-road stance.
• Performance-focused suspension engineering. Features 2.5 Series front coilovers with internal reservoirs to improve damping control, heat management, and ride performance during demanding driving conditions.
• Upgraded suspension geometry. Includes tubular upper control arms with Delta Joint Pro technology to improve strength, durability, caster correction, and alignment after lifting.
• Maintains factory track width. ICON’s high-clearance crossmembers, steering components, and suspension design help preserve predictable handling while adding significant lift height.
• Built for off-road abuse. Heavy-duty components, improved wheel travel, and upgraded rear suspension parts help the Tundra perform better on trails, rocks, and uneven terrain.
• Important fitment note. Not compatible with Tundras equipped with Load-Leveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS). ADAS recalibration may be required after installation.
• Best for: Tundra owners building a high-clearance adventure truck who want premium suspension components, 37-inch tire capability, and ICON-level off-road performance.

Q&A

Q: What vehicles does the ICON Vehicle Dynamics K53272 fit?
A: This Stage 2 suspension system is designed for 2022–2026 Toyota Tundra models with compatible suspension configurations.

Q: How much lift does the ICON Stage 2 kit provide?
A: The system provides approximately 6 inches of lift, improving ground clearance and creating an aggressive off-road stance.

Q: What is included in the ICON Stage 2 suspension system?
A: The kit includes ICON performance suspension components and billet upper control arms (UCA) designed to improve suspension geometry and alignment after lifting.

Q: What are the benefits of the ICON 6-inch lift system?
A: It improves off-road capability, increases ground clearance, enhances suspension performance, and allows for larger wheel and tire combinations.

Q: Why are billet upper control arms included?
A: The billet UCAs help restore proper suspension angles, provide additional alignment adjustment, and support improved handling after installing a larger lift.

Q: Can I install larger tires with this 6-inch lift kit?
A: Yes. The added clearance allows for larger tires, with final fitment depending on wheel offset, tire size, and vehicle setup.

Q: Is the ICON Stage 2 kit suitable for daily driving?
A: Yes. ICON suspension systems are engineered to provide enhanced off-road performance while maintaining comfortable street drivability.

Q: Does this lift kit increase towing or payload capacity?
A: No. A suspension lift improves clearance and suspension performance but does not increase the Toyota Tundra’s factory towing or payload ratings.

Maintenance Tips

• Inspect shocks, coilovers, billet upper control arms, brackets, and mounting hardware regularly for wear or damage.
• Check all bolts, nuts, and fasteners periodically to ensure proper torque and security.
• Keep suspension components clean and free from dirt, mud, salt, and road debris.
• Inspect suspension parts after off-road driving, towing, or heavy loads for signs of stress.
• Check for unusual noises, vibrations, or changes in ride quality.
• Maintain proper wheel alignment to promote even tire wear and stable handling.
• Inspect tires regularly and maintain recommended tire pressure.
• Verify clearance between tires, steering components, and suspension parts to prevent rubbing.
• Check billet upper control arm joints and bushings for wear or looseness.
• Service shocks and suspension components according to manufacturer recommendations.
• Avoid exceeding your Toyota Tundra's manufacturer-rated GVWR and suspension limits.
