The 3rd Gen Sequoia Icon Vehicle Dynamics Stage 10 Kit Features CDCV Coilvoers and rear Shocks, upgraded UCA's, along with Upper and Lower Trailing Arms.

Stage 10 includes ICON's exclusive CDCV Compression Damping Control valves for fast, easy adjustability as well as a full complement of ICON suspension components from front Upper Control Arms to rear Upper and Lower Trailing Arms, in either billet or tubular versions.

Get up to 40% more travel versus stock! ICON's Billet or Tubular Upper Control Arms to squeeze every inch of travel out of the Sequoia's suspension while increasing available lift height to 1.25 to 3.5" (front). ICON UCA's are optimized for lifted or leveled trucks, with caster adjustment built into the geometry of the arm, making it easier to dial in your truck's steering alignment. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90-degrees of movement to allow bind-free movement throughout the full range of suspension travel afforded by the ICON coilovers. Get increased rear shock performance to match the 2.5 front coilovers.

Features

• Adjustable 1.25-3.5" of Front Lift
• 2.5 VS CDCV Coilovers
• 7/8” diameter induction hardened, chrome plated shock shaft.
• 2.5” diameter monotube design.
• Fitment for up to  35" tires (larger tires may fit with minor fender trimming and modifications)
• TIRE & WHEEL: 35X12.50 ON 8.5" WIDE WHEEL W/ 5.75" BACKSPACE (MINOR TRIMMING REQUIRED)
• Improved suspension performance and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular or billet UCA for added strength, durability and an additional degree of caster (Select Stages)
• UCAs feature the Delta Joint Pro with 90 degrees of total articulation (Select Stages)
• Vehicle specific design.
• Vehicle specific tuned for superior shock damping and control
• CNC machined 6061 aluminum components
• 100% Rebuildable and revalveable
• Fits: 2023+ Toyota Sequoia

What our Experts Think

• ICON's most advanced Sequoia suspension package. The Stage 10 Suspension System is built for 2023+ Toyota Sequoia owners who want premium ride quality, maximum off-road capability, and extensive suspension adjustability.
• Adjustable performance lift. High-performance 2.5 Series remote reservoir front coilovers provide an adjustable front lift while creating clearance for up to 35-inch tires with the recommended wheel and tire setup.
• Precision-tuned damping. Equipped with CDCV (Compression Damping Control Valves), offering 10 compression settings so you can quickly fine-tune ride comfort for daily driving, towing, or demanding off-road trails.
• Complete suspension geometry upgrade. Includes tubular upper control arms, adjustable rear upper and lower links, adjustable rear track bar, dual-rate rear springs, and sway bar drop brackets for improved articulation, alignment, and axle positioning.
• Built for extreme durability. Remote reservoir shocks improve cooling and resist fade, while fully rebuildable components ensure long-term performance in demanding off-road conditions.
• Best for: Sequoia owners seeking a top-tier suspension system with premium adjustability, increased wheel travel, superior ride control, and exceptional performance for overlanding, towing, and aggressive off-road adventures.

Q&A

Q: What does the ICON Stage 10 Suspension System do?
A: It provides 1.25–3.5 inches of adjustable front lift, significantly improving ride quality, suspension travel, handling, and off-road capability for the Toyota Sequoia.

Q: Which vehicles is this kit compatible with?
A: Fits 2023+ Toyota Sequoia models. Compatibility may vary by trim level, so verify fitment before ordering.

Q: What is included in the Stage 10 system?

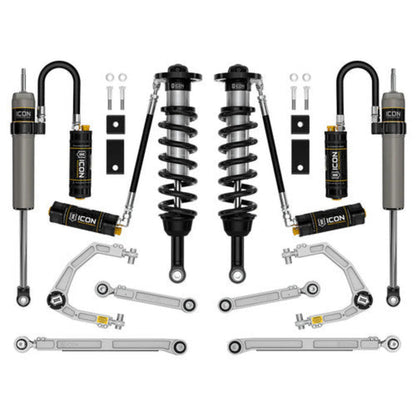

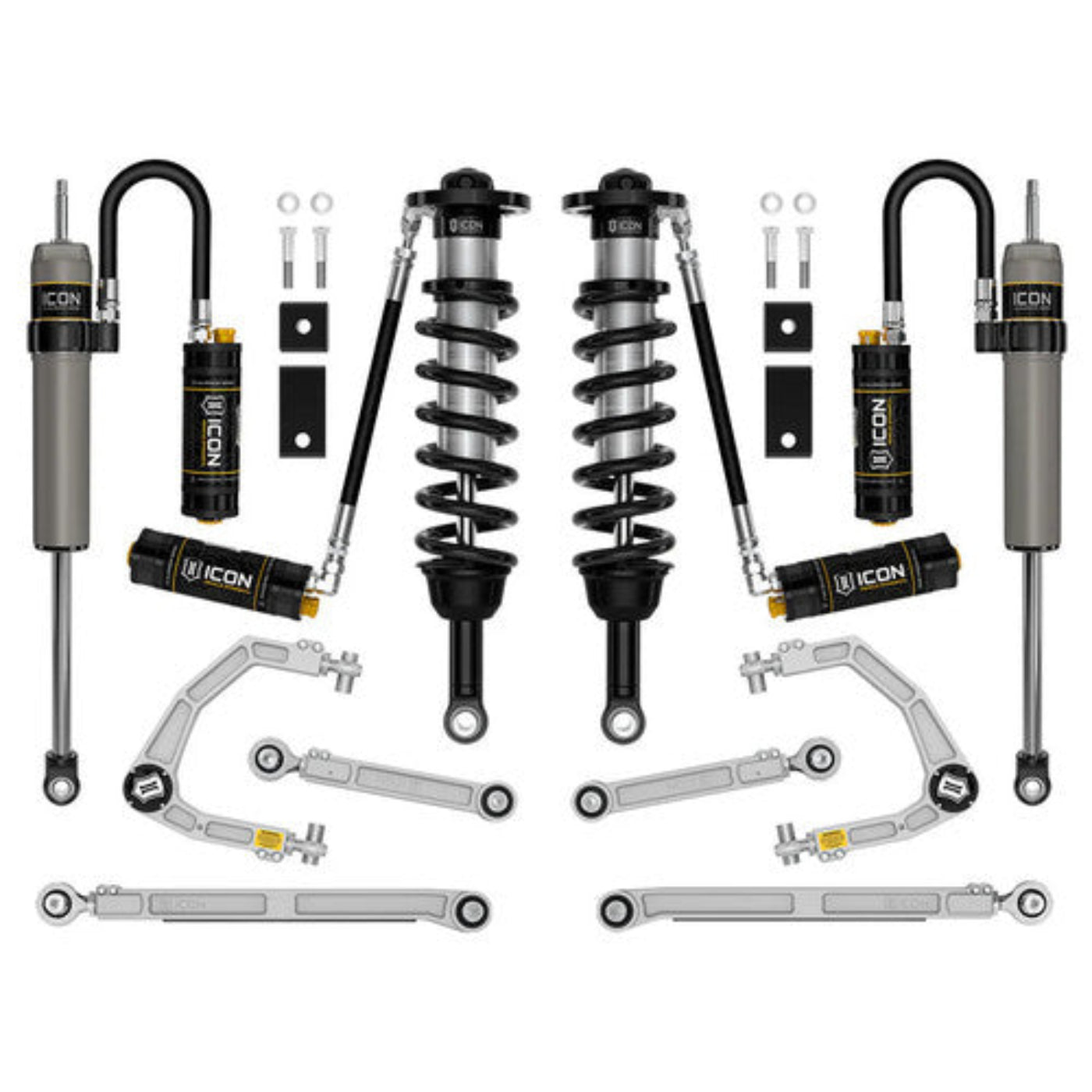

A: The kit includes 2.5 Series CDCV remote reservoir front coilovers, tubular upper control arms, dual-rate rear coil springs, CDCV rear shocks, billet upper and lower rear links, an adjustable rear track bar, sway bar drop brackets, and installation hardware.

Q: What tire size can this suspension support?
A: It is designed to accommodate up to 35-inch tires, depending on wheel specifications and any required trimming.

Q: What is CDCV adjustment?
A: Compression Damping Control Valves (CDCV) provide 10 levels of compression adjustment, allowing you to tune the suspension for daily driving, towing, or off-road conditions.

Q: Are the shocks rebuildable?
A: Yes. The included ICON 2.5 Series shocks are fully rebuildable and re-tunable for long-term performance and serviceability.
