Air Lift ICON Vehicle Dynamics Stage 1 Suspension System 6" Lift | 2022-2026 Toyota Tundra - K53271

Air Lift ICON Vehicle Dynamics Stage 1 Suspension System 6" Lift | 2022-2026 Toyota Tundra - K53271

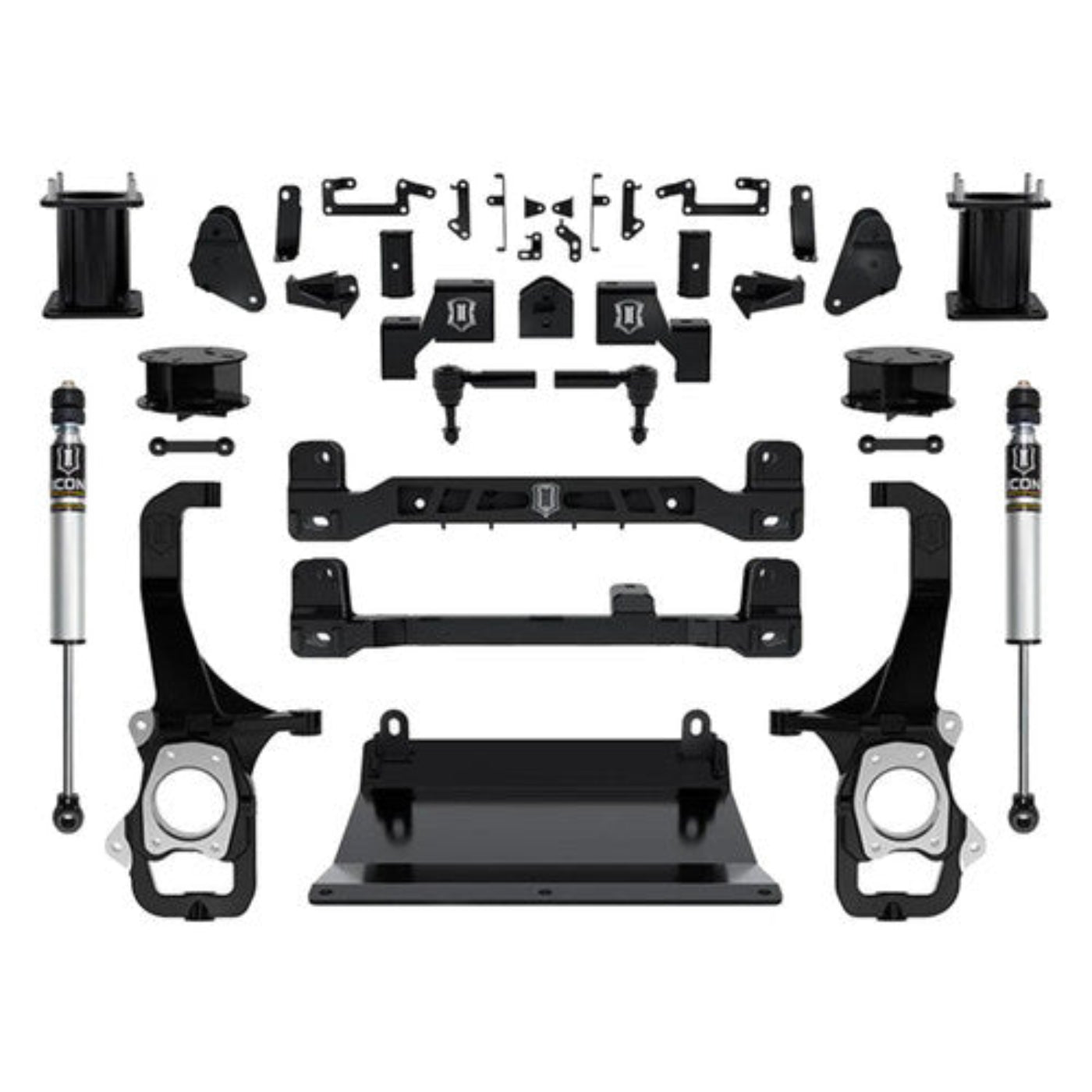

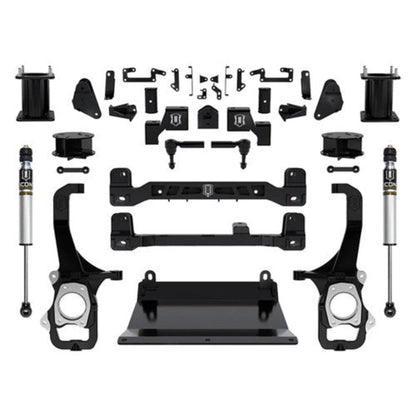

TheYotaGarage is proud to offer the ICON Vehicle Dynamics Stage 1 Suspension System 6" Lift for your 2022+ Toyota Tundra. The ICON Vehicle Dynamics Stage 1 Suspension System 6" Lift allows for 37" tires with full articulation (larger tires may fit with fender trimming and modifications). Keeping factory track width, it includes a Front Coilover Spacer Kit crafted from heavy duty steel and a Single Piece High-Strength Ductile Iron Steering Knuckle with 4" drop. Enhancements like High Clearance Front Crossmembers, a Front Skid Plate cut from 1/4-inch steel, and Sway Bar Drop Brackets reduce bind in OE Sway Bar Links. Heavy-duty Bump Stop Brackets and High Angle Outer Tie-Rods with durable, metal-on-metal, greaseable tie rod ends ensure a smooth ride. 2.0 Aluminum Series Rear Shocks improve rear suspension performance, while a Rear Coil Spring Spacer Kit provides lift without changing the factory Rear Coil Springs. Lastly, improved Rear Sway Bar Links and Mounts, plus a Rear Track Bar Bracket, reducing bind.

Features

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Front coilover spacer kit with heavy duty steel construction
• Provides 6" front suspension lift with only 4" of crossmember drop
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• 2.0 Aluminum Series rear shocks to improve rear suspension performance
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

What our Experts Think

Q&A

Q: What does the ICON Stage 1 Suspension System do?
A: It delivers a 6-inch suspension lift, increasing ground clearance, improving off-road capability, and providing a more aggressive stance while maintaining excellent handling.

Q: Which vehicles is this kit compatible with?
A: Fits 2022–2026 Toyota Tundra models. It is not compatible with factory load-leveling rear air suspension, TRD Pro, Adaptive Variable Suspension (AVS), or SR5 TRD Sport models.

Q: What is included in the Stage 1 system?
A: The kit includes front coilover spacers, high-clearance crossmembers, steering knuckles, rear coil spring spacers, 2.0 aluminum rear shocks, skid plates, sway bar drop brackets, and installation hardware.

Q: What tire size can this suspension support?
A: It is engineered to fit 37-inch tires with the recommended wheel setup. Larger tires may require additional trimming or modifications.

Q: Does it maintain factory track width?
A: Yes. The system is designed to maintain factory track width while providing a full 6-inch lift.

Q: Are the rear shocks rebuildable?
A: Yes. The included ICON 2.0 Aluminum Series rear shocks are fully rebuildable and serviceable for long-term performance.

Q: Why choose the ICON Stage 1 Suspension System?
A: It's an excellent choice for Tundra owners seeking a true 6-inch lift, 37-inch tire clearance, premium suspension performance, and enhanced off-road capability with dependable on-road handling.
