Air Lift ICON Vehicle Dynamics Rear 3.0 Coilovers W/ CDCV 0-1" Lift | 2022-2026 Toyota Tundra - 57845CP

Air Lift ICON Vehicle Dynamics Rear 3.0 Coilovers W/ CDCV 0-1" Lift | 2022-2026 Toyota Tundra  - 57845CP

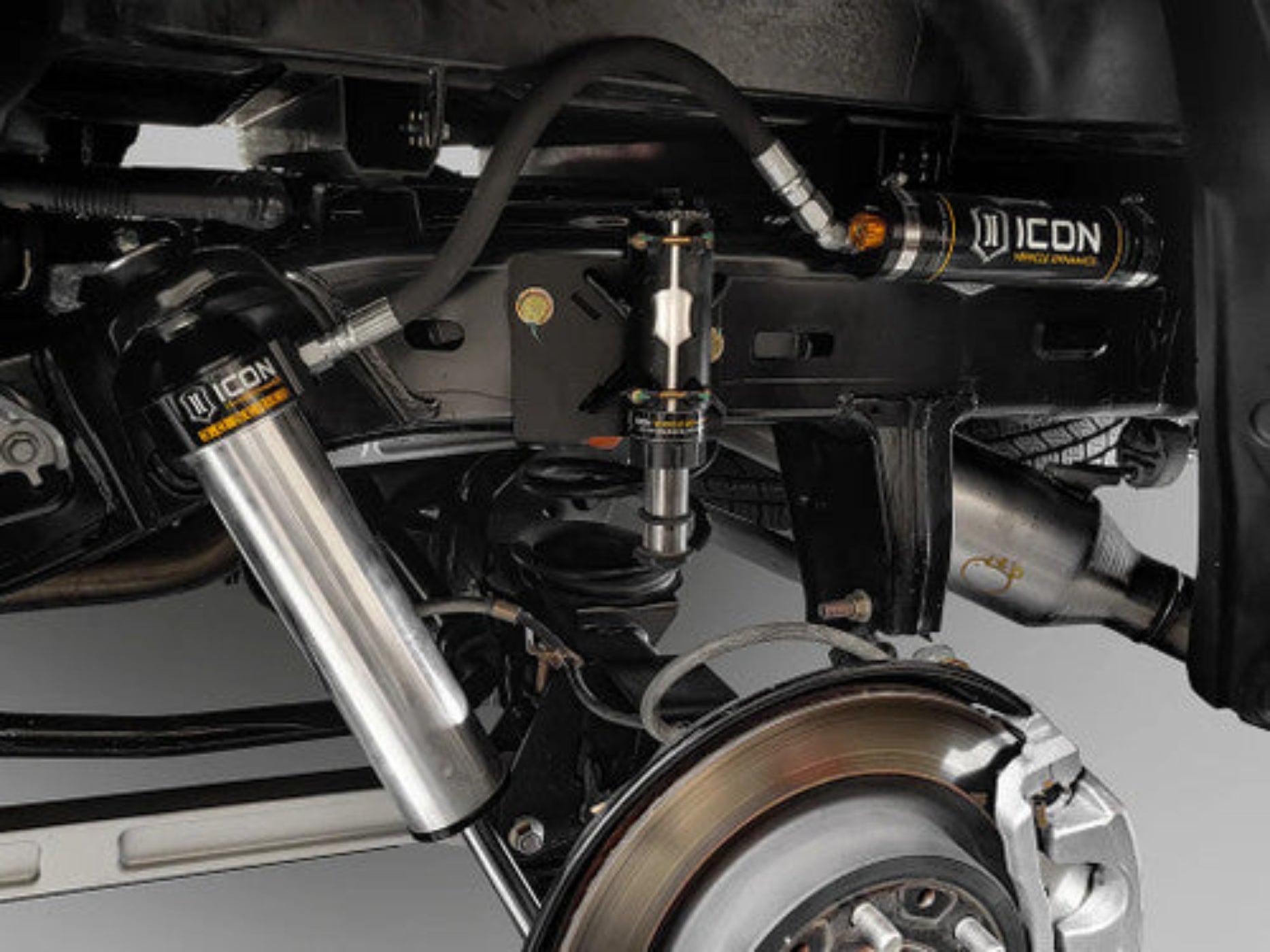

ICON's 3.0 Series Rear Shocks with CDCV for 2022 Toyota Tundra are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 20% and significantly improving the damping ability of the rear shocks, while being compatible with rear lift heights up to 1" over stock.

3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks offer improved heat dissipation and resistance to shock fade under hard use.

ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 3.0 Series Coilovers with CDCV on the front, vehicle control can be precisely dialed in front to rear, resulting in the best overall driving experience.

These 3.0 Series Shocks are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Compatible with rear lift heights from 0-1” over stock allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue

Features

• Rig Position: Rear
• Accomodates 0 to 1" of suspension lift
• 20% increase in rear suspension travel compared to stock
• Vehicle specific design.
• Vehicle specific tuned for superior shock damping and control
• 3” Body diameter for increased oil and larger piston
• 10” CNC machined 6061 aluminum components with a black anodize finish.
• PTFE lined bearings for extended longevity and minimal deflection.
• 100% Rebuildable and Revealable.
• Corrosion resistant CAD plated steel shock body
• 7/8” diameter induction hardened, chrome plated shock shaft.
• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
• Fits: 2022+ Toyota Tundra

What our Experts Think

• Top-tier rear suspension performance. The ICON 3.0 VS Remote Reservoir Rear Shocks with CDCV are engineered for 2022–2026 Toyota Tundra models with 0–1" of rear lift, delivering exceptional control on and off the road.
• Fine-tune your ride. ICON's Compression Damping Control Valve (CDCV) offers 10 adjustable compression settings, allowing you to optimize ride comfort for daily driving, towing, or aggressive off-road terrain.
• Maximum cooling, minimal fade. The 3.0-inch shock body and remote reservoir provide significantly greater oil capacity and heat dissipation than 2.5 Series shocks, ensuring consistent damping during extended off-road use.
• Improved stability and wheel travel. Designed to increase rear suspension travel by up to 20%, these shocks deliver better traction, control, and confidence over rough terrain while maintaining excellent on-road handling.
• Built for long-term durability. Featuring CNC-machined aluminum components, PTFE-lined spherical bearings, hardened chrome-plated shafts, and a fully rebuildable, re-tunable design, they're built to withstand demanding conditions.
• Best for: Tundra owners seeking a premium rear shock upgrade with adjustable damping, outstanding ride quality, and superior performance for towing, overlanding, and high-speed off-road driving.

Q&A

Q: What do the ICON 3.0 Rear Coilovers with CDCV do?
A: They upgrade your Toyota Tundra's rear suspension with improved ride quality, greater wheel travel, and exceptional off-road control, while supporting 0–1 inch of rear lift.

Q: Which vehicles are these rear shocks compatible with?
A: Fits 2022–2026 Toyota Tundra models with 0–1 inch rear lift. They are not compatible with Adaptive Variable Suspension (AVS).

Q: What are the benefits of the 3.0 Series shocks?
A: The 3.0-inch shock body provides greater oil capacity and a larger piston area for improved heat dissipation, reduced shock fade, and superior damping during demanding off-road use.

Q: What is CDCV adjustment?
A: Compression Damping Control Valves (CDCV) allow you to fine-tune compression damping for daily driving, towing, rock crawling, or high-speed off-road terrain.

Q: Do these shocks improve suspension travel?
A: Yes. They increase rear suspension travel by up to 20% compared to the factory setup for improved traction and ride quality.

Q: Are these shocks rebuildable?
A: Yes. The shocks are fully rebuildable and re-tunable, making them ideal for long-term performance and serviceability.

Q: Why choose the ICON 3.0 Rear Coilovers with CDCV?
A: They are a premium upgrade for Tundra owners seeking adjustable damping, increased suspension travel, superior ride control, and outstanding off-road performance.
