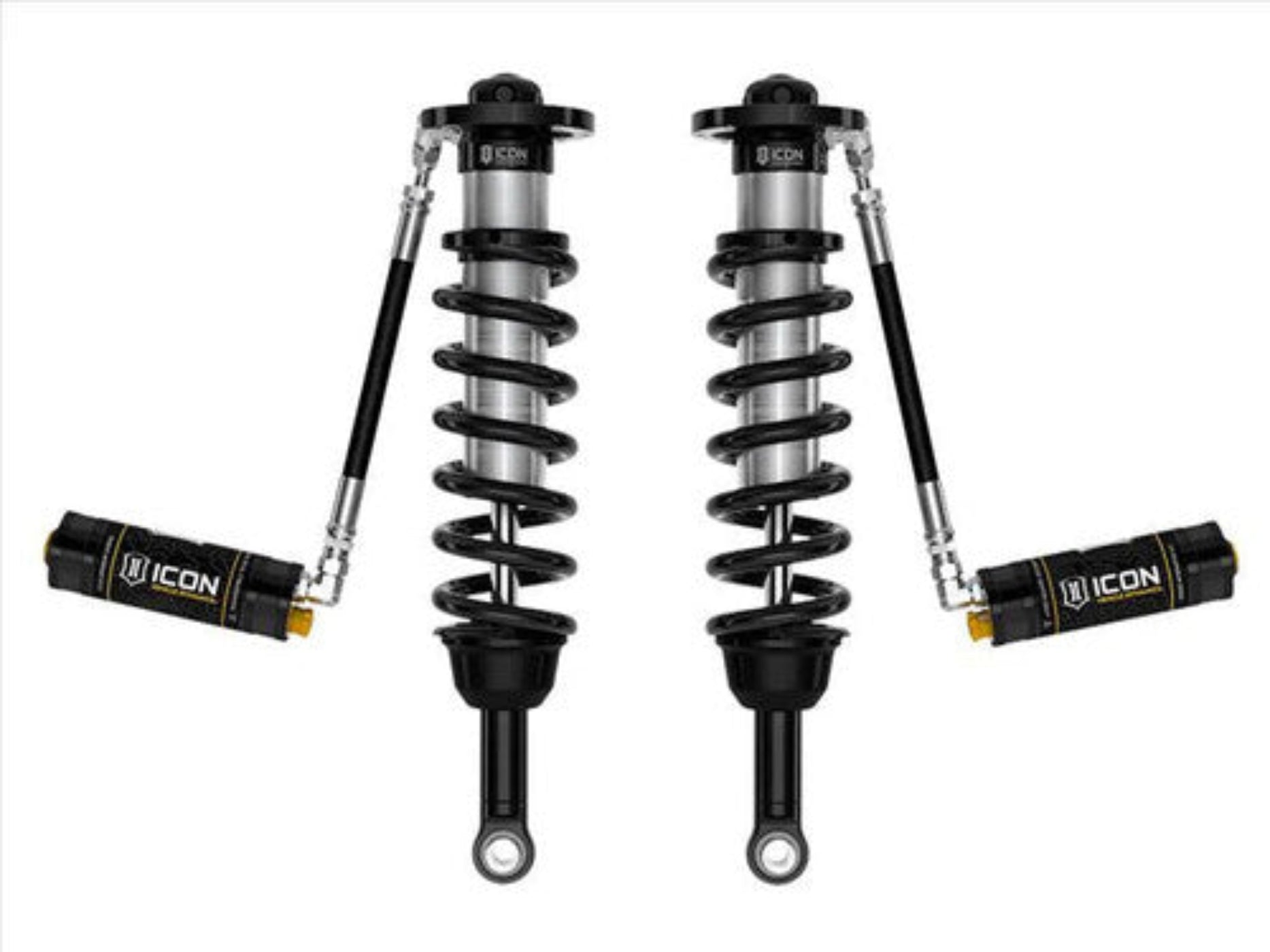

Air Lift ICON Vehicle Dynamics 2.5 VS RR CDCV Coilover Kit | 2023+ Toyota Sequoia - 58770C-1
Air Lift ICON Vehicle Dynamics 2.5 VS RR CDCV Coilover Kit | 2023+ Toyota Sequoia - 58770C-1
Couldn't load pickup availability
Air Lift ICON Vehicle Dynamics 2.5 VS RR CDCV Coilover Kit | 2023+ Toyota Sequoia - 58770C-1
Air Lift ICON Vehicle Dynamics 2.5 VS RR CDCV Coilover Kit | 2023+ Toyota Sequoia - 58770C-1
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2023+ Toyota Sequoia. These adjustable coilovers allow up to 1-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Sequoia.
Features
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Adjustable up to 1.25-3.5" of front lift height over stock
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- 100% Bolt-on - no drilling, cutting or welding necessary for installation
What our Experts Think
Q&A
Q: What does the ICON 2.5 VS RR CDCV Coilover Kit do?
A: It provides 3–4.5 inches of adjustable front lift for the Toyota Sequoia, improving ride quality, suspension travel, handling, and off-road capability.
Q: Which vehicles is this kit compatible with?
A: Fits 2023+ Toyota Sequoia models. It is not compatible with Adaptive Variable Suspension (AVS).
Q: What are the benefits of the remote reservoirs?
A: Remote reservoirs increase oil capacity and cooling, reducing shock fade while providing more consistent damping during aggressive off-road driving.
Q: What is CDCV adjustment?
A: Compression Damping Control Valves (CDCV) provide 10 levels of external compression adjustment, allowing you to tune the suspension for daily driving, towing, or off-road use.
Q: What tire size can these coilovers support?
A: They are designed to accommodate up to 35-inch tires, depending on wheel specifications and minor trimming if required.
Q: Are these coilovers rebuildable?
A: Yes. The ICON 2.5 VS coilovers are fully rebuildable and re-tunable, providing long-term performance and serviceability.
Maintenance Tips
- Re-torque all coilover mounting hardware after the first 500 miles and inspect it regularly thereafter.
- Inspect the 2.5 VS Remote Reservoir CDCV coilovers, shock shafts, reservoir hoses, seals, and mounting hardware for leaks, wear, or loose components.
- Have the vehicle professionally aligned after installation and whenever ride height is adjusted or tire wear changes.
- Keep the coilovers, remote reservoirs, and CDCV adjusters clean by removing mud, salt, and road debris after off-road use to prevent corrosion and maintain cooling performance.
- Adjust the CDCV compression dial to match your driving conditions, towing, or off-road terrain, and never force the adjuster beyond its range.
- Service the fully rebuildable ICON coilovers at the manufacturer's recommended intervals or after frequent off-road use to maintain peak ride quality and damping performance.
