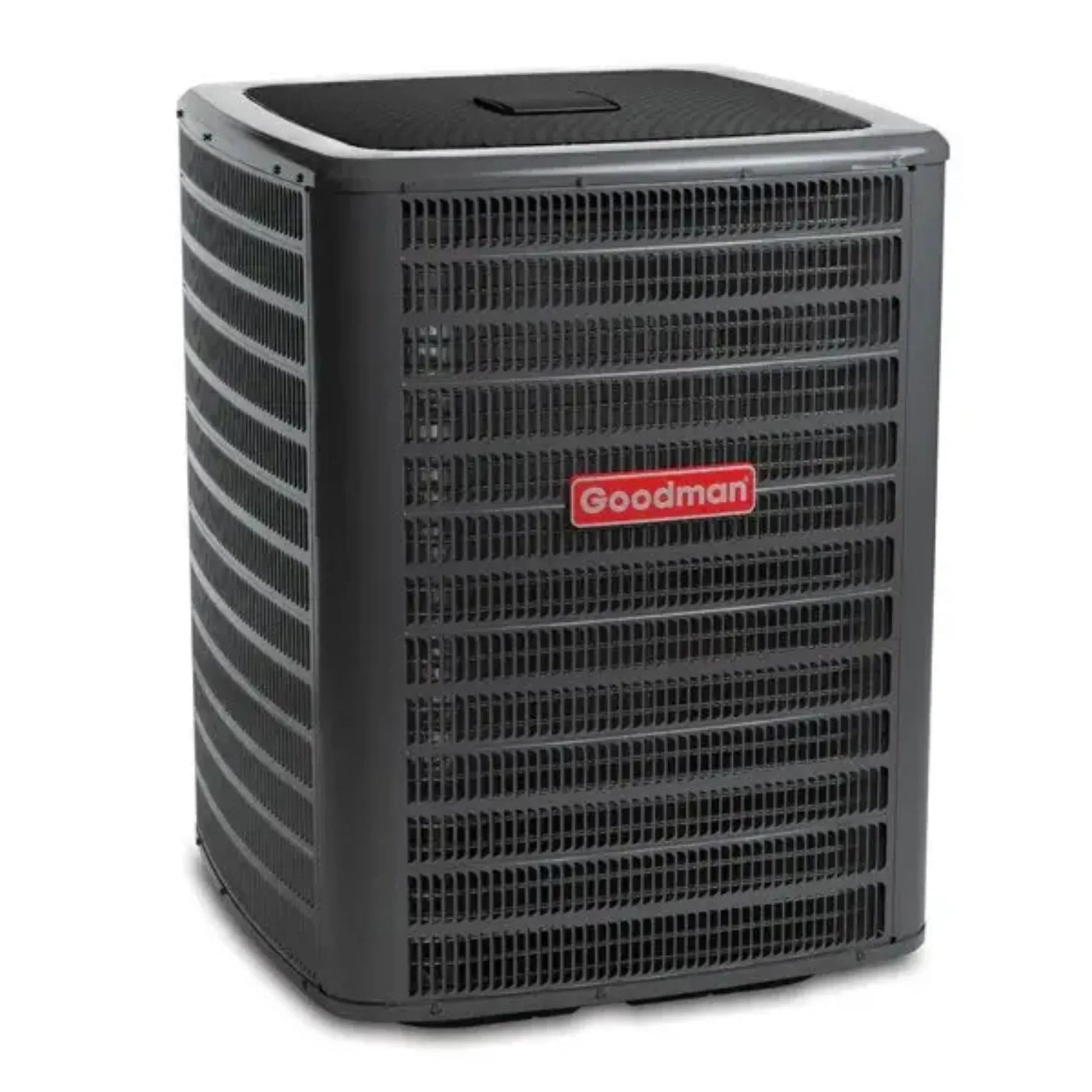

Goodman - 3.5 Ton/42,000 BTU Air Conditioner Condenser - SEER2 14.3 - Single Stage - R32 - GLXS4BA4210

Goodman - 3.5 Ton/42,000 BTU Air Conditioner Condenser - SEER2 14.3 - Single Stage - R32 - GLXS4BA4210

The Goodman brand has been focused on providing efficiency and comfort where it matters most while still being an inexpensive brand. With its superior components and a standard efficiency, the Goodman GLXS4BA4210 air conditioner condenser is a popular choice for homeowners around the United States.

Features

• Ideal size to cover a small house in ideal climates
• 3.5 ton, 14.3 SEER2 AC-only condenser
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Fully charged for up to 15' of line set
• Low sound output
• Factory-installed filter drier

Specifications

Manual

• Specifications
• Installation Manual

What our Experts Think

• Right‑Sized 3.5‑Ton Cooling: Provides 42,000 BTU capacity, ideal for mid‑to‑large homes and residential split‑system installations needing dependable cooling.

• Solid Energy Performance: 14.3 SEER2 rating strikes a strong balance between efficiency and cost, helping reduce cooling expenses compared to older low‑SEER models.

• Single‑Stage Reliability: Single‑stage compressor offers straightforward, dependable operation with fewer parts and lower maintenance complexity.

• Modern R‑32 Refrigerant: Built for R‑32 refrigerant, delivering improved heat‑transfer performance with a lower environmental impact versus legacy refrigerants.

• Rugged Outdoor Construction: Weather‑resistant cabinet and protective finish help guard internal components from elements for long‑lasting performance.

• Service‑Friendly Design: Accessible service valves and panels make installation and maintenance easier for HVAC professionals.

Q&A

Q: What cooling capacity and efficiency does this unit deliver?
A: The Goodman GLXS4BA4210 air conditioner condenser provides 3.5 tons (≈42,000 BTU) of cooling with a 14.3 SEER2 efficiency rating, offering effective comfort and solid energy performance for residential spaces.

Q: What type of refrigerant and compressor does it use?
A: It uses environmentally friendly R‑32 refrigerant and a single‑stage scroll compressor for dependable, straightforward cooling operation.

Q: What are the key electrical and connection specifications?
A: The condenser operates on 208/230 V single‑phase, 60 Hz power, with standard 3/8″ liquid and 7/8″ suction line connections for typical residential installs.

Q: What built‑in features support durability and maintenance?
A: Includes factory‑installed filter drier, sweat service valves with easy gauge access, high‑pressure switch, and extended life capacitors, plus AHRI certification and ETL listing.

Q: How is the cabinet constructed for outdoor use?
A: The condenser features a powder‑coated galvanized‑steel cabinet with steel louver coil guard and removable grille‑style top to protect components and withstand weather.

Q: What sound levels can users expect?
A: Typical operational sound levels are around 71–72 dBA, comparable to other efficient outdoor AC condensers.

Maintenance Tips

• Maintain at least 24 inches of clearance around the outdoor condenser for proper airflow and efficient operation.

• Clean the condenser coil regularly with low-pressure water to remove dirt and debris and maintain SEER2 14.3 efficiency.

• Replace or clean indoor air filters every 1–3 months to reduce strain on the compressor and improve airflow.

• Inspect refrigerant lines and insulation for leaks, damage, or loose connections to ensure proper R‑32 performance.

• Check electrical connections and disconnect box for corrosion, wear, or loose wiring.

• Monitor unusual noises or vibrations from the compressor or fan motor as early indicators of maintenance needs.

• Ensure the unit is level to prevent drainage issues and uneven cooling.

• Keep the cabinet and coil guards clean and intact to protect components and maintain airflow.

• Schedule annual professional HVAC service to inspect refrigerant levels, coils, and system controls.
