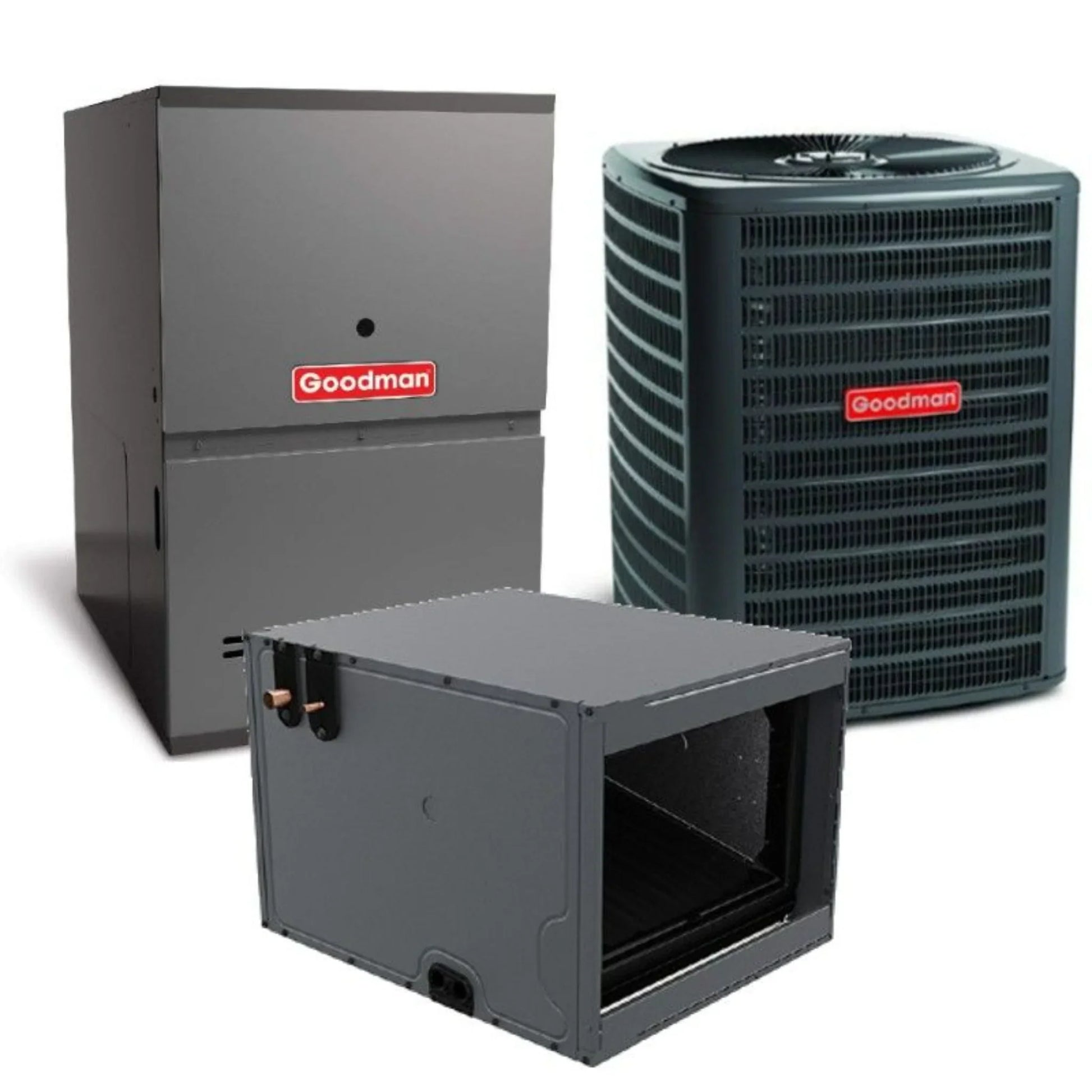

Goodman - 2 Ton/60,000 BTU 96% AFUE Gas Furnace and Air Conditioner System - Horizontal - 13.8 SEER2 - R32 - CHPTA2426B3

Goodman - 2 Ton/60,000 BTU 96% AFUE Gas Furnace and Air Conditioner System - Horizontal - 13.8 SEER2 - R32 - CHPTA2426B3

Features

• Ideal size to cover a medium-sized house

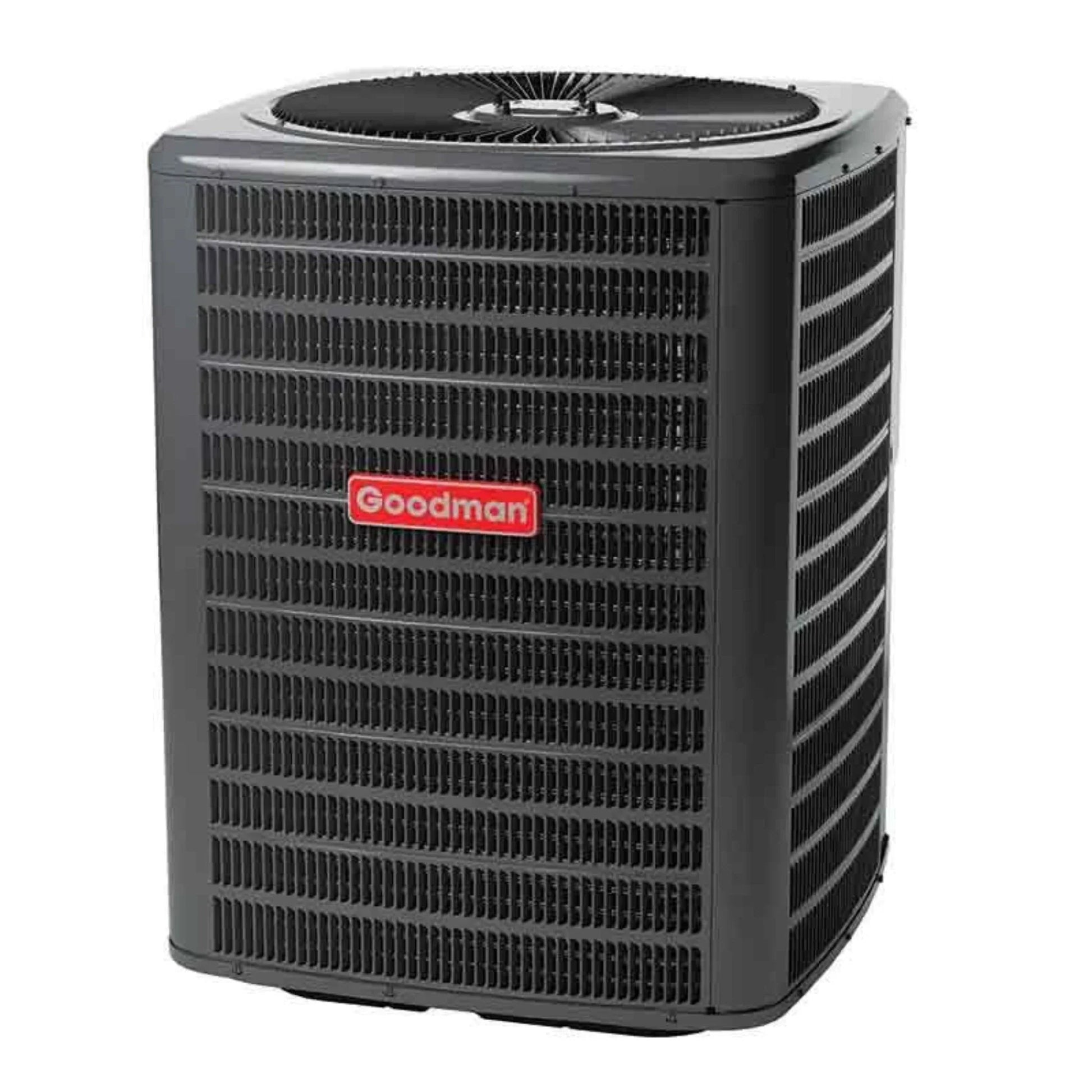

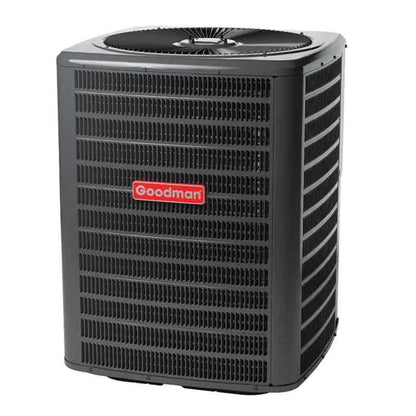

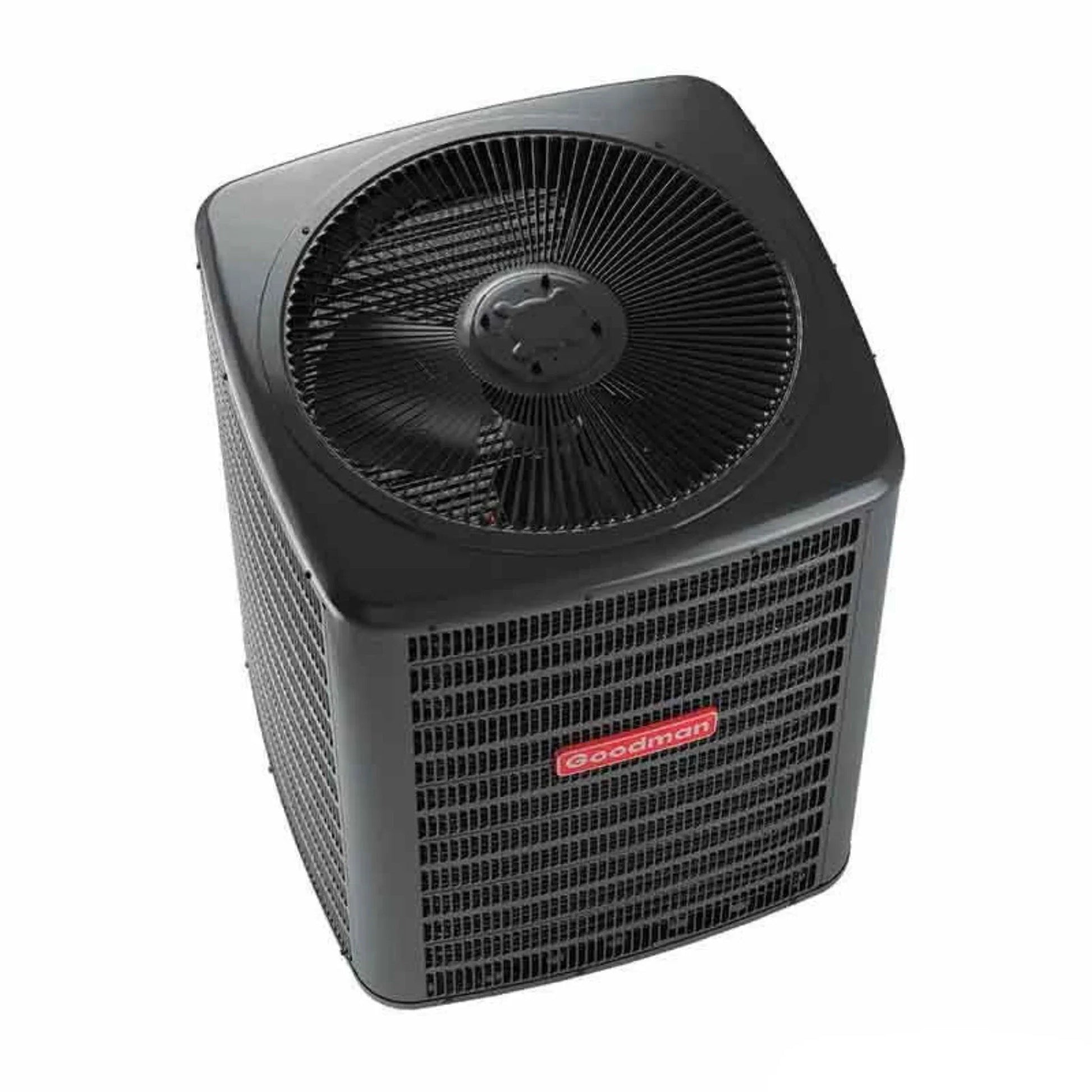

• 2 ton, 13.4 SEER2 AC-only condenser
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Low sound output
• Fully charged for up to 15' of line set
• Factory-installed filter drier

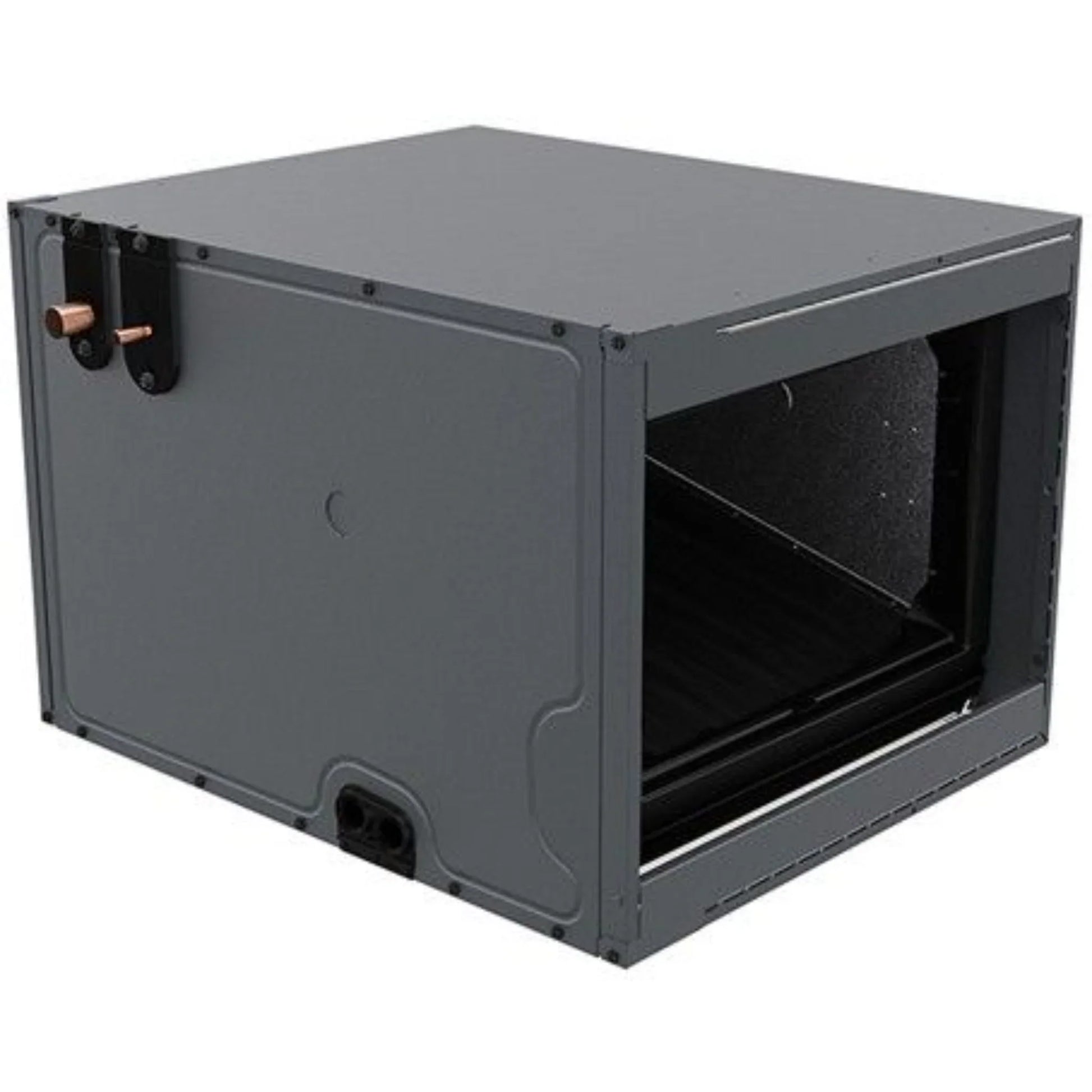

• 2 ton horizontal evaporator coil
• Can be used with heat pump and AC-only condensers
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
• Factory-installed TXV kit

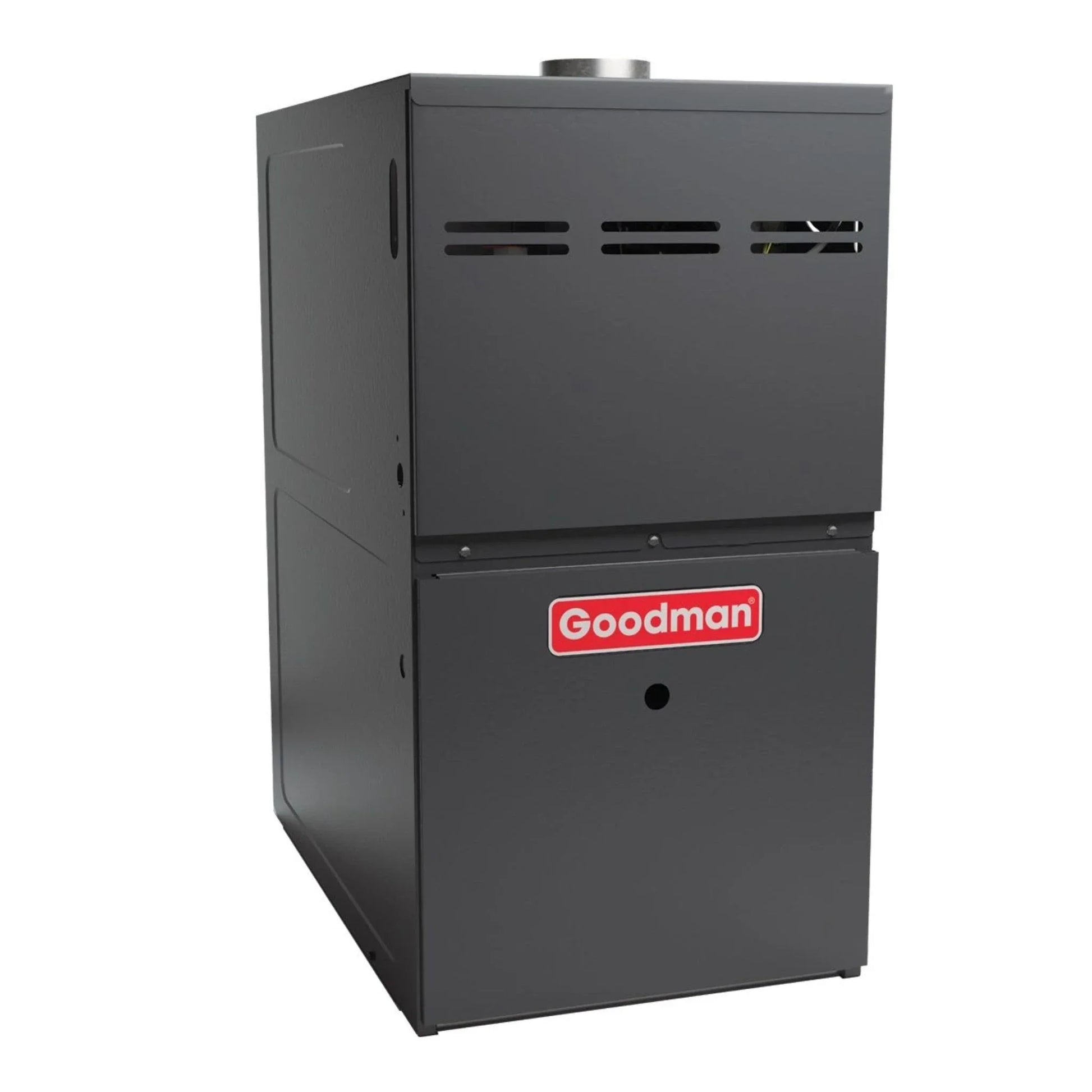

• This furnace is ideal to heat a medium house (depending on climate)
• 60,000 BTU 96% efficient natural gas furnace
• Requires plastic/pvc flue venting
• Can be used in the downflow or horizontal orientation
• Can be converted to an LP furnace with a conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output


Specifications

Manual

• GLXS3B Specifications
• GLXS3B Installation Manual

• CHPTA Installation Manual
• CHPTA Specifications Sheet
• GC9S96 Installation Manual
• GC9S96 Specifications Sheet

What our Experts Think

• All‑Season Comfort Package – A complete system pairing a 2 ton air conditioner with a 60,000 BTU, 96% AFUE gas furnace for reliable year‑round heating and cooling in small to mid‑size homes.

• 96% AFUE High Heating Efficiency – High furnace efficiency means more of the fuel becomes heat, helping reduce winter heating costs compared with standard units.

• 13.8 SEER2 Cooling Performance – Delivers efficient cooling that meets modern energy standards, helping lower summer electricity use while improving indoor comfort.

• Horizontal Installation Ready – Designed for horizontal duct layouts (attic or crawl space), offering flexibility for common residential installations.

• R‑32 Refrigerant Compliance – Uses modern, lower‑impact R‑32 refrigerant, aligning with current environmental and efficiency standards.

• Factory‑Matched Coil & TXV – The included horizontal evaporator coil with built‑in TXV improves refrigerant control and overall system efficiency when properly paired.

• Durable Construction & Warranty Support – Quality cased coil design and Goodman’s 10‑year parts warranty (with registration) help ensure long‑term reliability.

• Balanced Performance & Value – A well‑rounded system for homeowners who want solid performance and comfort without the premium cost of ultra‑high SEER or modulating systems.

Q&A

Q: What’s included in this Goodman HVAC system?
A: This matched comfort system includes a Goodman 2 ton 13.8 SEER2 R32 air conditioner condenser, a horizontal CHPTA2426B3 evaporator coil with factory‑installed TXV, and a 96% AFUE 60,000 BTU gas furnace engineered to work together for efficient heating and cooling.

Q: What size home is this system suited for?
A: With 2 ton (≈24,000 BTU) cooling and 60,000 BTU heating, it’s ideal for small to medium homes (~1,000–1,800 sq ft), depending on insulation, local climate, and duct design.

Q: What does 13.8 SEER2 mean?
A: 13.8 SEER2 is the seasonal energy efficiency rating for cooling. It means efficient cooling performance that can help lower electricity use compared with older or lower‑rated systems.

Q: What does 96% AFUE mean?
A: 96% AFUE indicates 96% of the fuel’s energy is converted to usable heat, delivering high‑efficiency heating and reduced natural gas costs.

Q: Why is the CHPTA2426B3 coil important?
A: The evaporator coil with a factory‑installed TXV precisely regulates refrigerant flow, enhancing cooling efficiency, comfort, and system responsiveness.

Q: What refrigerant does the system use?
A: The system uses R32 refrigerant, which provides higher energy efficiency and a lower environmental impact than many older refrigerants.

Q: What installation configuration does it support?
A: This system is designed for horizontal installation, perfect for attics, closets, or other tight mechanical spaces requiring sideways airflow.

Maintenance Tips

• Replace Air Filters Every 1–3 Months: Maintains airflow, protects both furnace and AC components, and ensures efficiency.

• Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for consistent heating and cooling.

• Clean Outdoor AC Condenser: Rinse coils every 3–6 months to preserve SEER2 efficiency and prevent debris buildup.

• Annual Professional Inspection: Have a certified technician check burners, heat exchanger, gas pressure, and airflow for safe furnace operation.

• Inspect Refrigerant Lines & Insulation: Ensure lines are intact and insulation is in good condition for optimal R32 performance.

• Maintain Condensate Drains: Keep both furnace and AC drain lines clear to prevent water issues or system shutdowns.

• Schedule Yearly Professional Service: Inspect electrical connections, airflow, and overall system performance.

• Monitor for Unusual Signs: Strange noises, odors, or inconsistent heating/cooling require prompt professional attention.
