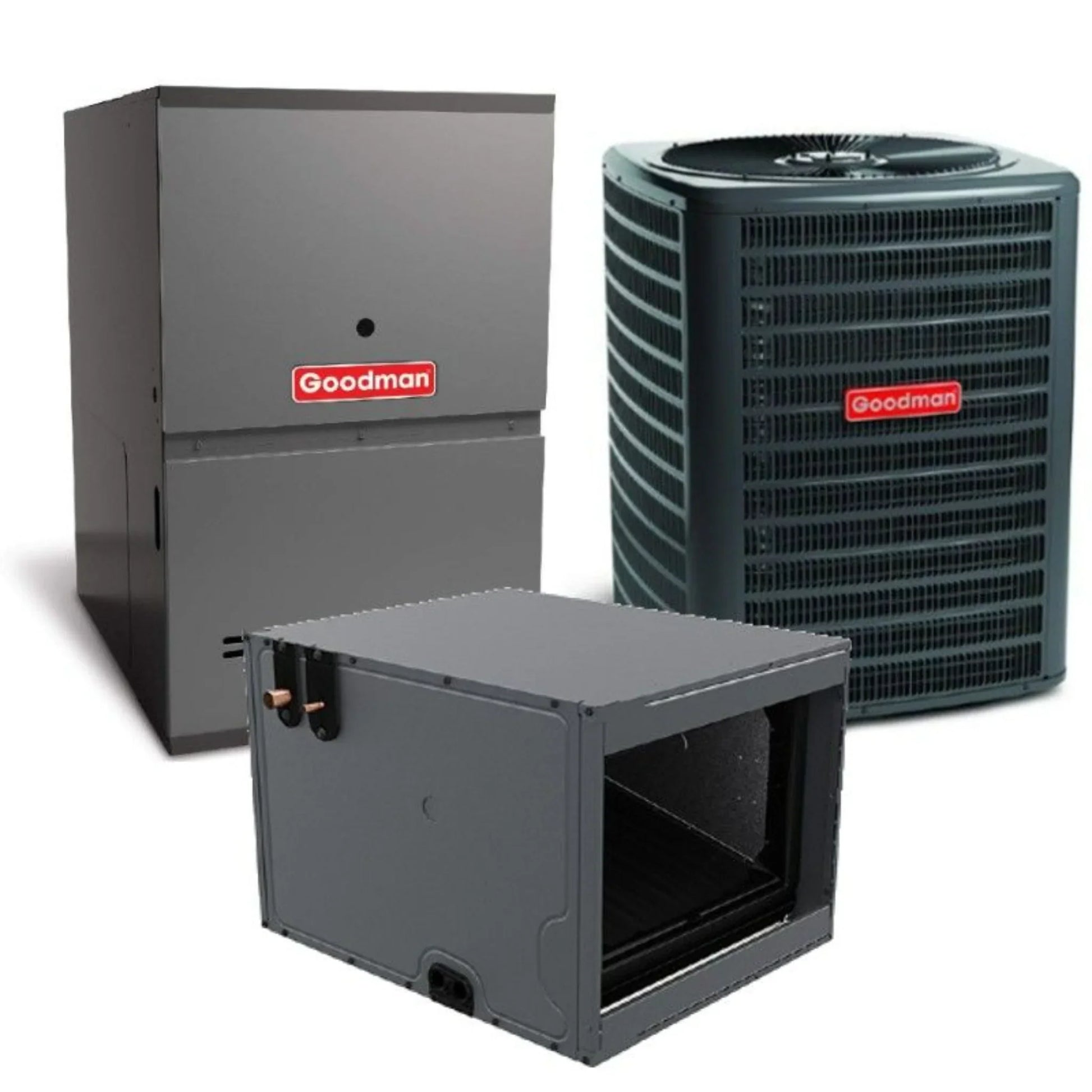

Goodman - 2 Ton/60,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.3 SEER2 - R32 - CHPTA2426B3

Goodman - 2 Ton/60,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.3 SEER2 - R32 - CHPTA2426B3

A Goodman gas furnace and air conditioner system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman gas furnace and air conditioner system is the perfect choice for all of your heating and cooling needs.

Features

• Ideal size to cover a medium-sized house

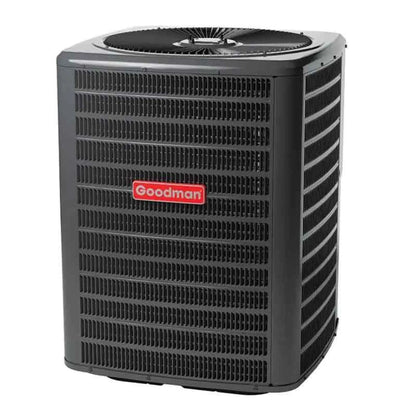

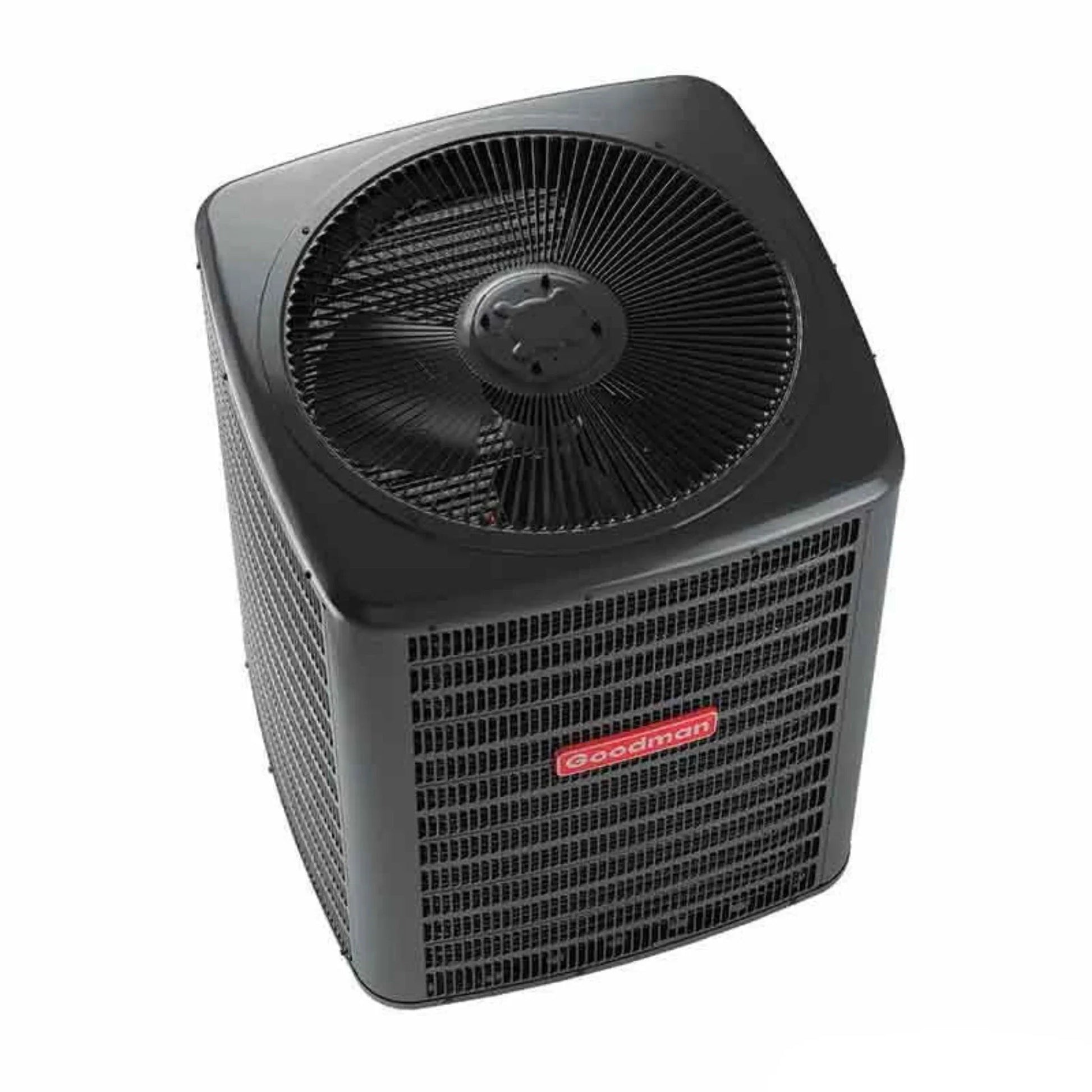

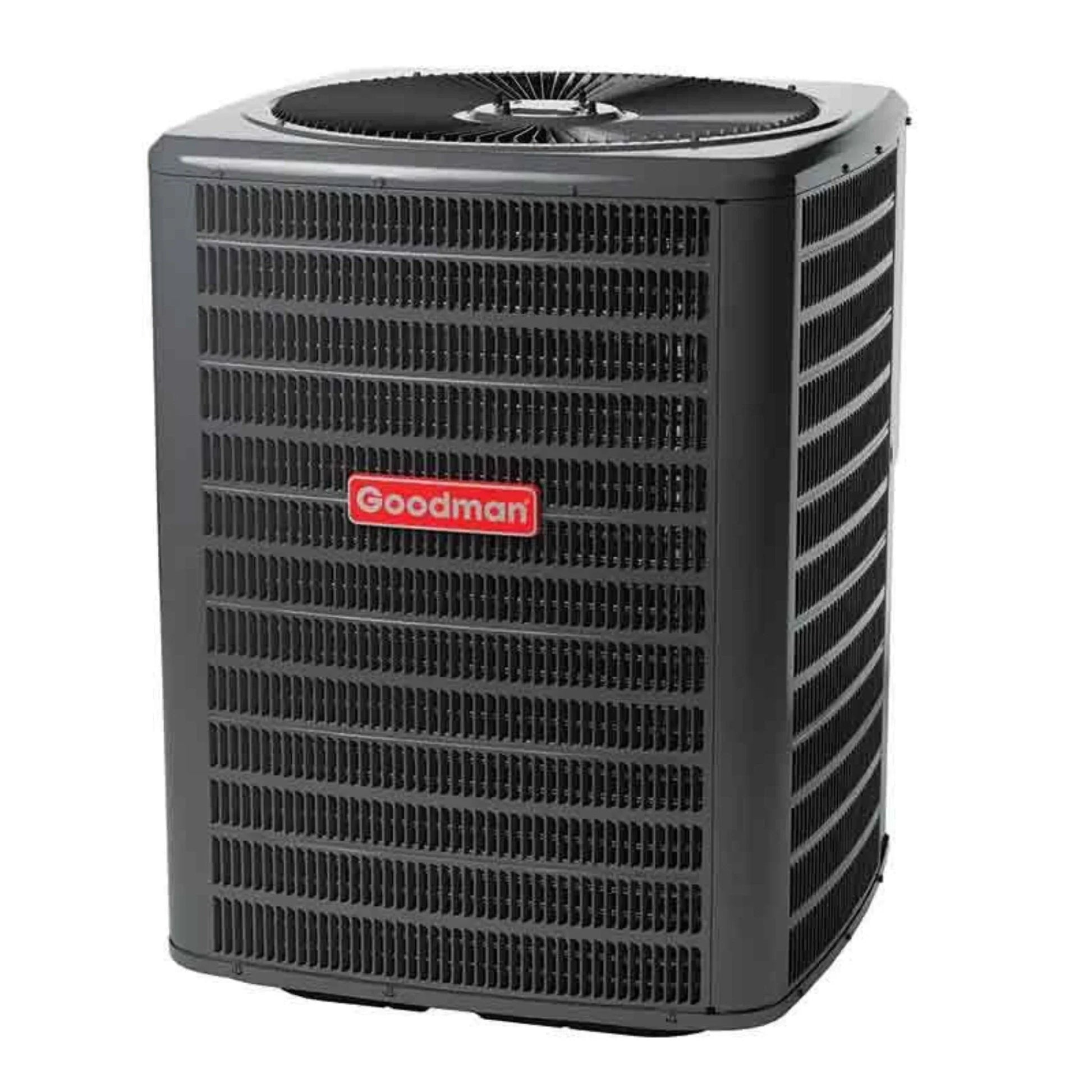

• 2 ton, 13.4 SEER2 AC-only condenser
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Low sound output
• Fully charged for up to 15' of line set
• Factory-installed filter drier

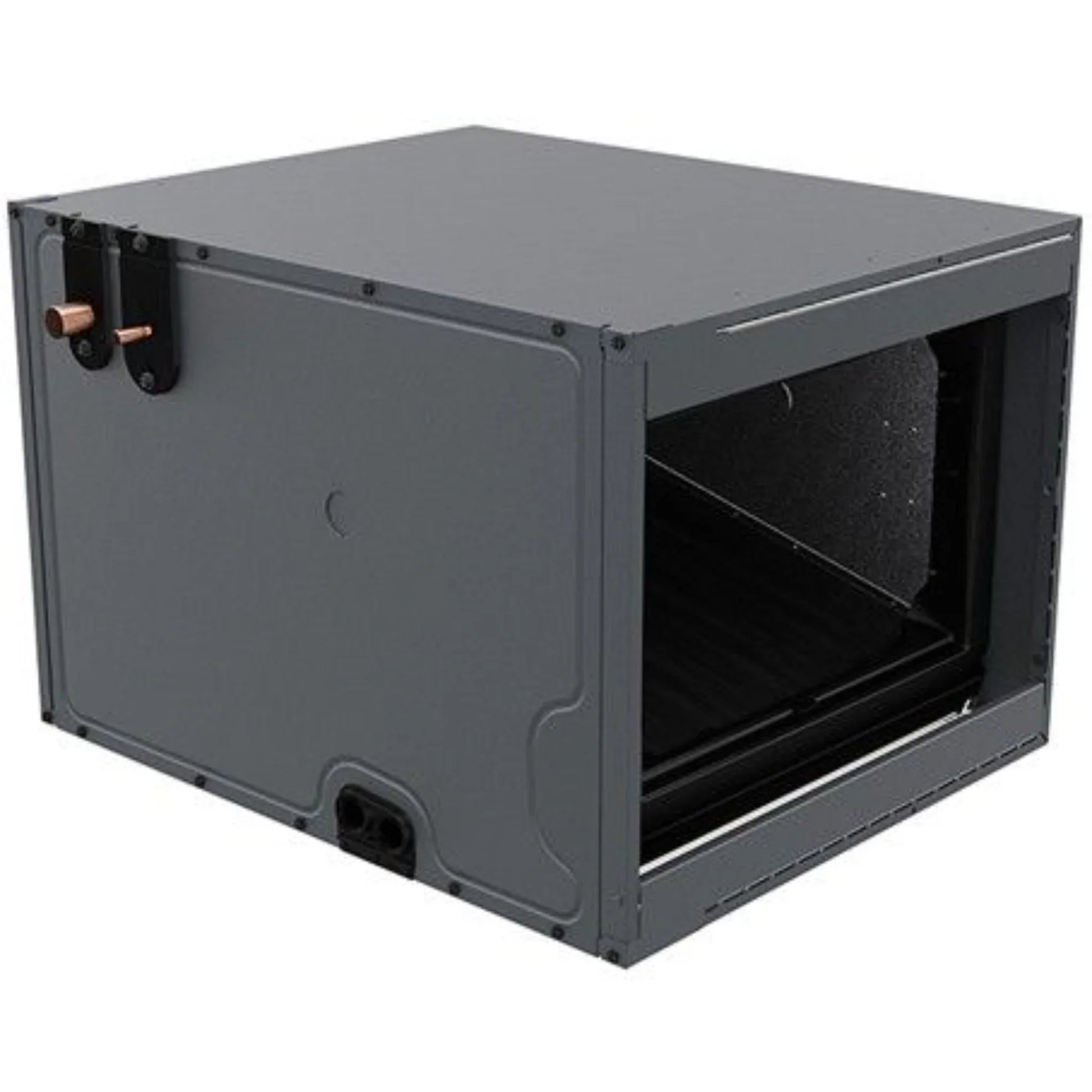

• 2 ton horizontal evaporator coil
• Can be used with heat pump and AC-only condensers
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
• Factory-installed TXV kit

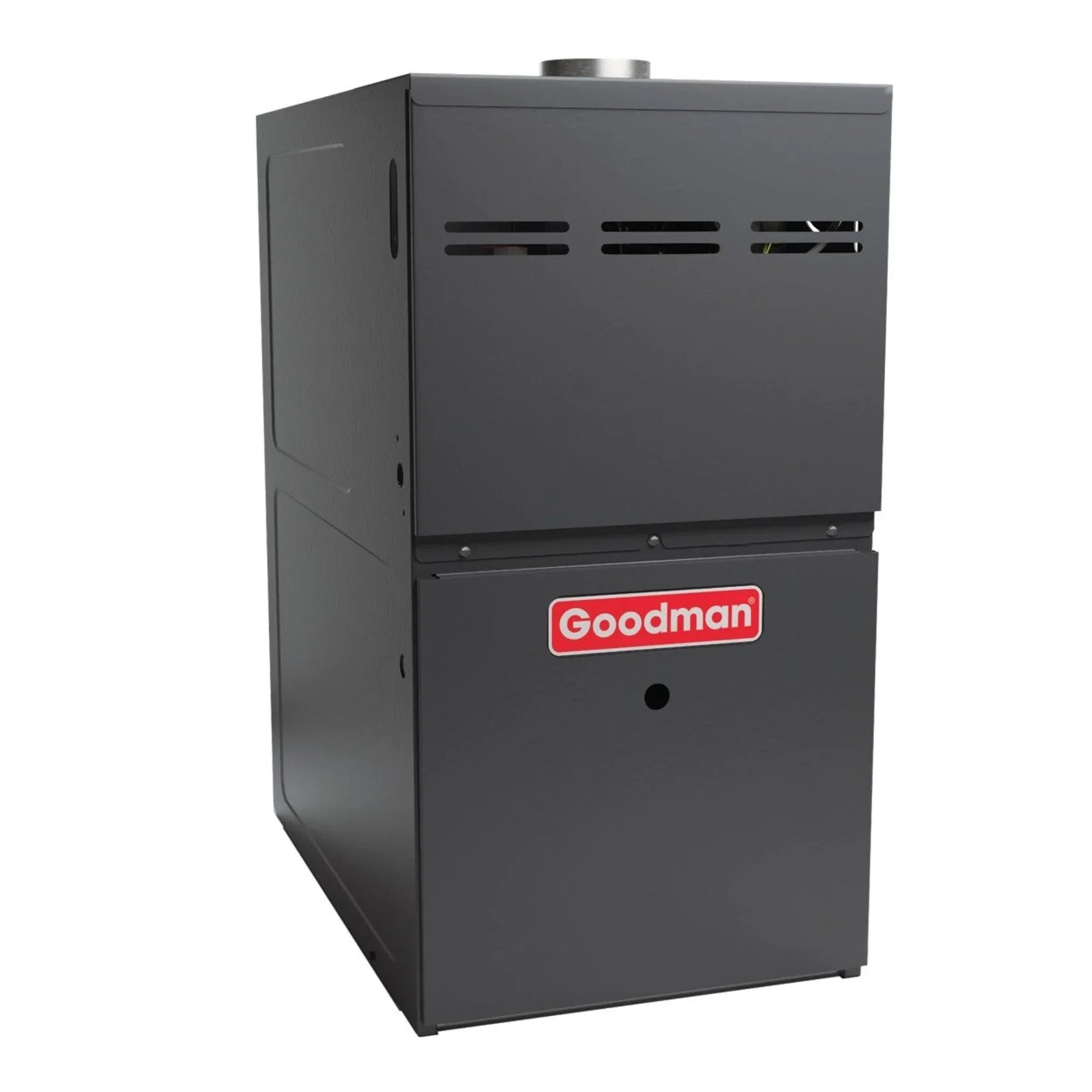

• This furnace is ideal to heat a medium-sized house (in average climate conditions)
• 60,000 BTU 80% AFUE two stage variable speed natural gas furnace
• Requires metal flue venting
• Can be used in the upflow or horizontal orientation
• Can be converted to propane with an LP conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output


Specifications

Manual

• GLXS3B Specifications
• GLXS3B Installation Manual

• CHPTA Installation Manual
• CHPTA Specifications Sheet
• GMVC80 Installation Manual
• GMVC80 Brochure

What our Experts Think

• Year‑Round Comfort System: The Goodman CHPTA2426B3 HVAC System combines an 80% AFUE gas furnace with a 2 ton (60,000 BTU) air conditioner for reliable heating and cooling in one matched package.

• Steady Heating Performance: 80% AFUE delivers consistent warmth and dependable operation, ideal for moderate‑climate homes.

• Efficient Cooling: 14.3 SEER2 cooling helps reduce summer energy use while keeping indoor spaces comfortable.

• Horizontal Installation Design: Suited for horizontal duct configurations, fitting crawlspaces, attics, or other low‑clearance areas with ease.

• R32 Refrigerant Advantage: Uses R32 refrigerant for better heat transfer and a smaller environmental footprint than older refrigerants.

• Coordinated System Efficiency: Engineered as a matched furnace + AC system to ensure balanced airflow, consistent capacity, and reliable seasonal performance.

• Value‑Driven Comfort: Combines solid heating and cooling efficiency with installation flexibility, making it a practical, cost‑effective solution for whole‑home climate control.

Q&A

Q: What’s included in this HVAC system?
A: This matched Goodman system includes a 2 ton R32 air conditioner condenser with 14.3 SEER2 cooling, a 60,000 BTU 80% AFUE gas furnace, and a horizontal cased evaporator coil (CHPTA2426B3) for efficient year‑round comfort.

Q: What cooling performance does this system offer?
A: The outdoor condenser delivers 2 tons of cooling (~24,000 BTU) with 14.3 SEER2 efficiency, helping reduce seasonal electricity use vs lower‑SEER systems.

Q: What does 80% AFUE mean for heating?
A: 80% AFUE means roughly 80 ¢ of every dollar spent on fuel becomes usable heat, offering standard heating efficiency with reliable performance.

Q: What refrigerant does this system use?
A: Uses R32 refrigerant, a modern refrigerant with better energy performance and lower environmental footprint than older alternatives.

Q: Is this system fit for horizontal installation?
A: Yes — the horizontal cased evaporator coil (CHPTA2426B3) and furnace support horizontal configuration, ideal for attics, closets, or crawlspaces with limited vertical space.

Q: What kind of blower and operation features are typical?
A: The furnace typically includes a multi‑speed ECM blower and single‑stage heating, offering smooth airflow and dependable performance.

Q: Why choose a matched HVAC system?
A: Matched components ensure optimized airflow, improved efficiency, balanced cooling/heating, and full warranty compatibility versus mismatched parts — boosting reliability and comfort.

Q: Who is this system best for?
A: Ideal for small to medium homes needing reliable, efficient year‑round cooling and standard‑efficiency heating with modern refrigerant compliance.

Maintenance Tips

• Replace Air Filters Regularly: Inspect monthly and replace every 1–3 months to maintain airflow and protect furnace and AC components.

• Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for even heating and cooling.

• Inspect Furnace Venting: Check intake and exhaust pipes for debris or blockages to maintain safe operation.

• Clean Around the Units: Maintain 2–3 ft clearance around furnace and condenser to prevent dust buildup and allow proper airflow.

• Check Thermostat & Electricals: Verify thermostat settings, gas supply, and 115V/208–230V circuits for correct operation.

• Monitor System Performance: Listen for unusual noises from the blower or condenser; reduced heating or cooling efficiency may indicate maintenance needs.

• Schedule Annual Professional Service: A licensed HVAC technician should inspect burners, heat exchanger, gas pressure, AC refrigerant charge, and safety controls yearly.
