Goodman - 1.5 Ton/18,000 BTU Air Conditioner Condenser - SEER2 15.2 - Single Stage - R32 - GLXS5BA1810

Goodman - 1.5 Ton/18,000 BTU Air Conditioner Condenser - SEER2 15.2 - Single Stage - R32 - GLXS5BA1810

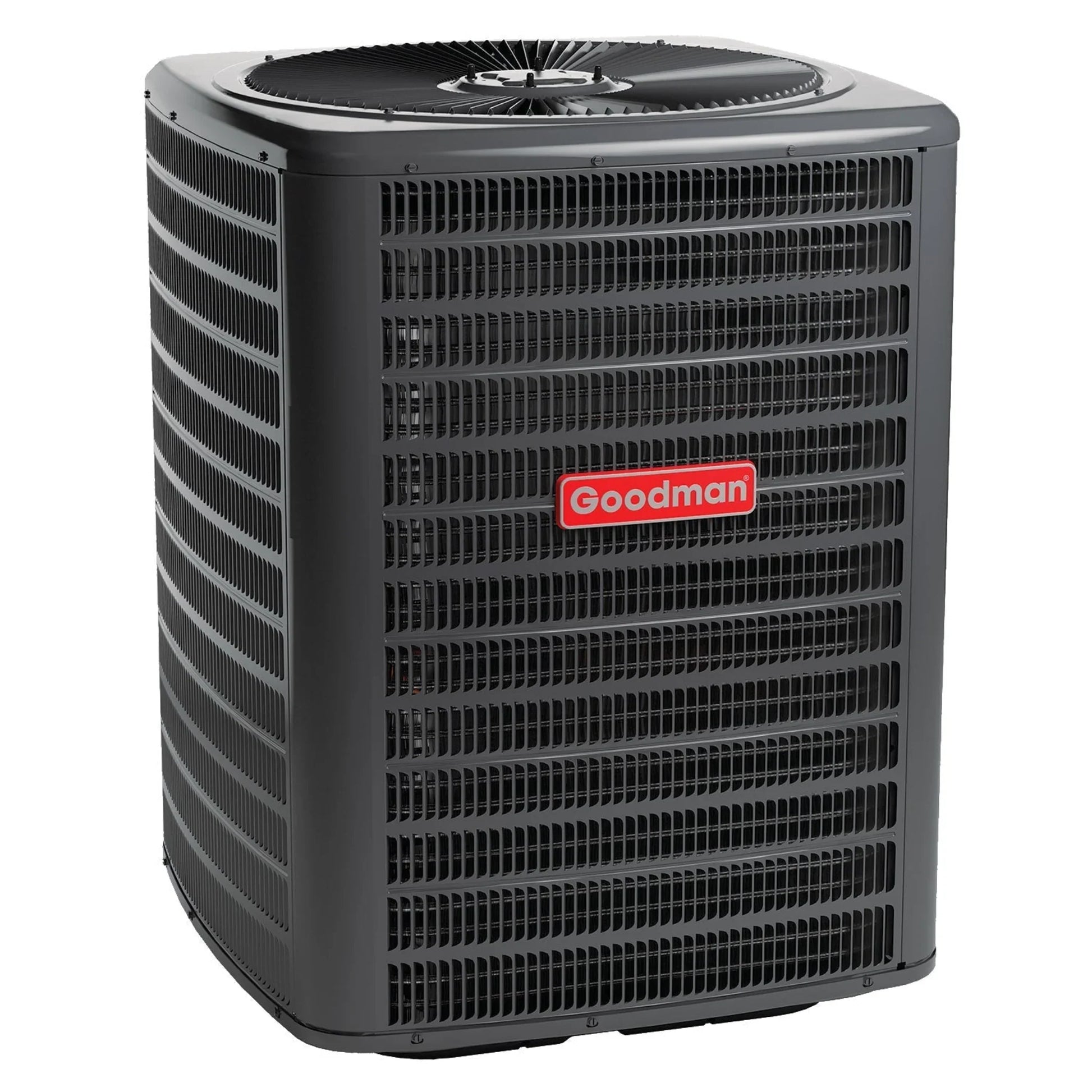

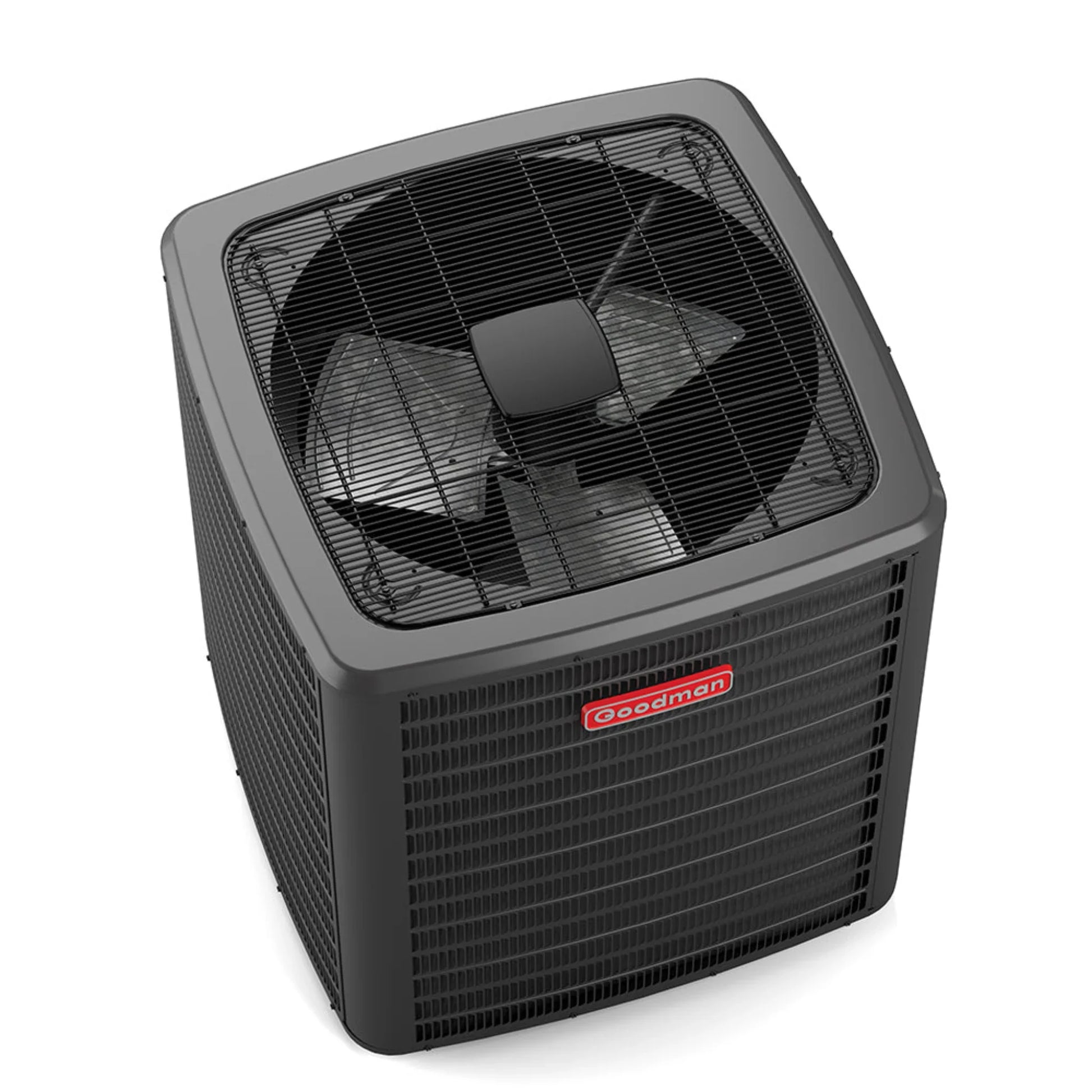

The Goodman 1.5 Ton 15.2 SEER2 Air Conditioner Condenser (R-32) - GLXS4BA1810 uses the environmentally friendly refrigerant R-32 and features the unique Goodman sound control top design for quiet operation. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.

Features

• Energy-efficient compressor

• Fully charged for 15' of tubing length
• Copper tube/ enhanced aluminum fin coil-5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor
• High-pressure switch
• Ground lug connection
• Capacitors with extended life

• ETL Listed


Specifications

Manual

• Specifications
• Installation Manual

What our Experts Think

• Perfect for Smaller Spaces: Provides 18,000 BTU cooling capacity, making it an excellent fit for small homes, apartments, or dedicated cooling zones.

• High Efficiency: 15.2 SEER2 rating delivers superior energy performance, helping reduce cooling costs compared to lower‑SEER models.

• Dependable Single‑Stage Operation: Single‑stage compressor offers simple, reliable performance with fewer moving parts and easier maintenance.

• R‑32 Refrigerant Compatible: Uses modern R‑32 refrigerant for improved heat transfer efficiency and lower environmental impact versus older refrigerants.

• Weather‑Resistant Build: Durable outdoor cabinet stands up to weather and seasonal conditions, enhancing long‑term reliability.

• Service‑Friendly Design: Accessible service valves and panels simplify installation and future maintenance work.

Q&A

Q: What cooling capacity and efficiency does the Goodman GLXS5BA1810 1.5 Ton Air Conditioner Condenser deliver?
A: This condenser offers 1.5 tons (≈18,000 BTU) of cooling with a 15.2 SEER2 efficiency rating, balancing solid energy performance and comfort for small to medium residential spaces.

Q: What type of compressor and refrigerant does it use?
A: It uses a single‑stage scroll compressor and is designed for R‑32 refrigerant, which supports modern efficiency and lower environmental impact.

Q: What are the main durability and protection features?
A: Standard features include a factory‑installed filter drier, enclosed contactor, high‑pressure safety switch, extended‑life capacitors, and a galvanized, powder‑coated steel cabinet with coil guard for outdoor durability.

Q: What are the electrical and connection specifications?
A: The condenser operates on 208/230 V single‑phase power, with 3/8″ liquid and 3/4″ suction line connections, and comes pre‑charged for up to 15 ft of tubing to simplify installation.

Q: How loud is the unit in operation?
A: Typical sound levels are around 72–73 dBA, making it reasonably quiet for a residential outdoor unit.

Maintenance Tips

• Maintain at least 24 inches of clearance around the outdoor unit for proper airflow and efficient cooling.

• Clean the condenser coil regularly with low-pressure water to remove dirt and debris and maintain SEER2 15.2 efficiency.

• Replace or clean indoor air filters every 1–3 months to reduce strain on the compressor and maintain airflow.

• Inspect refrigerant lines and insulation for leaks, damage, or loose connections to ensure proper R‑32 operation.

• Check electrical connections and disconnect box for corrosion, wear, or loose wiring.

• Monitor unusual noises or vibrations from the compressor or fan motor as early signs of maintenance needs.

• Ensure the unit is level to prevent drainage issues and uneven cooling.

• Keep the cabinet and coil guards clean and intact to protect components and maintain airflow.

• Schedule annual professional HVAC service to inspect refrigerant levels, coils, and system controls.
