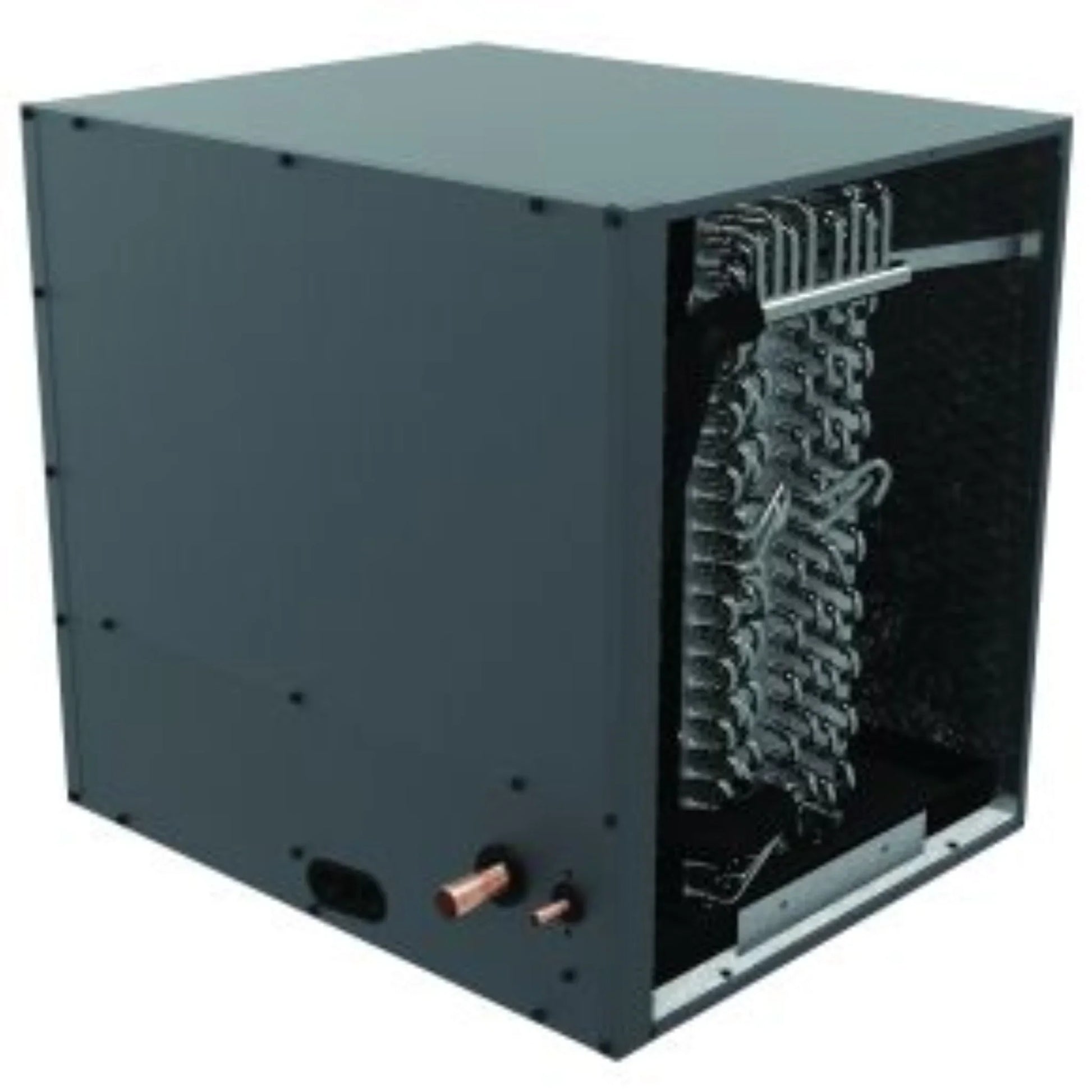

Goodman - 1.5 Ton - 17.5" Height Horizontal Cased Evaporator Coil TXV - R32 - CHPTA1822B3

Goodman - 1.5 Ton - 17.5" Height Horizontal Cased Evaporator Coil TXV - R32 - CHPTA1822B3

The Goodman CHPTA1822B3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA1822B3 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Features

• 1.5 ton horizontal evaporator coil
• Can be used with heat pump and AC-only condensers
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
• Factory-installed TXV kit


Specifications

Manual

• Installation Manual
• Spec Sheet

What our Experts Think

• Optimized for Next-Generation R-32 Systems
  The Goodman CHPTA1822B3 Horizontal Cased Evaporator Coil is designed specifically for R-32 refrigerant systems, helping homeowners transition to more efficient and environmentally friendly HVAC technology while maintaining reliable cooling performance.

• Factory-Installed TXV for Precise Cooling Control
  This coil includes a built-in Thermostatic Expansion Valve (TXV) that automatically regulates refrigerant flow. The result is better energy efficiency, improved humidity control, and more stable indoor temperatures.

• Durable All-Aluminum Coil Design
  The advanced all-aluminum tubing and fin construction improves heat transfer while resisting corrosion—helping the coil maintain long-term performance in residential HVAC systems.

• Compact Horizontal Cabinet for Tight Spaces
  With a 17.5″ height and horizontal configuration, this coil is ideal for attics, crawl spaces, and other compact installations, offering flexibility when paired with compatible furnaces or air handlers.

• Moisture-Resistant Cabinet & Drain Pan
  Foil-faced insulation helps reduce cabinet condensation, while the rust-resistant thermoplastic drain pan with low water retention helps prevent corrosion and moisture buildup.

• Service-Friendly Design for Faster Maintenance
  A single front access panel and split-seam cabinet design make inspections and servicing easier for HVAC technicians, saving time during installation and maintenance

Q&A

Q1: What size HVAC system is this evaporator coil designed for?
A: The Goodman CHPTA1822B3 is designed for 1–1.5 ton central air conditioning or heat pump systems, ideal for smaller residential cooling setups.

Q2: Does this evaporator coil include a TXV valve?
A: Yes. It features a factory-installed TXV (Thermostatic Expansion Valve) that helps regulate refrigerant flow for improved efficiency and system performance.

Q3: What refrigerant is this coil compatible with?
A: This model is engineered specifically for R-32 refrigerant, supporting modern HVAC systems designed for higher efficiency and lower environmental impact.

Q4: What are the cabinet dimensions?
A: The coil has a 17.5-inch height, 22-inch width, and 21-inch depth, making it suitable for compact horizontal installations in attics or crawl spaces.

Q5: What type of construction does this evaporator coil use?
A: It features all-aluminum tubing and fin construction with a galvanized steel cased cabinet, designed for durability and corrosion resistance.

Q6: Is this coil suitable for horizontal installation?
A: Yes. The horizontal cased A-coil design allows installation in tight spaces such as attics, closets, or crawl spaces.

Q7: Is this evaporator coil certified for quality and safety?
A: Yes. The coil is AHRI certified and ETL listed, ensuring it meets industry performance and safety standards.

Q8: What type of HVAC systems work best with this coil?
A: It works best with compatible 1–1.5 ton R-32 air conditioners or heat pumps, particularly when paired with a matched indoor blower or furnace for optimal efficiency.

Maintenance Tips

• Replace HVAC Air Filters Every 1–3 Months – Clean filters maintain proper airflow across the all-aluminum evaporator coil, improving cooling efficiency and preventing coil icing.

• Keep the Coil Surface Clean – Dust buildup on aluminum fins reduces heat transfer. Schedule professional coil cleaning annually to maintain performance.

• Inspect the Condensate Drain Pan & Line – Ensure the rust-resistant thermoplastic drain pan and drain lines remain clear to prevent water leaks and microbial growth.

• Check TXV Performance – The factory-installed thermostatic expansion valve regulates refrigerant flow; periodic HVAC service ensures correct superheat and efficient cooling.

• Maintain Proper Airflow Through Ductwork – Keep supply and return vents unobstructed to support consistent airflow through the horizontal A-coil design.

• Inspect the Cabinet & Insulation – The galvanized insulated cabinet reduces condensation; check periodically for moisture, insulation wear, or corrosion.

• Schedule Annual HVAC Maintenance – Professional inspections help detect refrigerant issues, clean internal components, and keep the 1.5-ton R32 system operating efficiently.
