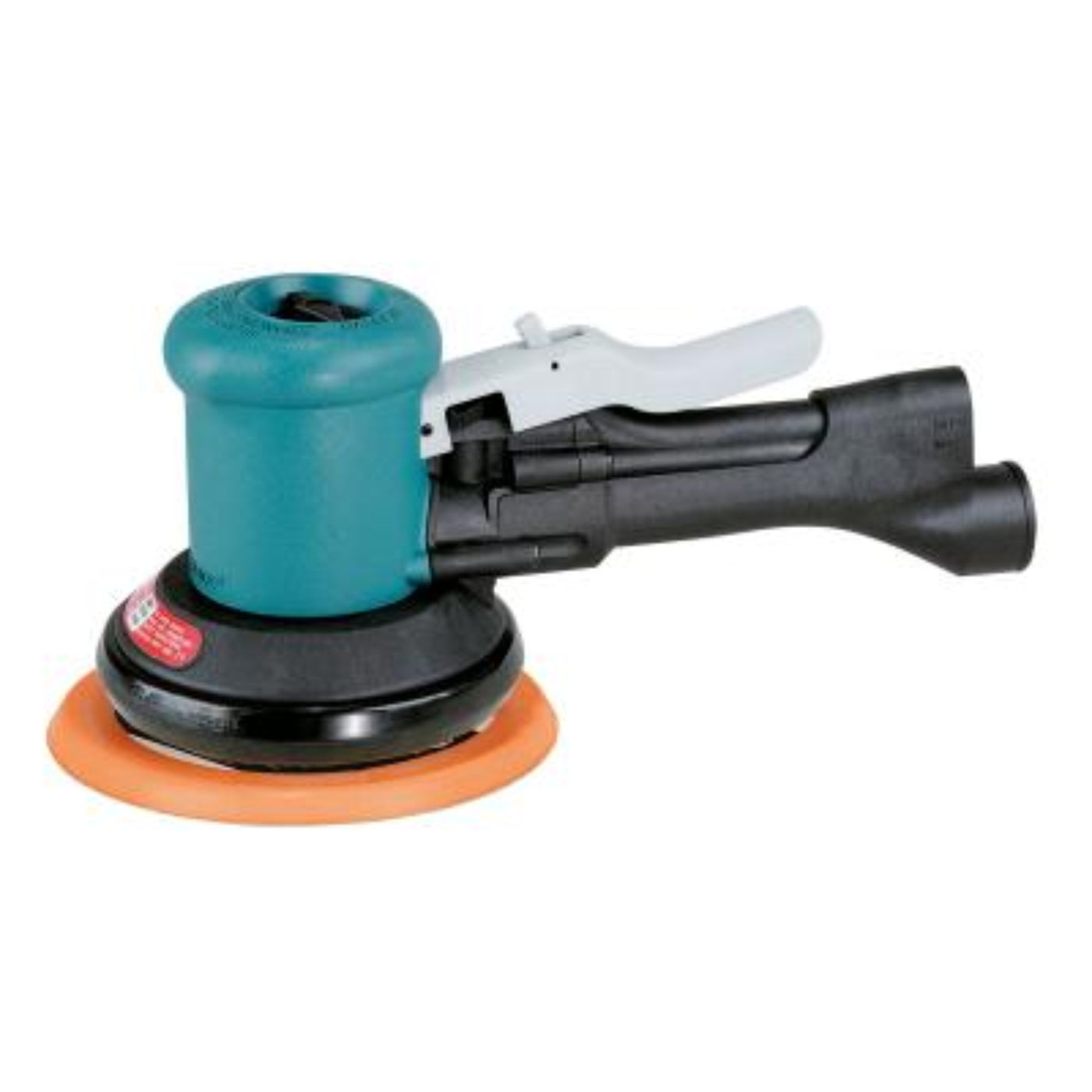

DYNABRADE 6" (152 mm) Dia. DynaLocke Dual-Action Sander, Self-Generated Vacuum - 58436

DYNABRADE 6" (152 mm) Dia. DynaLocke Dual-Action Sander, Self-Generated Vacuum - 58436

$424.99
$424.99 $565.99
SAVE 24% Sold out
DYNABRADE 6" (152 mm) Dia. DynaLocke Dual-Action Sander, Self-Generated Vacuum - 58436

DYNABRADE 6" (152 mm) Dia. DynaLocke Dual-Action Sander, Self-Generated Vacuum - 58436

$424.99
$424.99 $565.99
SAVE 24% Sold out

DYNABRADE 6" (152 mm) Dia. DynaLocke Dual-Action Sander, Self-Generated Vacuum - 58436

  •  .45 hp, 12,000 RPM, 3/16" (5 mm) Dia. Orbit/Rotary, Rear Exhaust.
  • Self-Generated Vacuum models are ready for connection to optional portable dust collection system.
  • Tool has 1-1/4" outside diameter vacuum port, allowing increased air flow.
  • Designed to vacuum in random orbital mode only.
  • Includes low profile, premium urethane, hook-face sanding pad.
Specifications
Air Consumption (SCFM) 23.0
Power (hp) 0.45
Max. RPM 12,000
Pad Face Hook-Face
Tool Spindle Thread 5/16-24 Female
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 3/8"
Vacuum Type Self Generated Vacuum
Motor Type Rotary Vane
Height in. (mm) 5.125
Length in. (mm) 11.0625
Weight lb. (kg) 2.89
Width in. (mm) 6.5
Pkg. Height in. (mm) 5.75
Pkg. Length in. (mm) 11.88
Pkg. Weight lb. (kg) 3.84
Pkg. Width in. (mm) 6.5
CE Certified Yes
EAN (UPC) 0616026584365
EAC Certified Yes
Tool Style Two-Hand
What our Experts Think
  • The Dynabrade 58436 6" (152 mm) DynaLocke Dual-Action Sander, Self-Generated Vacuum is a professional-grade pneumatic finishing sander designed for controlled surface prep with integrated dust management.
  • Features the DynaLocke dual-action system, allowing quick switching between rotary sanding (aggressive cut) and random orbital mode (fine, swirl-free finish) via a single control switch.
  • Delivers 12,000 RPM with a 3/16" (5 mm) orbit, giving it strong material removal capability while still maintaining finish-quality control for automotive and industrial work.
  • The self-generated vacuum system (dust extraction ready design) connects to a 1-1/4" port, improving airflow and helping keep the work surface cleaner during sanding operations.
  • Built around a 0.45 HP pneumatic motor with rear exhaust, offering stable performance, reduced dust blowback, and consistent sanding behavior under load.
  • Uses a 6" hook-and-loop pad system, making it suitable for broad surface coverage while maintaining precision control on panels, composites, and metal surfaces.
  • Best suited for professionals in auto body repair, fabrication, and finishing work who need a single tool that can both cut aggressively and finish cleanly while supporting dust management systems.

Q&A

Q: What is the Dynabrade 58436 6" DynaLocke Dual-Action Sander (Self-Generated Vacuum) used for?
A: It is a professional pneumatic dual-action sander designed for automotive paint stripping, surface blending, metal finishing, composite work, and fine surface preparation.

Q: What does “Self-Generated Vacuum” mean?
A: It means the tool can capture sanding dust through its pad system and can also connect to an external dust collection system for cleaner operation.

Q: What makes the DynaLocke system different?
A: It features a switchable dual-mode design, allowing the user to change between rotary sanding (aggressive cut) and random orbital sanding (fine finish) using a built-in switch.

Q: What materials can it be used on?
A: It works on automotive paint, steel, aluminum, fiberglass, composites, wood, and solid surfaces like Corian for finishing and leveling.

Q: Is it vacuum required?
A: No, it is self-generated vacuum, but it can also connect to an external dust extraction system for improved cleanup.


Maintenance Tips
  • Lubricate air motor daily with pneumatic tool oil to maintain smooth, efficient operation.
  • Use clean, dry compressed air at recommended pressure to prevent internal wear and corrosion.
  • Clean and inspect self-generated vacuum passages regularly to prevent dust clogging and airflow loss.
  • Empty and check vacuum collection system frequently to maintain strong dust extraction performance.
  • Inspect 6" DynaLocke pad for wear, imbalance, or weak hook-and-loop grip and replace when needed.
  • Keep air inlet and exhaust ports clear of dust and sanding debris for proper cooling and airflow.
  • Check hoses, fittings, and vacuum channels for leaks or blockages.
  • Replace sanding discs and pads promptly to maintain finish quality and reduce vibration.
  • Operate at correct air pressure to avoid overspeeding and premature motor wear.
  • Store in a dry, clean environment to protect air motor and vacuum components from moisture and dust buildup.
