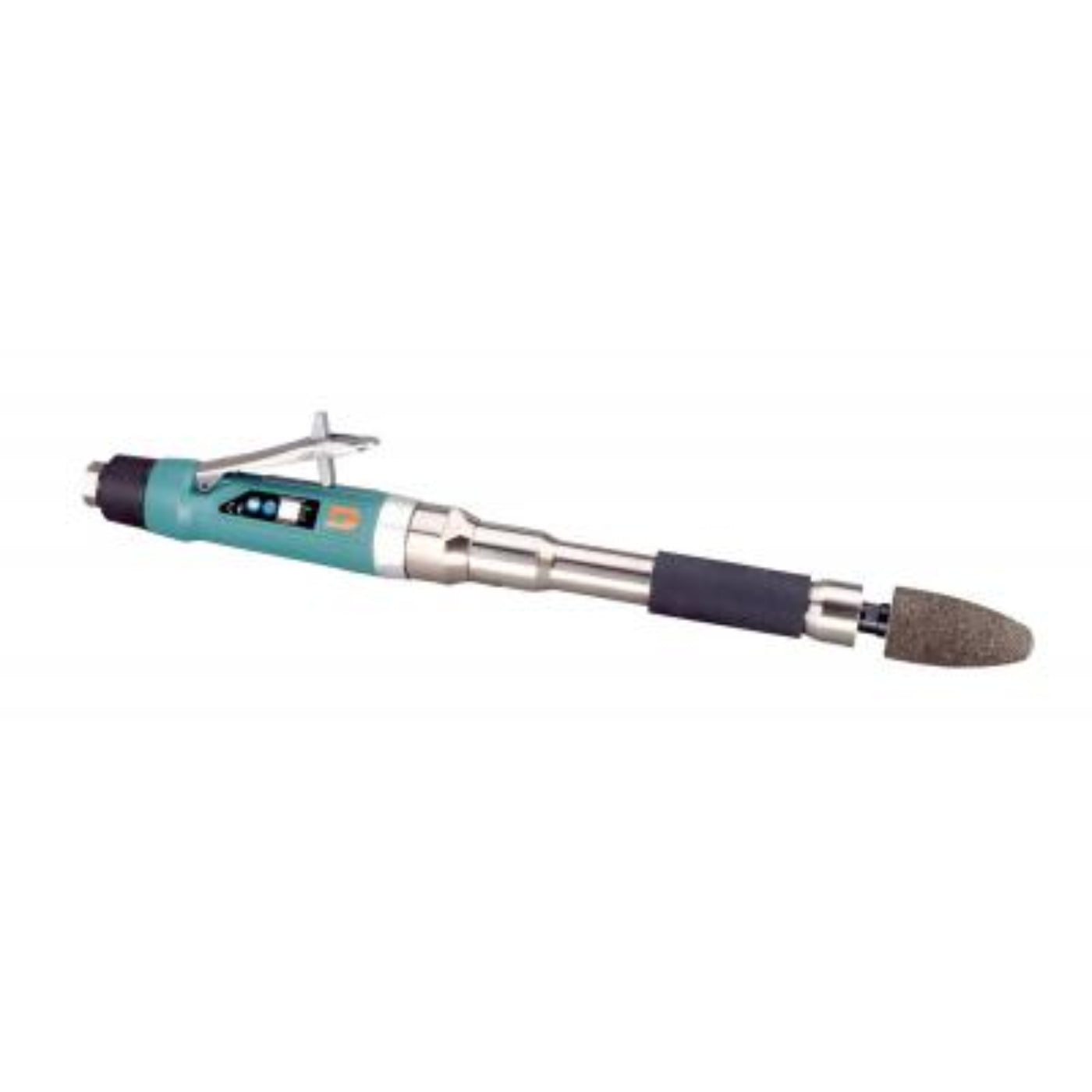

DYNABRADE Cone Or Plug Grinder (Single Extension) - 53531

DYNABRADE Cone Or Plug Grinder (Single Extension) - 53531

$755.99
$755.99 $1,006.99
SAVE 24% Sold out
DYNABRADE Cone Or Plug Grinder (Single Extension) - 53531

DYNABRADE Cone Or Plug Grinder (Single Extension) - 53531

$755.99
$755.99 $1,006.99
SAVE 24% Sold out

DYNABRADE Cone Or Plug Grinder (Single Extension) - 53531

  • 1 hp, Straight-Line, 18,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
  • Includes 3/8"-24 Male Threaded Adapter (53610)
  • Extension Grinders allow operator to extend into work pieces and reach lengthy distances.
  • Extension length of 8-3/8? allows longer reach than competitive models! Extensions are constructed of steel for maximum durability.
  • Designed for minimal vibration. Extensions do not spin during tool use, so continuous tightening is not needed (as with some one-piece shaft-type extensions).
  • Tools can also be fitted with optional Buffing Pads, optional collets and inserts, plus optional Cone/Plug Wheels. (Note: Speed of tool must not exceed maximum operating speed of accessory.)
Specifications
Air Consumption (SCFM) 40.0
Power (hp) 1.0
Max. RPM 18,000
Tool Spindle Thread 3/8"- 24 Male
Air Inlet Thread 3/8" NPT
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 3/8"
Vacuum Type Non-Vacuum
Motor Type Rotary Vane
Height in. (mm) 1.875
Length in. (mm) 18.375
Weight lb. (kg) 4.8
Width in. (mm) 4.75
Pkg. Height in. (mm) 3
Pkg. Length in. (mm) 19.25
Pkg. Weight lb. (kg) 5.35
Pkg. Width in. (mm) 4.75
CE Certified Yes
EAN (UPC) 0616026535312
EAC Certified Yes
Tool Style Straight Line
What our Experts Think
  • The Dynabrade 53531 Cone or Plug Grinder (Single Extension) is a precision industrial air grinder designed for grinding, deburring, weld blending, and surface preparation in confined or hard-to-reach areas.
  • Features a single extended spindle design, providing improved access inside fabricated assemblies, castings, tubes, and other restricted workspaces where standard grinders cannot reach.
  • Engineered for use with cone and plug grinding wheels, making it particularly effective for detailed metal finishing, edge work, and weld cleanup applications.
  • Powered by a high-performance pneumatic motor, delivering consistent speed and torque for demanding production and maintenance environments.
  • Built with a lightweight, ergonomic housing, helping reduce operator fatigue during extended periods of use.
  • Includes safety-focused throttle controls and rugged industrial construction, supporting reliable operation in fabrication shops, foundries, shipyards, and manufacturing facilities.
  • Designed to maintain smooth, controlled material removal, allowing greater precision when working on intricate components or tight internal surfaces.
  • Best suited for professionals who need an extended-reach grinding solution for precision finishing and difficult-access metalworking applications, rather than general-purpose grinding tasks.

Q&A

Q: What is the Dynabrade Cone or Plug Grinder (53531) used for?
A: It is a professional pneumatic straight-line grinder designed for use with cone and plug wheels for grinding, deburring, weld blending, and surface preparation in metal fabrication and industrial applications.

Q: What makes the 53531 ideal for precision grinding?
A: Its single-extension design provides added reach into confined areas while maintaining control and stability for detailed grinding tasks.

Q: What types of abrasives can it use?
A: It is designed to accept cone and plug grinding wheels, making it suitable for cleaning welds, smoothing castings, and removing material in hard-to-access locations.

Q: What industries commonly use this grinder?
A: It is widely used in metal fabrication, welding shops, foundries, shipbuilding, manufacturing, and industrial maintenance environments.

Q: What are the key benefits of the Dynabrade 53531?
A: It offers extended reach, powerful material removal, durable industrial construction, and precise control for demanding grinding applications.

Q: Does it require an air compressor?
A: Yes, the 53531 is an air-powered grinder and requires a properly sized compressed air system for optimal performance.

Maintenance Tips
  • Lubricate the air motor daily with approved pneumatic tool oil for maximum performance and longevity.
  • Use clean, dry compressed air at the recommended pressure to minimize internal wear and corrosion.
  • Inspect abrasive cones and plugs before each use; replace worn, cracked, or damaged accessories immediately.
  • Check extension shaft, collet, and spindle connections regularly for tightness and wear.
  • Keep exhaust ports and air inlets free from dust and grinding debris to maintain proper airflow.
  • Verify air hoses and fittings are leak-free to ensure consistent power and speed.
  • Avoid exceeding the rated operating speed of mounted abrasives to prevent premature wear and safety hazards.
  • Monitor vibration levels during operation; excessive vibration may indicate accessory imbalance or bearing wear.
  • Clean the tool after each use and store in a dry environment to prevent moisture-related damage.
  • Periodically inspect throttle and safety lever operation to ensure safe, reliable performance.
