DYNABRADE 3/8" Central Vacuum Drill - 53104

$896.99

$896.99 ~~$1,194.99~~

SAVE 24% Sold out

Product variants

DYNABRADE 3/8" Central Vacuum Drill - 53104

$896.99

$896.99 ~~$1,194.99~~

SAVE 24% Sold out

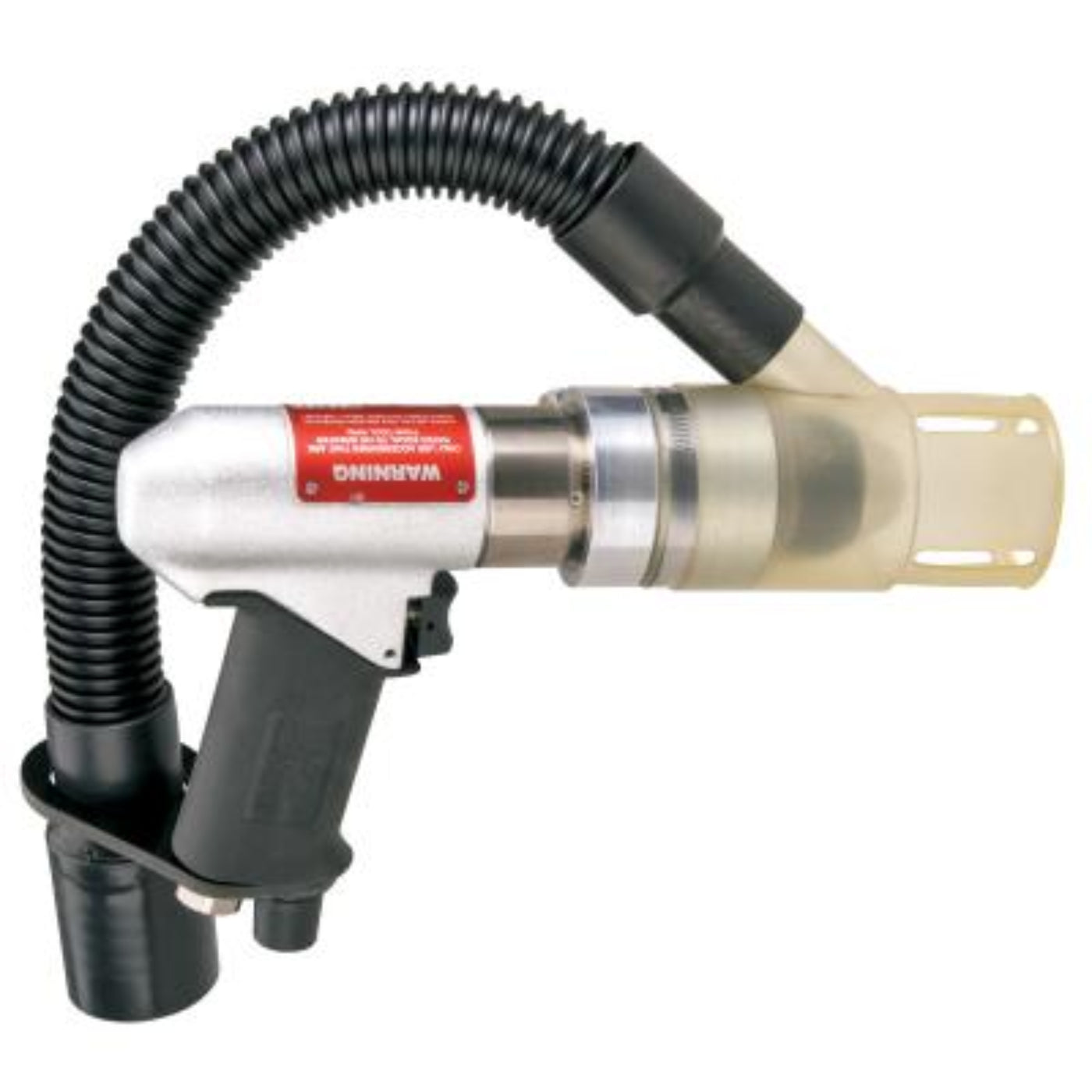

DYNABRADE 3/8" Central Vacuum Drill - 53104

.7 hp, Pistol Grip, 4,500 RPM, Rear Exhaust, Jacobs Chuck.
.7 hp (522 W) Vacuum Drills include collapsible Vacuum Shroud, which compresses around drill bit to effectively capture chips and debris.
Pistol Grip design includes slow-speed start-up trigger.
High torque air motor; comfortable insulated tool grip.
Includes Conductive Hose & Cuffs, to shield operator from electrostatic discharge (ESD). 1-1/4" (32 mm) Diameter Vacuum Port for connection to Central Vacuum System.
Keyless chuck can be tightened by hand.

Specifications

Air Consumption (SCFM)	40.0
Power (hp)	0.7
Max. RPM	4,500
Tool Spindle Thread	3/8"-24 Male
Air Inlet Thread	1/4" NPT
Chuck Size	3/8"
Exhaust Type	Rear
GL_Country Of Origin	US
Hose I.D. in. (mm)	3/8"
Vacuum Type	Vacuum
Height in. (mm)	5.875
Length in. (mm)	10.375
Weight lb. (kg)	4
Width in. (mm)	10.0
Pkg. Height in. (mm)	6
Pkg. Length in. (mm)	15.5
Pkg. Weight lb. (kg)	4.8
Pkg. Width in. (mm)	10
CE Certified	Yes
EAN (UPC)	0616026531048
EAC Certified	Yes
Tool Style	Pistol Grip

What our Experts Think

Integrated Central Vacuum Design – The Dynabrade 53104 helps reduce airborne dust by connecting to a central vacuum system, promoting a cleaner and safer workspace.
Reliable 3/8" Drilling Performance – Delivers consistent power and precision for demanding industrial drilling and production tasks.
Improved Workplace Efficiency – Dust extraction enhances visibility, minimizes cleanup time, and helps maintain cleaner work surfaces.
Excellent Precision & Control – Ergonomic, well-balanced construction provides accurate drilling with reduced operator fatigue.
Built for Industrial Durability – Rugged design ensures dependable performance in fabrication, manufacturing, maintenance, and assembly environments.
Smooth Pneumatic Operation – Air-powered performance provides reliable torque, consistent productivity, and low maintenance.
Best For: Metal fabrication, aerospace manufacturing, automotive assembly, composite machining, industrial maintenance, and dust-controlled drilling applications.

Q&A

Q: What is the DYNABRADE 53104 3/8" Central Vacuum Drill used for?
A: It is designed for precision drilling while working with a central vacuum system to reduce dust and debris during operation.

Q: What are the benefits of the central vacuum feature?
A: It helps capture drilling dust, improves visibility, maintains a cleaner work area, and supports better air quality.

Q: What materials can this drill be used on?
A: It is suitable for metal, composites, plastics, fiberglass, and other industrial materials with the appropriate drill bit.

Q: Is this drill suitable for professional industrial applications?
A: Yes, it is ideal for aerospace, automotive, manufacturing, fabrication, and maintenance environments where dust extraction is important.

Q: How can I maintain optimal performance?
A: Use clean, dry compressed air, keep the vacuum system and air passages clear, lubricate regularly, and inspect the chuck and drill bits for wear.

Maintenance Tips

Lubricate the air motor daily with approved pneumatic tool oil for smooth, reliable operation.
Use clean, dry compressed air at the recommended operating pressure to minimize internal wear.
Inspect the chuck and drill bits before each use and replace worn or damaged accessories promptly.
Keep the central vacuum port and extraction hose clear for efficient dust collection.
Clean air inlets, exhaust ports, and vacuum connections after each use.
Check air hoses, vacuum hoses, and fittings regularly for leaks or damage.
Tighten loose fasteners and inspect moving parts for signs of wear during routine maintenance.
Store the drill in a clean, dry environment to prevent corrosion and extend service life.
